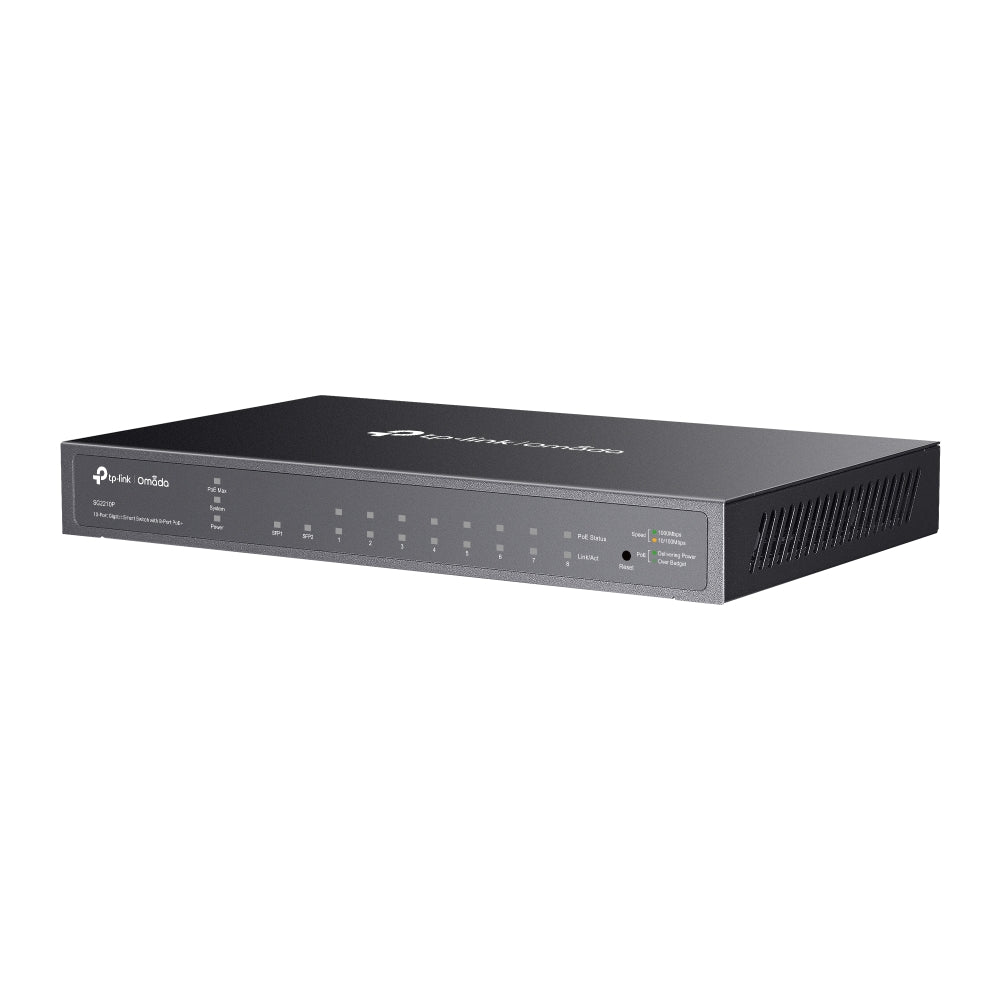

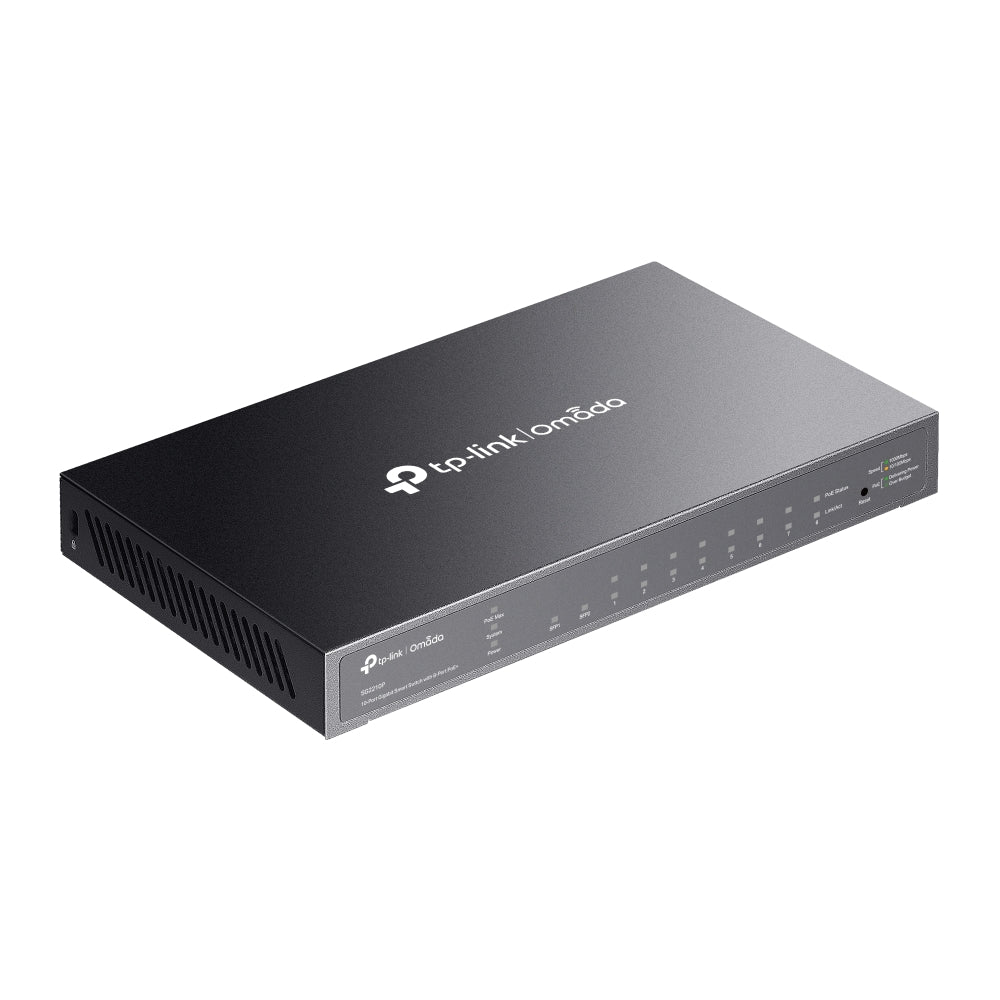

TP-Link SG2210P – Omada 10-Port Gigabit Smart Managed Switch with 8-Port PoE+

Empower your business network with the TP-Link SG2210P, a compact and cost-effective Gigabit Smart Managed Switch built for small business and branch office deployments. Featuring 8× Gigabit PoE+ ports and 2× Gigabit SFP slots, this switch delivers high-speed connectivity and the flexibility to expand your network backbone with fiber uplinks.

With a 61 W PoE budget, the SG2210P is perfect for powering devices like wireless access points, IP cameras, and VoIP phones, simplifying network cabling and reducing installation costs.

Seamlessly integrated into TP-Link’s Omada SDN, it offers centralized management, Zero-Touch Provisioning (ZTP), and advanced monitoring for smooth network operations. A fanless design ensures silent operation, making it ideal for noise-sensitive environments like offices or retail shops.

Small yet feature-rich, the SG2210P brings enterprise-grade capabilities, robust security, and the convenience of cloud management to your business at an accessible price.

What's Included in the Box

• SG2210P Switch

• Power Adapter

• Installation Guide

• Rubber Feet

Main Features

✅ Compact Smart PoE+ Switch

• 8× PoE+ ports for simultaneous power and data, plus 2× SFP slots for flexible uplinks.

✅ 61 W PoE Budget

• Powers devices like IP cameras and APs without extra electrical wiring.

✅ Omada SDN Integration

• Enables cloud management, Zero-Touch Provisioning (ZTP), and intelligent network monitoring.

✅ Robust Security Suite

• Includes 802.1X, ACLs, DHCP Snooping, IP-MAC-Port Binding, and more.

✅ Optimized Performance

• L2/L3/L4 QoS, IGMP snooping, and multicast management keep your network smooth and responsive.

✅ Silent Operation

• Fanless design for noise-free deployments in office or retail environments.

Detailed Specifications

Hardware Specifications

• Ports:

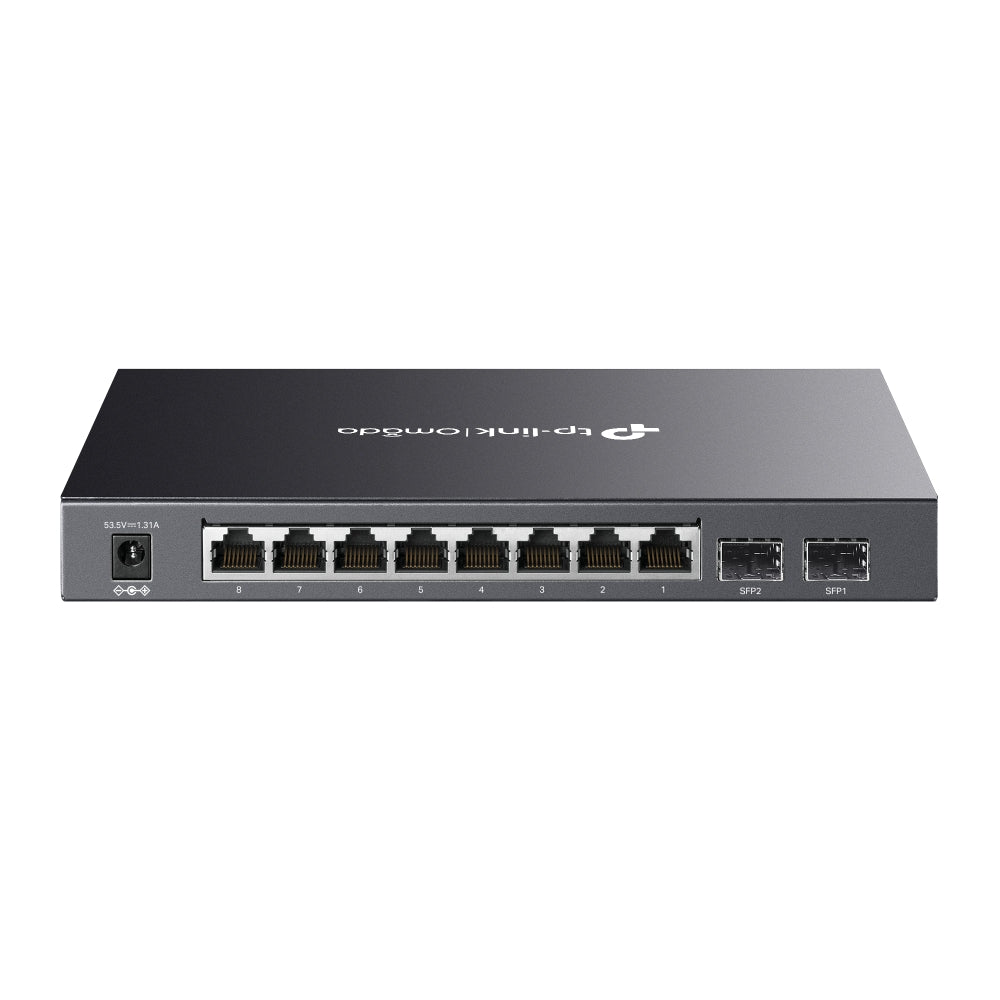

  • 8× 10/100/1000 Mbps PoE+ RJ45 Ports

  • 2× 100/1000 Mbps SFP Slots

• PoE Standard: IEEE 802.3af/at

• PoE Power Budget: 61 W total

• Physical Security Lock: Yes

• Fan Quantity: Fanless

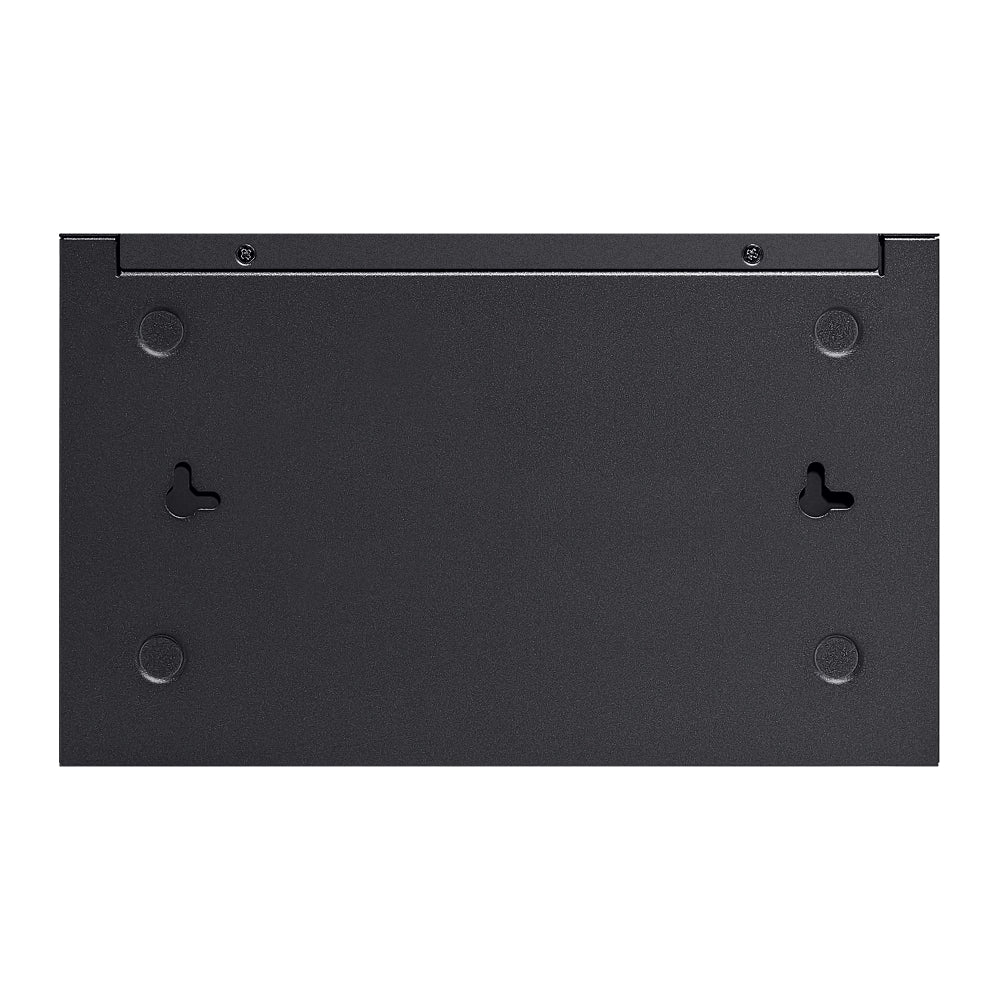

• Mounting: Desktop / Wall-Mounting

• Dimensions: 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

• Max. Power Consumption: 77.8 W (with 61 W PD connected)

• Max. Heat Dissipation: 265.3 BTU/hr (110 V/60 Hz with 61 W PD connected)

Performance

• Switching Capacity: 20 Gbps

• Packet Forwarding Rate: 14.88 Mpps

• MAC Address Table: 8K

• Packet Buffer Memory: 4.1 Mbit

• Jumbo Frame: 9 KB

Software Features

• Quality of Service (QoS):

  • 802.1p CoS/DSCP

  • 8 Priority Queues

  • Strict Priority (SP), Weighted Round Robin (WRR)

  • Bandwidth Control (Port/Flow-based)

  • Storm Control

• Layer 2 & Layer 2+ Features:

  • Static Routing (IPv4/IPv6)

  • DHCP Server, Relay, and L2 Relay

  • Static ARP, Proxy ARP

  • Link Aggregation

  • Spanning Tree Protocol (STP/RSTP/MSTP)

  • Loopback Detection

  • 802.3x Flow Control

  • Mirroring

• L2 Multicast:

  • IGMP Snooping v1/v2/v3

  • MLD Snooping

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering

• VLAN:

  • Up to 4K VLAN groups

  • 802.1Q VLAN tagging

  • MAC VLAN

  • Protocol VLAN

  • GVRP

  • Voice VLAN

• Access Control:

  • Time-Based ACL

  • MAC/IP/IPv6 ACLs

  • Combined ACL

  • Up to 230 ACL entries

• Security:

  • IP-MAC-Port Binding

  • AAA (TACACS+/RADIUS)

  • DHCP Snooping

  • DoS Defend

  • Port Isolation

  • Static/Dynamic/Permanent Port Security

  • Broadcast/Multicast/Unicast Storm Control

• IPv6:

  • Dual-Stack IPv4/IPv6

  • IPv6 ACLs

  • Neighbor Discovery

  • Static IPv6 Routing

• Management:

  • Omada SDN integration

  • Web-based GUI

  • CLI (Telnet/SSH)

  • SNMP v1/v2c/v3

  • RMON

  • Dual Image support

  • Cable Diagnostics

Warranty Information

TP-Link provides standard limited warranty coverage for the SG2210P, with support available through official channels. Check regional terms for exact warranty duration and services.

About TP-Link Omada

TP-Link Omada delivers a complete business networking solution, unifying access points, switches, and routers under a central platform for seamless, cloud-managed control. Omada SDN simplifies large-scale deployments with advanced security, automation, and performance optimization.

SKU

SG2210P

Practical Use Scenarios

• Retail Environments: Power security cameras, digital signage, and POS devices without the need for extra power outlets.

• Small Business Offices: Connect and power wireless access points, VoIP phones, and IP surveillance equipment.

• Hospitality Venues: Simplify network cabling in guest areas and back-office systems.

• Remote Locations: Ideal for small branches or kiosks needing cost-effective PoE switching.

Datasheets or Downloadable Resources

Download SG2210P Datasheet

Excellence for the Australian and New Zealand Market

The SG2210P is fully compliant with CE, FCC, and RoHS certifications, ensuring adherence to safety and performance standards in Australia and New Zealand. When purchasing through authorized distributors, customers enjoy genuine warranty support and direct brand assistance. TP-Link’s Omada SDN solutions offer businesses across ANZ future-ready networking with seamless local support and compliance with regional standards.

FAQs (SG2210P)

Q1: Does the SG2210P support PoE on all ports?
A1: The SG2210P provides PoE+ on ports 1–8, delivering up to 30 W per port. Ports 9 and 10 are SFP slots and do not support PoE. (SG2210P)

Q2: What is the total PoE budget for the SG2210P?
A2: The switch has a total PoE budget of 61 W across its 8 PoE+ ports. (SG2210P)

Q3: Can I manage the SG2210P using Omada Cloud Controller?
A3: Yes! The SG2210P integrates seamlessly with TP-Link’s Omada SDN, enabling cloud-based centralized management and Zero-Touch Provisioning. (SG2210P)

Q4: Is the SG2210P fanless?
A4: Yes. The SG2210P features a fanless design for silent operation, making it suitable for quiet environments. (SG2210P)

Q5: Does the SG2210P support IPv6 networking?
A5: Absolutely. It supports IPv6 static routing, ACLs, neighbor discovery, and various IPv6 management features for future-ready networking. (SG2210P)
