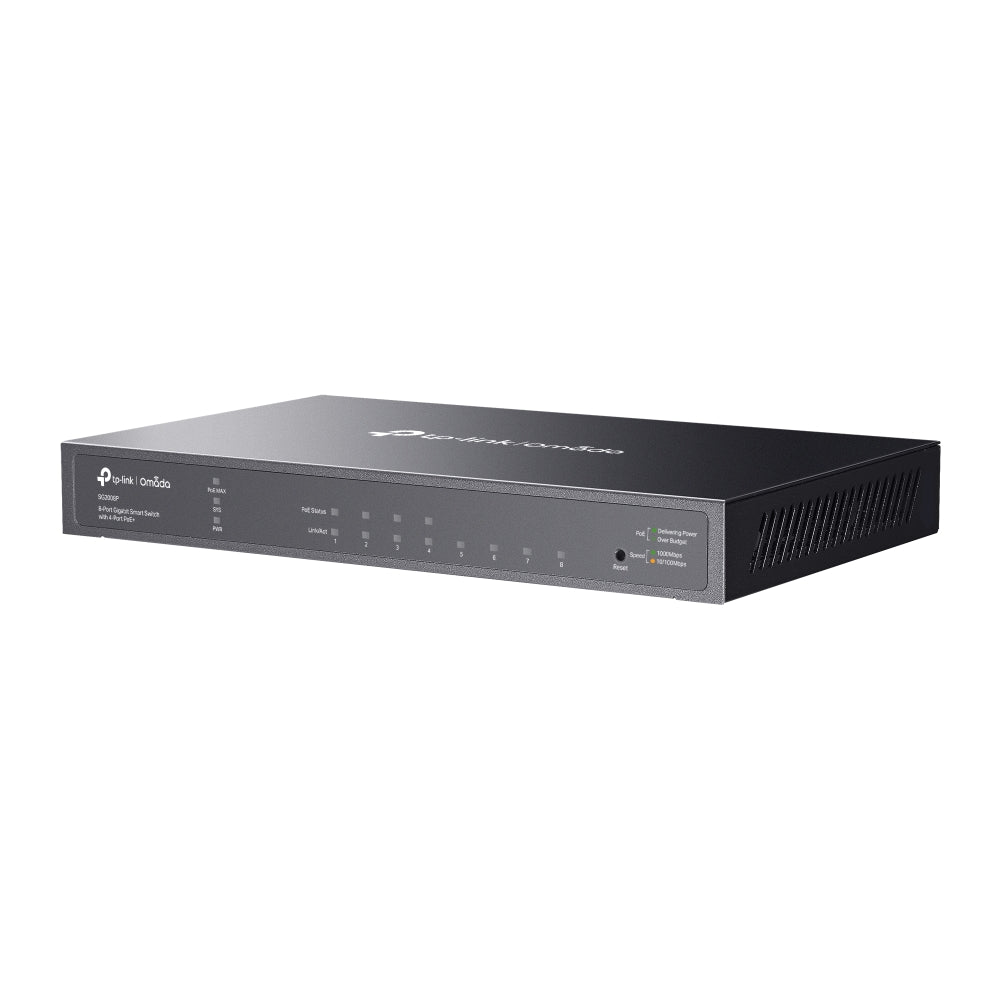

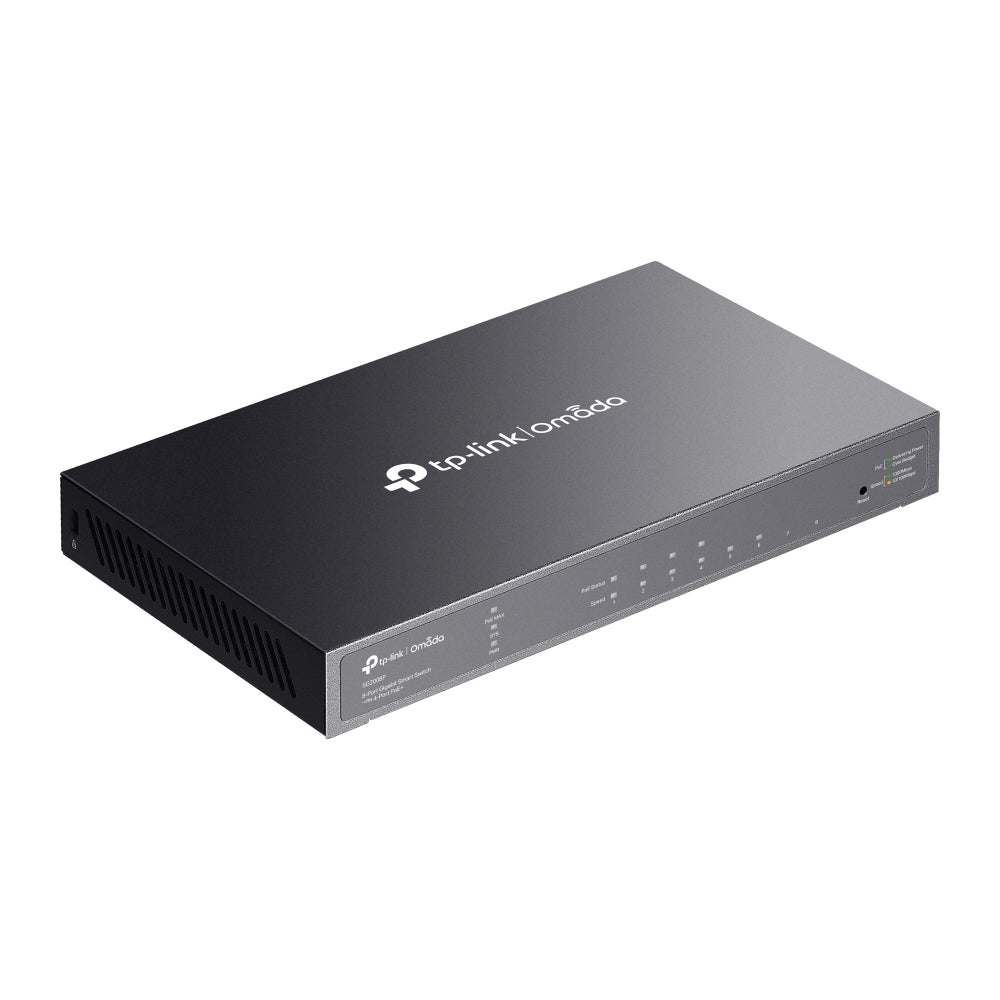

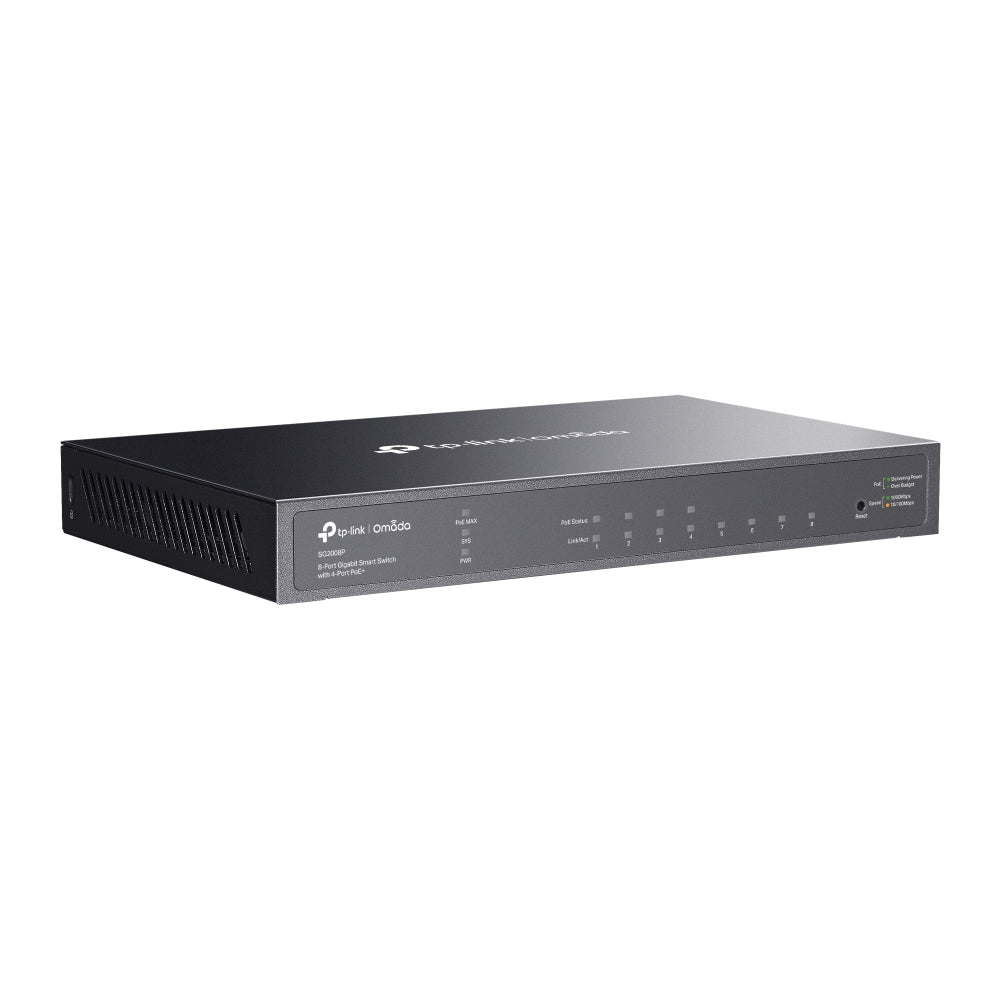

TP-Link SG2008P – Omada 8-Port Gigabit Smart Managed Switch with 4-Port PoE+

Elevate your business network with the TP-Link SG2008P, an affordable yet feature-rich smart managed switch designed for small offices, retail stores, and home business setups. Equipped with 8× Gigabit RJ45 ports, including 4× PoE+ ports, this switch offers exceptional versatility by delivering both power and data over a single Ethernet cable, reducing installation costs and simplifying your network.

With a 62 W PoE budget, the SG2008P can easily power devices such as wireless access points, IP cameras, and VoIP phones. Integrated seamlessly into the TP-Link Omada SDN platform, this smart switch provides centralized cloud management, Zero-Touch Provisioning (ZTP), and advanced network insights through the Omada app or web interface.

A fanless design ensures silent operation, perfect for noise-sensitive environments like offices or retail counters. Despite its compact size, it’s packed with enterprise-grade capabilities, including VLANs, advanced QoS, robust security, and IPv6 support.

What's Included in the Box

• SG2008P Switch

• Power Adapter

• Installation Guide

• Rubber Feet

Main Features

✅ Compact Smart PoE+ Switch

• 4 PoE+ ports deliver both power and data, ideal for powering cameras, APs, and VoIP devices.

✅ 62 W PoE Budget

• Enough to handle multiple PoE devices simultaneously without additional power wiring.

✅ Omada SDN Integration

• Cloud management, remote monitoring, and zero-touch deployment simplify large or multi-site deployments.

✅ Fanless Silent Design

• Perfect for noise-sensitive environments like retail counters or small offices.

✅ Robust Security Suite

• Comprehensive protections including IP-MAC-Port Binding, ACLs, storm control, and more.

✅ Enterprise Features in a Small Form Factor

• Supports VLANs, advanced QoS, static routing, and multicast management.

Detailed Specifications

Hardware Specifications

• Ports:

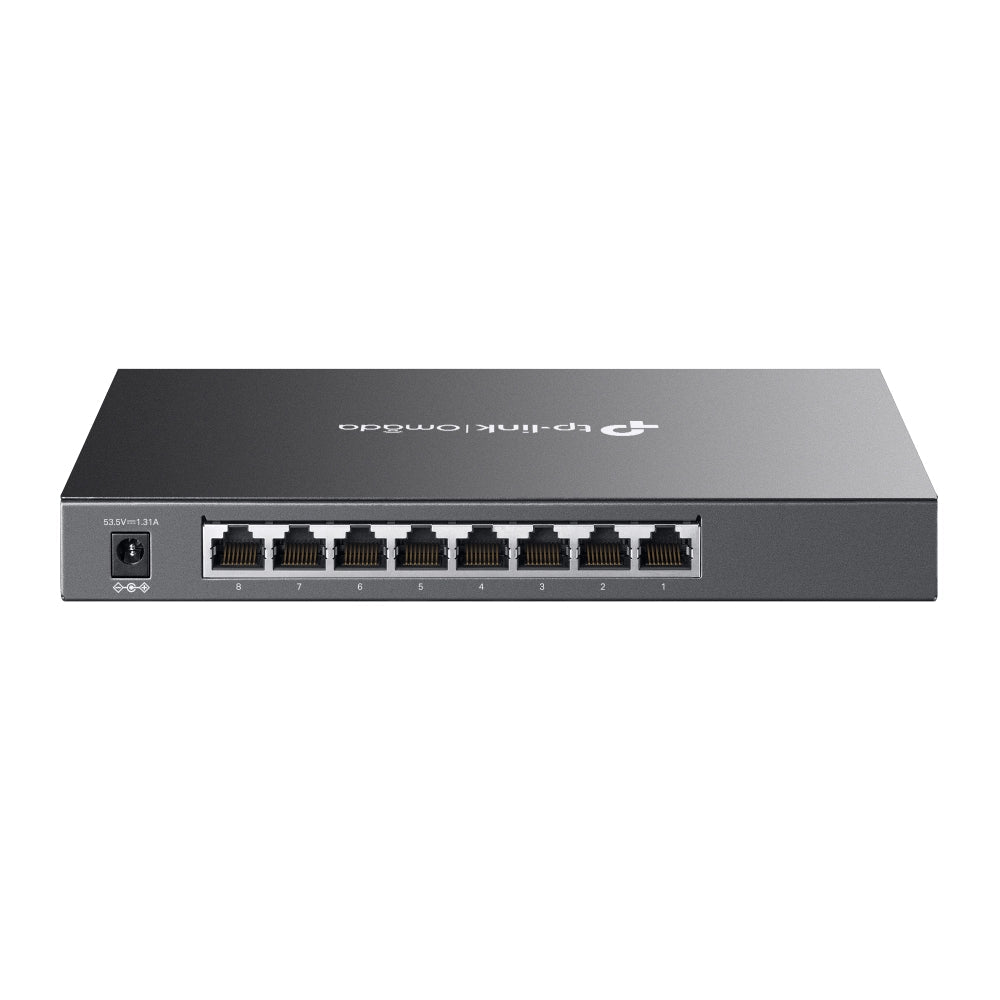

  • 8× 10/100/1000 Mbps RJ45 ports

  • Ports 1–4 support 802.3af/at PoE+

• PoE Power Budget: 62 W total

• Fan Quantity: Fanless

• Physical Security Lock: Yes

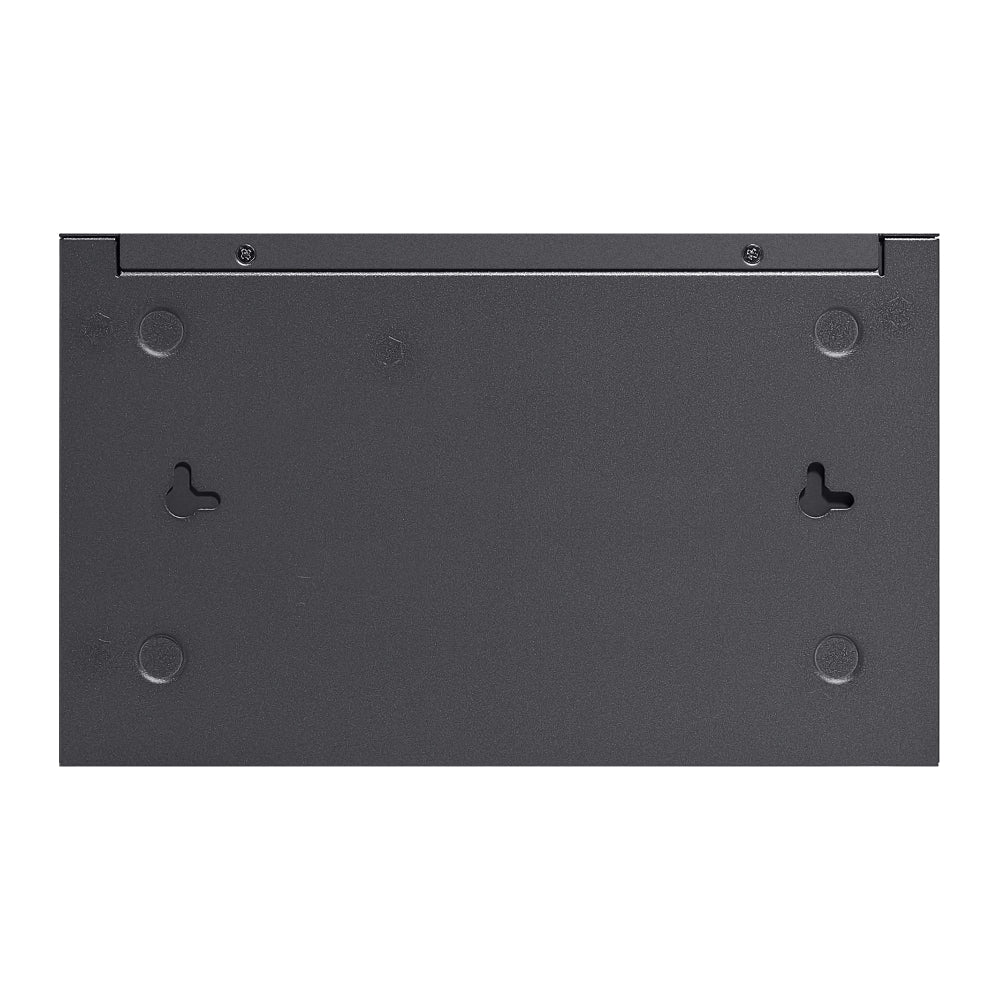

• Mounting: Desktop / Wall-Mounting

• Dimensions: 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

• Max. Power Consumption: 77.3 W (with 62 W PD connected)

• Max. Heat Dissipation: 263.6 BTU/hr (with 62 W PD connected)

Performance

• Bandwidth/Backplane: 16 Gbps

• Packet Forwarding Rate: 11.90 Mpps

• MAC Address Table: 8K

• Packet Buffer Memory: 4.1 Mbit

• Jumbo Frame: 9 KB

Software Features

• Quality of Service (QoS):

  • 802.1p CoS/DSCP priority

  • 8 Priority Queues

  • Strict Priority (SP), Weighted Round Robin (WRR)

  • Bandwidth Control

  • Storm Control

• Layer 2 & Layer 2+ Features:

  • Static Routing (IPv4/IPv6)

  • DHCP Server, Relay, and L2 Relay

  • Static ARP, Proxy ARP

  • Link Aggregation

  • Spanning Tree Protocol

  • Loopback Detection

  • 802.3x Flow Control

  • Mirroring

• L2 Multicast:

  • IGMP Snooping

  • MLD Snooping

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering

• VLAN:

  • Up to 4K VLAN groups

  • 802.1Q VLAN tagging

  • MAC VLAN

  • Protocol VLAN

  • GVRP

  • Voice VLAN

• Access Control:

  • Time-based ACL

  • MAC/IP/IPv6 ACLs

  • Combined ACL

  • Up to 230 ACL entries

• Security:

  • IP-MAC-Port Binding

  • AAA (TACACS+/RADIUS)

  • DHCP Snooping

  • DoS Defend

  • Port Isolation

  • Static/Dynamic/Permanent Port Security

  • Broadcast/Multicast/Unicast Storm Control

• IPv6:

  • Dual-Stack IPv4/IPv6

  • IPv6 ACLs

  • Neighbor Discovery

  • Static IPv6 Routing

• Management:

  • Omada SDN integration

  • Web-based GUI

  • CLI (Telnet/SSH)

  • SNMP v1/v2c/v3

  • RMON

  • Dual Image support

  • Cable Diagnostics

Warranty Information

TP-Link provides standard limited warranty coverage for the SG2008P. Please check your region’s TP-Link website for exact warranty duration and support services.

About TP-Link Omada

TP-Link Omada delivers professional networking solutions, enabling seamless centralized management of switches, wireless access points, and gateways. Omada SDN allows businesses to efficiently manage, monitor, and scale networks across multiple locations—all through the cloud.

SKU

SG2008P

Practical Use Scenarios

• Retail Stores: Power IP cameras, POS terminals, and wireless access points with fewer cables and easier installations.

• Small Business Offices: Enable smooth video conferencing and secure connections for staff devices.

• Cafes & Restaurants: Support Wi-Fi access points and surveillance cameras seamlessly.

• Smart Homes: Connect and power smart devices like security cameras and wireless hubs.

Datasheets or Downloadable Resources

Download SG2008P Datasheet

Excellence for the Australian and New Zealand Market

The SG2008P complies with stringent CE, FCC, and RoHS certifications, ensuring high quality and safety standards suitable for the Australian and New Zealand markets. Purchasing through authorised TP-Link distributors guarantees genuine product support and warranty handling within the region. Omada’s SDN solutions offer future-proof networking designed to meet the unique demands of the ANZ business landscape.

FAQs (SG2008P)

Q1: Does the SG2008P support PoE on all ports?
A1: No, only ports 1 to 4 support PoE+. The remaining ports are standard data ports. (SG2008P)

Q2: What is the total PoE budget of the SG2008P?
A2: The SG2008P has a total PoE budget of 62 W shared among its 4 PoE+ ports. (SG2008P)

Q3: Can the SG2008P be managed remotely via the cloud?
A3: Yes, it fully integrates with the Omada SDN for cloud-based centralized management and remote monitoring. (SG2008P)

Q4: Is the SG2008P noisy during operation?
A4: No. The SG2008P has a fanless design, making it completely silent and ideal for quiet environments. (SG2008P)

Q5: Does the SG2008P support IPv6 networking?
A5: Yes, it offers IPv6 dual-stack support, including static routing, neighbor discovery, and IPv6 ACLs. (SG2008P)
