TP-Link PSM500-AC | 500W Hot-Swappable AC Power Supply Module for Enterprise PoE Switches

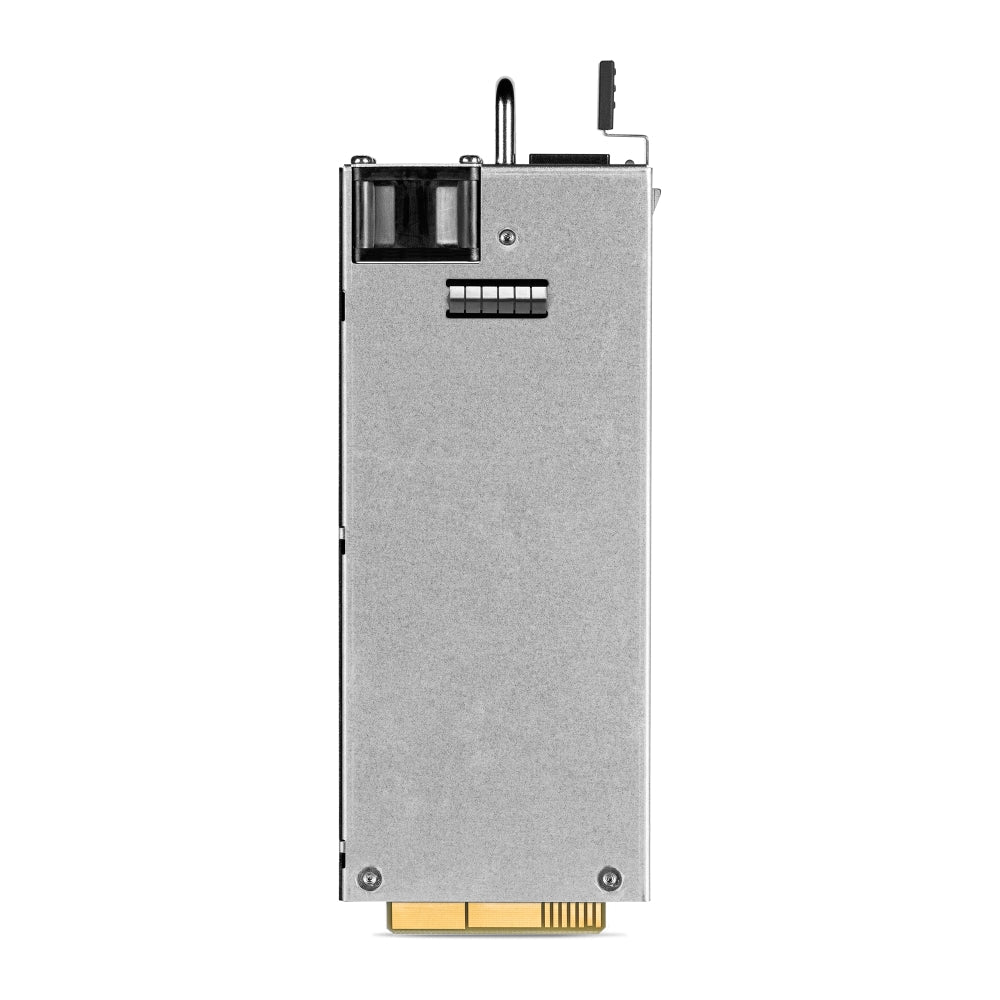

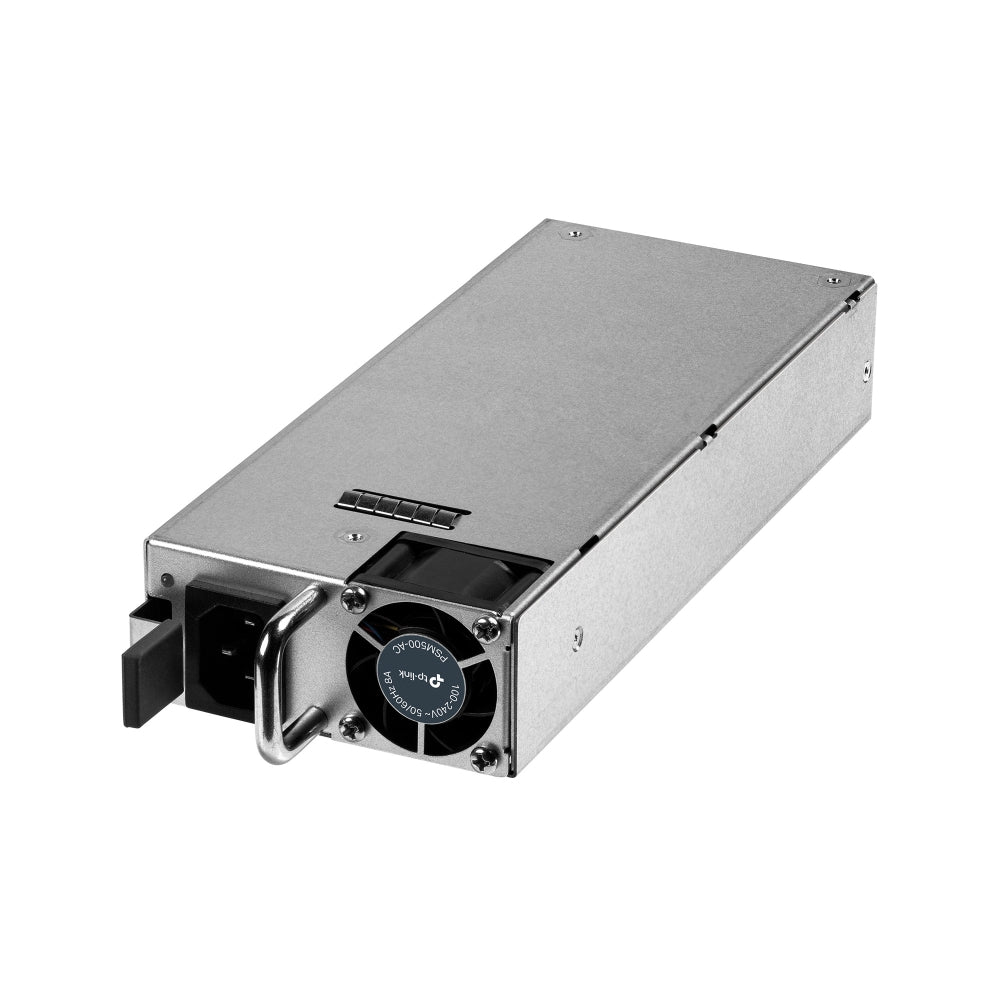

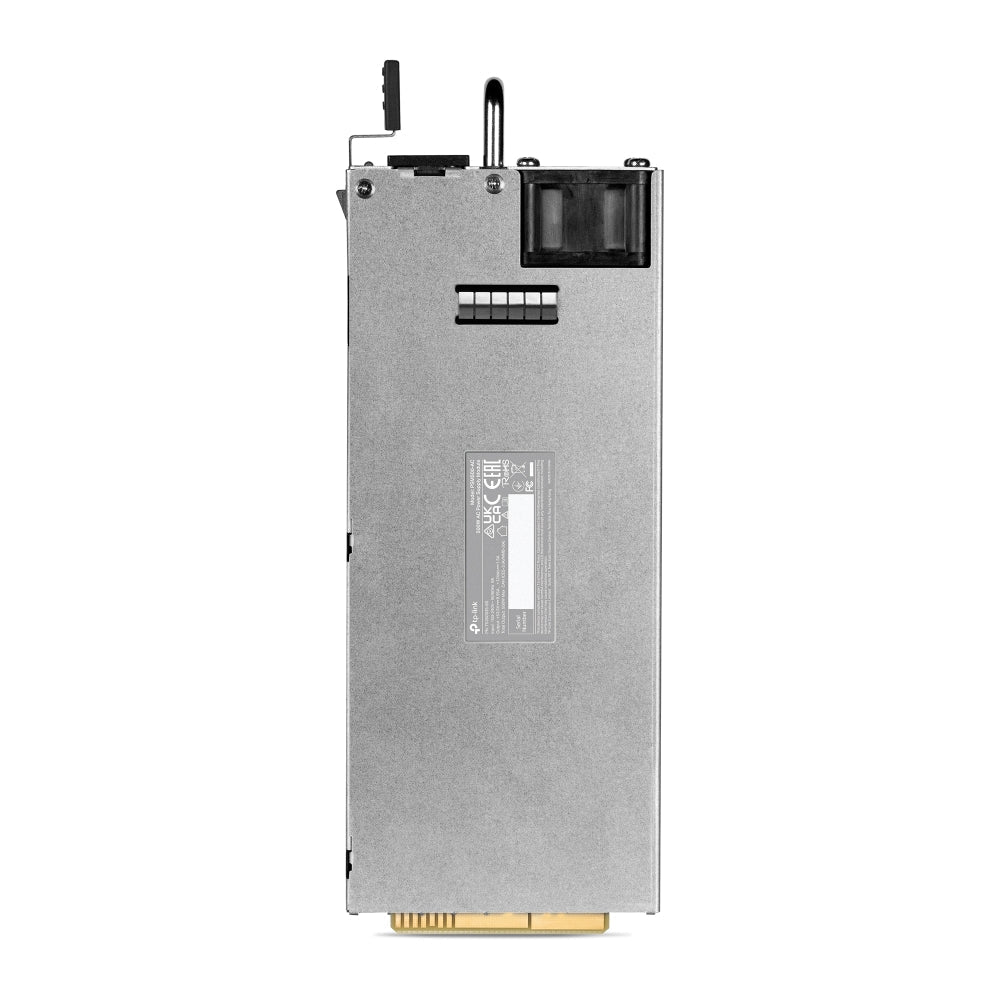

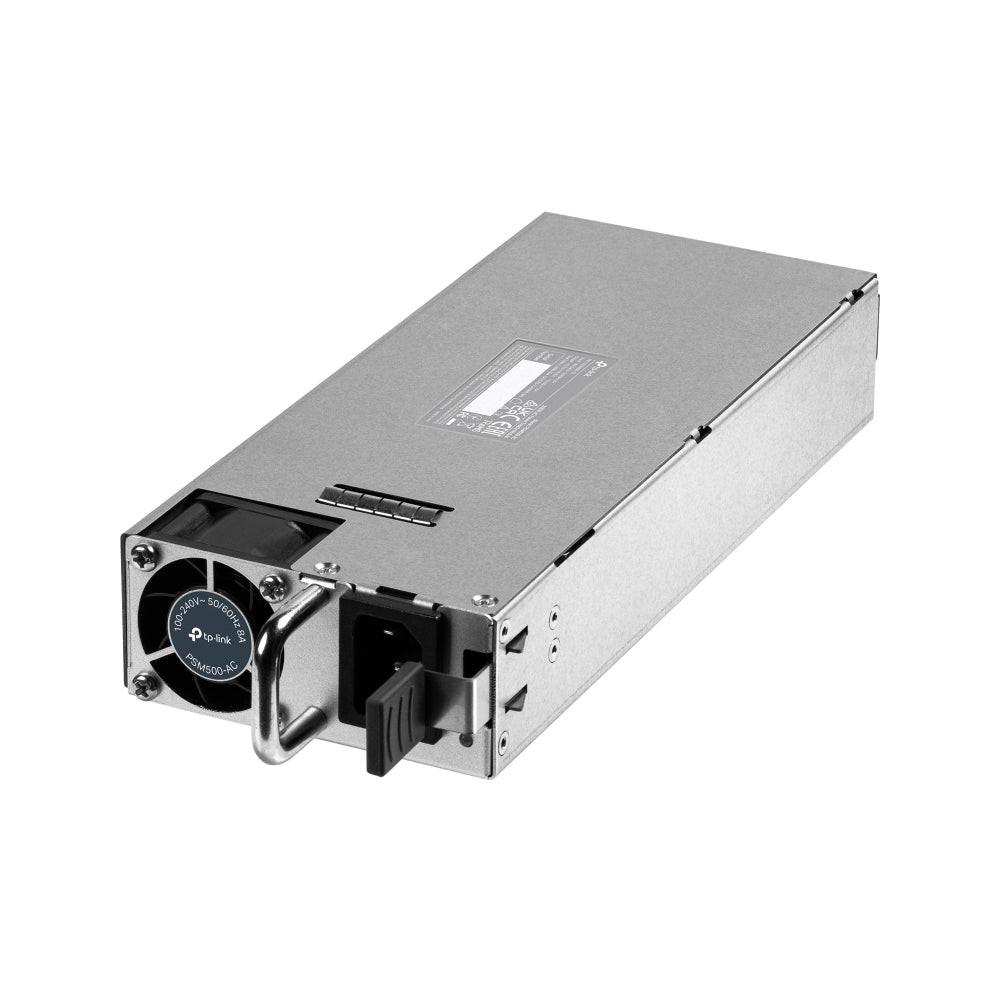

The TP-Link PSM500-AC is a robust 500W AC power supply module engineered for seamless integration with high-performance TP-Link Omada switches. Supporting hot-swappable functionality, it ensures that your network remains uninterrupted during power supply maintenance or replacement.

Ideal for enterprise-grade PoE switches, the module delivers 53.5V DC output at 9.35A, with built-in protection mechanisms against over-voltage, under-voltage, short circuit, and over-current. It is fully compatible with popular TP-Link Omada switches like SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.

What’s in the Box

• 1× TP-Link PSM500-AC Power Supply Module

• Installation Guide

Main Features

✅ 500W Power Output – Delivers stable 53.5V DC at 9.35A for high-capacity switching hardware
✅ Hot-Swappable Design – Supports seamless replacements without powering down systems
✅ Protection Built-In – Includes over-voltage, under-voltage, short circuit, and over-current protection
✅ Surge Protected – ±6 kV surge protection for high-reliability power conditions
✅ Full Compatibility – Specifically designed for Omada switches with high PoE demands
✅ Tool-Free Installation – Simple integration with compatible power bays

Detailed Specifications

Max. Output Power

• 500W

DC Output

• 53.5 V / 9.35 A

AC Input

• 100–240V~ 50/60Hz, 8A

Surge Protection

• ±6 kV

Protection Functions

• Over-Voltage

• Under-Voltage

• Over-Current

• Short Circuit

Device Compatibility

• TP-Link SG6428XHP

• TP-Link SG6654XHP

• TP-Link S6500-24GP4XF

• TP-Link S6500-48GP6XF

• TP-Link S6500-24MPP4Y

• TP-Link S6500-48MPP6Y

Dimensions

• 259.5 × 95.8 × 40.1 mm

Environmental Conditions

• Operating Temperature: 0°C to 45°C (32°F to 113°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 10% to 90% RH, non-condensing

• Storage Humidity: 5% to 90% RH, non-condensing

Warranty Information

Manufactures warrenty applied .

Brand Description

TP-Link Omada delivers advanced, reliable, and secure networking hardware tailored to enterprise environments. The PSM500-AC exemplifies TP-Link’s commitment to power efficiency, operational continuity, and long-term support for critical infrastructure.

SKU

PSM500-AC

Practical Use Scenarios

🔌 Enterprise PoE Switching – Power demanding PoE/PoE+ devices across multiple ports in switches like SG6654XHP
💼 Redundant PSU Deployment – Use as primary or backup unit in a dual-power supply configuration
🏢 Mission-Critical Networks – Enable maintenance or replacement without affecting uptime
🌐 Smart Office & IoT Infrastructure – Supports extended PoE installations in smart buildings and industrial systems

Datasheets / Downloadable Resources

📄Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link PSM500-AC is fully optimized and compliant with Australian and New Zealand electrical safety standards. Sourced through authorized TP-Link ANZ distributors, it comes with local technical support and warranty handling. This ensures prompt service, replacement, and configuration guidance in accordance with ANZ business expectations. Power modules are supported directly by TP-Link’s official regional service teams.

FAQs

Q1. What is the power output capacity of the TP-Link PSM500-AC? (PSM500-AC)
The PSM500-AC delivers a maximum of 500W, outputting 53.5V at 9.35A, ideal for PoE switch power needs.

Q2. Is the TP-Link PSM500-AC hot-swappable? (PSM500-AC)
Yes, it is fully hot-swappable, allowing you to replace the power supply without interrupting device operation.

Q3. Which TP-Link switches are compatible with the PSM500-AC? (PSM500-AC)
The module is compatible with SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.

Q4. What protection features are built into the PSM500-AC? (PSM500-AC)
It includes over-voltage, under-voltage, over-current, and short-circuit protection, along with ±6 kV surge resistance.

Q5. What environmental tolerances does the PSM500-AC meet? (PSM500-AC)
It supports operation at 0°C to 45°C and storage at -40°C to 70°C, with up to 90% RH non-condensing humidity tolerance.
