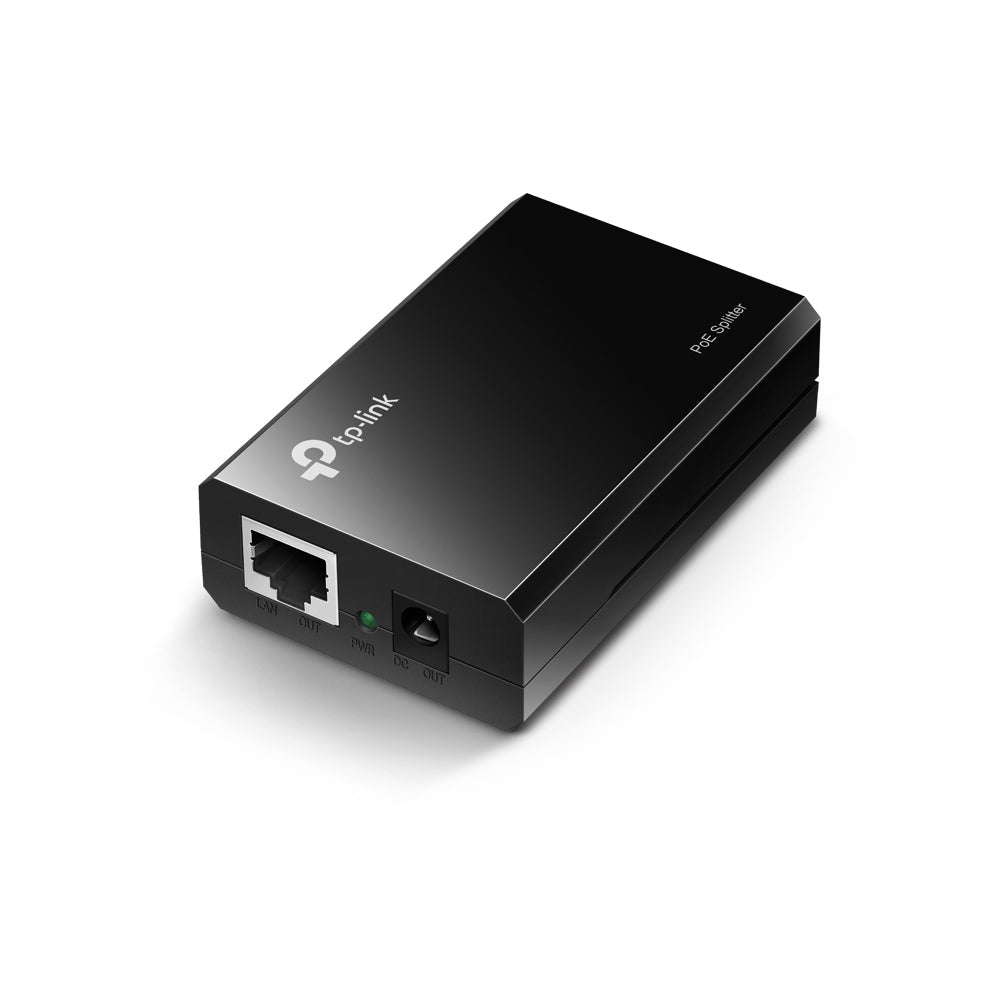

TP-Link PoE Splitter TL-POE10R single POE input & single ethernet out along with a selectable 5V/9V/12V DC (2A/1A/1A) output

Overview
The TP-Link TL-POE10R PoE Splitter is a versatile and cost-effective solution designed to split power and data from a single PoE (Power over Ethernet) input. Complying with the IEEE802.3af standard, it is perfect for deploying non-PoE devices such as wireless access points, IP cameras, and IP phones in locations where power outlets are unavailable. The splitter features an adjustable output voltage (5V, 9V, or 12V) to accommodate various devices, ensuring a flexible and efficient network setup.

Key Features

• IEEE802.3af Compliant: Compatible with all 802.3af PoE-compliant PSE or PoE Injectors, such as TP-Link's T2600G-28MPS, TL-SF1008P, and TL-POE150S.

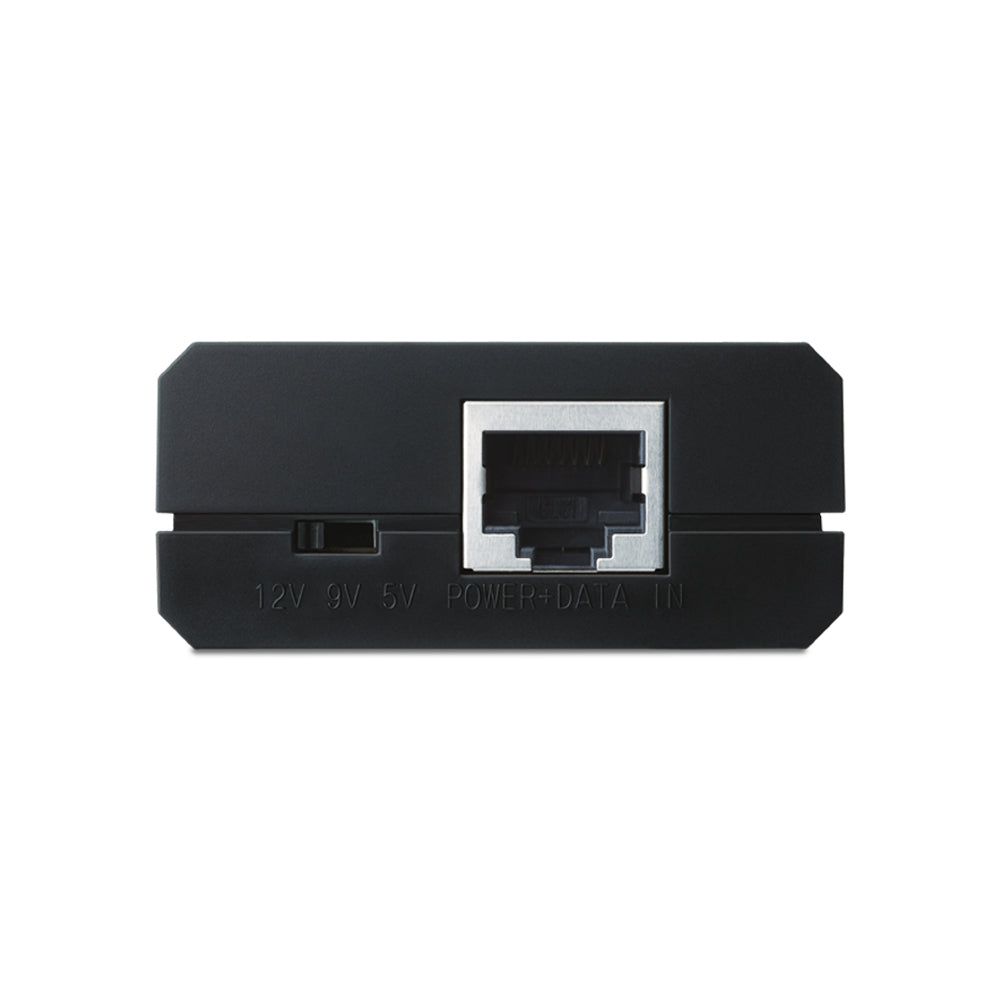

• Adjustable Output Voltage: Easily select between 5VDC (2A), 9VDC (1A), or 12VDC (1A) using the slide switch to suit different device requirements.
• High Safety Standards: Equipped with Short Circuit Protection and automatic disconnection for over voltage, under voltage, or over current situations.
• Plug & Play Installation: Simple setup with no configuration needed, making it easy to integrate into any network.
• Compact Design: Dimensions of 80.8 x 54 x 24mm, making it easy to install in tight spaces.

Specifications

• Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af
• Ports:

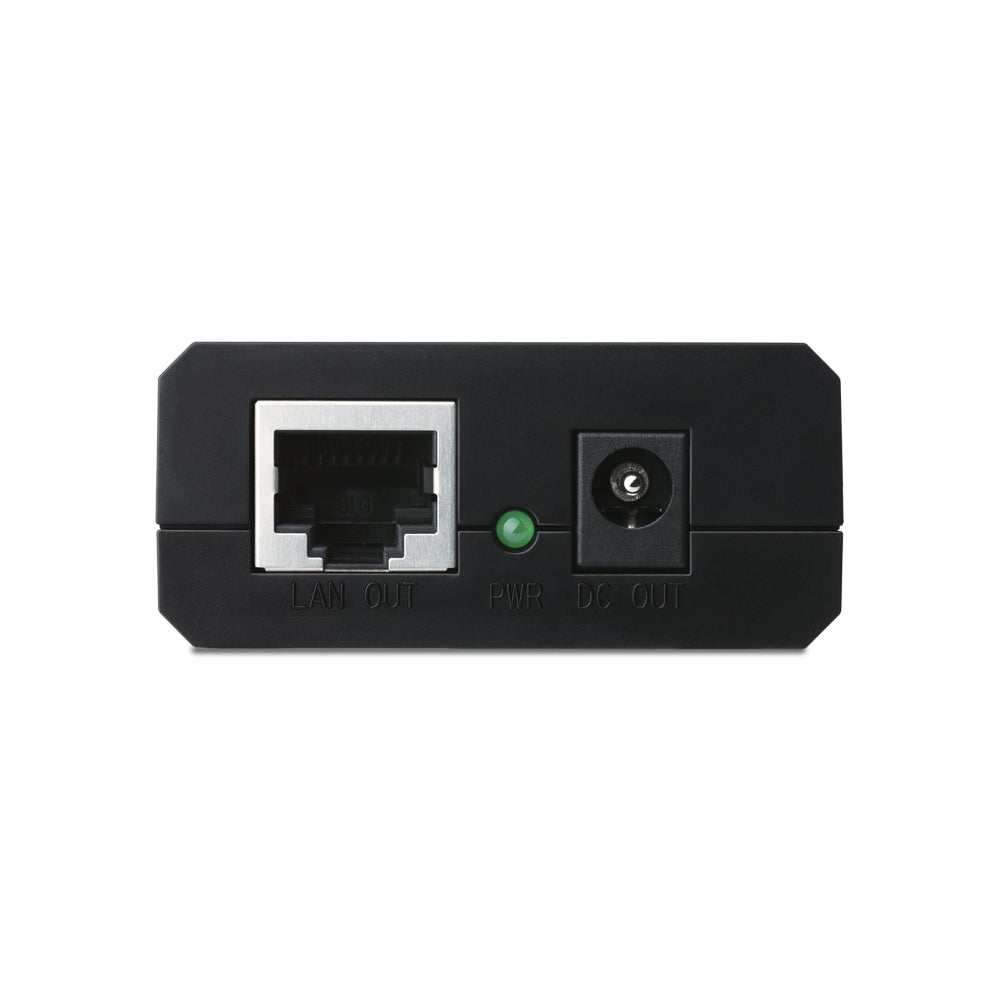

  • 1x 10/100/1000Mbps Auto-Negotiation RJ45 PoE port (Power + Data In)
  • 1x 10/100/1000Mbps Auto-Negotiation RJ45 LAN port (LAN Out)
  • 1x Power socket (DC Out)
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100m)
• Power Output: Adjustable output of 5VDC/2A, 9VDC/1A, or 12VDC/1A
• LED Indicator: Shows connection status
• Dimensions: 80.8 x 54 x 24mm
• Certification: FCC, CE, RoHS
• Operating Conditions:
  • Temperature: 0°C40°C (32°F104°F)
  • Humidity: 10%~90%RH non-condensing
• Storage Conditions:
  • Temperature: -40°C70°C (-40°F158°F)
  • Humidity: 5%~90%RH non-condensing

Package Contents

• TL-POE10R PoE Splitter
• Power Cord
• RJ45 Cable
• Installation Guide

Related Products

• Load Balance Broadband Router (TL-R470T+)
• 8-Port 10/100Mbps Desktop Switch with 4-Port PoE (TL-SF1008P)
• PoE Injector (TL-POE150S)
• AC750 Wireless Gigabit Access Point (AP200)

Datasheets

Datasheet

User Manual

Warranty

1 year warranty
