TP-Link Omada SX6632YF 26-Port 10G L3 Managed Aggregation Switch with 6× 25G SFP28 Slots – High-Capacity, Cloud-Managed, Stackable

Unleash the full potential of your enterprise network infrastructure with the TP-Link Omada SX6632YF, a powerful Layer 3 managed aggregation switch designed for modern high-density network environments. Engineered with 26× 10G SFP+ ports and 6× 25G SFP28 slots, it delivers a blazing-fast 820 Gbps switching capacity and robust Layer 3 routing capabilities, supporting protocols like RIP, OSPF, ECMP, VRRP, and PIM-DM.

The SX6632YF guarantees exceptional network resilience and scalability with physical stacking support for up to 8 units, achieving up to 300 Gbps stack bandwidth and seamless management via the Omada SDN Controller for centralized cloud control and intelligent network monitoring. Hot-swappable dual power supplies and fans ensure maximum uptime and minimal service disruption, making this switch a reliable core or aggregation layer solution for enterprise campuses, data centers, and ISP networks.

Packed with enterprise-grade features like advanced security (ACL, DoS defend, 802.1X, IP-MAC binding), QoS, multicast management, and sFlow, the SX6632YF is purpose-built to handle intensive traffic loads while simplifying network deployment through Omada’s zero-touch provisioning.

What's Included in the Box

• TP-Link Omada SX6632YF Switch (Ships with one PSM550-AC power supply installed)

• Power Cord

• Rackmount Kit

• Quick Installation Guide

• Rubber Feet

Main Features

✅ Massive Port Density & Performance

• 26× 10G SFP+ ports for high-speed aggregation

• 6× 10/25G SFP28 slots for flexible high-bandwidth uplinks

• 820 Gbps switching capacity and 610.1 Mpps forwarding rate

✅ Enterprise-Class Layer 3 Capabilities

• Static routing, RIP, OSPFv2/v3, VRRP, ECMP

• Advanced multicast support (IGMP, PIM-DM)

• DHCP Server, Relay, and Snooping

✅ High Availability & Redundancy

• Physical stacking of up to 8 units

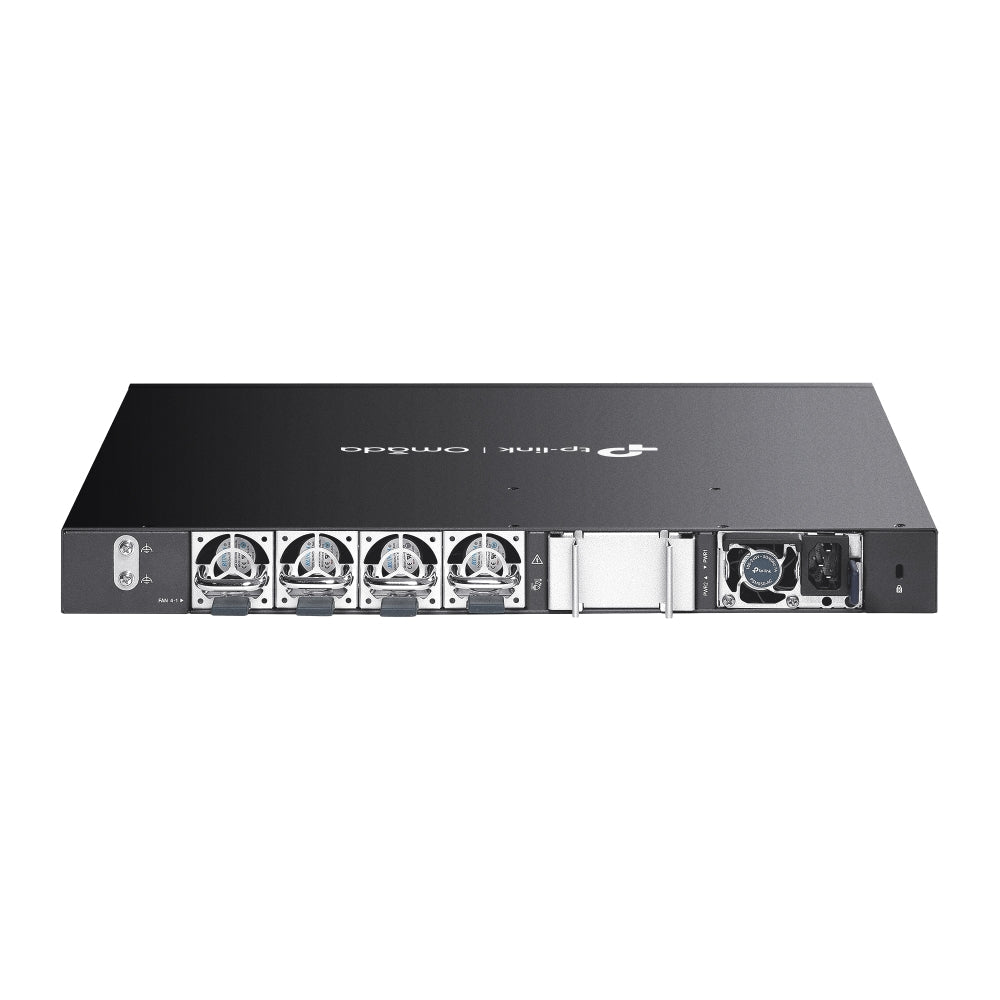

• Hot-swappable redundant power supplies and fans

• Dual images and dual configurations for safe upgrades

✅ Enhanced Security

• ACLs (L2/L3/L4), Port Security, IP Source Guard

• Dynamic ARP Inspection, IP-MAC binding

• SSH, SSL, RADIUS, TACACS+ authentication

✅ Cloud-Managed with Omada SDN

• Zero-Touch Provisioning

• Intelligent monitoring and configuration via the Omada Cloud-Based, Hardware, or Software Controller

• Web UI, CLI, SNMP, and RMON for versatile management

✅ Advanced QoS & Traffic Management

• 8 priority queues

• DSCP, IEEE 802.1p, WRR scheduling

• Voice VLAN, Storm Control

✅ Carrier-Class Features

• sFlow for network traffic analysis

• ERPS, L2PT, Device Link Detection Protocol (DLDP)

✅ Flexible Deployment Options

• Rackmountable standard 1U design

• Field-replaceable fans and power supplies

• Designed for operating environments from data centers to remote sites

Detailed Specifications

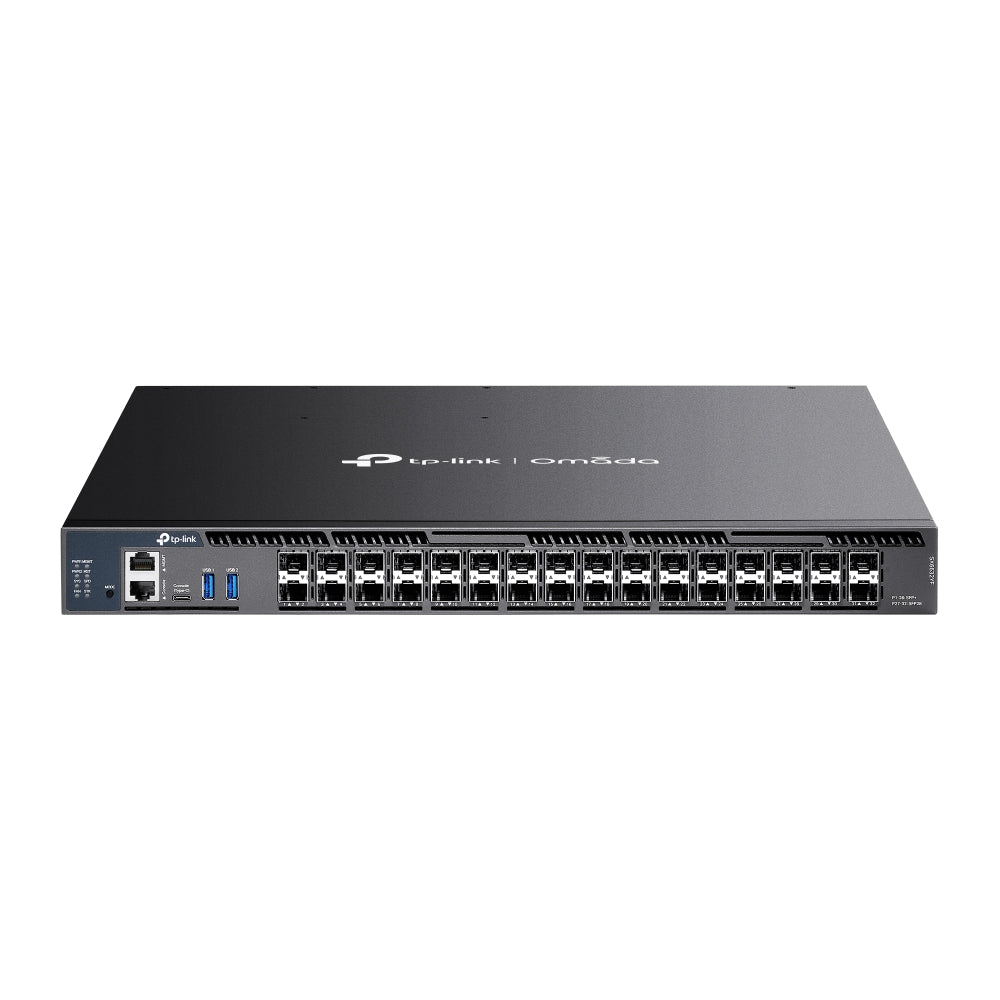

• Interfaces:

  • 26× 10G SFP+ Slots

  • 6× 10/25G SFP28 Slots

  • 2× USB 3.0 Ports

  • 1× RJ45 Console Port

  • 1× USB Type C Console Port

  • 1× RJ45 Management Port

• Stacking:

  • Up to 8 units

  • 25G SFP28 stack ports

  • Up to 300 Gbps stack bandwidth

• Performance:

  • Switching Capacity: 820 Gbps

  • Packet Forwarding Rate: 610.1 Mpps

  • MAC Address Table: 128K

  • Packet Buffer Memory: 8 MB

  • Jumbo Frame: 9 KB

• Power & Cooling:

  • Power Supply: Dual field-replaceable (ships with one installed)

  • Power Consumption: 86.7W (110V/60Hz)

  • Heat Dissipation: 295.85 BTU/hr

  • Fans: Four hot-swappable

• Physical:

  • Dimensions: 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

  • Mounting: Rack Mountable

• Environment:

  • Operating Temperature:

    • -5°C to 50°C @ 300m

    • -5°C to 45°C @ 2000m

    • -5°C to 40°C @ 3000m

  • Storage Temperature: -40°C to 70°C

  • Operating Humidity: 10–90% RH non-condensing

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty

About TP-Link Omada

Omada is TP-Link’s innovative Software Defined Networking (SDN) solution, delivering seamless business networking that integrates gateways, switches, access points, and controllers. Omada’s centralized management brings enterprise-grade performance, security, and cloud flexibility to businesses worldwide.

SKU

SX6632YF

Practical Use Scenarios

• Enterprise Data Centers: High-density 10G/25G aggregation with redundant architecture for critical infrastructure.

• Campus Networks: Simplify large deployments with centralized Omada management and physical stacking.

• Service Providers: Carrier-grade multicast, sFlow, and security controls suitable for ISP aggregation layers.

• Large Corporate Environments: Secure, scalable switching backbone supporting extensive VLAN and QoS requirements.

Datasheets or Downloadable Resources

Omada SX6632YF Datasheet

Excellence for the Australian and New Zealand Market

The SX6632YF switch is fully certified for Australian and New Zealand electrical and safety standards, including CE, FCC, and RoHS compliance. All units distributed in ANZ come through authorized channels, ensuring full warranty support and technical assistance locally. The switch meets local network infrastructure regulations and is ideal for government, enterprise, and carrier-grade networks across Australia and New Zealand.

FAQs (SX6632YF)

Q1: Does the SX6632YF support dual redundant power supplies?
A1: Yes! It ships with one power supply installed and supports an additional hot-swappable PSU for redundancy. (SX6632YF)

Q2: How many switches can I stack together?
A2: Up to 8 switches can be physically stacked using the 25G SFP28 ports for a combined stack bandwidth of up to 300 Gbps. (SX6632YF)

Q3: Can I manage the SX6632YF through the cloud?
A3: Absolutely. It integrates seamlessly into the Omada SDN architecture for centralized cloud management. (SX6632YF)

Q4: Is the SX6632YF suitable for carrier networks?
A4: Yes. It offers features like sFlow, ERPS, and OSPF, making it ideal for ISP and carrier-grade applications. (SX6632YF)

Q5: What is the switching capacity of the SX6632YF?
A5: It has an impressive switching capacity of 820 Gbps. (SX6632YF)
