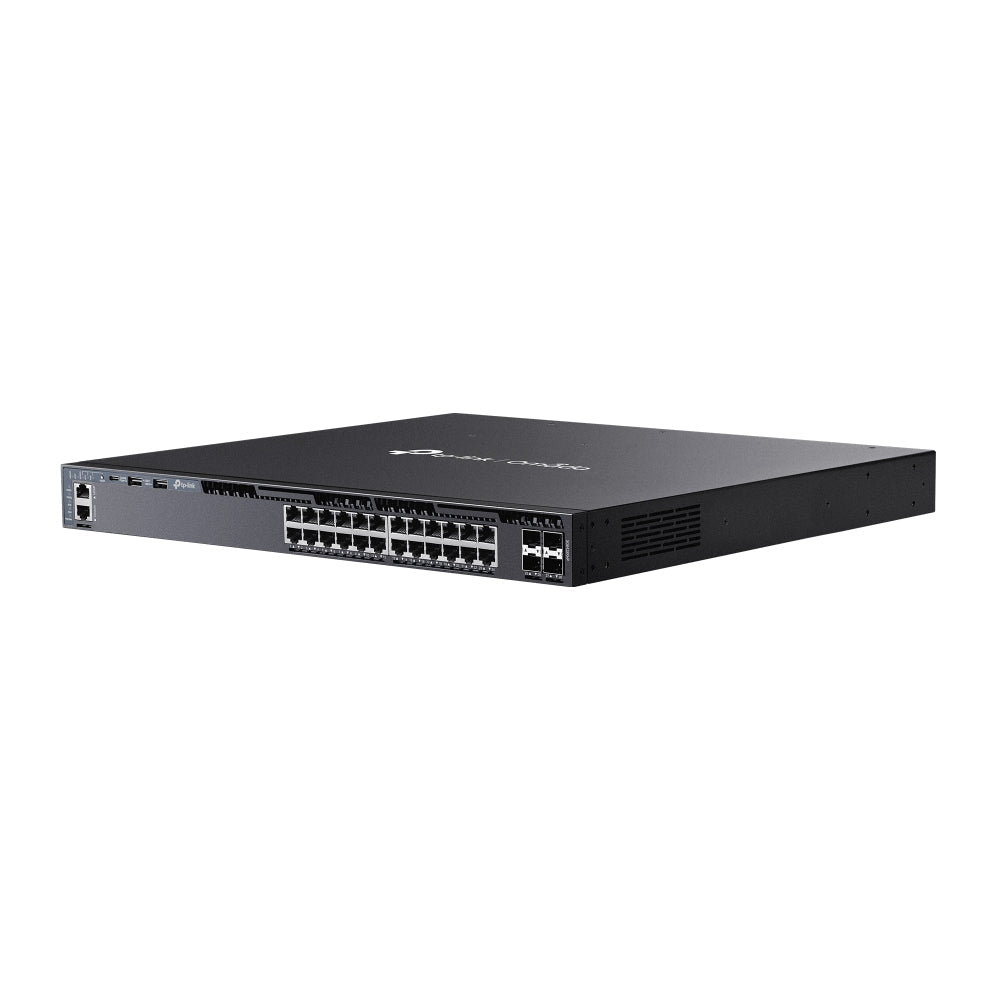

TP-Link Omada SG6428XHP 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4× 10G Slots — High-Performance, Cloud-Managed Power for Enterprise Networks

Empower your enterprise network with the TP-Link Omada SG6428XHP, a feature-rich 24-Port Gigabit Layer 3 Managed Switch equipped with PoE+ and advanced Layer 3 routing for dynamic, high-capacity environments. With 4× 10G SFP+ slots for high-speed uplinks and physical stacking up to 8 units, the SG6428XHP delivers reliable performance and unparalleled scalability.

Ideal for demanding applications like IP surveillance, VoIP, or dense wireless deployments, this switch supports a 720W PoE budget, ensuring seamless power delivery to a wide range of powered devices. Advanced Layer 3 routing protocols—including RIP, OSPF, VRRP, and ECMP—enable sophisticated network segmentation and traffic optimization.

Integrated into the Omada SDN platform, the SG6428XHP offers centralized cloud management, zero-touch provisioning, and real-time monitoring, delivering unmatched visibility and control. Whether in a campus network or enterprise core, the SG6428XHP is engineered for maximum reliability, security, and performance.

What's Included in the Box

• SG6428XHP Switch

• Power Cord

• RJ45 Console Cable

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ Enterprise-Class Connectivity

• 24× Gigabit PoE+ RJ45 ports delivering up to 30W per port

• 4× 10G SFP+ slots for flexible uplinks or stacking

• 128 Gbps switching capacity per unit

✅ High PoE Power Budget

• Up to 720W PoE budget, ideal for cameras, VoIP, and wireless access points

• Supports Fast PoE and Perpetual PoE for uninterrupted device operation

✅ Layer 3 Intelligence

• Static routing, RIP, OSPF, VRRP, and ECMP

• DHCP Server & Relay

• IPv4/IPv6 support

✅ Robust Security

• ACLs, Port Security, DoS Defense

• IP-MAC-Port binding

• 802.1X authentication

• Dynamic ARP Inspection

✅ Scalability & Redundancy

• Stack up to 8 units

• Up to 80 Gbps stack bandwidth

• Dual field-replaceable hot-swappable power supplies

• ERPS ring protection

✅ Omada SDN Integration

• Centralized management via Omada Cloud-Based, Hardware, or Software Controllers

• Standalone management via Web UI, CLI, SNMP, and RMON

✅ Advanced QoS & Performance

• 8 priority queues

• Bandwidth control and traffic shaping

• Voice VLAN for optimized VoIP deployments

Detailed Specifications

• Ports:

  • 24× 10/100/1000 Mbps PoE+ RJ45 ports

  • 4× 10G SFP+ slots

  • 2× USB 2.0 ports

  • 1× RJ45 console port

  • 1× USB Type-C console port

  • 1× RJ45 management port

• Performance:

  • Switching Capacity: 128 Gbps

  • Packet Forwarding Rate: 95.2 Mpps

  • Jumbo Frame: 9 KB

  • MAC Address Table: 32K

  • Packet Buffer Memory: 3 MB

• PoE Features:

  • PoE Standard: IEEE 802.3af/at

  • PoE Ports: 24

  • Power per Port: up to 30W

  • Total PoE Budget: up to 720W

• Stacking:

  • Stack up to 8 units

  • Stacking Ports: 10G SFP+ slots

  • Stack Bandwidth: up to 80 Gbps

• Layer 3 Routing:

  • Up to 256 IPv4/IPv6 interfaces

  • Static routes: 1,024 IPv4 / 512 IPv6

  • RIP, OSPF, VRRP, ECMP support

  • Proxy ARP

• Multicast Support:

  • IGMP Snooping v1/v2/v3

  • PIM-DM and MVR

  • Fast Leave and multicast VLAN registration

• Security:

  • Port isolation

  • ARP Inspection

  • DoS defense

  • IP-MAC-Port binding

  • DHCP snooping

  • Dynamic/Static Port Security

  • IPv6 source guard

• QoS Features:

  • 8 priority queues

  • DSCP and IEEE 802.1p support

  • Rate limiting and traffic shaping

  • Voice VLAN

• Management:

  • Omada SDN centralized management

  • Web-based GUI, CLI via console port or Telnet

  • SNMP v1/v2c/v3

  • RMON support

  • Dual Image, dual configuration

  • Cable diagnostics

• Power & Environmental:

  • Dual field-replaceable hot-swappable power supplies

  • Max Power Consumption:

    • 42.9 W (no PoE load)

    • 916.6 W (full PoE load)

  • Max Heat Dissipation:

    • 146.29 BTU/hr (no load)

    • 3,125.61 BTU/hr (full load)

  • Operating Temp:

    • -5 °C to 45 °C @ 2,000 m

    • -5 °C to 40 °C @ 3,000 m

  • Operating Humidity: 10–90% RH non-condensing

• Certifications: CE, FCC, RoHS

Warranty Information

• Manufacturer’s Limited Warranty

About TP-Link Omada

TP-Link Omada offers a unified SDN platform delivering seamless cloud management for wired and wireless networks, ensuring secure, scalable, and easy-to-manage enterprise networks for diverse sectors including business, hospitality, and retail.

SKU

SG6428XHP

Practical Use Scenarios

• Enterprise Edge Switching: Connect workstations, access points, and VoIP phones with PoE+ power and high reliability.

• Surveillance Networks: Ideal for powering IP cameras across expansive sites with robust PoE power.

• Hospitality & Retail Deployments: Maintain high availability and centralized control across multiple branches.

• Managed Service Providers: Streamlined remote management for multi-site clients.

Datasheets or Downloadable Resources

Download Omada SG6428XHP Datasheet

Excellence for the Australian and New Zealand Market

The SG6428XHP meets all Australian and New Zealand standards and certifications and is sourced from authorized TP-Link channels, ensuring warranty support and compliance. Optimized for ANZ business environments, it’s the ideal solution for enterprises demanding high-performance networking and reliable local support.

FAQs (SG6428XHP)

Q1: What’s the maximum PoE power budget of the SG6428XHP?
A1: The SG6428XHP offers up to 720W total PoE budget, supporting devices like IP cameras and VoIP phones. (SG6428XHP)

Q2: Can I manage the SG6428XHP via the Omada cloud platform?
A2: Yes! The switch integrates seamlessly into the Omada SDN platform for cloud-based management and monitoring. (SG6428XHP)

Q3: How many switches can be stacked together with the SG6428XHP?
A3: You can stack up to 8 units, achieving high scalability and redundancy. (SG6428XHP)

Q4: Does the SG6428XHP support Layer 3 routing protocols?
A4: Absolutely. It supports RIP, OSPF, VRRP, ECMP, and more for advanced network routing. (SG6428XHP)

Q5: Is the SG6428XHP suitable for PoE cameras or access points?
A5: Yes, its 24 PoE+ ports and robust power budget make it perfect for powering devices like cameras and access points. (SG6428XHP)
