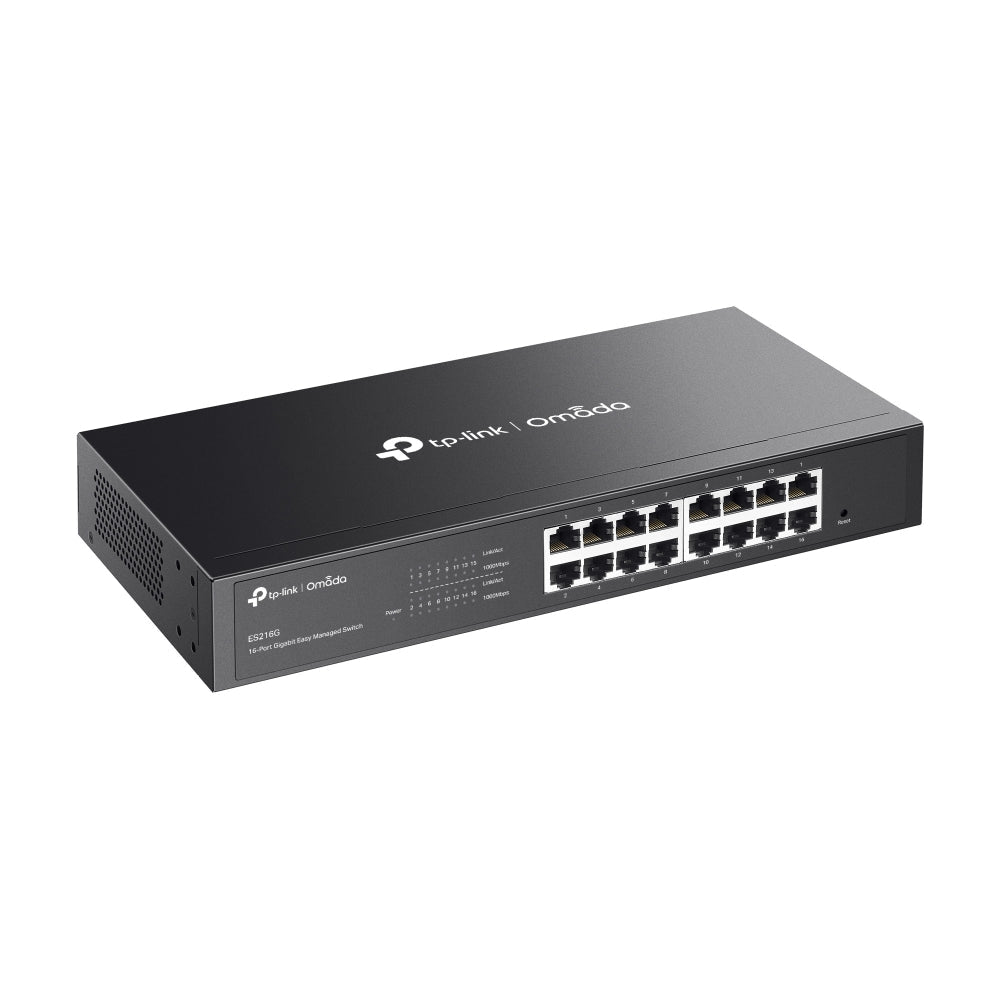

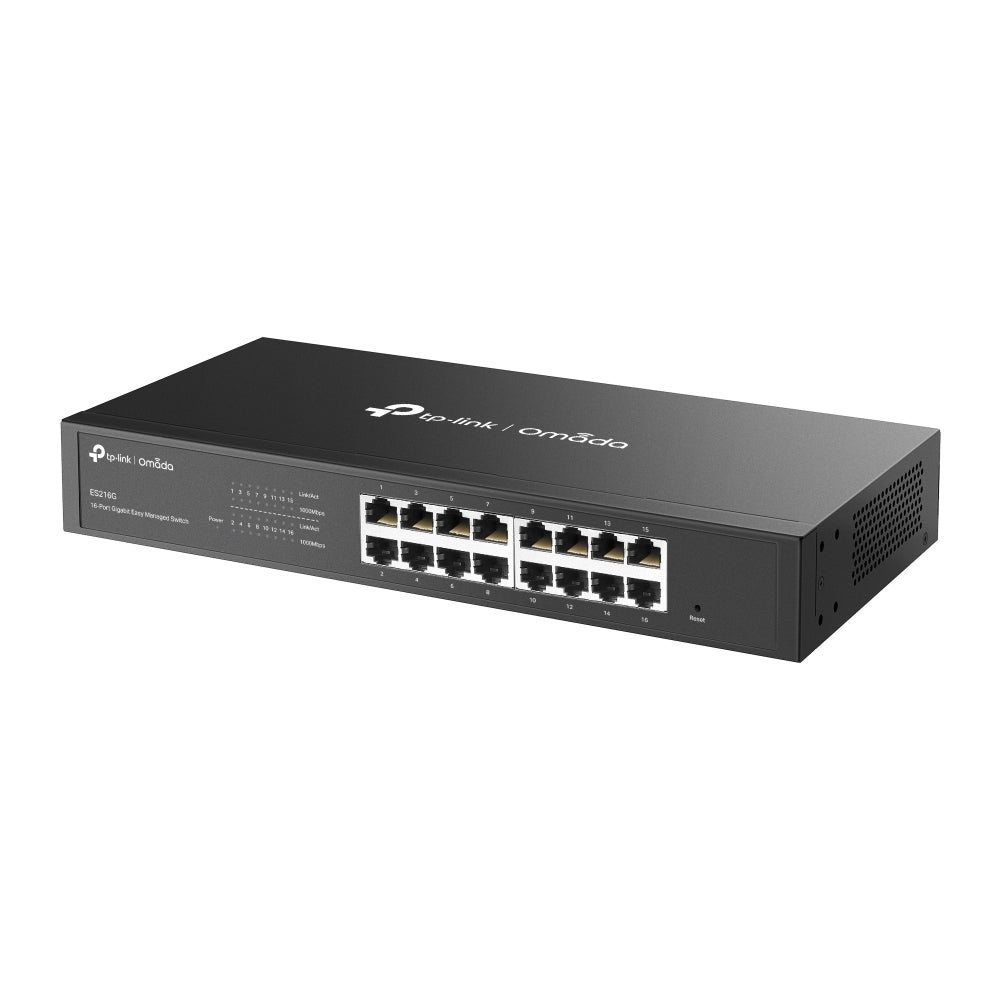

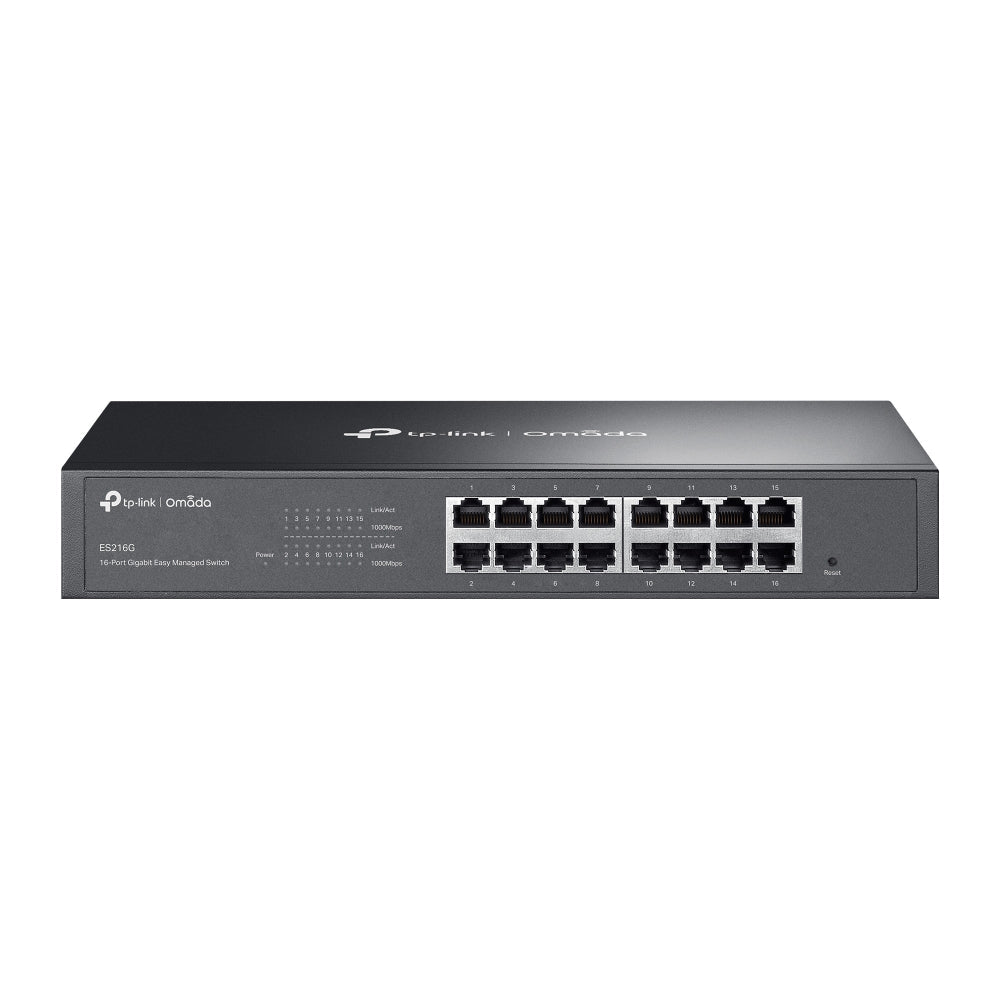

TP-Link Omada ES216G 16-Port Gigabit Easy Managed Switch | Silent Fanless Operation, Cloud Management, VLAN and QoS

Empower your business network with the versatile TP-Link Omada ES216G, a professional 16-Port Gigabit Easy Managed Switch designed for high-speed performance, quiet operation, and effortless management. Perfect for small businesses, office networks, retail stores, or surveillance systems, the ES216G provides reliable connectivity while delivering advanced Layer 2 features for enhanced control and security.

Equipped with 16 full gigabit ports, this switch ensures smooth handling of bandwidth-intensive applications like IP surveillance, VoIP calls, and large data transfers. Its fanless design guarantees completely silent operation, making it ideal for noise-sensitive environments.

Seamlessly integrated into the Omada Software Defined Networking (SDN) platform, the ES216G offers centralised cloud management, zero-touch provisioning, and comprehensive monitoring through the Omada app or web interface. It’s the ideal solution for growing networks demanding both simplicity and powerful features.

What's in the Box

• TP-Link Omada ES216G Easy Managed Switch

• Power Cord

• Rubber Feet

• Mounting Brackets

• Screws

• Installation Guide

Main Features

✅ 16 Gigabit Ports – Deliver blazing-fast network speeds for desktops, IP cameras, VoIP phones, and more.

✅ Fanless Silent Operation – Operates completely silently for deployment in offices, retail, and quiet workspaces.

✅ Centralised Omada Cloud Management – Manage and monitor your entire network from anywhere via the Omada SDN platform.

✅ Advanced Layer 2 Features – Includes VLANs, port isolation, loop prevention, and IGMP snooping for enhanced security and performance.

✅ Robust Surge Protection – ±6kV surge protection safeguards valuable network equipment.

✅ Flexible Deployment – Compact desktop or rack-mountable design adapts to diverse installation environments.

Detailed Specifications

Interfaces:

• 16 × 10/100/1000 Mbps RJ45 Ports

• Auto-Negotiation / Auto MDI/MDIX

Fan Quantity: Fanless

Switching Capacity: 32 Gbps
Forwarding Rate: 23.8 Mpps
MAC Address Table: 8K entries
Packet Buffer Memory: 4 Mbit
Jumbo Frame Support: Up to 15 KB

Management Features:

• Centralised Omada Cloud management

• Web-based GUI

• DHCP client

• Cable diagnostics

• Automatic device discovery

• Batch configuration and firmware upgrades

• Unified configuration across devices

Quality of Service (QoS):

• Port-based, 802.1p, and DSCP prioritisation

• 8 priority queues

• Weighted Round Robin scheduling

• Bandwidth control per port

• Storm control for traffic management

Layer 2 Features:

• Static link aggregation

• Loop prevention / loopback detection

• 802.3x flow control

• Port mirroring

• Port statistics and mirror status

• 802.1ab LLDP support

L2 Multicast:

• IGMP Snooping (v1/v2/v3)

• Fast Leave

VLAN:

• MTU VLAN

• Port-based VLAN

• 802.1Q Tag VLAN

• Up to 32 VLAN groups, supporting 4,000 VIDs

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 294 × 140 × 44 mm (11.6 × 5.5 × 1.7 in)

• Mounting: Desktop or rack-mountable

• Surge Protection: ±6kV

Power Supply: 100–240V AC, 50/60Hz

Certifications: FCC, CE, RoHS

Environmental Specifications:

• Operating Temperature: -5°C ~ 50°C (23°F ~ 122°F)

• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

• Operating Humidity: 10% ~ 90% RH non-condensing

• Storage Humidity: 5% ~ 90% RH non-condensing

System Requirements: Compatible with Windows®, macOS®, Linux®, NetWare®, UNIX®

Warranty Information

The TP-Link Omada ES216G comes with a limited manufacturer warranty. Customers in Australia and New Zealand benefit from local support and warranty handling through authorised TP-Link service channels, ensuring peace of mind and dependable assistance.

Brand Description

TP-Link is a globally trusted name in networking, known for delivering reliable, high-performance solutions tailored to both consumer and business markets. The Omada line represents TP-Link’s dedication to enterprise-grade networking, blending powerful hardware with cloud-managed convenience for scalable, secure, and user-friendly networks.

SKU

ES216G

Practical Use Scenarios

• Office Networks – Perfect for connecting workstations, servers, and networked devices in small business environments.

• Retail & Hospitality – Ensure smooth operation of POS systems, security cameras, and digital signage with gigabit connectivity.

• Quiet Environments – Ideal for spaces like libraries, clinics, or meeting rooms where silent operation is crucial.

• Surveillance Networks – Manage and segment IP camera traffic efficiently using VLANs and QoS.

• Educational Institutions – Support classrooms and administrative networks with reliable, fast switching and cloud management.

Datasheets / Downloadable Resources

Download TP-Link Omada ES216G Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link Omada ES216G is fully compliant with Australian and New Zealand regulatory standards, holding certifications such as FCC, CE, and RoHS. Sourced exclusively through authorised distributors, this switch guarantees genuine hardware and full warranty coverage, with local support available for technical assistance and warranty claims. Engineered for performance and durability, the ES216G is perfectly suited for business deployments across Australia and New Zealand.

 FAQs

Q1. Does the ES216G support centralised cloud management? (ES216G)
Yes! The ES216G is fully compatible with TP-Link’s Omada SDN, allowing cloud-based management, monitoring, and zero-touch provisioning.

Q2. Is the ES216G silent during operation? (ES216G)
Absolutely. The ES216G features a fanless design for completely silent operation, perfect for noise-sensitive environments.

Q3. Can the ES216G handle VLAN configurations? (ES216G)
Yes. The ES216G supports MTU VLANs, port-based VLANs, and 802.1Q tag VLANs for network segmentation and security.

Q4. How many gigabit ports are available on the ES216G? (ES216G)
The ES216G provides 16 full gigabit RJ45 ports, ensuring high-speed connectivity across your entire network.

Q5. Is the ES216G rack-mountable? (ES216G)
Yes! The ES216G includes rack-mount brackets, enabling easy installation in standard server racks, as well as desktop placement options.
