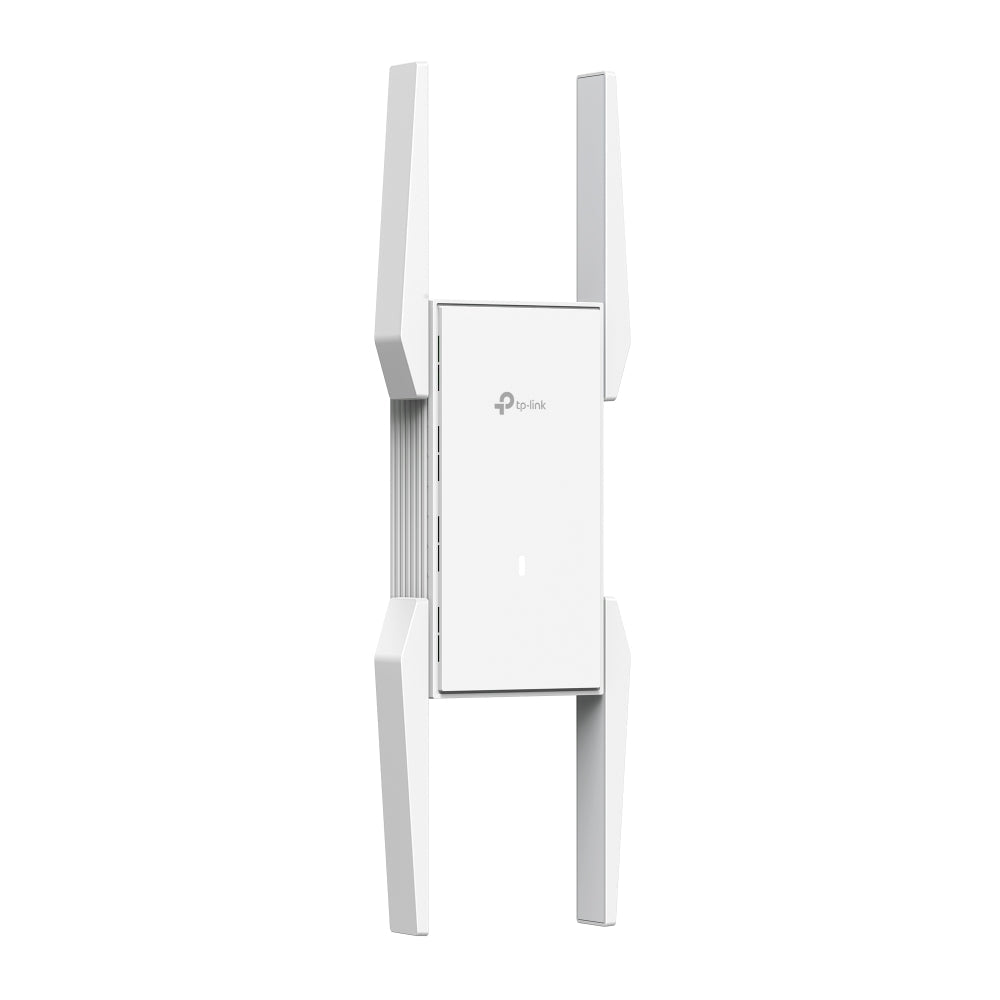

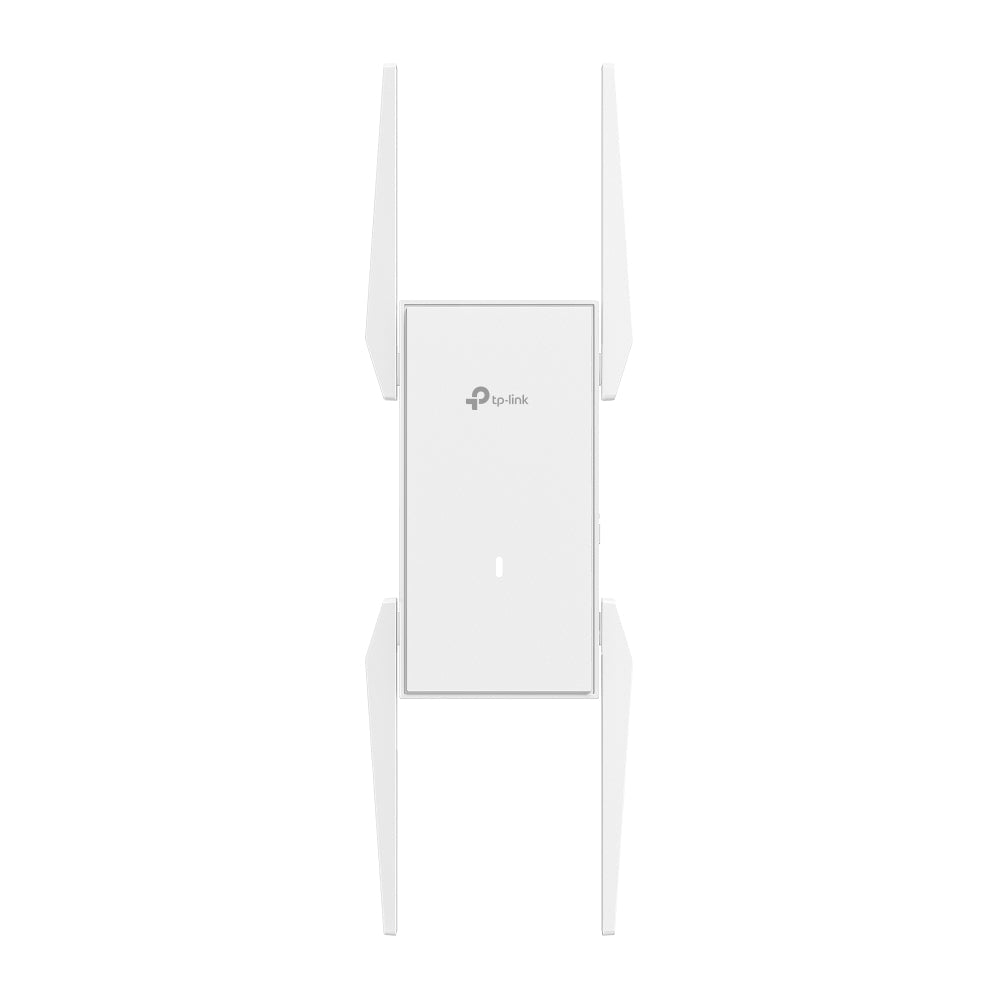

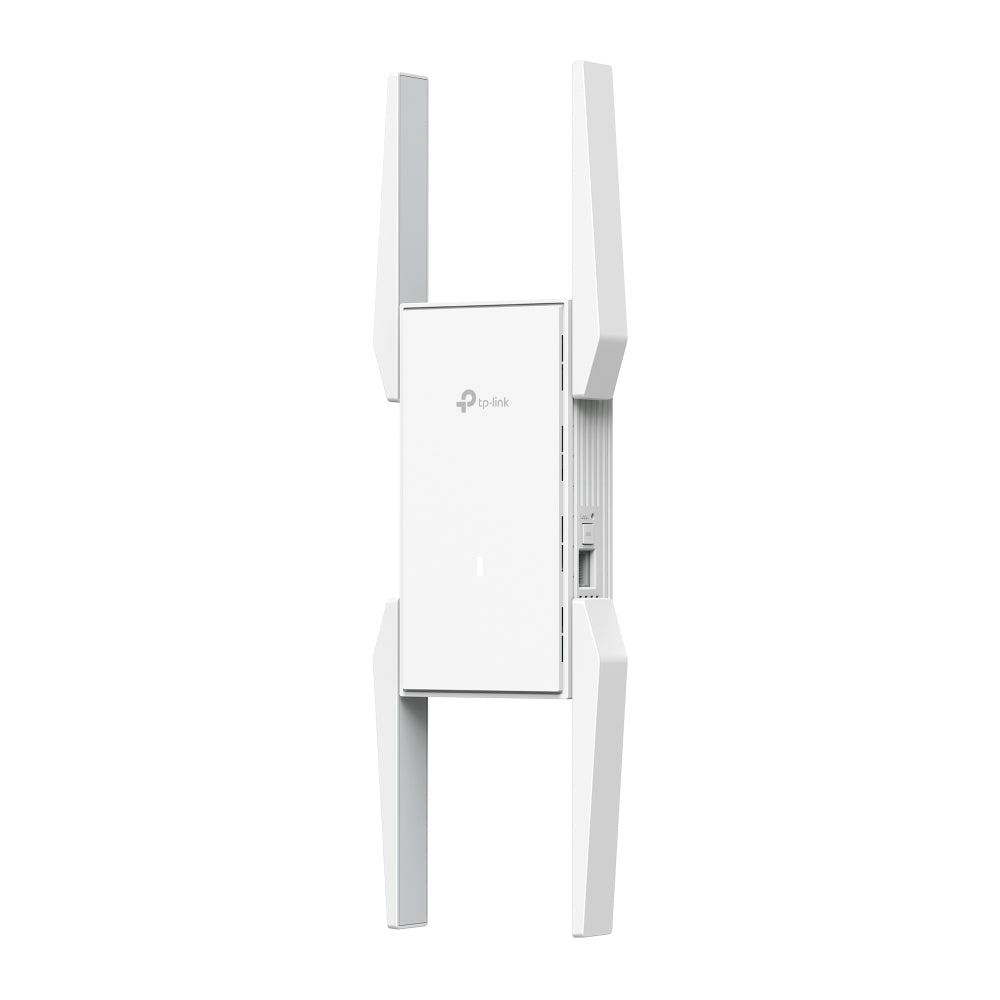

TP-Link Omada EAP673-Extender AX5400 Mesh Wi-Fi 6 Extender | Plug-In Design | 5.4 Gbps Dual-Band | Omada SDN | AP Mode | External Antennas

Eliminate Wi-Fi dead zones and empower your network with the TP-Link Omada EAP673-Extender AX5400 Mesh Wi-Fi 6 Extender (SKU: EAP673-Extender), purpose-built for high-speed, high-density deployments.

The EAP673-Extender delivers ultra-fast Wi-Fi 6 performance, achieving dual-band speeds up to 5.4 Gbps — 4,804 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. Featuring advanced technologies like 160 MHz bandwidth, OFDMA, MU-MIMO, and 1024-QAM, it ensures increased capacity, lower latency, and optimal efficiency even in crowded network environments.

Equipped with four high-gain external antennas, this extender offers exceptional signal strength, eliminating dead zones and expanding wireless coverage up to 140㎡ (1,500 ft²). Its plug-in design with standard AC power makes installation quick and effortless—ideal for hotels, offices, retail environments, and large-scale commercial spaces.

The EAP673-Extender also functions as a standalone Access Point via its gigabit Ethernet port, providing flexible deployment options without requiring PoE infrastructure. Integrated into the Omada SDN ecosystem, it supports cloud-based management, zero-touch provisioning, seamless roaming, and intelligent mesh networking for enterprise-grade reliability and simplified administration.

What's Included in the Box

• TP-Link Omada EAP673-Extender AX5400 Mesh Wi-Fi 6 Extender

• Installation Guide

Main Features

✅ AX5400 Wi-Fi 6 Performance — Delivers combined speeds of up to 5.4 Gbps, ensuring blazing-fast connections for bandwidth-intensive applications.

✅ Wi-Fi Dead-Zone Killer — Equipped with four high-gain external antennas to extend coverage and penetrate tough signal barriers.

✅ Plug-and-Play Design — Simply plug into any AC outlet for immediate Wi-Fi extension, no complex wiring or PoE required.

✅ Flexible AP Mode — Converts into a high-performance Wi-Fi Access Point using the gigabit Ethernet port, ideal for wired network expansions.

✅ Omada SDN Integration — Supports seamless mesh networking, AI-driven roaming, and unified cloud management for streamlined network operations.

✅ Enterprise-Grade Security — Offers WPA3, captive portals, rogue AP detection, VLAN support, and robust access controls to secure sensitive networks.

✅ High Client Capacity — Supports over 250+ concurrent clients, perfect for dense environments like hospitality, offices, and retail.

✅ Compact, Modern Design — Sleek form factor blends unobtrusively into professional and commercial interiors.

Detailed Specifications

Interfaces:

• 1× Gigabit Ethernet Port

Wireless:

• Standards: IEEE 802.11 a/b/g/n/ac/ax

• Frequencies:

  • 5 GHz: up to 4,804 Mbps

  • 2.4 GHz: up to 574 Mbps

• External Antennas:

  • 2.4 GHz: 2× 3 dBi

  • 5 GHz: 4× 5 dBi

• Coverage: Up to 140㎡ (1,500 ft²)

• Concurrent Clients: 250+

• Wireless Features:

  • 160 MHz Channel Width

  • 1024-QAM

  • MU-MIMO

  • OFDMA

  • Seamless Roaming (802.11k/v/r)

  • Omada Mesh

  • Band Steering

  • Load Balancing

  • Beamforming

  • Airtime Fairness

  • Multiple SSIDs (up to 16)

  • Wireless Scheduling

Power:

• AC Power: 100–240 V ~ 50/60 Hz

• Max Power Consumption: 18W

Physical:

• Dimensions: 160 × 80 × 37.8 mm

• Weight: [Not specified; estimated ~200–250g]

• Mounting: Plug-in Wall Socket

Security:

• Captive Portal Authentication

• Access Control

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• Rogue AP Detection

• Wireless Isolation

• VLAN

• MAC Filtering

• 802.1X Support

Management:

• Omada App

• SNMP v1/v2c/v3

• SSH

• Web-Based Management

• Zero-Touch Provisioning

• Omada Cloud Access

• LED ON/OFF Control

• Email Alerts

Environment:

• Operating Temp: 0–40°C

• Storage Temp: -40–70°C

• Operating Humidity: 10–90% RH non-condensing

Certifications:

• CE, FCC, IC, RoHS, UL

Warranty Information

manufactures warranty applied

Brand Description

TP-Link is a trusted global leader in networking solutions, delivering innovative products ranging from home Wi-Fi to enterprise-grade networking infrastructure. The Omada SDN platform empowers businesses to build secure, scalable networks with advanced centralised management and seamless user experiences.

Practical Use Scenarios

• Hospitality Venues — Eliminate Wi-Fi dead zones in hotel rooms, lobbies, and conference areas for seamless guest experiences.

• Corporate Offices — Extend Wi-Fi coverage to hard-to-reach corners without rewiring or major infrastructure changes.

• Retail Stores — Support POS systems, digital signage, and in-store customer engagement with robust connectivity.

• Educational Facilities — Enhance Wi-Fi coverage in classrooms, libraries, and administrative spaces.

• Healthcare Facilities — Provide reliable connectivity for staff communications and secure patient services.

Datasheets / Downloadable Resources

• TP-Link EAP673-Extender Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The TP-Link Omada EAP673-Extender AX5400 Mesh Wi-Fi 6 Extender complies with all Australian and New Zealand standards, including CE, FCC, IC, RoHS, and UL certifications. Sourced through authorised TP-Link distributors, the EAP673-Extender ensures genuine hardware and manufacturer-backed warranties. Designed for dense deployments typical in Australia and New Zealand, it delivers secure, high-speed wireless expansion tailored to local regulations.

(Including Product Code EAP673-Extender)

Q1: What is the maximum wireless speed of the TP-Link EAP673-Extender AX5400 Mesh Wi-Fi 6 Extender (SKU: EAP673-Extender)?
A1: The EAP673-Extender offers combined dual-band speeds up to 5.4 Gbps, with 4,804 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.

Q2: Can the TP-Link EAP673-Extender (SKU: EAP673-Extender) function as a standalone access point?
A2: Yes! The EAP673-Extender features AP mode, allowing it to create a new wireless network when connected via Ethernet.

Q3: Is the EAP673-Extender (SKU: EAP673-Extender) compatible with Omada Mesh and seamless roaming?
A3: Absolutely. The EAP673-Extender integrates with Omada Mesh and supports seamless roaming for smooth user experiences in multi-AP environments.

Q4: Is the TP-Link EAP673-Extender (SKU: EAP673-Extender) compliant with Australian and New Zealand standards?
A4: Yes, the EAP673-Extender fully complies with required standards for legal deployment in Australia and New Zealand.

Q5: How many clients can the TP-Link EAP673-Extender (SKU: EAP673-Extender) support simultaneously?
A5: The EAP673-Extender supports over 250 concurrent clients, making it ideal for high-density environments like offices, hotels, and retail spaces.
