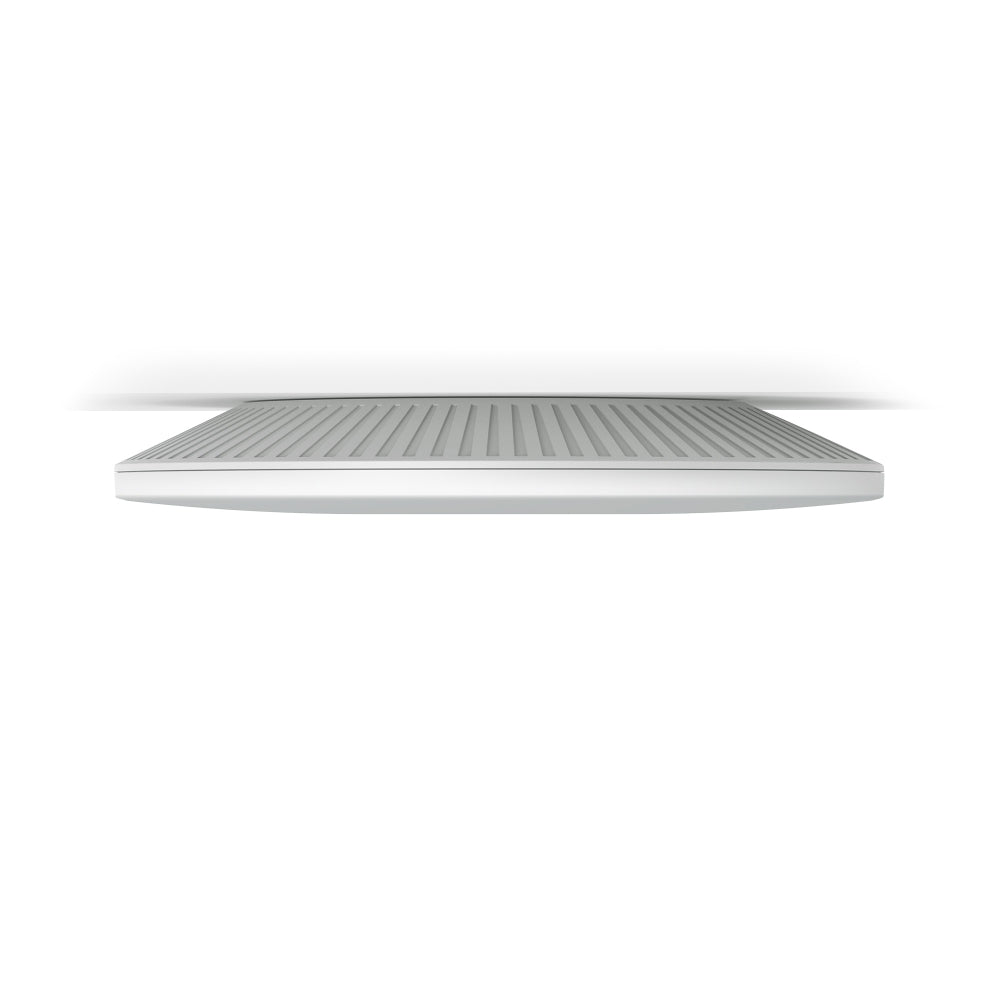

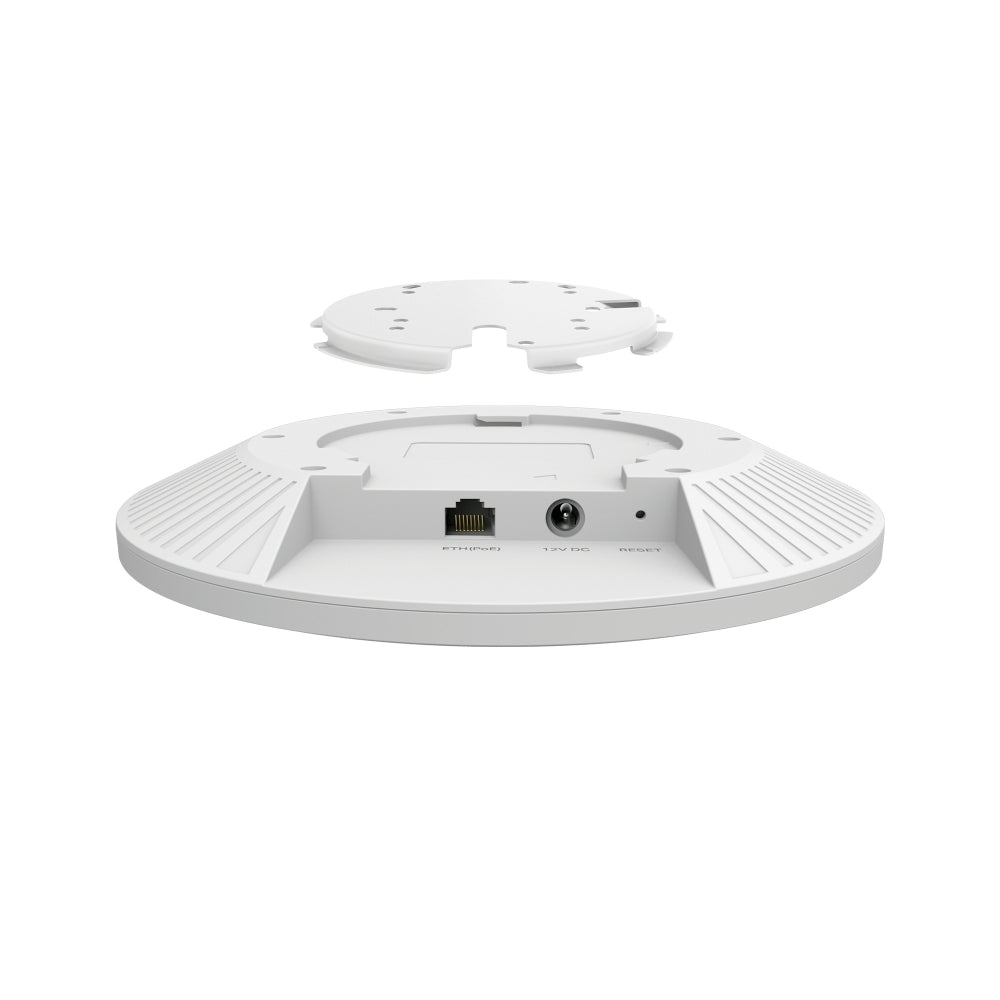

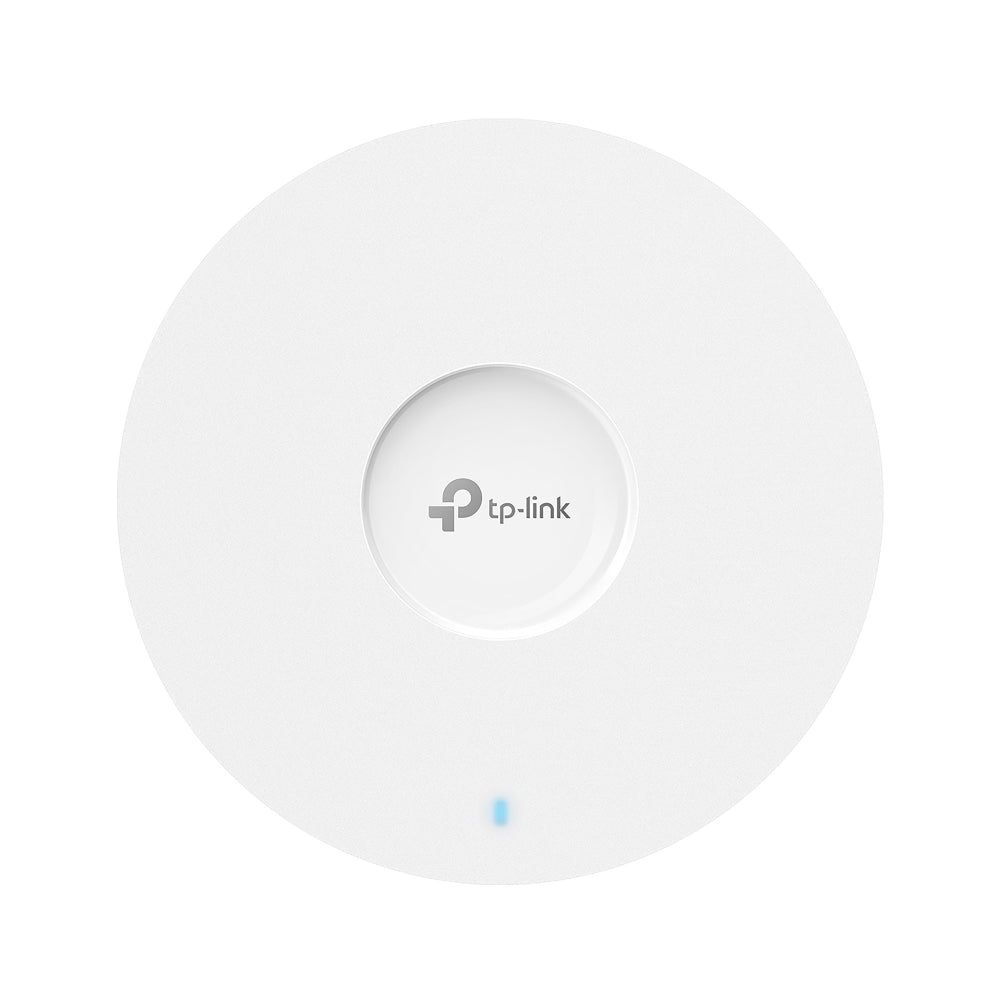

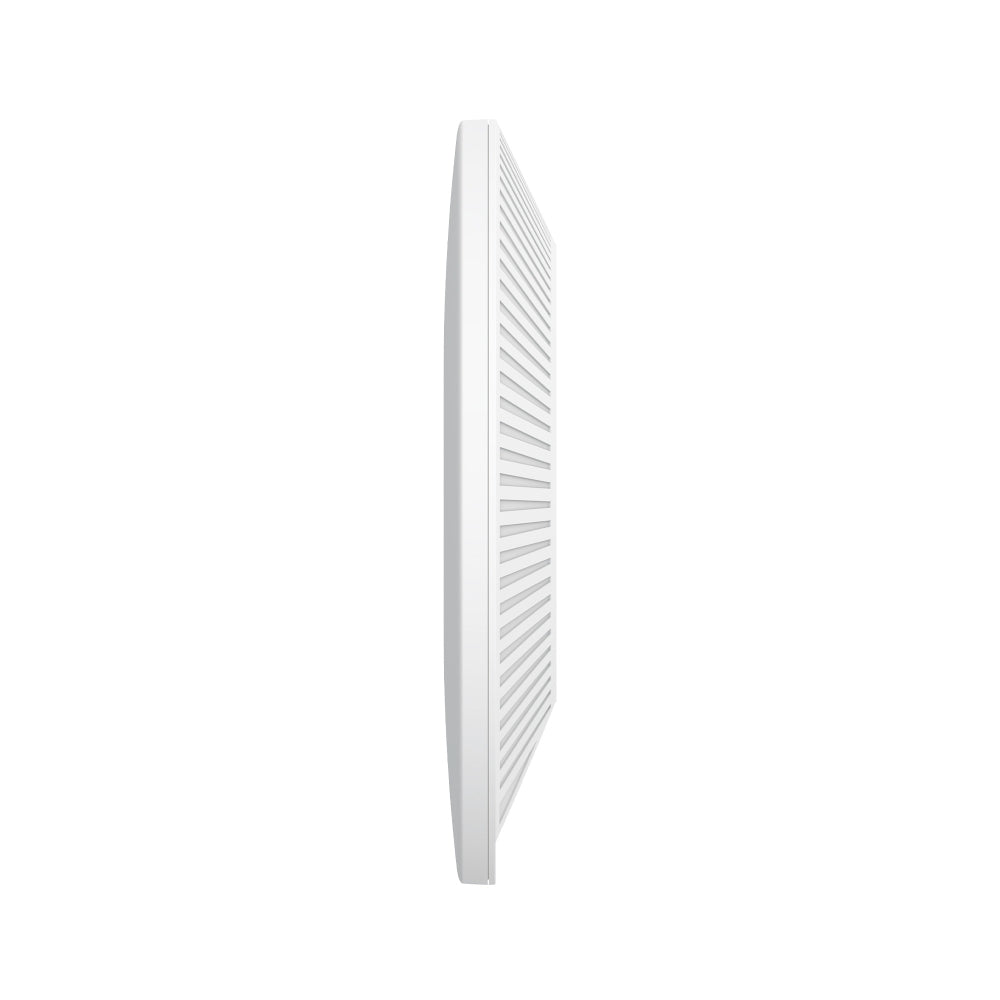

TP-Link Omada EAP673 AX5400 Ceiling Mount Wi-Fi 6 Access Point | 2.5G Ethernet | Omada Mesh | 160 MHz Channel | Enterprise Networking

Upgrade your enterprise connectivity with the TP-Link Omada EAP673 AX5400 Ceiling Mount Wi-Fi 6 Access Point (SKU: EAP673), engineered for exceptional performance, scalability, and ease of management.

Equipped with cutting-edge Wi-Fi 6 technology, the EAP673 delivers combined speeds up to 5,378 Mbps—4,804 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. Its 160 MHz channel bandwidth doubles the data throughput over a single stream compared to Wi-Fi 5, while 1024-QAM modulation and OFDMA increase network capacity, reduce latency, and improve efficiency in high-density environments.

With a 2.5G Ethernet port and PoE+ support, the EAP673 ensures seamless high-speed backhaul without additional cabling, while the sleek ceiling-mount design blends seamlessly into modern business interiors. Four high-gain internal antennas deliver robust coverage up to 140㎡ (1,500 ft²), perfect for offices, retail, healthcare, and hospitality environments.

As part of the Omada SDN platform, the EAP673 offers centralized cloud management, zero-touch provisioning, AI-driven optimization, and seamless roaming for consistent, uninterrupted connectivity. Enterprise-grade security—like WPA3 encryption, captive portal authentication, VLAN support, and rogue AP detection—safeguards your network and data.

What's Included in the Box

• TP-Link Omada EAP673 AX5400 Wi-Fi 6 Access Point

• Ceiling/Wall Mounting Kits

• Installation Guide

Main Features

✅ AX5400 Wi-Fi 6 Speed — Delivers up to 5.4 Gbps total throughput, ensuring smooth streaming, low-latency collaboration, and high-speed file transfers.

✅ 160 MHz Channel Width — Doubles data on each stream for superior capacity in demanding scenarios.

✅ 2.5G Ethernet Port — Supports multi-gigabit backhaul and future-proofs your network infrastructure.

✅ Omada SDN Integration — Centralized cloud management, zero-touch provisioning, and unified control across locations.

✅ Omada Mesh & Seamless Roaming — Provides uninterrupted coverage as users move between access points.

✅ Enterprise-Grade Security — Includes WPA3, VLANs, captive portal authentication, rogue AP detection, and 802.1X support.

✅ High Client Density — Supports over 250 concurrent clients—ideal for dense deployments like offices, hotels, and schools.

✅ Flexible Power Options — 802.3at PoE+ or DC input (adapter sold separately) for hassle-free installation.

Detailed Specifications

Interfaces:

• 1× 2.5G Ethernet RJ-45 Port (supports IEEE802.3at PoE)

Wireless:

• Standards: IEEE 802.11a/b/g/n/ac/ax

• Frequencies:

  • 5 GHz: up to 4,804 Mbps

  • 2.4 GHz: up to 574 Mbps

• Antennas:

  • 2× 4 dBi (2.4 GHz)

  • 4× 5 dBi (5 GHz)

• Coverage: Up to 140㎡ (1,500 ft²)

• Concurrent Clients: 250+

• Wireless Features:

  • 1024-QAM

  • OFDMA

  • HE160 (160 MHz Bandwidth)

  • MU-MIMO

  • Seamless Roaming (802.11k/v/r)

  • Omada Mesh

  • Band Steering

  • Load Balancing

  • Beamforming

  • Airtime Fairness

  • Multiple SSIDs (16 total, 8 per band)

  • Wireless Scheduling

Power:

• PoE: 802.3at PoE

• Optional: 12V/2A DC (adapter not included)

• Max Power Consumption:

  • EU: 20.8 W

  • US: 22.3 W

Physical:

• Dimensions: 220 × 220 × 32.5 mm

• Mounting: Ceiling or wall (kits included)

Security:

• Captive Portal Authentication

• Access Control

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• SSID-to-VLAN Mapping

• Rogue AP Detection

• Wireless Isolation

• MAC Filtering

• 802.1X Support

Management:

• Omada App

• SNMP v1/v2c/v3

• SSH

• Web-Based Management (HTTP/HTTPS)

• L3 Management

• Zero-Touch Provisioning

• Omada Cloud Access

• LED ON/OFF Control

• Email Alerts

Environment:

• Operating Temp: 0–40°C

• Storage Temp: -40–70°C

• Operating Humidity: 10–90% RH non-condensing

Certifications:

• CE, FCC, RoHS

Warranty Information

manufactures warranty applied

Brand Description

TP-Link is a globally trusted networking leader known for innovation and quality. From Wi-Fi 6 routers to enterprise SDN solutions, TP-Link’s Omada platform delivers reliable, secure, and scalable connectivity for businesses of all sizes.

Practical Use Scenarios

• Enterprise Offices — Power hybrid work with high-speed Wi-Fi and reliable roaming across departments.

• Hotels & Hospitality — Deliver fast, secure connections to guests while supporting staff operations.

• Retail Spaces — Enable smooth POS transactions and customer Wi-Fi with robust, centralized management.

• Education — Provide seamless connectivity in classrooms, libraries, and labs.

• Healthcare — Ensure stable, secure wireless for medical devices, staff, and patient services.

Datasheets / Downloadable Resources

• TP-Link EAP673 Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link Omada EAP673 AX5400 Ceiling Mount Wi-Fi 6 Access Point meets Australian and New Zealand standards, including CE, FCC, and RoHS certifications. All products are sourced through authorised TP-Link distributors, guaranteeing authentic hardware and manufacturer-backed warranties. Optimized for local regulations, the EAP673 delivers outstanding performance for high-density deployments across Australia and New Zealand.

FAQs (Including Product Code EAP673)

Q1: What is the total wireless speed of the TP-Link EAP673 AX5400 Wi-Fi 6 Access Point (SKU: EAP673)?
A1: The EAP673 offers combined speeds up to 5.4 Gbps, with 4,804 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.

Q2: Does the TP-Link EAP673 (SKU: EAP673) support Omada Mesh and seamless roaming?
A2: Yes, the EAP673 fully supports Omada Mesh and seamless roaming for uninterrupted connectivity across large deployments.

Q3: Can I power the TP-Link EAP673 (SKU: EAP673) with PoE?
A3: Absolutely. The EAP673 supports 802.3at PoE+ for convenient installation without additional power cables.

Q4: Is the TP-Link EAP673 (SKU: EAP673) compliant with Australian and New Zealand standards?
A4: Yes, the EAP673 complies with all required certifications and is suitable for deployments across Australia and New Zealand.

Q5: How many devices can the TP-Link EAP673 (SKU: EAP673) support simultaneously?
A5: The EAP673 supports over 250 concurrent clients, making it ideal for high-density environments such as offices, schools, and hotels.
