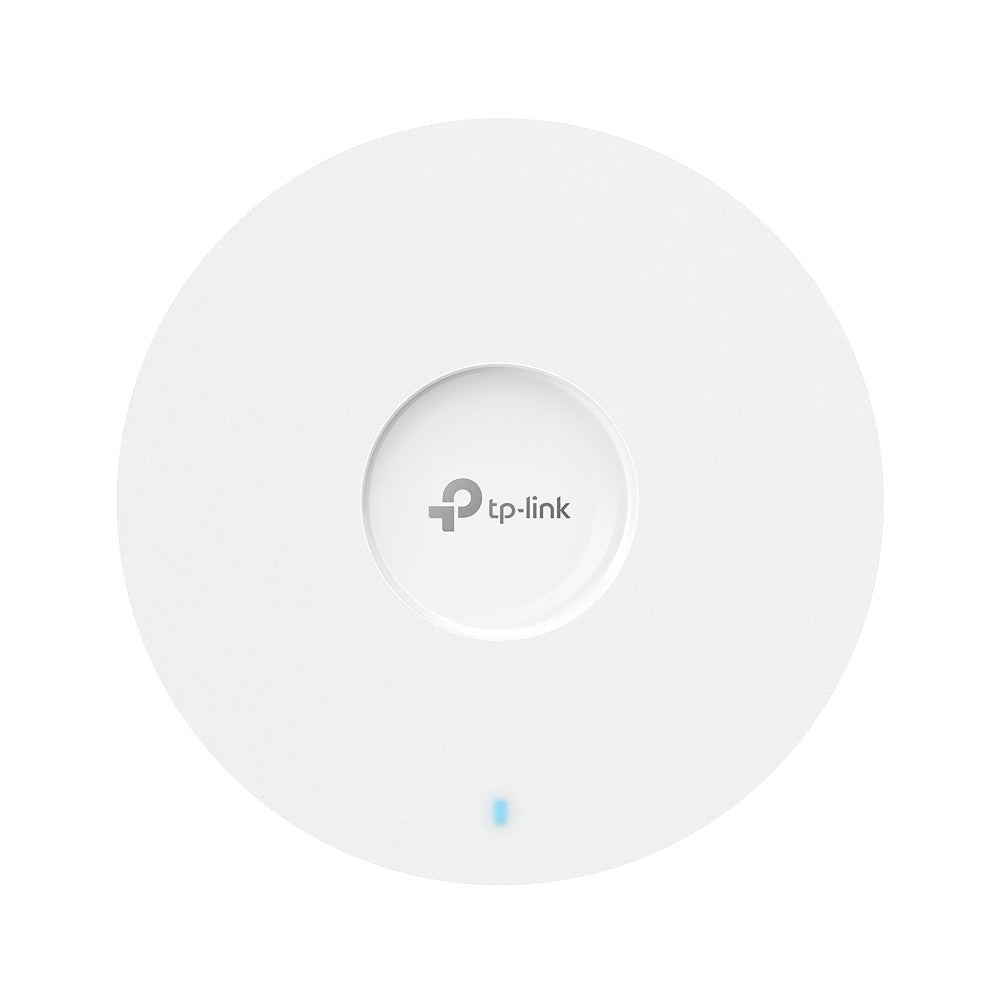

TP-Link Omada EAP660 HD AX3600 Ceiling Mount Wi-Fi 6 Access Point | 2.5G Ethernet | High-Density Connectivity | Omada Mesh | Enterprise Wi-Fi

Redefine enterprise networking performance with the TP-Link Omada EAP660 HD AX3600 Ceiling Mount Wi-Fi 6 Access Point (SKU: EAP660 HD), engineered for high-density environments demanding ultra-fast, reliable, and secure wireless connectivity.

The EAP660 HD leverages Wi-Fi 6 (802.11ax) to deliver stunning combined wireless speeds up to 3,550 Mbps—2,402 Mbps on the 5 GHz band and 1,148 Mbps on the 2.4 GHz band. With advanced features such as 4× longer OFDM symbols, OFDMA, MU-MIMO, and 1024-QAM modulation, this access point significantly boosts capacity and reduces latency, ensuring smooth operation in busy enterprise settings.

A 2.5G Ethernet port empowers your wired backhaul with multi-gigabit throughput, while PoE+ compatibility simplifies installation and reduces deployment costs. Internal high-gain antennas provide broad and reliable coverage, making the EAP660 HD ideal for offices, schools, shopping centres, and hotels.

Fully integrated into the Omada SDN platform, the EAP660 HD offers cloud-based centralised management, zero-touch provisioning, seamless roaming, and intelligent monitoring for efficient large-scale deployments. Enterprise-grade security—including WPA3, captive portal options, VLAN support, and rogue AP detection—ensures a safe and controlled network environment.

What's Included in the Box

• TP-Link Omada EAP660 HD AX3600 Wi-Fi 6 Access Point

• Power Adapter

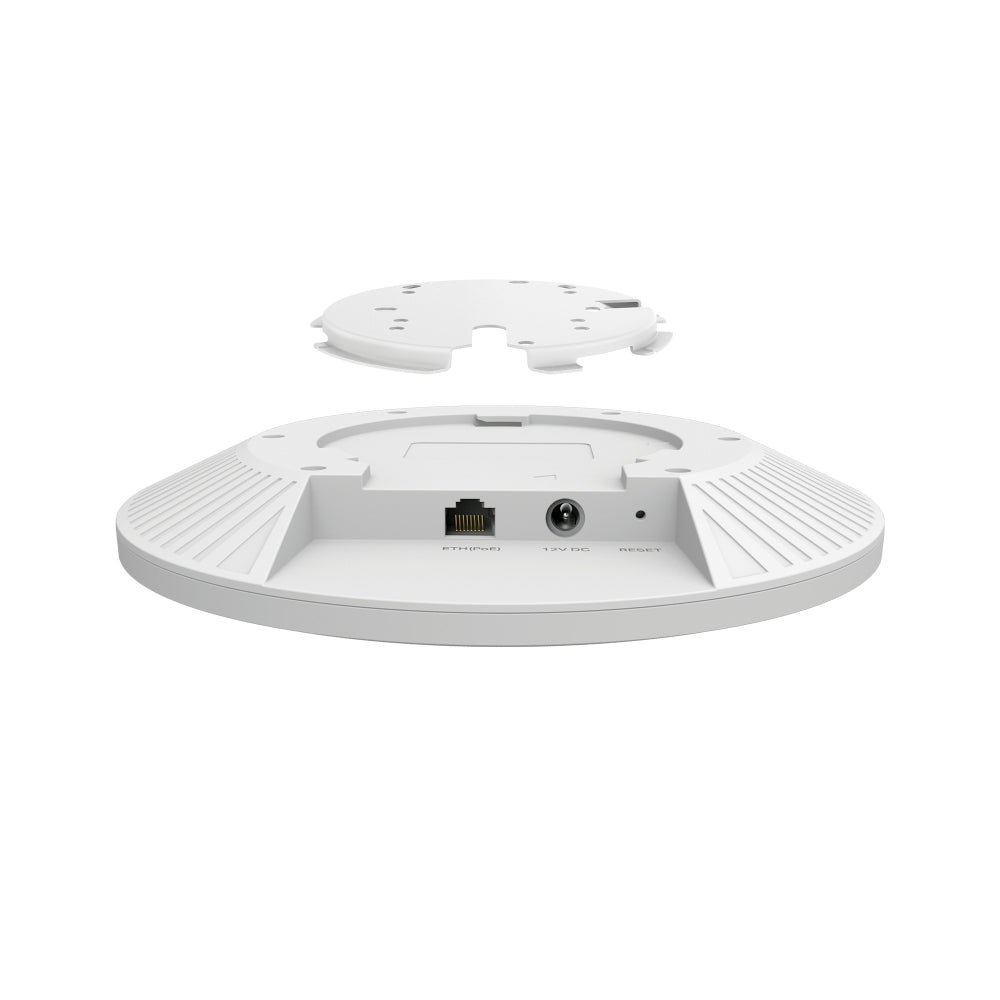

• Ceiling/Wall Mounting Kits

• Installation Guide

Main Features

✅ AX3600 Wi-Fi 6 Speed — Delivers up to 3.55 Gbps total wireless throughput for bandwidth-intensive business applications.

✅ High-Density Connectivity — Supports over 1,000+ concurrent clients with improved efficiency via OFDMA and MU-MIMO.

✅ 2.5G Ethernet Port — Multi-gigabit backhaul enables maximum Wi-Fi performance and future scalability.

✅ Omada SDN Integration — Supports cloud-based, hardware, and software controllers for unified network management.

✅ Seamless Roaming & Mesh — Ensures smooth connectivity for clients moving between APs across expansive environments.

✅ Enterprise-Grade Security — Features WPA3, captive portals, rogue AP detection, VLANs, and advanced access controls.

✅ Flexible Deployment Options — Powered via 802.3at PoE+ or DC adapter for versatile installations.

Detailed Specifications

Interfaces:

• 1× 2.5G Ethernet Port (supports IEEE802.3at PoE)

Wireless:

• Standards: IEEE 802.11a/b/g/n/ac/ax

• Frequencies:

  • 5 GHz: up to 2,402 Mbps

  • 2.4 GHz: up to 1,148 Mbps

• Antennas:

  • 2.4 GHz: 4× 4 dBi

  • 5 GHz: 4× 5 dBi

• Concurrent Clients: 1,000+

• Coverage: Approximately 140㎡–185㎡ depending on environment

• Wireless Features:

  • 1024-QAM

  • OFDMA

  • 4× Longer OFDM Symbols

  • MU-MIMO

  • Omada Mesh

  • Seamless Roaming (802.11k/v/r)

  • Band Steering

  • Load Balancing

  • Airtime Fairness

  • Beamforming

  • Multiple SSIDs (up to 16, 8 per band)

  • Wireless Scheduling

Power:

• PoE: 802.3at PoE+

• Optional: 12V DC (adapter included)

• Max Power Consumption:

  • EU: 18.5 W

  • US: 21.5 W

Physical:

• Dimensions: 243 × 243 × 64 mm

• Mounting: Ceiling or wall (kits included)

Security:

• Captive Portal Authentication

• Access Control

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• SSID-to-VLAN Mapping

• Rogue AP Detection

• Wireless Isolation

• MAC Filtering

• 802.1X Support

Management:

• Omada App

• SNMP v1/v2c/v3

• SSH

• Web-Based Management (HTTP/HTTPS)

• L3 Management

• Zero-Touch Provisioning

• Omada Cloud Access

• LED ON/OFF Control

• Email Alerts

Environment:

• Operating Temp: 0–40°C

• Storage Temp: -40–70°C

• Operating Humidity: 10–90% RH non-condensing

Certifications:

• CE, FCC, RoHS

Warranty Information

manufactures warranty applied

Brand Description

TP-Link is a world-leading provider of reliable networking products and solutions. The Omada SDN platform empowers enterprises to deploy scalable, secure, and centrally managed networks, ensuring seamless operation and high performance across diverse business environments.

Practical Use Scenarios

• Corporate Offices — Maintain high-speed, reliable Wi-Fi for hybrid work, video conferencing, and secure enterprise networks.

• Hospitality Venues — Provide seamless guest Wi-Fi across rooms, lobbies, and conference facilities.

• Educational Institutions — Power high-density environments like lecture halls and libraries with fast, reliable connectivity.

• Retail Environments — Enable digital signage, POS systems, and customer Wi-Fi with robust security and performance.

• Healthcare Facilities — Ensure stable wireless connections for staff, patient devices, and secure medical data transmissions.

Datasheets / Downloadable Resources

• TP-Link EAP660 HD Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link Omada EAP660 HD AX3600 Ceiling Mount Wi-Fi 6 Access Point is fully compliant with Australian and New Zealand standards, including CE, FCC, and RoHS certifications. Sourced through authorised TP-Link distributors, all units ensure genuine hardware and manufacturer-backed warranties. Designed to meet the high-density, high-performance requirements typical of deployments in Australia and New Zealand, the EAP660 HD delivers exceptional reliability and security tailored to local business needs.

FAQs (Including Product Code EAP660 HD)

Q1: What total wireless speed does the TP-Link EAP660 HD AX3600 Access Point (SKU: EAP660 HD) deliver?
A1: The EAP660 HD offers combined speeds up to 3,550 Mbps, with 2,402 Mbps on the 5 GHz band and 1,148 Mbps on the 2.4 GHz band.

Q2: Does the TP-Link EAP660 HD (SKU: EAP660 HD) support multi-gigabit Ethernet connections?
A2: Yes, it features a 2.5G Ethernet port, ensuring high-speed wired backhaul and optimal performance for Wi-Fi 6 deployments.

Q3: Is the EAP660 HD (SKU: EAP660 HD) compatible with Omada Mesh and seamless roaming?
A3: Absolutely. The EAP660 HD supports Omada Mesh technology and seamless roaming, ensuring uninterrupted connectivity across multiple APs.

Q4: Is the TP-Link EAP660 HD (SKU: EAP660 HD) compliant with Australian and New Zealand standards?
A4: Yes, the EAP660 HD complies with required certifications and is suitable for deployments in Australia and New Zealand.

Q5: How many clients can the TP-Link EAP660 HD (SKU: EAP660 HD) support simultaneously?
A5: The EAP660 HD can support over 1,000 concurrent clients, making it perfect for dense environments like offices, schools, and hospitality venues.
