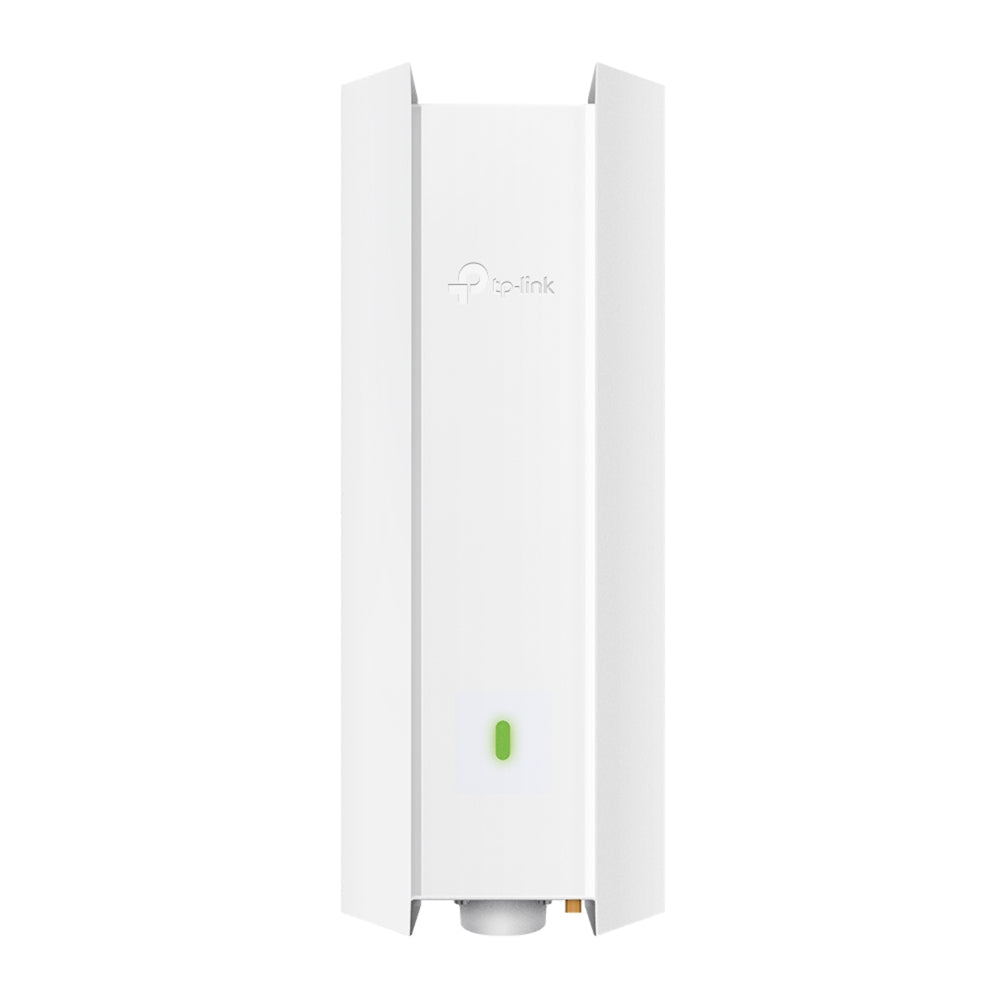

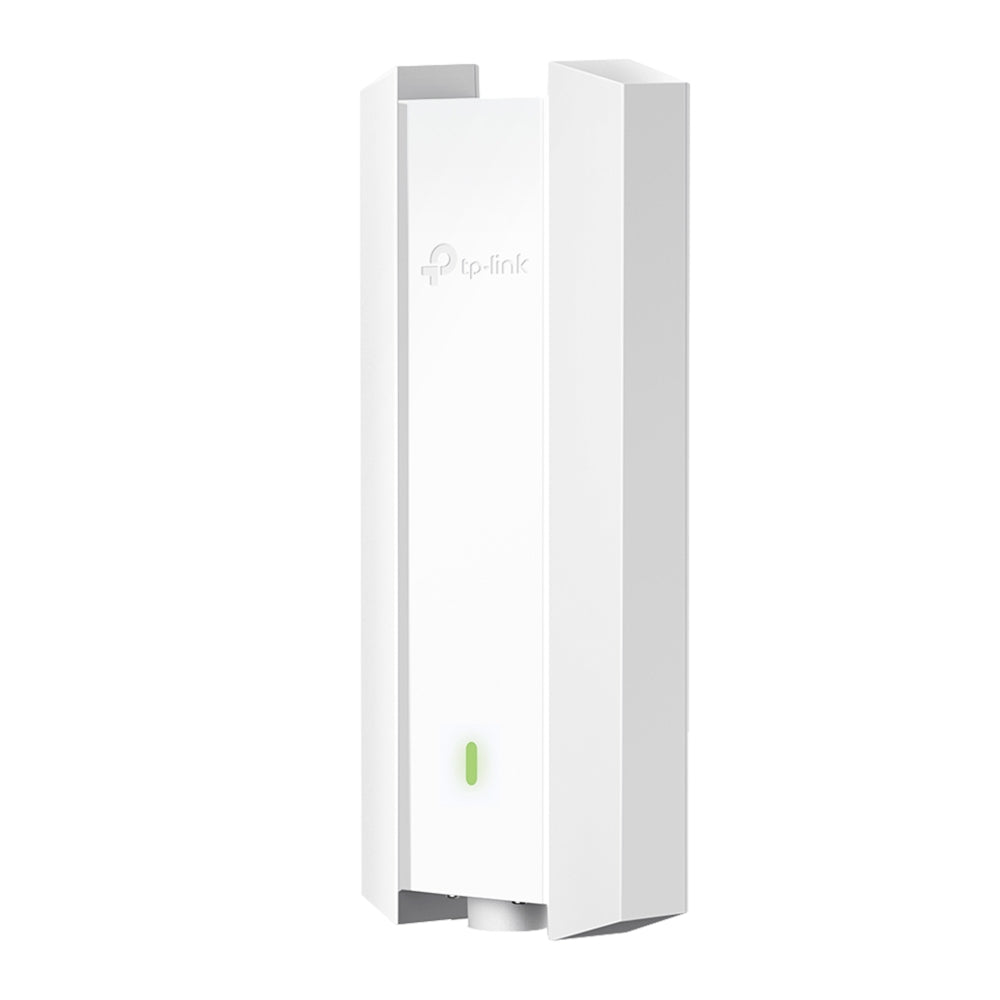

TP-Link Omada EAP650-Outdoor AX3000 WiFi 6 Outdoor Access Point | IP68 Weatherproof | Gigabit PoE+ | Omada SDN | Mesh | Seamless Roaming

Take your business network outdoors without compromise with the TP-Link Omada EAP650-Outdoor, delivering powerful AX3000 WiFi 6 performance in a rugged, all-weather design.

The EAP650-Outdoor unlocks blazing dual-band speeds up to 3 Gbps—2.4 GHz at 574 Mbps and 5 GHz at 2402 Mbps—thanks to cutting-edge WiFi 6 technologies like OFDMA, MU-MIMO, and HE160 support for 160 MHz channel width. That means higher capacity, lower latency, and smoother performance for dozens of connected users simultaneously.

Equipped with a high-power amplifier and professional-grade antennas, this access point ensures outstanding long-range wireless coverage, even in large outdoor spaces. Its IP68-rated enclosure stands firm against dust, water, and extreme weather, making it ideal for outdoor deployments in hospitality, campuses, parks, and business complexes.

Integrated seamlessly into TP-Link’s Omada SDN platform, the EAP650-Outdoor offers centralized cloud management, Zero-Touch Provisioning (ZTP), and network-wide intelligent monitoring. Omada Mesh support enables wireless interconnection between APs for flexible deployments without excessive cabling.

With support for both 802.3at PoE+ and passive PoE, installation is effortless and adaptable to various power infrastructures. Enjoy robust security features including WPA3 encryption, captive portal, and advanced network management tools.

From hospitality to enterprise-grade outdoor networks, the EAP650-Outdoor delivers the performance and reliability your business demands.

What's Included in the Box

• TP-Link EAP650-Outdoor WiFi 6 Access Point

• Passive PoE Adapter

• Power Cord

• Mounting Kits (Pole and Wall options)

• Quick Installation Guide

Main Features

✅ AX3000 WiFi 6 Speeds — Achieve ultra-fast wireless speeds up to 3 Gbps for high-density environments.

✅ Dual-Band Connectivity — 2.4 GHz band up to 574 Mbps and 5 GHz band up to 2402 Mbps.

✅ HE160 & 1024-QAM — Double your data capacity with 160 MHz channels and advanced modulation for peak performance.

✅ Long-Range Outdoor Coverage — High-power amplifiers and specialized antennas ensure extensive coverage, even in large outdoor areas.

✅ IP68 Weatherproof Design — Fully protected against dust, rain, snow, and extreme conditions.

✅ Omada SDN Integration — Centralized cloud management with advanced features like Mesh networking and seamless roaming.

✅ Flexible Power Options — Supports both 802.3at PoE+ and passive PoE for versatile deployments.

✅ Business-Grade Security — Includes WPA3, captive portal, VLAN support, rogue AP detection, and advanced access controls.

Detailed Specifications

Wireless Performance

• WiFi Standard: 802.11ax/ac/n/g/b/a

• Frequency Bands: 2.4 GHz + 5 GHz

• Signal Rate:

  • 2.4 GHz: Up to 574 Mbps

  • 5 GHz: Up to 2402 Mbps

• Modulation:

  • 1024-QAM

• OFDMA:

  • Supported

• MU-MIMO:

  • Supported

• HE160 (160 MHz Bandwidth):

  • Supported (5 GHz band)

• Concurrent Clients: 250+

Hardware

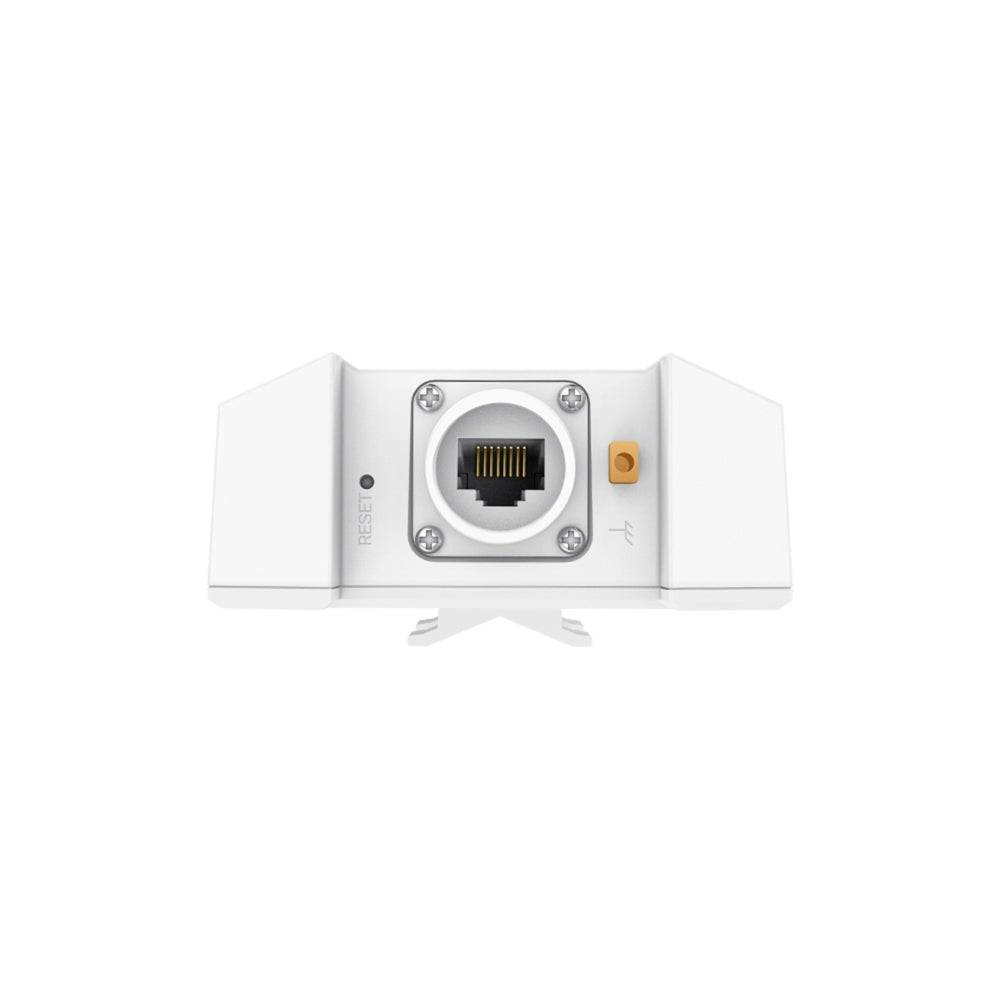

• Ethernet Port: 1× Gigabit Ethernet (RJ-45), supports 802.3at PoE+ and Passive PoE

• Power Options:

  • 802.3at PoE+

  • 48V Passive PoE (Adapter Included)

• Max Power Consumption:

  • EU: 12.5W

  • US: 14.7W

• Antennas:

  • 2× 4 dBi (2.4 GHz)

  • 2× 5 dBi (5 GHz)

• Dimensions:

  • 280.4 × 106.5 × 56.8 mm (without antenna & mounting kit)

• Enclosure Rating: IP68 (Weatherproof)

Wireless Functions

• Omada Mesh

• Seamless Roaming

• Band Steering

• Load Balancing

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics per SSID/AP/Client

Security

• Encryption:

  • WPA3-Personal/Enterprise

  • WPA2-Personal/Enterprise

  • WPA-Personal/Enterprise

  • WEP

• Captive Portal Authentication

• Access Control

• MAC Address Filtering

• Wireless Isolation

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

Management

• Centralized Cloud Management:

  • Omada Hardware Controllers (OC300, OC200)

  • Omada Cloud-Based Controller

  • Omada Software Controller

• Cloud Access: Yes

• SNMP: v1, v2c

• SSH: Supported

• Web-based Management: HTTP/HTTPS

• Zero-Touch Provisioning: Yes

Environmental

• Operating Temperature: -30–70 °C (-22–158 °F)

• Storage Temperature: -40–70 °C (-40–158 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Warranty Information

manufactures warranty applied

Brand Description

TP-Link Omada is a global leader in professional networking, delivering high-performance WiFi, secure wired connectivity, and centralized management solutions for businesses of all sizes. Omada’s Software-Defined Networking (SDN) architecture brings enterprise-grade capabilities to networks in hospitality, retail, education, and outdoor deployments.

Practical Use Scenarios

• Outdoor WiFi coverage in resorts, parks, stadiums, or campuses

• Business complexes needing robust outdoor wireless infrastructure

• Hospitality venues seeking seamless indoor-outdoor roaming

• Public venues requiring secure guest access and captive portal integration

• Industrial facilities demanding weather-resistant WiFi coverage

Datasheets / Downloadable Resources

• TP-Link EAP650-Outdoor Datasheet


Excellence for the Australian and New Zealand Market

The EAP650-Outdoor complies with Australian and New Zealand regulatory standards and is sourced through official channels for guaranteed warranty support and compliance. Its rugged IP68 rating and temperature resilience make it perfectly suited to the diverse climates and outdoor deployment requirements across the ANZ region.

FAQs (Including Product Code EAP650-Outdoor)

Q1: What speeds can the TP-Link EAP650-Outdoor (SKU: EAP650-Outdoor) achieve?
A1: The EAP650-Outdoor offers combined dual-band WiFi 6 speeds up to 3 Gbps, with 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.

Q2: Is the EAP650-Outdoor (SKU: EAP650-Outdoor) suitable for outdoor installations?
A2: Yes! With an IP68 weatherproof enclosure, it’s designed to withstand dust, rain, snow, and extreme temperatures.

Q3: Can the EAP650-Outdoor (SKU: EAP650-Outdoor) be powered via PoE?
A3: Absolutely. It supports both 802.3at PoE+ and passive PoE for flexible power options.

Q4: Does the EAP650-Outdoor (SKU: EAP650-Outdoor) support Omada Mesh?
A4: Yes. It integrates seamlessly into TP-Link’s Omada SDN and supports Mesh networking for wireless inter-AP connectivity.

Q5: How many users can the EAP650-Outdoor (SKU: EAP650-Outdoor) handle?
A5: It can support 250+ concurrent clients, making it ideal for high-density environments like campuses, hospitality, and outdoor public spaces.
