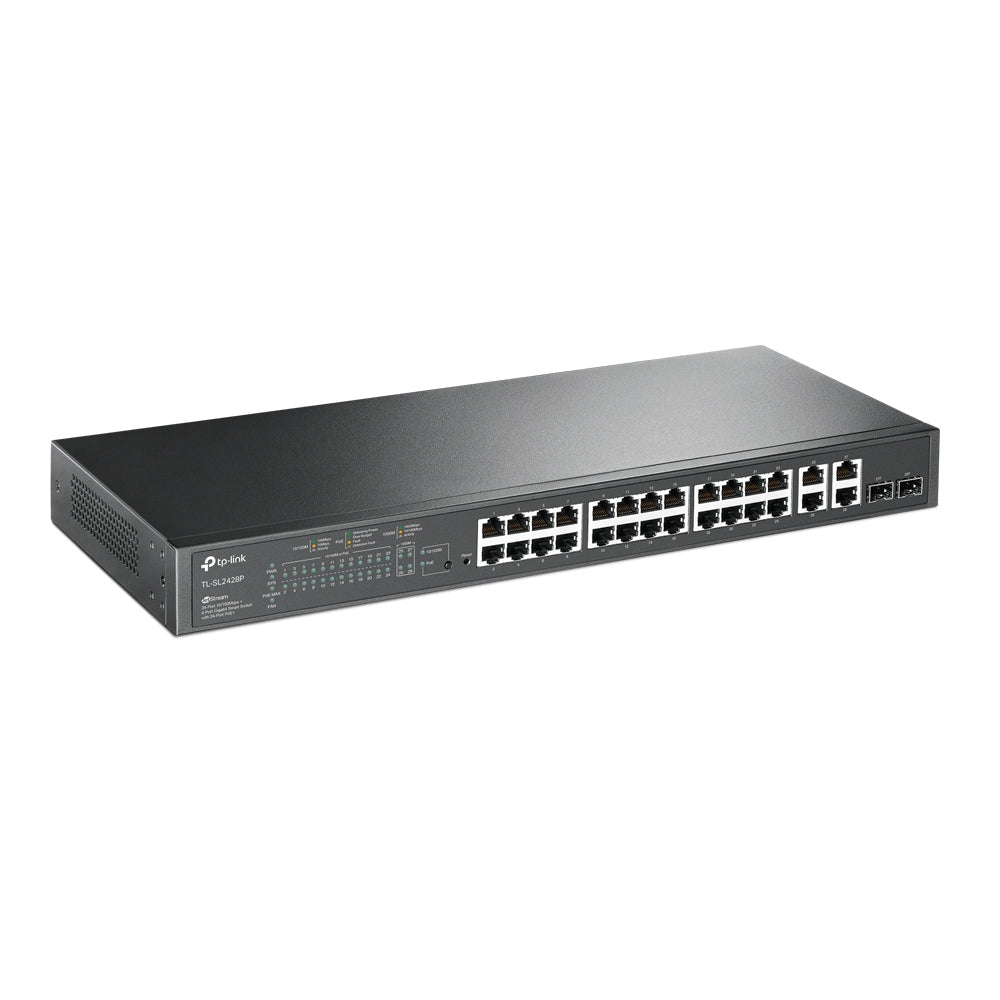

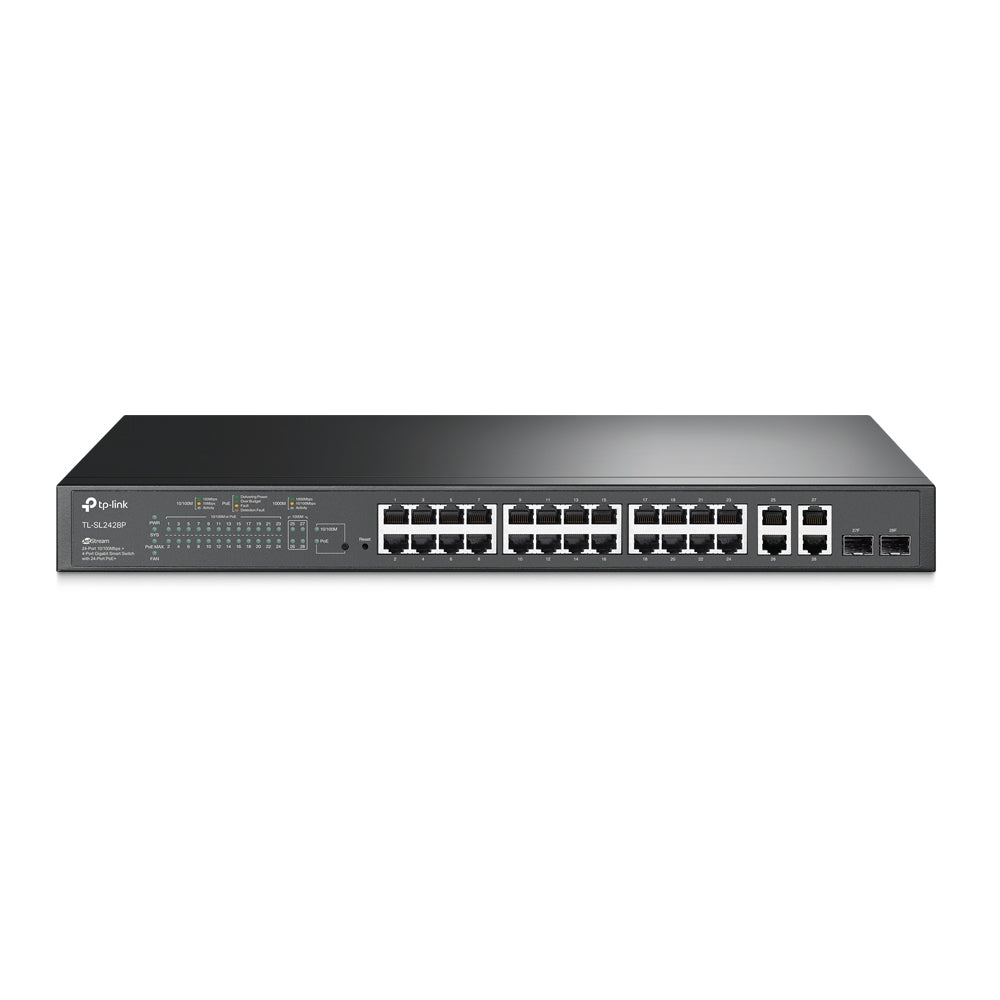

TP-Link JetStream TL-SL2428P 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+ | High-Power 250W PoE, L2/L3 Features, Advanced Security

Enhance your network infrastructure with the robust TP-Link JetStream TL-SL2428P, a professional-grade 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch featuring full 24-port PoE+ support and a generous 250W power budget. Ideal for small-to-medium businesses, hospitality environments, surveillance deployments, and educational institutions, this switch combines powerful performance, advanced management, and comprehensive security in a cost-effective package.

The TL-SL2428P delivers intelligent Layer 2 and Layer 3 capabilities, ensuring efficient traffic handling and smooth operation of bandwidth-sensitive applications like IP cameras, VoIP systems, and video streaming. With support for 802.1Q VLAN, L2/L3/L4 QoS, Access Control Lists (ACLs), and dual firmware for enhanced reliability, this switch safeguards your network investment while enabling seamless expansion and flexible management.

Integrated seamlessly into TP-Link’s JetStream family, the TL-SL2428P offers versatile management via a web-based GUI, CLI, SNMP, and RMON, making it the perfect choice for enterprises requiring reliable, secure, and high-performance networking solutions.

---

What's in the Box

• TP-Link JetStream TL-SL2428P Smart Switch

• Power Cord

• Installation Guide

• Rackmount Kit

• Rubber Feet

---

Main Features

✅ 24-Port PoE+ with 250W Budget – Powers IP cameras, wireless access points, and VoIP phones without additional electrical wiring.

✅ Hybrid Gigabit Uplinks – Four gigabit RJ45 ports and two combo SFP slots ensure high-speed uplink flexibility.

✅ Advanced Security – Protects your network with robust features like 802.1X, port security, ACLs, IP/IPv6 binding, and DoS defense.

✅ Layer 2 and Layer 3 Richness – Includes static routing, VLAN segmentation, link aggregation, storm control, IGMP/MLD snooping, and more.

✅ Dual Firmware Images – Enhance uptime and reliability by enabling seamless updates or rollbacks.

✅ Intuitive Management – Web GUI, CLI, SNMP v1/v2c/v3, and RMON for simplified network monitoring and management.

✅ High Performance – 12.8 Gbps switching capacity and 9.5 Mpps forwarding rate keep demanding networks running smoothly.

---

Detailed Specifications

Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p, 802.3af, 802.3at

Interfaces:

• 24 × 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

• 4 × 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

• 2 × Combo Gigabit SFP Slots

PoE Budget: 250 W total

Switching Capacity: 12.8 Gbps
Forwarding Rate: 9.5 Mpps
MAC Address Table: 8K entries
Jumbo Frame Support: Up to 9,216 bytes

Mounting: Rack mountable (kit included)
Fan Quantity: 2

Max Power Consumption:

• 18.8 W (no PD connected)

• 286.7 W (with 250 W PD connected)

Max Heat Dissipation:

• 64.1 BTU/h (no PD connected)

• 977.6 BTU/h (with 250 W PD connected)

Management Features:

• Web-based GUI

• Command Line Interface (CLI)

• SNMP v1/v2c/v3

• SNMP Trap/Inform

• RMON (groups 1, 2, 3, 9)

• Cable diagnostics

• System log

• Dual image, dual configuration

• SDM Template

QoS Features:

• 802.1p CoS / DSCP prioritisation

• 8 priority queues

• Strict Priority and WRR scheduling

• Bandwidth control

• Storm control

Layer 2 Features:

• Link Aggregation (static and LACP)

• STP/RSTP/MSTP with security features

• Loopback detection

• Flow control

• Port mirroring and flow-based mirroring

• Device Link Detect Protocol (DLDP)

Multicast:

• 512 shared IPv4/IPv6 multicast groups

• IGMP and MLD snooping

• Fast leave

• Multicast VLAN Registration

VLAN:

• Up to 4,000 VLANs

• 802.1Q tag VLAN

• MAC VLAN, Protocol VLAN, Voice VLAN, GVRP

Security:

• AAA, 802.1X port or MAC-based authentication

• Radius authentication

• IP/IPv6-MAC binding

• DHCP snooping

• ARP inspection, ND detection

• DoS protection

• Port isolation

• Secure management via HTTPS, SSH

IPv6 Support:

• Dual-stack IPv4/IPv6

• MLD snooping

• ND, MTU discovery, ICMPv6

• IPv6 management protocols (SNMP, SSH, SSL, etc.)

MIBs:

• MIB II, Bridge MIB, P/Q-Bridge MIB, Radius MIBs, RMON, TP-Link private MIBs

Dimensions (W x D x H): 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)

Certifications: CE, FCC, RoHS

Environment:

• Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)

• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

• Operating Humidity: 10% ~ 90% RH non-condensing

• Storage Humidity: 5% ~ 90% RH non-condensing

System Requirements: Compatible with Windows®, macOS®, NetWare®, UNIX®, Linux®

---

Warranty Information

The TP-Link JetStream TL-SL2428P includes a limited manufacturer warranty. Warranty services are provided directly through TP-Link or authorised service partners, ensuring swift resolution and dependable support for Australian and New Zealand customers.

---

Brand Description

TP-Link is a trusted global leader in networking solutions, renowned for delivering innovative, high-quality products tailored to both consumer and enterprise markets. From Wi-Fi systems to professional-grade switching and routing hardware, TP-Link provides scalable, secure solutions that empower modern networks. The JetStream series reflects TP-Link’s commitment to advanced networking, combining powerful features with user-friendly management and rock-solid reliability.

---

SKU

TL-SL2428P

---

Practical Use Scenarios

• Surveillance Installations – Power and connect dozens of IP cameras in large facilities, leveraging 250W of PoE budget without external power injectors.

• VoIP Phone Systems – Simplify deployments in offices and call centers by powering IP phones directly through network cables.

• Wi-Fi Access Points – Deliver reliable connectivity and power to APs in schools, hotels, and enterprise buildings.

• Network Core or Aggregation Layer – Utilize as an affordable distribution switch for SMBs needing advanced Layer 2/3 capabilities.

• Retail or Hospitality – Ideal for environments demanding strong network security, VLAN segmentation, and smooth voice/video performance.

---

Datasheets / Downloadable Resources

Download TP-Link TL-SL2428P Datasheet

---

Excellence for the Australian and New Zealand Market

The TP-Link JetStream TL-SL2428P fully complies with Australian and New Zealand standards, holding CE, FCC, and RoHS certifications for safety and environmental compliance. This product is sourced exclusively through authorised distributors to guarantee genuine hardware and full warranty coverage directly with TP-Link. Optimised for local conditions and regulatory requirements, the TL-SL2428P is a reliable choice for businesses across Australia and New Zealand. Customers enjoy local technical support and warranty handling, ensuring confidence and peace of mind with every purchase.

---

FAQs

Q1. How much PoE power does the TL-SL2428P provide? (TL-SL2428P)
The TL-SL2428P offers a total PoE power budget of 250 W, allowing you to power up to 24 PoE/PoE+ devices simultaneously, such as IP cameras and wireless access points.

---

Q2. Does the TL-SL2428P support gigabit connections? (TL-SL2428P)
Yes! In addition to 24 Fast Ethernet ports, the TL-SL2428P provides 4 gigabit RJ45 ports and 2 combo SFP slots for high-speed uplinks.

---

Q3. Can I manage the TL-SL2428P via a web interface? (TL-SL2428P)
Absolutely. The TL-SL2428P supports web-based management, CLI, SNMP, and RMON, making it easy to configure and monitor.

---

Q4. Is the TL-SL2428P suitable for VLAN segmentation? (TL-SL2428P)
Yes. The switch supports up to 4,000 VLANs, including 802.1Q tag VLAN, MAC VLAN, protocol VLAN, and voice VLAN.

---

Q5. Does the TL-SL2428P have dual firmware images for redundancy? (TL-SL2428P)
Yes! The TL-SL2428P includes dual firmware images to ensure seamless updates and improved network uptime.
