TP-Link ER706W Omada Gigabit AX3000 Wi-Fi 6 VPN Gateway | Dual-Band Wi-Fi 6, Multi-WAN, and Advanced VPN Security |

TP-Link ER706W Omada Gigabit AX3000 Wi-Fi 6 VPN Gateway | Dual-Band Wi-Fi 6, Multi-WAN, and Advanced VPN Security |

$253.98 AUD
$465.12 AUD $253.98 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

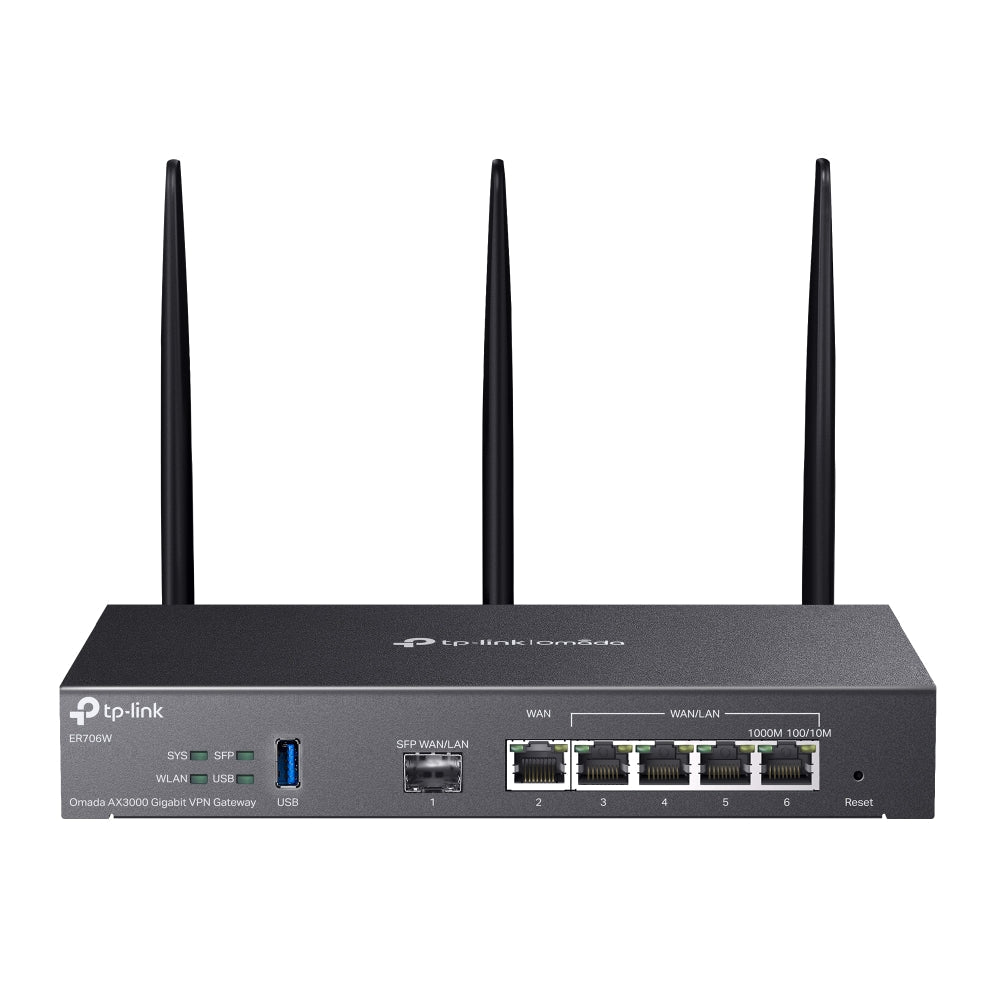

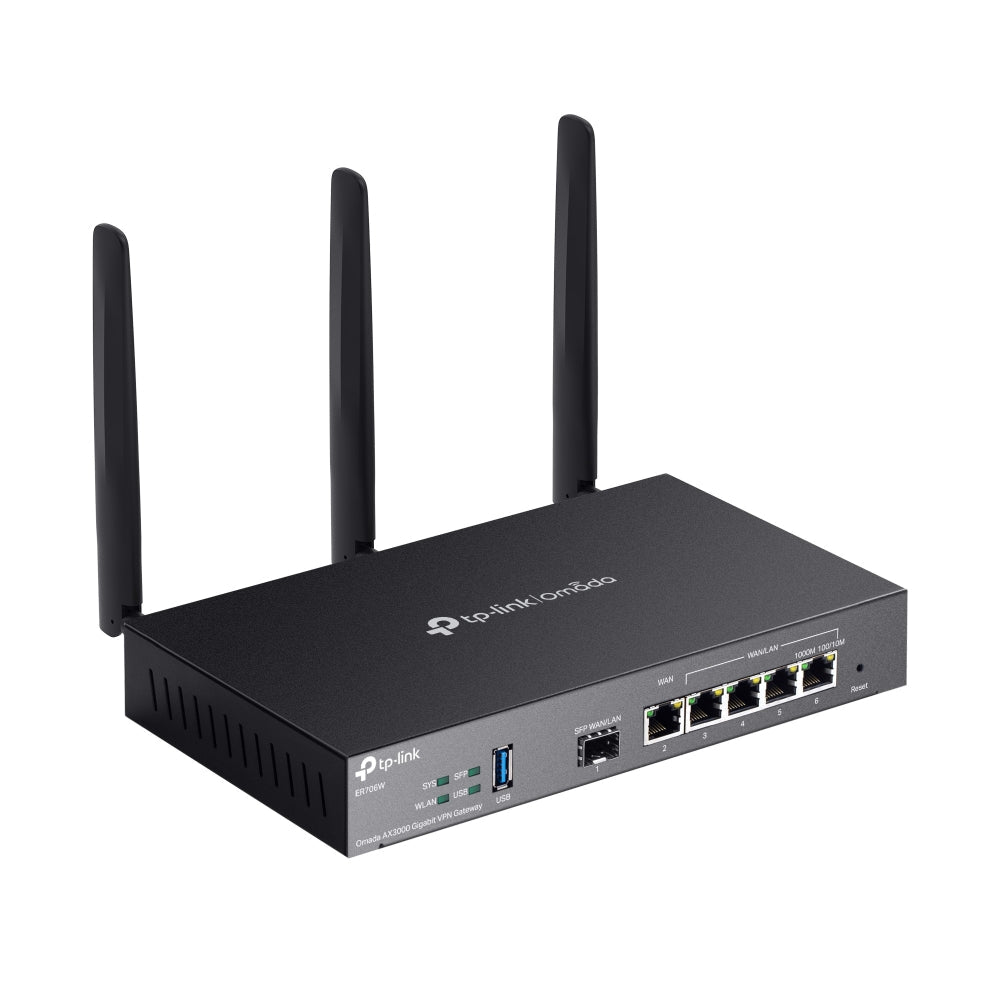

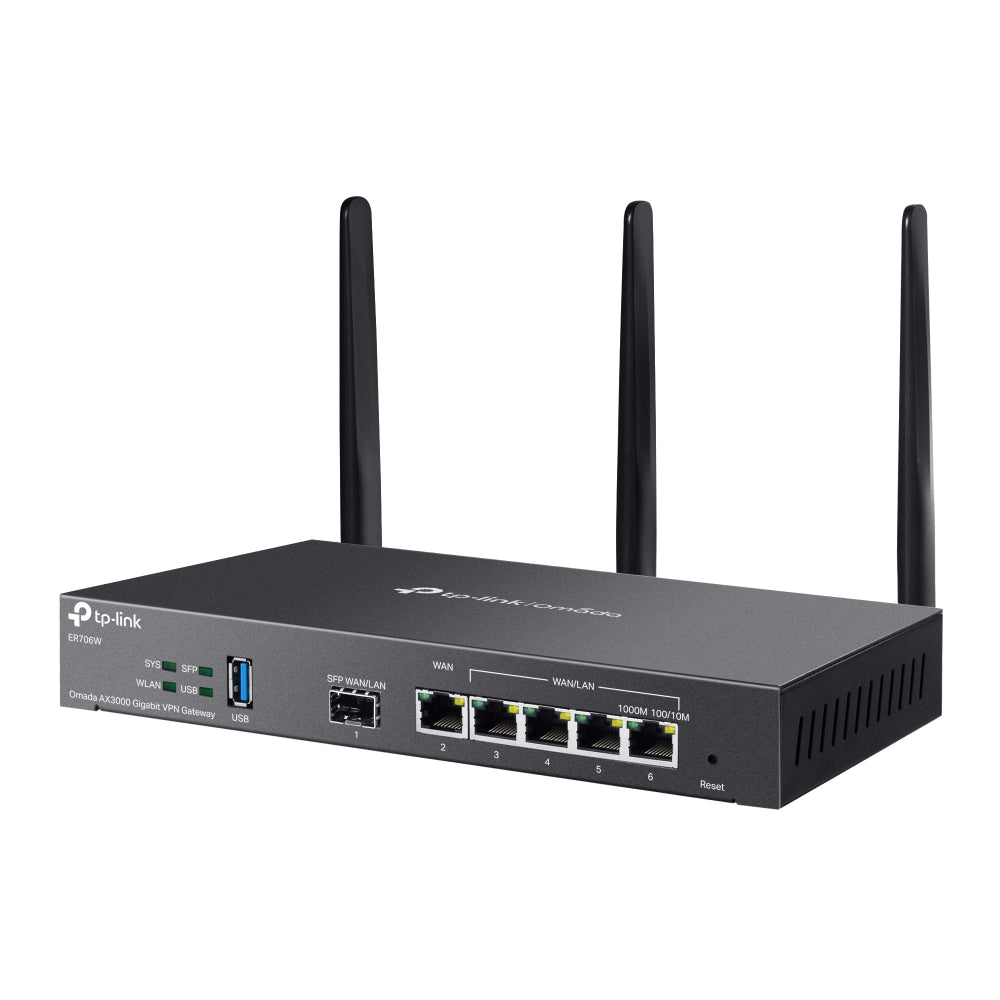

Boost your business network’s performance and security with the TP-Link ER706W Omada Gigabit AX3000 Wi-Fi 6 VPN Gateway, a versatile, enterprise-class solution engineered for high-speed connectivity and robust management.

Equipped with AX3000 Wi-Fi 6 technology, the ER706W delivers ultra-fast wireless performance of up to 2402 Mbps on the 5 GHz band and 574 Mbps on 2.4 GHz, making it perfect for environments with high device density and demanding applications. Its flexible connectivity includes a Gigabit SFP slot for fiber connections and five Gigabit RJ45 ports, supporting load balancing across up to five WAN links for exceptional network reliability.

The ER706W seamlessly integrates with the Omada SDN platform, offering centralized cloud management, intelligent network monitoring, and zero-touch provisioning. Advanced security capabilities, such as SSL, IPSec, GRE, WireGuard, and OpenVPN support, along with DPI and IPS/IDS threat detection, ensure your network remains secure and compliant.

Compact, powerful, and built for professional deployment, the ER706W is the ideal choice for businesses looking to modernize their network infrastructure while maintaining top-tier performance and security.

What’s Included in the Box

  • 1 × TP-Link ER706W Omada Gigabit AX3000 Wi-Fi 6 VPN Gateway

  • Power Adapter

  • Quick Installation Guide

Main Features

  • AX3000 Wi-Fi 6 Speeds: Dual-band wireless delivers up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for superior wireless performance and capacity.

  • Multi-WAN Load Balancing: Supports up to five WAN connections for optimized bandwidth utilization and reliable internet redundancy.

  • Gigabit SFP Port: Integrates fiber connectivity for flexible network architecture.

  • Advanced VPN Support: Includes SSL, IPSec, GRE, WireGuard, PPTP, L2TP, and OpenVPN for secure remote and branch connectivity.

  • Enhanced Security: Features DPI application control, IPS/IDS threat detection, URL filtering, DoS defense, and comprehensive firewall capabilities.

  • Seamless Omada SDN Integration: Enables centralized cloud management, zero-touch provisioning, and intelligent monitoring via the Omada app or web platform.

  • LTE Backup Capability: USB 3.0 port supports LTE dongles for automatic failover and additional network resilience.

  • Flexible Installation: Includes detachable high-gain antennas and supports desktop or wall mounting.

Detailed Specifications

Hardware Features
Interfaces 1 × Gigabit SFP WAN/LAN Port
1 × Gigabit WAN Port
4 × Gigabit LAN/WAN Ports
1 × USB 3.0 Port (supports USB LTE dongle and USB storage)
Wi-Fi Technology AX3000 Wi-Fi 6
2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps (HE160)
Antennas 2.4 GHz: 2 × 3 dBi detachable antennas
5 GHz: 3 × 4.5 dBi detachable antennas
Flash 128 MB NAND
DRAM 512 MB DDR4
LEDs PWR, SYS, SFP, WAN/LAN indicators
Dimensions 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (excluding antennas)
Power Supply 12VDC / 2A adapter
Max Power Consumption EU: 16.8 W (USB connected), 11.8 W (without USB)
US: 22.7 W (USB connected), 18.2 W (without USB)

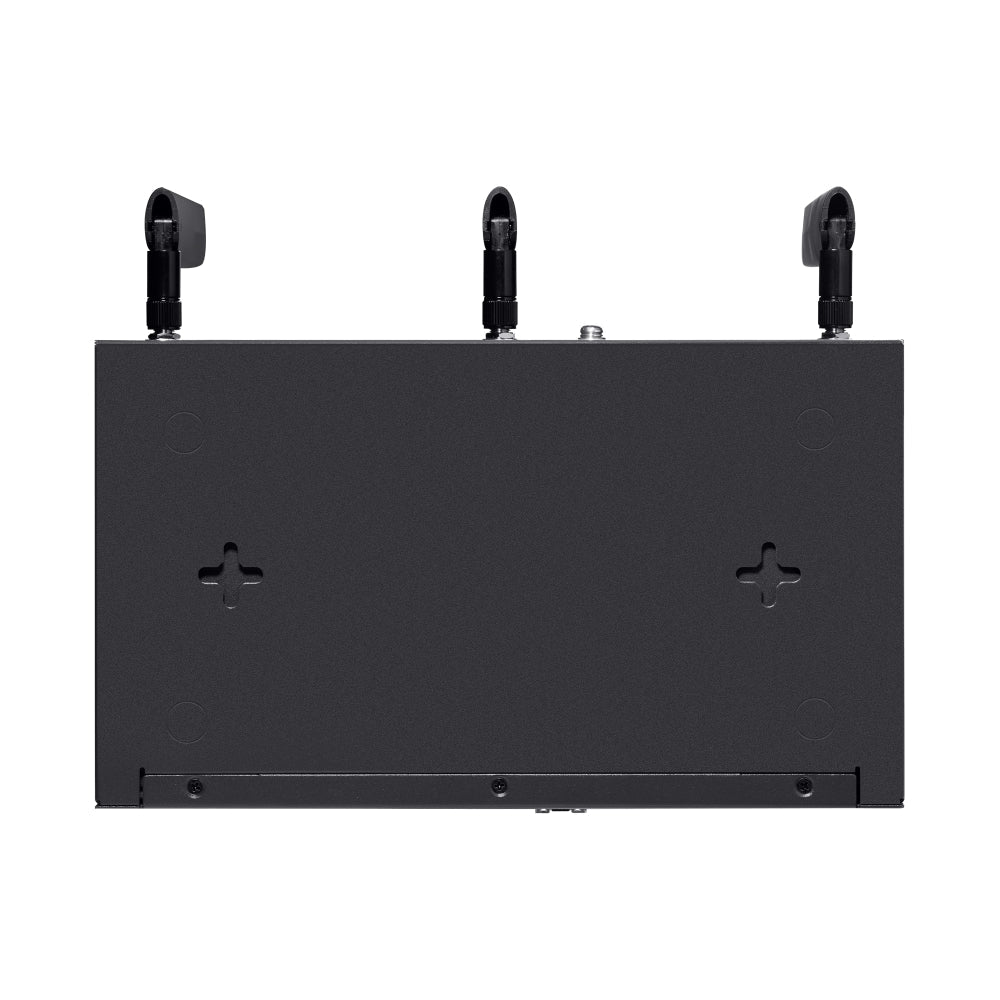

Mounting Desktop/Wall mounting
Performance
IPS Throughput TCP: 229 Mbps; UDP: 188 Mbps
DPI Throughput TCP: 933 Mbps; UDP: 927 Mbps
GRE Throughput Unencrypted: 624.2 Mbps; Encrypted: 301.5 Mbps
WireGuard VPN Throughput 393.5 Mbps
Concurrent Sessions 150,000
New Sessions/sec 5,100
NAT Throughput (Static IP) Upload: 937.2 Mbps; Download: 936.1 Mbps
IPsec VPN Throughput Up to 658.4 Mbps (ESP-SHA512-AES256)
OpenVPN Throughput 129.3 Mbps
L2TP VPN Throughput Unencrypted: 1034.0 Mbps; Encrypted: 570.0 Mbps
PPTP VPN Throughput Unencrypted: 1165.0 Mbps; Encrypted: 209.0 Mbps
SSL VPN Throughput 126.7 Mbps
Packet Forwarding Rate 66-byte: ~1.45 million pps; 1518-byte: ~91,275 pps
VPN & Security
VPN Types GRE, SSL, IPsec, PPTP, L2TP, OpenVPN, WireGuard
VPN Capacity 100 IPsec tunnels, 55 OpenVPN tunnels, 50 SSL VPN tunnels, 20 WireGuard tunnels
Security Features DPI, IPS/IDS, DoS/DDoS protection, ARP inspection, ACLs, IP/MAC/URL filtering, SPI firewall, ALG support
Wireless Features
Mesh Support Omada Mesh (when paired with EAPs supporting Mesh)
Wireless Optimization OFDMA, MU-MIMO, Beamforming, Airtime Fairness, Seamless Roaming
Wireless Encryption WPA/WPA2/WPA3 Personal and Enterprise
SSIDs Up to 16 total (8 per radio)
Guest Network Supported
Management & Cloud
Centralized Management Omada Cloud-Based Controller, Hardware Controller (OC200, OC300), Software Controller
Omada App Supported
Zero-Touch Provisioning Supported
Additional Features Automatic device discovery, intelligent monitoring, unified configuration, captive portal management, abnormal event warnings
Certifications & Environment
Certifications CE, FCC, RoHS
Operating Temp. 0–40 ℃ (32–104 ℉)
Storage Temp. -40–70 ℃ (-40–158 ℉)
Operating Humidity 10–90% RH non-condensing
Storage Humidity 5–90% RH non-condensing
System Requirements Windows 98SE onward, macOS, NetWare, UNIX, Linux

Warranty Information

The TP-Link ER706W Omada Gigabit AX3000 Wi-Fi 6 VPN Gateway is covered by TP-Link’s standard manufacturer warranty, ensuring peace of mind and professional support. For warranty specifics in Australia and New Zealand, consult TP-Link’s official regional channels or authorized distributors.

About TP-Link

TP-Link is a global leader in networking solutions, trusted by millions worldwide for innovative, high-quality products that deliver superior performance and reliability. From consumer to enterprise solutions, TP-Link helps businesses thrive in the connected world.

SKU

ER706W

Practical Use Scenarios

  • Multi-Branch Connectivity: Securely connect multiple business locations with high-speed VPN tunnels and seamless management.

  • Retail Networks: Combine fast Wi-Fi 6 coverage with LTE backup for stable internet in busy retail environments.

  • SMB Offices: Deploy robust, scalable Wi-Fi and security in a single compact device.

  • Remote Work Solutions: Enable secure remote access for employees via high-speed VPN technologies.

  • Educational Institutions: Provide high-density Wi-Fi coverage and advanced network security across campus facilities.

Datasheets / Downloadable Resources

Excellence for the Australian and New Zealand Market

The TP-Link ER706W Omada Gigabit AX3000 Wi-Fi 6 VPN Gateway meets rigorous compliance standards for Australia and New Zealand, including CE, FCC, and RoHS certifications. Devices are sourced through authorized regional distributors to ensure authenticity and warranty coverage. Local support and warranty handling via TP-Link’s official ANZ channels deliver peace of mind and reliable service for businesses throughout the region.

 FAQs

Q1: What wireless speeds does the TP-Link ER706W Omada VPN Gateway (ER706W) support?

The ER706W supports AX3000 Wi-Fi 6 with speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for fast and reliable wireless connectivity.

Q2: Can the TP-Link ER706W Omada VPN Gateway (ER706W) be managed through the cloud?

Yes! The ER706W integrates seamlessly with the Omada SDN platform, allowing centralized cloud management and zero-touch provisioning via Omada controllers.

Q3: How many VPN tunnels can the TP-Link ER706W Omada VPN Gateway (ER706W) handle?

The ER706W supports up to 100 IPsec VPN tunnels, 55 OpenVPN tunnels, 50 SSL VPN tunnels, and 20 WireGuard tunnels, enabling secure enterprise connections.

Q4: Does the TP-Link ER706W Omada VPN Gateway (ER706W) support LTE backup?

Absolutely! The ER706W includes a USB 3.0 port that supports LTE dongles, allowing for automatic failover in case of primary internet outages.

Q5: What are the physical dimensions of the TP-Link ER706W Omada VPN Gateway (ER706W)?

The ER706W measures 8.9 × 5.2 × 1.4 inches (226 × 131 × 35 mm), making it a compact choice for professional network environments.
