TP-Link ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway | High-Speed LTE, Dual-Band Wi-Fi 6, PoE, and VPN
TP-Link ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway | High-Speed LTE, Dual-Band Wi-Fi 6, PoE, and VPN
Regular price
$457.98 AUD
Regular price
$691.56 AUD
Sale price
$457.98 AUD
Duties and taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Experience seamless connectivity anywhere with the TP-Link ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway, engineered to deliver high-speed wireless and wired performance for businesses demanding reliability, security, and outdoor deployment flexibility.
This rugged gateway features 4G+ Cat6 LTE connectivity for up to 300 Mbps download speeds, ensuring uninterrupted internet even in remote or temporary locations. With cutting-edge AX3000 Wi-Fi 6 technology, the ER703WP-4G-Outdoor offers ultra-fast wireless speeds up to 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz, perfect for dense device environments.
Equipped with three Gigabit WAN/LAN ports (including two PoE out), the ER703WP-4G-Outdoor supports versatile network topologies while offering the convenience of PoE for connected devices. Its IP55 weatherproof housing guarantees stable operation across extreme conditions, making it ideal for outdoor installations.
Seamless integration with the Omada SDN platform ensures centralized cloud management, zero-touch provisioning, and advanced monitoring, while robust VPN capabilities and enterprise-class security keep networks safe and efficient. Whether deployed on building exteriors, poles, or indoor walls, the ER703WP-4G-Outdoor delivers enterprise-grade performance in a rugged, flexible form factor.
What’s Included in the Box
-
1 × TP-Link ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gateway
-
Mounting Kits
-
Quick Installation Guide
Main Features
-
4G+ Cat6 LTE Connectivity: Up to 300 Mbps downlink and 50 Mbps uplink, providing reliable internet access in remote or failover scenarios.
-
AX3000 Wi-Fi 6 Speeds: Ultra-fast dual-band wireless with up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
-
Carrier Aggregation Support: Advanced LTE performance with multiple band combinations for enhanced speed and coverage.
-
PoE Flexibility: 3 Gigabit WAN/LAN ports, including 2 PoE out and 1 PoE in, simplify deployment and power management for connected devices.
-
IP55 Weatherproof Design: Engineered to withstand harsh outdoor environments from -30°C to 60°C.
-
Advanced VPN Support: Includes IPSec, OpenVPN, WireGuard, GRE, PPTP, L2TP, and SSL VPN for secure remote and branch connectivity.
-
Omada SDN Integration: Enables centralized management, cloud access, and zero-touch provisioning for scalable network operations.
-
Robust Security: DPI, IPS/IDS, URL filtering, and comprehensive threat defense protect networks from internal and external risks.
-
Flexible Mounting Options: Supports wall or pole mounting for versatile installations.
Detailed Specifications
| Hardware Features | |
|---|---|
| LTE Connectivity | 4G+ Cat6, up to 300 Mbps downlink, 50 Mbps uplink 1 Nano SIM slot |
| LTE Bands (EU) | LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD: B38/B40/B41 3G: B1/B3/B5/B8 |
| Carrier Aggregation | Supported across multiple bands for faster LTE performance |

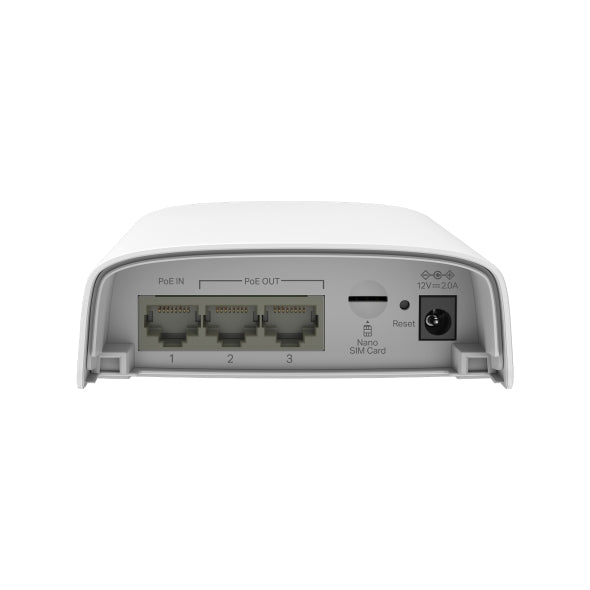

| Interfaces | 3 × Gigabit WAN/LAN Ports (2 PoE Out, 1 PoE In) |
| Wi-Fi Technology | AX3000 Wi-Fi 6 2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps |
| Antennas | Wi-Fi: Two built-in dual-band antennas (5 GHz 4.0 dBi, 2.4 GHz 2.3 dBi) LTE: Two detachable omnidirectional antennas (4.0 dBi) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| Fan Quantity | Fanless |
| LEDs | 4G Signal, WLAN, WAN/LAN, SYS indicators |
| Dimensions | 4.0 × 1.5 × 6.9 in (100.4 × 38.7 × 174.8 mm) (antenna excluded) |
| Power Supply | 802.3at/bt PoE or 12VDC/2A adapter |
| Max Power Consumption | 14.5 W without PoE 63 W with PoE |
| Protection | IP55 weatherproof rating |
| Enclosure | Ruggedized outdoor housing |
| Performance | |
|---|---|
| DPI Throughput | TCP: 1131 Mbps; UDP: 974 Mbps |
| GRE Throughput | Unencrypted: 450.3 Mbps; Encrypted: 277.6 Mbps |
| WireGuard VPN Throughput | 462.8 Mbps |
| Concurrent Sessions | 120,000 |
| New Sessions/sec | 3,800 |
| NAT Throughput (Static IP) | Upload: 945.9 Mbps; Download: 950.2 Mbps |
| IPsec VPN Throughput | Up to 568.3 Mbps (ESP-SHA1-AES256) |
| OpenVPN Throughput | 85.1 Mbps |
| L2TP VPN Throughput | Unencrypted: 858.7 Mbps; Encrypted: 467.0 Mbps |
| PPTP VPN Throughput | Unencrypted: 876.2 Mbps; Encrypted: 182.6 Mbps |
| SSL VPN Throughput | 86.6 Mbps |
| Packet Forwarding Rate | 66-byte: ~1.45 million pps; 1518-byte: ~81,275 pps |
| VPN & Security | |
|---|---|
| VPN Types | GRE, SSL, IPsec, PPTP, L2TP, OpenVPN, WireGuard |
| VPN Capacity | 100 IPsec tunnels, 55 OpenVPN tunnels, 50 SSL VPN tunnels, 20 WireGuard tunnels |
| Security Features | DPI, IPS/IDS, DoS/DDoS protection, ARP inspection, ACLs, IP/MAC/URL filtering, SPI firewall, ALG support |
| Wireless Features | |
|---|---|
| Mesh Support | Supported with EAPs that support Mesh |
| Wireless Optimization | OFDMA, MU-MIMO, Beamforming, Airtime Fairness, Seamless Roaming |
| Wireless Encryption | WPA/WPA2/WPA3 Personal and Enterprise |
| SSIDs | Up to 16 total (8 per radio) |
| Guest Network | Supported |
| Management & Cloud | |
|---|---|
| Centralized Management | Omada Cloud Essentials, Cloud-Based Controller, Hardware Controller (OC200, OC300), Software Controller |
| Omada App | Supported |
| Zero-Touch Provisioning | Supported |
| Additional Features | Automatic device discovery, intelligent monitoring, unified configuration, captive portal management, abnormal event warnings |
| Certifications & Environment | |
|---|---|
| Certifications | CE, FCC, RoHS |
| Operating Temp. | -30–60 ℃ (-22–140 ℉) |
| Storage Temp. | -40–70 ℃ (-40–158 ℉) |
| Operating Humidity | 5–95% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
| System Requirements | Windows 98SE onward, macOS, NetWare, UNIX, Linux |
Warranty Information
The TP-Link ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gateway comes with TP-Link’s standard manufacturer warranty, ensuring robust support and reliable service. For warranty details specific to Australia and New Zealand, please check with TP-Link’s official regional channels or authorized distributors.
About TP-Link
TP-Link is a world-leading networking provider, trusted for delivering innovative, reliable solutions for businesses and consumers alike. With products that combine performance, security, and ease of management, TP-Link empowers businesses to stay connected and thrive in the digital age.
SKU
ER703WP-4G-Outdoor
Practical Use Scenarios
-
Outdoor Wi-Fi Deployments: Extend high-speed wireless coverage for outdoor venues, campuses, and event spaces.
-
Remote Construction Sites: Deliver internet connectivity where wired broadband is unavailable, using LTE as the primary link.
-
Retail and Hospitality: Provide seamless guest Wi-Fi and secure network management in outdoor facilities like patios or drive-throughs.
-
Industrial IoT Environments: Ensure secure and reliable connectivity for industrial devices in rugged, outdoor conditions.
-
Mobile Installations: Deploy network services on vehicles, trailers, or temporary outdoor installations requiring LTE connectivity and robust VPN security.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The TP-Link ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gateway is built to meet strict Australian and New Zealand compliance standards, including CE, FCC, and RoHS certifications. Products are sourced exclusively through authorized distributors, ensuring genuine hardware and local support. Warranty claims and technical assistance are handled directly via TP-Link’s official ANZ channels, delivering reliability and peace of mind for enterprises across the region.
FAQs
Q1: Can the TP-Link ER703WP-4G-Outdoor Omada VPN Gateway (ER703WP-4G-Outdoor) be installed outdoors?
Yes! The ER703WP-4G-Outdoor features an IP55 weatherproof enclosure and operates in temperatures from -30°C to 60°C, making it ideal for outdoor deployments.
Q2: Does the TP-Link ER703WP-4G-Outdoor Omada VPN Gateway (ER703WP-4G-Outdoor) support PoE?
Absolutely. The device includes 2 PoE out ports for powering connected devices and supports PoE in for flexible power options.
Q3: What LTE speeds does the TP-Link ER703WP-4G-Outdoor Omada VPN Gateway (ER703WP-4G-Outdoor) deliver?
The ER703WP-4G-Outdoor supports 4G+ Cat6 LTE with download speeds up to 300 Mbps and upload speeds up to 50 Mbps for fast, reliable connectivity.
Q4: Can the TP-Link ER703WP-4G-Outdoor Omada VPN Gateway (ER703WP-4G-Outdoor) be managed via the cloud?
Yes! The ER703WP-4G-Outdoor integrates seamlessly with the Omada SDN platform for centralized cloud management and zero-touch provisioning.
Q5: What are the physical dimensions of the TP-Link ER703WP-4G-Outdoor Omada VPN Gateway (ER703WP-4G-Outdoor)?
The ER703WP-4G-Outdoor measures 4.0 × 1.5 × 6.9 inches (100.4 × 38.7 × 174.8 mm), excluding antennas, making it compact and suitable for discreet outdoor installations.
