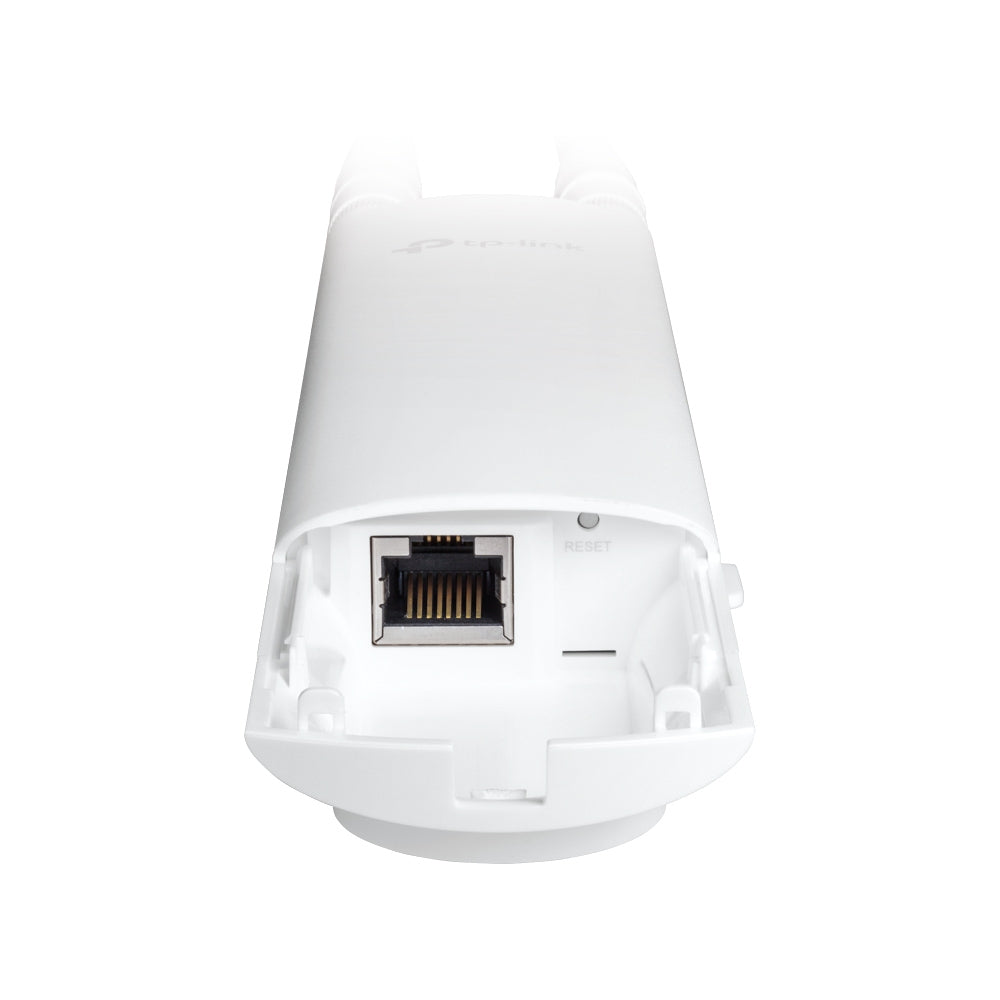

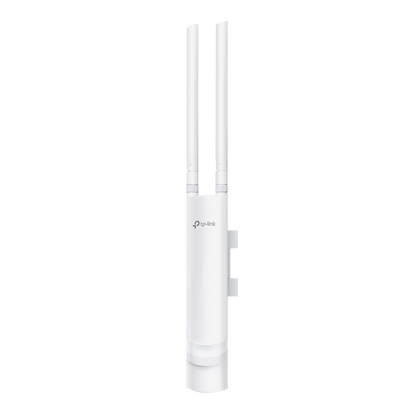

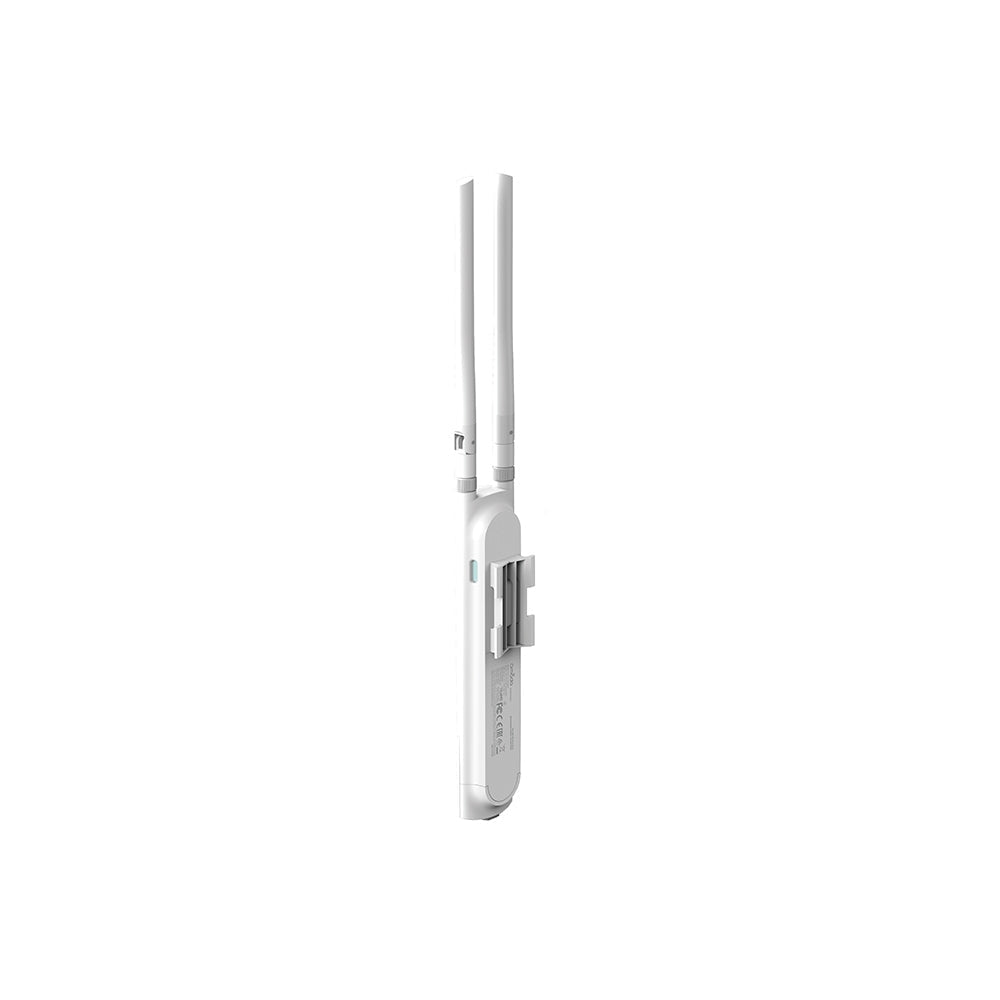

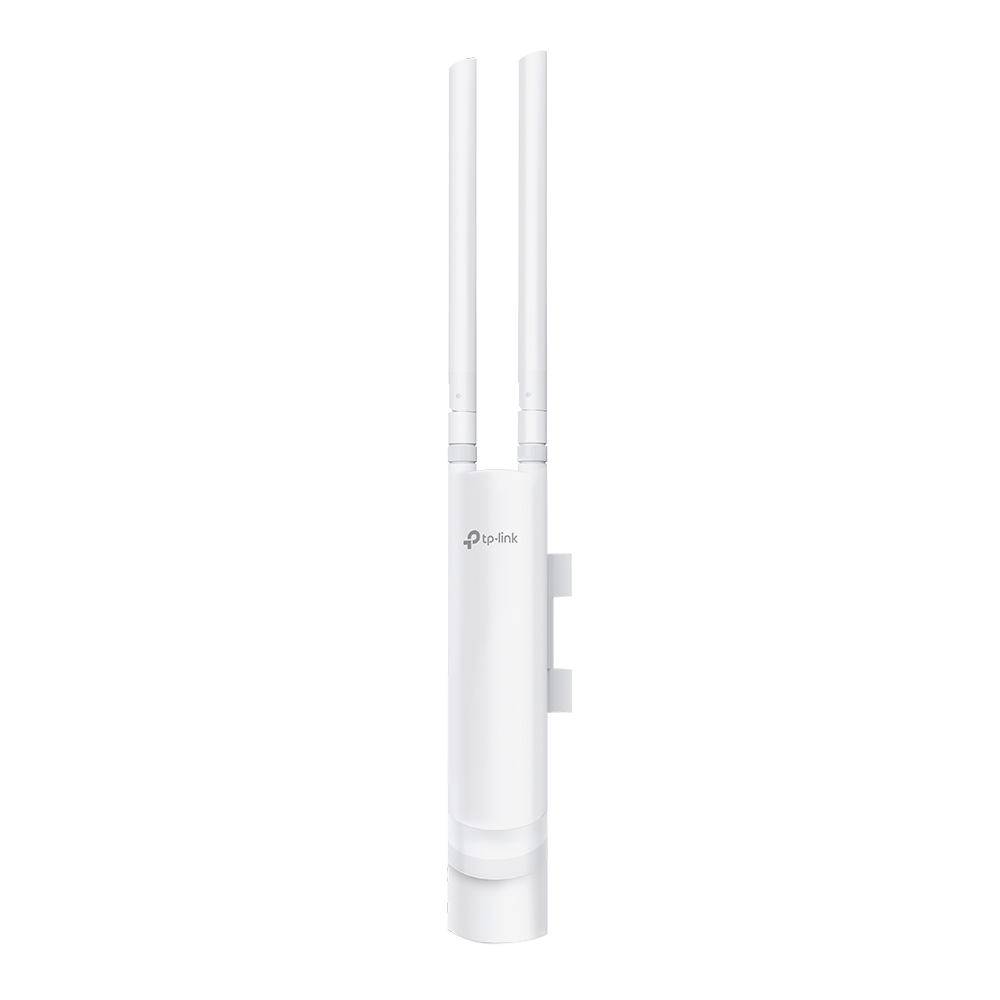

TP-Link EAP225-Outdoor AC1200 Outdoor WiFi 5 Access Point – Dual-Band MU-MIMO, Gigabit Ethernet, Omada Mesh, PoE, IP65 Weatherproof, Seamless Roaming | SKU: EAP225-Outdoor

TP-Link EAP225-Outdoor AC1200 Outdoor WiFi 5 Access Point – Dual-Band MU-MIMO, Gigabit Ethernet, Omada Mesh, PoE, IP65 Weatherproof, Seamless Roaming | SKU: EAP225-Outdoor

$151.98 AUD
$202.98 AUD $151.98 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Deliver powerful, high-speed wireless connectivity to outdoor spaces with the TP-Link EAP225-Outdoor, an AC1200 Wireless MU-MIMO Gigabit Access Point engineered for both indoor and outdoor environments. Designed for businesses, campuses, hospitality venues, and public spaces, this access point blends impressive performance with robust protection against the elements.

With simultaneous dual-band speeds up to 1167 Mbps—867 Mbps on 5GHz and 300 Mbps on 2.4GHz—the EAP225-Outdoor ensures fast, stable connections for high-density environments. Equipped with advanced 802.11ac Wave 2 technology and 2×2 MU-MIMO, it communicates efficiently with multiple devices, reducing congestion and improving overall network performance.

The EAP225-Outdoor integrates seamlessly into TP-Link’s Omada SDN ecosystem, providing centralized cloud management, Zero-Touch Provisioning (ZTP), and advanced monitoring via the Omada app or web interface. Omada Mesh technology allows for flexible deployment by wirelessly linking multiple APs, eliminating extensive cabling and expanding coverage effortlessly. Seamless roaming ensures uninterrupted video streams and voice calls as users move through different network zones.

Engineered for durability, the IP65 weatherproof enclosure shields the EAP225-Outdoor from dust, rain, and harsh outdoor conditions. High-gain antennas and a powerful amplifier extend Wi-Fi coverage, making it ideal for large outdoor areas such as parks, schoolyards, stadiums, or outdoor retail spaces.

Power options include 802.3af PoE and 24V Passive PoE (adapter included), simplifying installation where power outlets are limited. Robust security measures, such as captive portal authentication, VLAN mapping, rogue AP detection, and WPA/WPA2-Enterprise encryption, keep your network safe from unauthorized access.

From urban deployments to rural broadband expansions, the EAP225-Outdoor combines reliability, flexibility, and enterprise-grade features to meet modern networking demands.

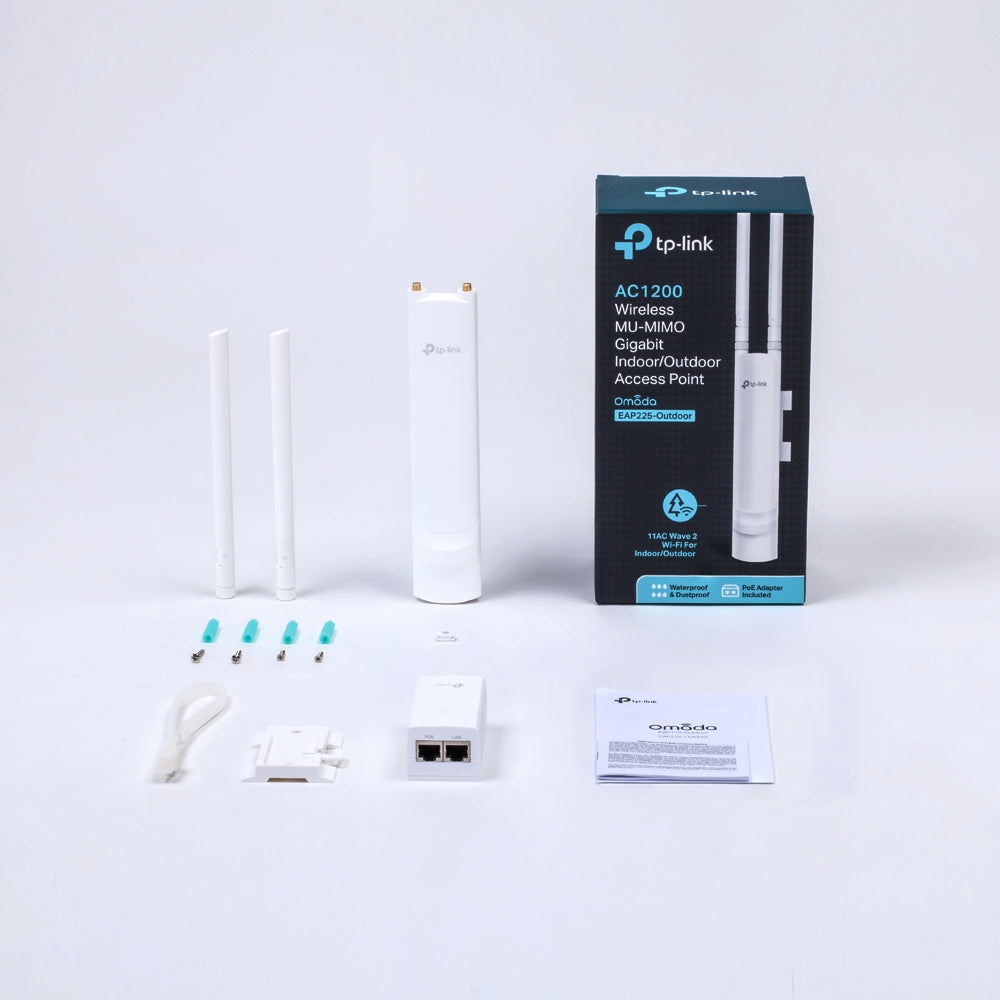

What’s Included in the Box

  • TP-Link EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Access Point

  • Passive PoE Adapter

  • Power Cord

  • Mounting Kits

  • Waterproof Rubber Insert

  • Waterproof Antenna

  • Installation Guide

Main Features

  • Dual-Band AC1200 Wi-Fi: Delivers up to 867 Mbps on 5GHz and 300 Mbps on 2.4GHz for fast, stable wireless connectivity.

  • Omada Mesh Support: Enables wireless interconnection of APs for flexible, scalable deployments.

  • Seamless Roaming: Ensures smooth transitions for voice and video as users move between access points.

  • Long-Range Coverage: High-power amplifier and external antennas provide expansive outdoor Wi-Fi coverage.

  • Weatherproof Design: IP65-rated housing protects the AP from rain, dust, and harsh outdoor environments.

  • Flexible Power Options: Supports both 802.3af PoE and 24V Passive PoE for versatile installation.

  • Omada SDN Integration: Centralized cloud management, Zero-Touch Provisioning, and remote monitoring via the Omada app or web portal.

  • Robust Security Features: Includes captive portal, WPA/WPA2-Enterprise, rogue AP detection, SSID to VLAN mapping, and more.

Detailed Specifications

Category Details
WiFi Standards IEEE 802.11a/b/g/n/ac
Frequency Bands 2.4 GHz and 5 GHz
Max Speeds 5GHz: up to 867 Mbps
2.4GHz: up to 300 Mbps
MU-MIMO Yes
Signal Rates 5GHz: 6.5 Mbps to 867 Mbps (VHT20/40/80, NSS=1-2)
2.4GHz: 6.5 Mbps to 300 Mbps (HT 20/40)
Antenna Type 2 external dual-band omni antennas:
2.4GHz: 2× 3 dBi
5GHz: 2× 5 dBi
Transmission Power CE: <20 dBm (2.4 GHz), <27 dBm (5 GHz)
FCC: <23 dBm (2.4 GHz), <22 dBm (5 GHz)
Ethernet Ports 1× Gigabit Ethernet (RJ-45), supporting 802.3af/at PoE and Passive PoE
Power Consumption Max. 10.5W
PoE Support 802.3af PoE or 24V Passive PoE (PoE adapter included)
Weatherproof Rating IP65
Mounting Options Pole/Wall Mounting (kits included)
Wireless Functions Multiple SSIDs (up to 16), Automatic Channel Assignment, Transmit Power Control, Band Steering, Airtime Fairness, MU-MIMO, Seamless Roaming (802.11k/v/r), Omada Mesh, Load Balancing, Rate Limit, Wireless Schedule, Wireless Statistics
Wireless Security Captive Portal, WPA/WPA2-Enterprise, 802.1X, MAC Filtering, Rogue AP Detection, Wireless Isolation, SSID to VLAN Mapping
Management Features Omada Cloud-Based Controller, Hardware Controllers, Software Controller, SNMP v1/v2c/v3, SSH, HTTP/HTTPS, L3 Management, Zero-Touch Provisioning, Multi-site Management
Operating Temperature -30°C ~ 70°C (-22°F ~ 158°F)
Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity 10% ~ 90% RH, non-condensing
Storage Humidity 5% ~ 90% RH, non-condensing
Certifications CE, FCC, RoHS
Dimensions 214.9 × 46 × 26.7 mm (8.5 × 1.8 × 1.1 in)

Warranty Information

TP-Link offers a limited warranty covering defects in materials and workmanship for the EAP225-Outdoor. Warranty terms vary by region. Customers in Australia and New Zealand can access full support through authorized partners for seamless service and warranty claims.

Brand Description

TP-Link is a global leader in networking technology, renowned for delivering high-quality, innovative solutions for home and business networks. From powerful Wi-Fi systems to enterprise-grade access points, TP-Link products combine reliability, performance, and exceptional value, trusted by millions worldwide.

SKU

EAP225-Outdoor

Practical Use Scenarios

✅ Perfect for parks and public spaces providing reliable outdoor Wi-Fi for visitors.

✅ Ideal for schools and campuses requiring robust outdoor wireless coverage for students and staff.

✅ Excellent for outdoor retail, hospitality, and café spaces needing seamless customer connectivity.

✅ Suitable for warehouse yards and industrial facilities demanding weather-resistant Wi-Fi.

Datasheets & Downloadable Resources

Excellence for the Australian and New Zealand Market

The TP-Link EAP225-Outdoor is certified for use in Australia and New Zealand and meets strict ANZ regulatory standards. Sourced through official distribution channels, all units include regional compliance, warranty support, and local service. Businesses across the ANZ region can deploy the EAP225-Outdoor with confidence, backed by TP-Link’s commitment to quality and trusted regional support.

FAQs

Q1: What is the maximum wireless speed of the TP-Link EAP225-Outdoor (SKU: EAP225-Outdoor)?
A1: The EAP225-Outdoor offers combined speeds up to 1167 Mbps—867 Mbps on 5GHz and 300 Mbps on 2.4GHz.

Q2: Can the TP-Link EAP225-Outdoor (SKU: EAP225-Outdoor) withstand harsh outdoor environments?
A2: Yes! It features an IP65-rated weatherproof enclosure, making it ideal for outdoor installations in rain, dust, and temperature extremes.

Q3: Does the TP-Link EAP225-Outdoor (SKU: EAP225-Outdoor) support Omada Mesh technology?
A3: Absolutely! Omada Mesh enables wireless interconnection between APs for flexible deployment and expanded coverage.

Q4: How many SSIDs can the TP-Link EAP225-Outdoor (SKU: EAP225-Outdoor) support?
A4: The EAP225-Outdoor supports up to 16 SSIDs, allowing network segmentation for different user groups or applications.

Q5: What power options are available for the TP-Link EAP225-Outdoor (SKU: EAP225-Outdoor)?
A5: It supports both 802.3af PoE and 24V Passive PoE for flexible installation, and a passive PoE adapter is included in the package.
