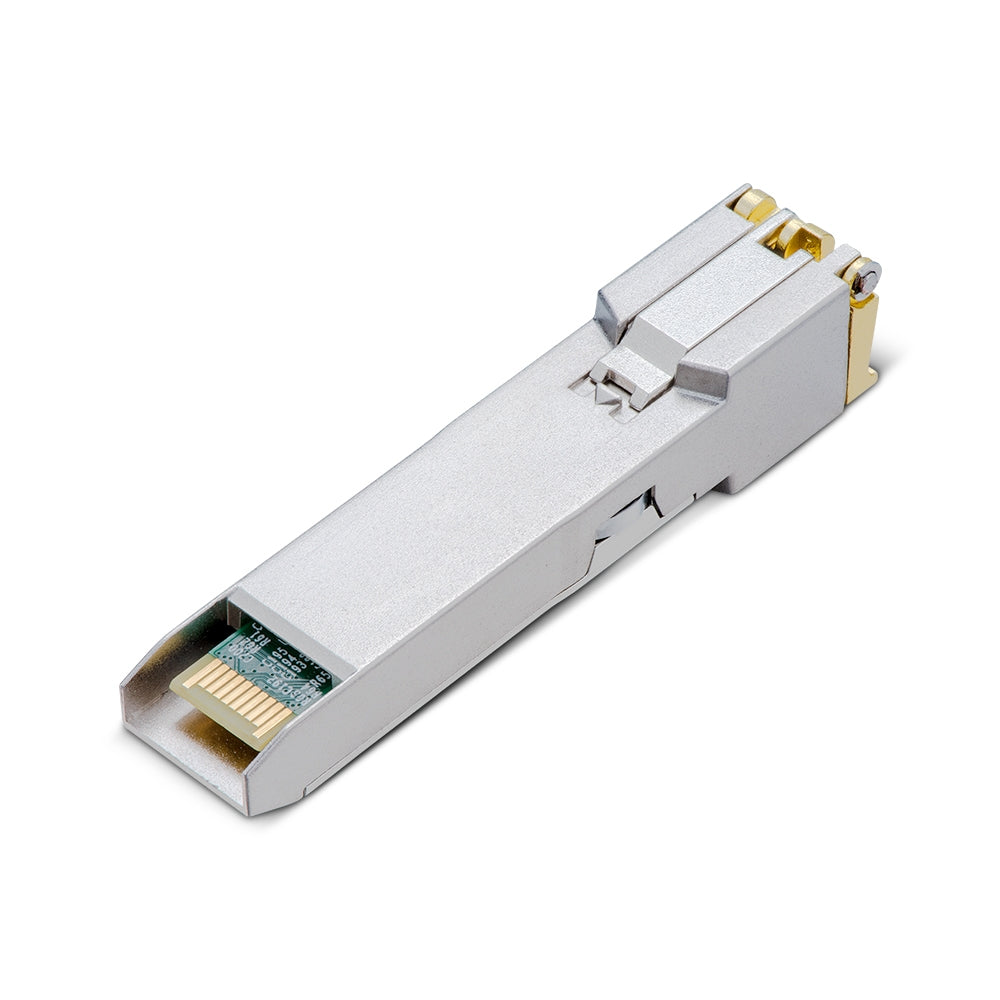

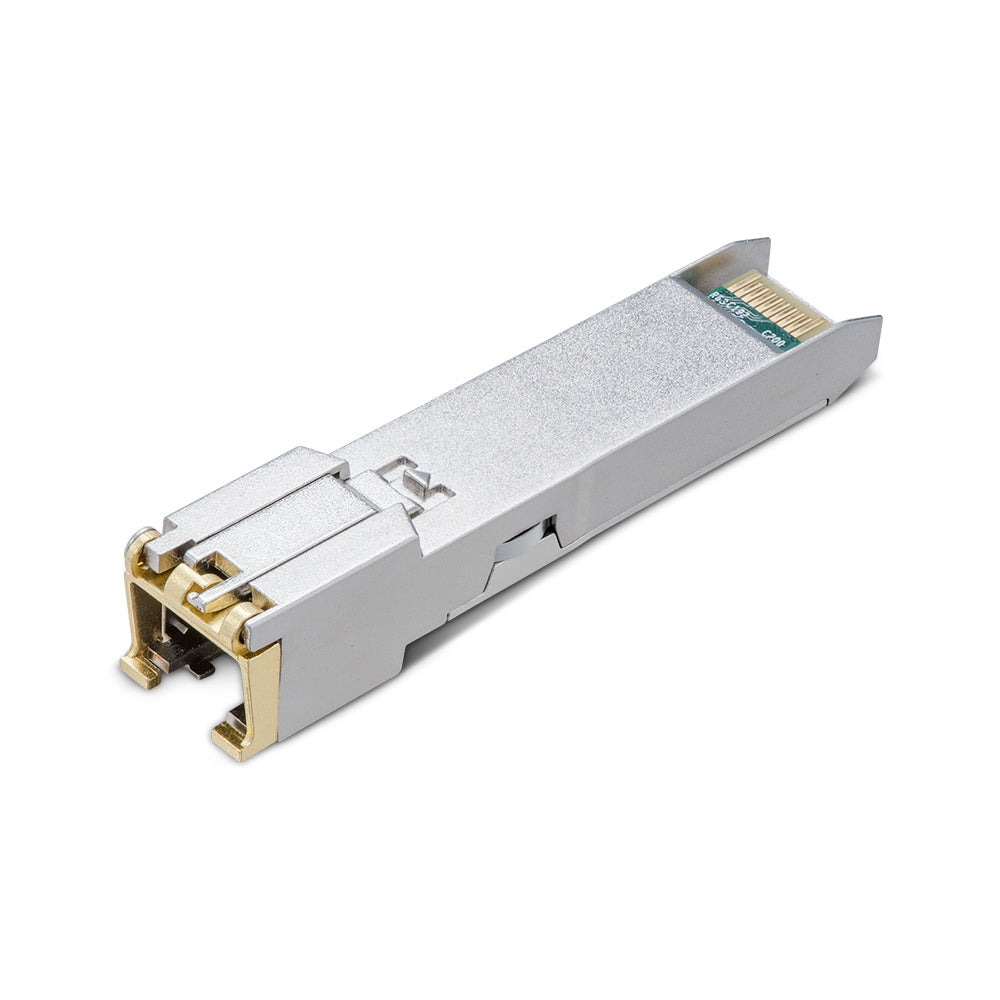

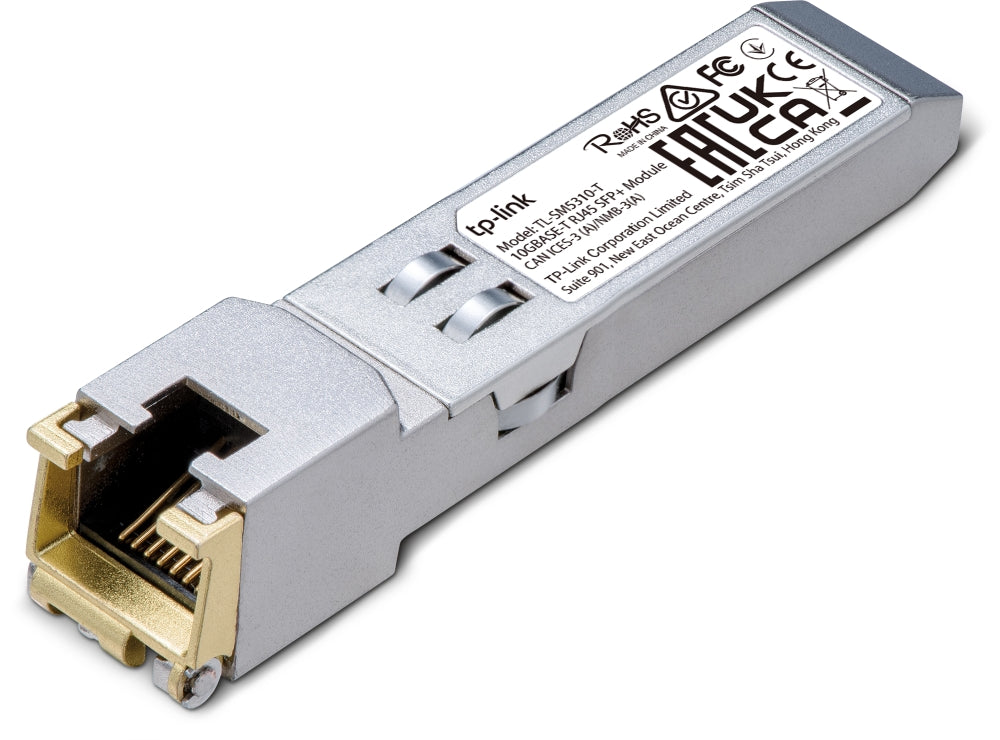

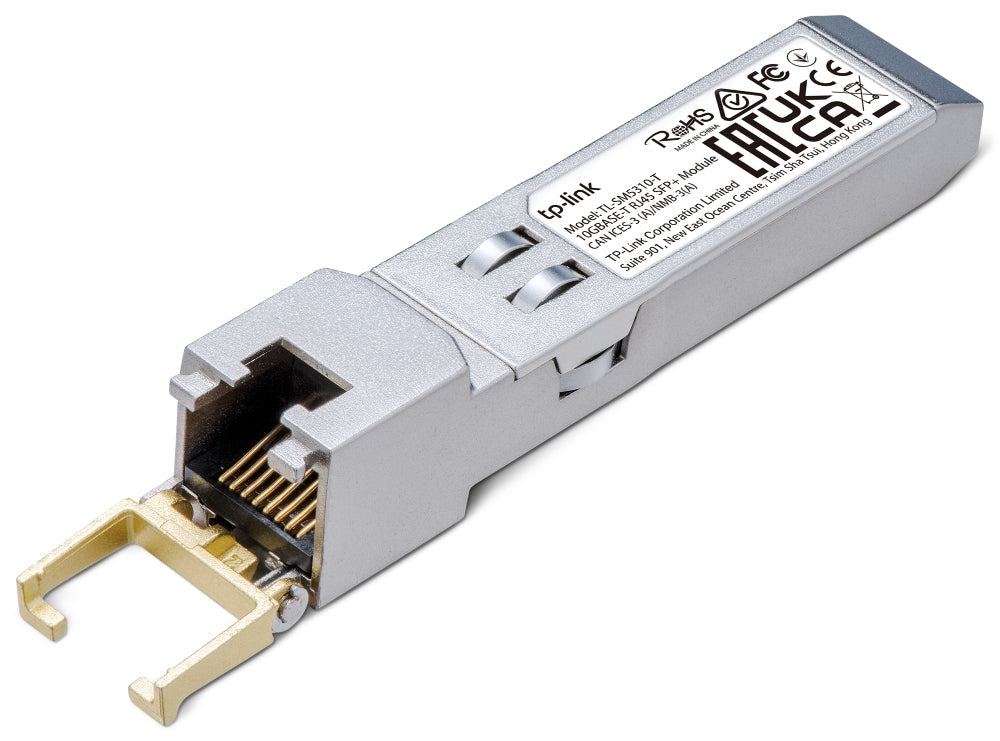

TL-SM5310-T | TP-Link 10GBASE-T RJ45 SFP+ Module – Multi-Gig Copper Transceiver

The TP-Link TL-SM5310-T is a hot-swappable 10G RJ45 SFP+ transceiver module designed to deliver high-performance, low-latency multi-gigabit copper connectivity over standard Ethernet cabling. Supporting a full range of Ethernet standards including 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX, it is the perfect solution for modern networks requiring flexibility, speed, and cost-efficiency.

Compatible with UTP Cat.6a and above, this transceiver allows 10 Gbps data transmission up to 30 meters, and longer distances at lower speeds. With Digital Diagnostic Monitoring (DDM) support, a TX Disable function, and a fully shielded metallic enclosure, the TL-SM5310-T ensures reliability, thermal protection, and minimal EMI interference — ideal for high-density rack environments.

What's in the Box

• TL-SM5310-T 10G RJ45 SFP+ Module

• Installation Guide

Main Features

✅ Supports 10G/5G/2.5G/1G/100 Mbps Ethernet standards
✅ Hot-swappable SFP+ footprint for fast deployment
✅ 30m 10GBASE-T over Cat.6a UTP cables
✅ Fully compliant with IEEE 802.3, 802.3ab, 802.3bz, and 802.3an
✅ DDM support for monitoring temperature and voltage
✅ Integrated TX Disable feature
✅ Robust metallic enclosure for superior EMI shielding

Detailed Specifications

Form Factor

• SFP+ RJ45 (Copper)

Standards & Protocols

• IEEE 802.3, 802.3ab, 802.3bz, 802.3an

Supported Speeds

• 10GBASE-T

• 5GBASE-T

• 2.5GBASE-T

• 1000BASE-T

• 100BASE-TX

Port Type

• 1× RJ45 10G port

Power Supply

• 3.3V

• Max Power Consumption: <2.5W typical

Data Rate

• 10.3 Gbps

Cable Type & Max Distances

• Cat.6a or above (10GBASE-T): up to 30 m

• Cat.5e or above (5G/2.5G/1G/100M): up to 100 m

Hot Swappable

• Yes

TX Disable Function

• Supported

Digital Diagnostics Monitoring (DDM)

• Supported (Temperature & Voltage)

Enclosure

• Fully metallic for low EMI

Dimensions

• 2.7 × 0.5 × 0.5 in (67.4 × 13.75 × 13.8 mm)

Certifications

• FCC, CE, RoHS

Warranty Information

The TL-SM5310-T is covered by TP-Link’s standard limited hardware warranty applicable in Australia and New Zealand. Warranty claims and service support are handled via authorized TP-Link distribution partners and service networks in the ANZ region.

Brand Description

TP-Link Omada is a globally recognized networking brand known for its enterprise-grade transceivers and switch solutions. With a focus on seamless integration, Omada modules deliver high-performance networking at an affordable price while maintaining strict compliance with international standards.

SKU

TL-SM5310-T

Practical Use Scenarios

🏢 10G Switch Uplinks – Upgrade switch uplink ports from SFP+ to 10G RJ45
🔄 Data Center Interconnects – Short-distance copper links between server racks
📈 Enterprise LAN Upgrades – Enhance legacy copper infrastructure to support 10G speeds
📡 Flexible Speed Environments – Deploy where multi-rate backward compatibility is essential

Datasheets / Downloadable Resources

📄Datasheet

Excellence for the Australian and New Zealand Market

The TL-SM5310-T meets all key ANZ regulatory standards including CE, FCC, and RoHS certifications. It is exclusively distributed via TP-Link-authorized channels in Australia and New Zealand, ensuring full local support, direct warranty handling, and compatibility with fiber and copper network infrastructure widely used across commercial, enterprise, and public-sector applications in the region.

FAQs

Q1. What Ethernet speeds does the TL-SM5310-T support? (TL-SM5310-T)
The module supports 10G, 5G, 2.5G, 1G, and 100 Mbps speeds for maximum backward compatibility.

Q2. What’s the max cable length supported by the TL-SM5310-T? (TL-SM5310-T)
It supports up to 30 meters at 10GBASE-T using Cat.6a or above, and 100 meters at lower speeds.

Q3. Is the TL-SM5310-T compatible with all SFP+ ports? (TL-SM5310-T)
Yes, it is hot-swappable and SFP+ compliant, making it compatible with most 10G SFP+ ports.

Q4. Does the TL-SM5310-T support DDM monitoring? (TL-SM5310-T)
Yes, it supports Digital Diagnostic Monitoring (DDM) for temperature and voltage tracking.

Q5. What installation requirements does the TL-SM5310-T have? (TL-SM5310-T)
It’s plug-and-play, hot-swappable, and requires no configuration, making it easy to install.
