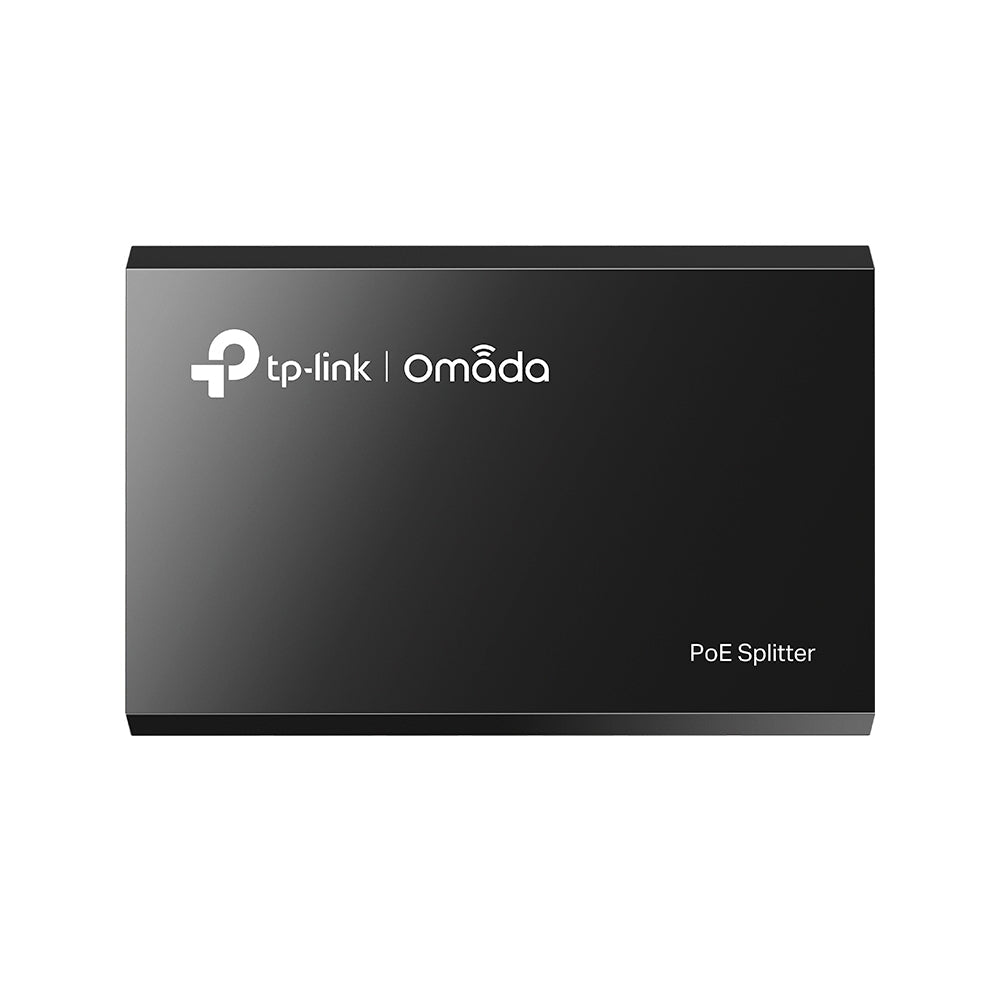

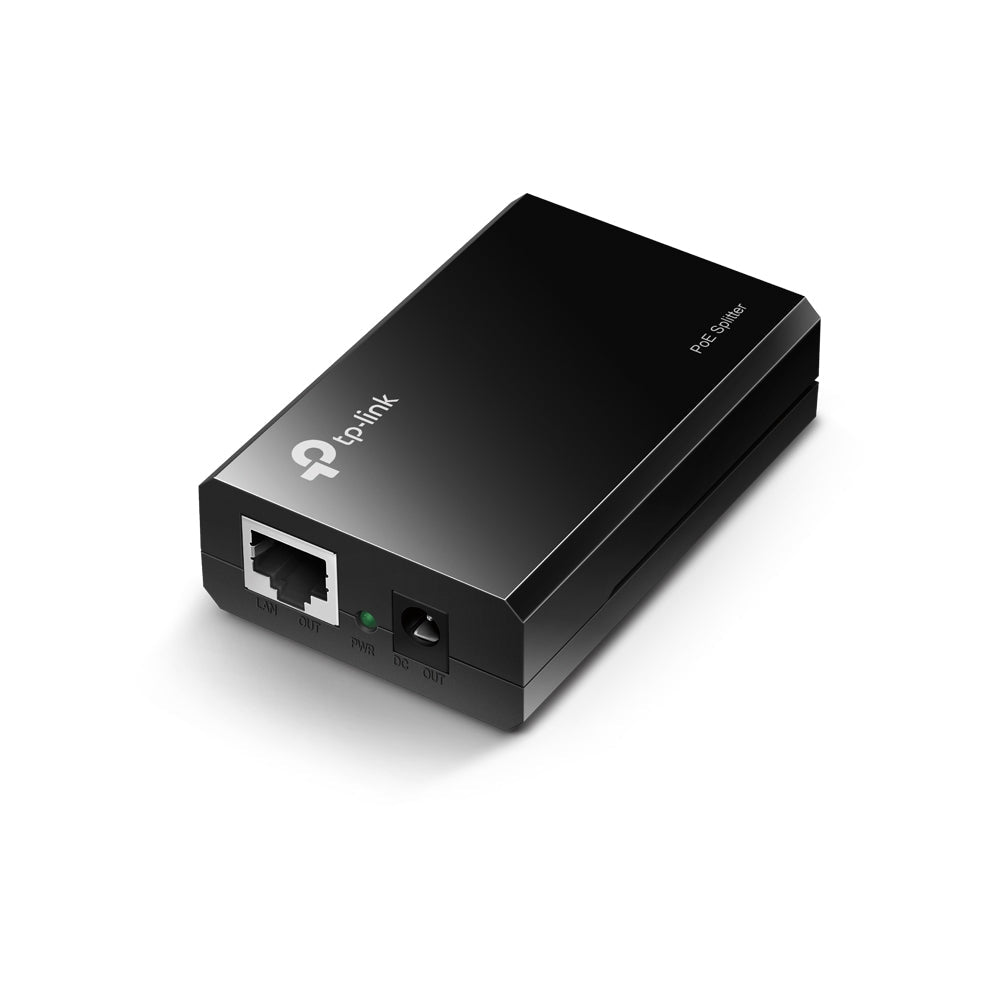

TL-POE10R | Gigabit PoE Splitter | IEEE 802.3af Compliant | Selectable 5V/9V/12V DC Output

The TP-Link TL-POE10R PoE Splitter provides an elegant and cost-effective solution to deliver both data and power to non-PoE devices over a single Ethernet cable. Fully compliant with IEEE 802.3af, the TL-POE10R works seamlessly with all IEEE 802.3af power sourcing equipment (PSE) to provide selectable 5V, 9V, or 12V DC output, making it highly versatile for a wide range of devices.

With Gigabit Ethernet support and a plug-and-play design, the TL-POE10R is ideal for IP cameras, wireless access points, media players, and network devices that require direct DC input. Simplify your network infrastructure and reduce installation costs without compromising performance.

What's in the Box

• TL-POE10R PoE Splitter

• Power Cord

• RJ45 Ethernet Cable

• Installation Guide

Main Features

✅ Compliant with IEEE 802.3af standard
✅ Selectable power output: 5V, 9V, or 12V DC
✅ Delivers power and data up to 100 meters
✅ Dual Gigabit RJ45 ports for high-speed data
✅ Compact design with plug-and-play convenience
✅ Auto MDI/MDIX and Auto-Negotiation supported
✅ No configuration required

Detailed Specifications

Interfaces

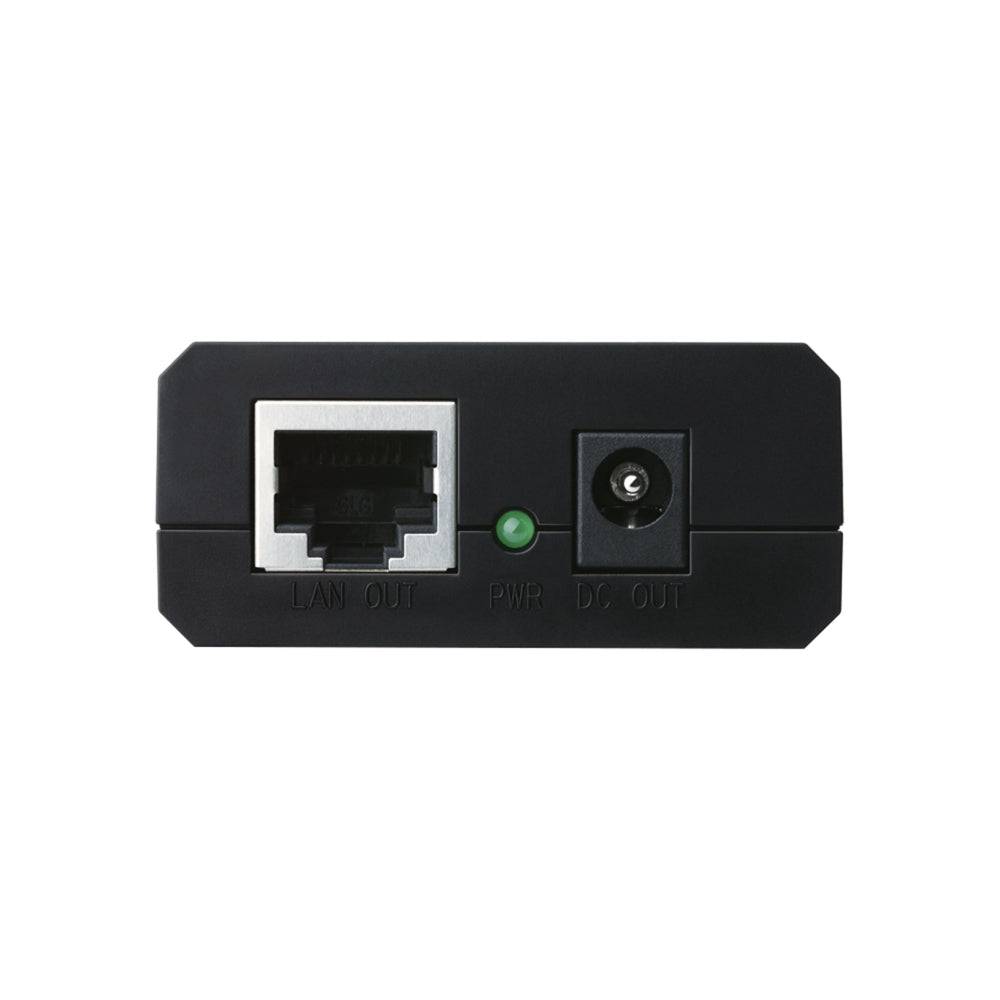

• 2× 10/100/1000 Mbps RJ45 Ports (Auto MDI/MDIX)

• 1× DC Power Output Port (5.5 mm round barrel)

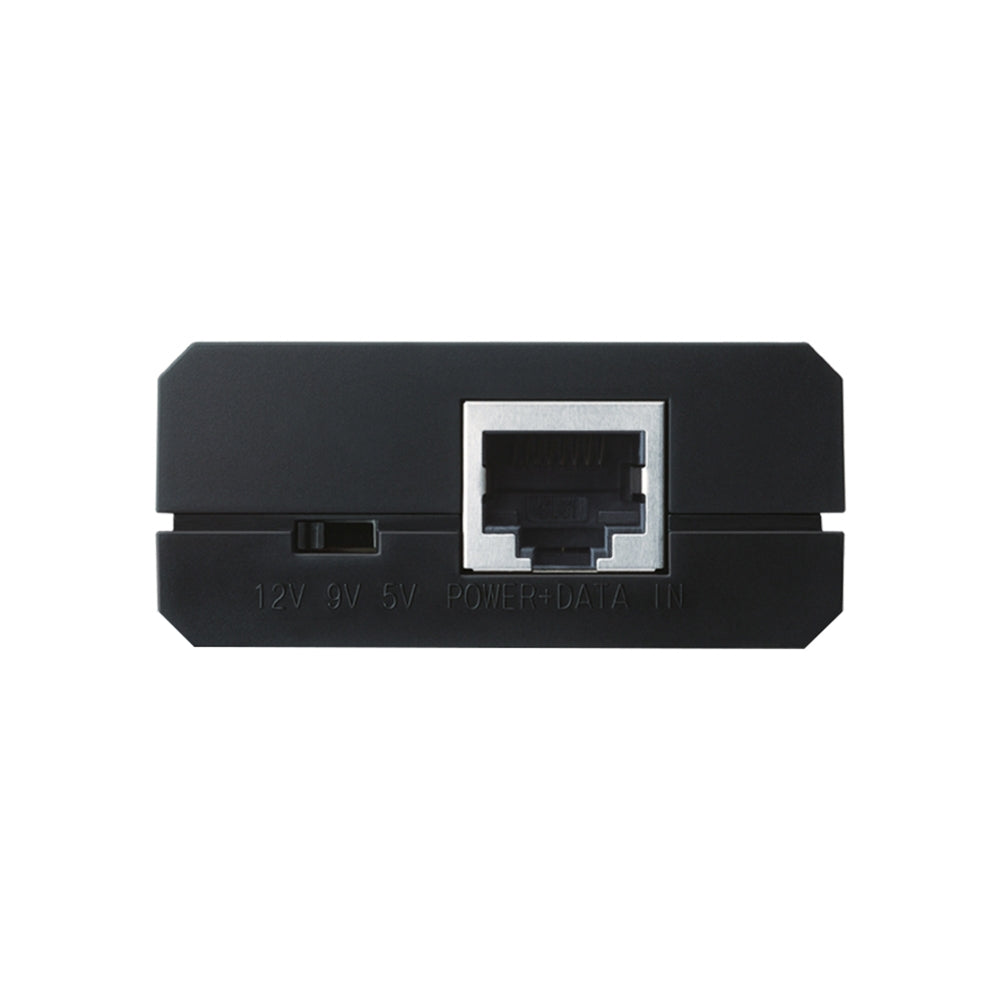

Selectable Power Output

• 5VDC @ 2A

• 9VDC @ 1A

• 12VDC @ 1A

Network Media Compatibility

• 10BASE-T: UTP Cat 3, 4, 5 or STP (max 100 m)

• 100BASE-TX: UTP Cat 5, 5e or STP (max 100 m)

• 1000BASE-T: UTP Cat 5, 5e, 6 or STP (max 100 m)

Standards and Protocols

• IEEE 802.3i, 802.3u, 802.3ab, 802.3af

Power Input

• IEEE 802.3af compliant PoE (48VDC input via Ethernet)

LED Indicator

• PWR (Power Status)

Transmission Distance

• Up to 100 meters

Dimensions

• 3.2 × 2.1 × 0.9 in. (80.8 × 54 × 24 mm)

Warranty Information

Manufactures warrenty applied

Brand Description

TP-Link is globally recognized for delivering reliable networking solutions. The TL-POE10R is part of TP-Link's professional-grade PoE ecosystem designed for streamlined, scalable, and flexible power and data delivery—ideal for businesses, smart homes, and surveillance networks.

SKU

TL-POE10R

Practical Use Scenarios

🏠 Power non-PoE IP cameras where traditional outlets are unavailable
🏢 Convert PoE to DC power for WAPs, routers, and other network devices
🎥 Enable remote installations of media players and display units
🏫 Support networked classroom tools without added cabling
🔌 Reduce complexity in smart home setups

Datasheets / Downloadable Resources

• Product TL-POE10R datasheets


Excellence for the Australian and New Zealand Market

The TL-POE10R is built to meet stringent ANZ electrical and safety standards and is backed by FCC and RoHS certifications. All units are supplied through authorized TP-Link partners in Australia and New Zealand, ensuring full warranty and service support locally. Ideal for commercial, government, and residential applications demanding efficient, regulated PoE conversion for legacy or specialized devices.

 FAQs

Q1. What voltage outputs are supported by the TL-POE10R? (TL-POE10R)
The TL-POE10R supports selectable DC outputs of 5V @ 2A, 9V @ 1A, and 12V @ 1A, offering flexible power delivery options.

Q2. What is the maximum cable length supported? (TL-POE10R)
The TL-POE10R supports a transmission range of up to 100 meters over Cat5e or higher Ethernet cable.

Q3. Does the TL-POE10R support Gigabit Ethernet? (TL-POE10R)
Yes, it supports 10/100/1000 Mbps Gigabit connections on both RJ45 ports.

Q4. What kind of devices can I power using TL-POE10R? (TL-POE10R)
You can power non-PoE devices like IP cameras, access points, VoIP phones, and media players that require 5V, 9V, or 12V DC input.

Q5. Is any configuration required to use TL-POE10R? (TL-POE10R)
No, the splitter is completely plug-and-play, requiring no configuration or software installation.
