TAKEX PA-6820E | Vertical Curtain PIR Motion Sensor – 20m Long-Range Detection – Ceiling/Wall Mount – Multi Voltage 12/24VDC

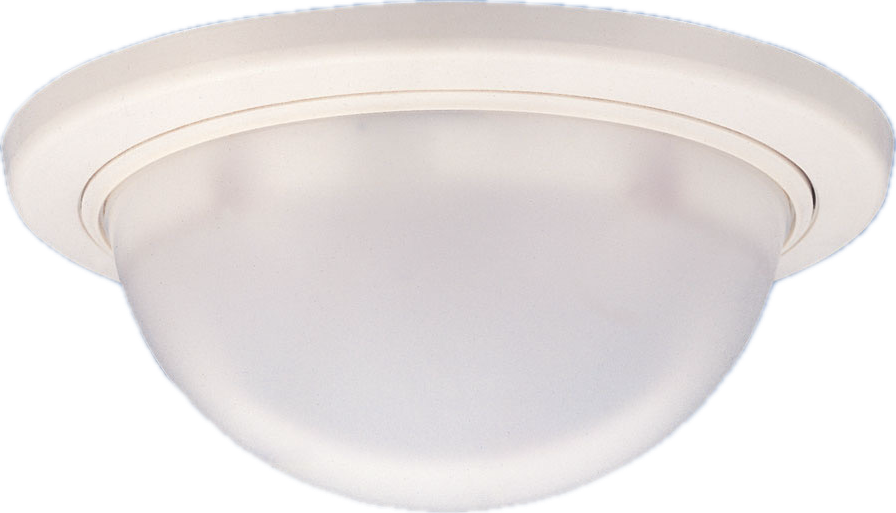

The TAKEX PA-6820E is a vertical curtain passive infrared motion sensor designed for precise long-range detection up to 20 metres. Featuring a slim, compact dome design and advanced mirror optics, it delivers sharp, reliable detection zones ideal for corridors, perimeters, and narrow passageways.

Engineered for high stability, the PA-6820E offers four-step adjustable sensitivity (60%–120%), a selectable pulse count (1–4) for different security requirements, and a noiseless solid-state relay for enhanced durability. Its auto alarm memory function, dual-colour LED indicators, and immunity to RFI and environmental noise make it a dependable choice for professional security installations.

The PA-6820E can be ceiling-mounted up to 2.6m or wall-mounted with an optional bracket (BCW-401), making it versatile for a variety of installation environments.

What’s Included in the Box

• TAKEX PA-6820E Vertical Curtain PIR Sensor

• Mounting screws

• Sensor locking screw

• Installation manual

• Manufacturer’s Warranty Applied

Main Features

• 20m vertical curtain detection range for targeted coverage

• Slim, compact dome design – only 120mm diameter, 47mm height

• Four selectable sensitivity levels: 60%, 80%, 100%, 120%

• Adjustable pulse count (1–4) to suit environment and security level

• Solid-state (photo-MOS FET) relay – silent and long-lasting

• Alarm memory with visual LED indication (red alarm, yellow memory)

• N.O./N.C. alarm contact selectable

• RFI, noise, and insect intrusion protection

• Optional wall mount bracket (BCW-401)

Detailed Specifications

Warranty Information

Manufacturer’s Warranty Applied – 5 Years
Covers defects in manufacturing and workmanship, supported by TAKEX-authorised distributors.

Brand Description

TAKEX is a trusted manufacturer of professional-grade security sensors, providing advanced detection technology for residential, commercial, and industrial applications. Their products are known for precision, reliability, and durability in challenging environments.

Practical Use Scenarios

• Corridor and hallway monitoring

• Perimeter and boundary security

• Warehouse aisle protection

• Shopfront entrances and glass wall areas

• Long, narrow passageways requiring precise detection

Datasheets / Downloads

TAKEX PA-6820E

Excellence for the Australian and New Zealand Market

Built to handle harsh Australian and New Zealand conditions, the PA-6820E meets regional compliance standards and ensures reliable operation in varying climates. All units are sourced from authorised distributors and come with full manufacturer-backed warranty support.

FAQs (Product Code: PA-6820E)

1. What type of detection does the PA-6820E use?
   It uses vertical curtain PIR detection, ideal for long and narrow coverage areas.

2. What is the maximum detection range?
   Up to 20 metres.

3. Can it be wall-mounted?
   Yes, with the optional BCW-401 wall mount bracket.

4. Is the alarm output relay mechanical?
   No, it uses a solid-state photo-MOS FET relay for silent operation.

5. What warranty does it have?
   Manufacturer’s Warranty Applied – 5 Years.
