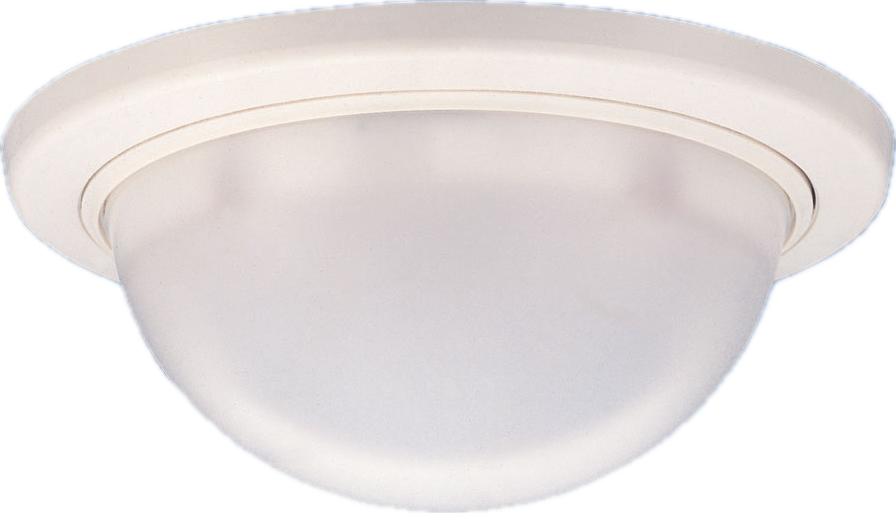

TAKEX PA‑6812E Wide‑Angle 12 m Ceiling PIR Sensor – Compact Dome, Snap‑In Installation, Selectable Output

TAKEX PA‑6812E Wide‑Angle 12 m Ceiling PIR Sensor – Compact Dome, Snap‑In Installation, Selectable Output

$114.55 AUD
$158.10 AUD $114.55 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The TAKEX PA‑6812E is an ultra-compact, high-performance Wide‑Angle Passive Infrared (PIR) Ceiling Sensor, engineered for reliable indoor intrusion detection. With a 12 m (40 ft) coverage area and optional wall mounting via the BCW‑401 bracket, it blends precision detection, easy installation, and versatile integration—perfect for security-conscious homes and businesses across Australia and New Zealand.

What’s Included in the Box

  • 1 × Sensor Unit (PA‑6812E)

  • Instruction Manual / Datasheet

Main Features

  • Whisper‑Quiet Relay: Photo‑MOS FET switch offers silent alarm activation.

  • Compact & Slim Design: Only 120 mm in diameter and 47 mm in height—about 30 % smaller than earlier models.

  • Snap‑In Sensor Mechanism: Quick one‑touch detachment or installation simplifies setup, especially in high‑ceiling locations.

  • Precision Mirror Optic: Rotating dual‑element mirror ensures sharp, well‑defined detection zones.

  • Adjustable Sensitivity & Pulse Count: Choose between 60 %, 80 %, 100 %, 120 % sensitivity and 1‑4 trigger counts to suit your setting.

  • Selectable Alarm Output: Configurable as normally‑open (N.O.) or normally‑closed (N.C.) dry contact for flexible panel compatibility.

  • Remote LED Control: Enable or disable the alarm LED via external switch for discreet operation.

  • Alarm Memory Function: Memory LED indicates past alarm events—automatically resets after 3 minutes flashing and 47 minutes lit.

  • High Stability & Interference Immunity: Designed with a dedicated CPU for robust RFI/noise resistance and insect-proof protection.

Detailed Specifications

Specification Details
Detection System Passive Infrared (PIR) – Wide-Angle Coverage (12 m / 40 ft)
Sensitive Zones 17 pairs for comprehensive coverage
Supply Voltage 10.5–28 V DC non‑polarity
Current Consumption Approx. 25 mA (plus ~2 mA if LED control used)
Alarm Output Dry contact (Photo‑MOS FET), N.C./N.O. selectable; reset in ~2 sec at 24 V, 0.25 A
LED Indicators Red = warm-up/alarm; Yellow = memory
Alarm Memory Duration 3 min flash + 47 min lit (auto reset)
Adjustments Sensitivity, Pulse Count (1–4), Alarm LED On/Off, Contact Type
Mounting Height 2–4.9 m (max) for ceilings; optional wall mount (BCW‑401)
Weight Approx. 110 g (3.85 oz)
Build Material Body: ABS resin; Cover: PE resin
Operating Temperature –15 °C to +55 °C (5 °F to 131 °F)
Mounting Ceiling indoor; wall with BCW‑401 bracket

Warranty Information

5-Year Warranty – provides extended protection and peace of mind against manufacturing defects.

Brand Description

TAKEX, developed by Takenaka Engineering Co., Ltd. in Japan, is a trusted name in the security industry. The brand is known for precision-built intrusion detection sensors that offer excellent performance, durability, and smart design at competitive pricing.

SKU Field

SKU: PA‑6812E‑TAKEX

Practical Use Scenarios

  • Commercial Offices & Retail Spaces: Ideal for discreet ceiling detection in lobbies, corridors, and back-of-house areas.

  • Residential Applications: Sleek design suits modern homes for efficient long-range detection.

  • Schools & Public Buildings: Offers robust, vandal-resistant mounting and clear detection coverage.

  • SMART Home Integration: Compatible with alarm panels, enabling customized alerts and monitoring.

Datasheets / Downloads

DATASHEET

Excellence for the Australian and New Zealand Market

  • Fully optimized and approved for use in Australian and New Zealand indoor environments.

  • Conforms to relevant local safety and quality standards.

  • Authorized and exclusive sourcing from official TAKEX distributors across ANZ.

  • Warranty and servicing managed locally for fast support and replacements.

  • Trusted by professionals in the Australian security industry for reliability and quality.

Frequently Asked Questions (FAQs)

Q1: What is the detection range for PA‑6812E?
A1: The PA‑6812E offers a wide-angle detection range of up to 12 m (40 ft), making it ideal for open indoor areas.

Q2: Can I adjust how the PA‑6812E triggers an alarm?
A2: Yes. The sensor allows sensitivity adjustment from 60 % to 120 % and supports pulse count settings of 1 to 4 to reduce false alarms.

Q3: Does the PA‑6812E support silent operation?
A3: Yes. It uses a Photo‑MOS FET silent relay, eliminating the mechanical noise found in traditional relays.

Q4: How does the alarm memory feature work on the PA‑6812E?
A4: The memory LED flashes for 3 minutes and remains lit for 47 minutes after an alarm, automatically resetting thereafter.

Q5: Can the PA‑6812E be wall-mounted?
A5: Yes, it can be wall-mounted using the optional BCW‑401 bracket for added installation flexibility.

Q6: What voltage does the PA‑6812E require?
A6: It operates within a 10.5 to 28 V DC range, making it compatible with most alarm system power sources.
