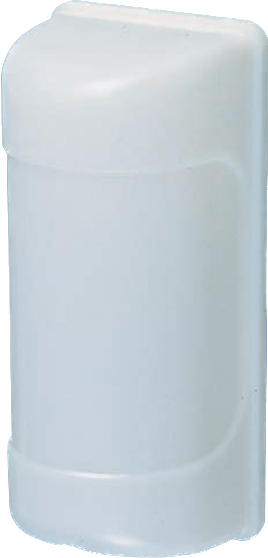

TAKEX MS-100E Outdoor PIR Sensor – Selectable Wide Angle, Curtain, or Long-Range Detection, Weatherproof, Configurable Output, Ceiling/Wall Mount

TAKEX MS-100E Outdoor PIR Sensor – Selectable Wide Angle, Curtain, or Long-Range Detection, Weatherproof, Configurable Output, Ceiling/Wall Mount

$220.83 AUD
$260.10 AUD $220.83 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The TAKEX MS-100E is a high-performance outdoor passive infrared sensor offering three selectable detection patterns (Wide Angle, Curtain, or Long Range) to suit a variety of security and automation applications. Designed for weatherproof outdoor and semi-outdoor environments, this sensor is ideal for switching on surveillance cameras, outdoor lighting, or integrated automation systems.

With a robust build, adjustable sensitivity, and dry contact configurable output, the MS-100E delivers flexible and dependable detection performance for both residential and commercial sites. Engineered by TAKEX, a global leader in infrared detection, this unit ensures reliability in challenging Australian and New Zealand conditions.

What’s Included in the Box

  • 1 × TAKEX MS-100E Outdoor Passive Sensor

  • Installation Manual

Main Features

  • Multi-Mode Detection: Switch between Wide Angle (10 m), Curtain (10 m), and Long Range (20 m) coverage to suit your site layout.

  • Weatherproof Design: Built to withstand outdoor conditions including rain, dust, and temperature changes.

  • Dry Contact Output (N.O./N.C. selectable): Enables flexible integration with cameras, lights, alarms, or automation systems.

  • Adjustable Sensitivity: Ranges from approximately 30% to 170%, with 100% as the factory default.

  • Tamper Protection: Tamper switch triggers alarm if the unit is removed or interfered with.

  • LED Alarm Indicator: Visual confirmation of detection during setup and testing.

  • Horizontal & Vertical Installation Options: Ideal for both low wall mounting (0.8–1.5 m) and higher ceilings/walls (up to 3 m with horizontal curtain mode).

  • Compact Form Factor: Modern, low-profile white housing blends into any exterior or interior setting.

  • Mounting Accessories Available: Optional brackets available for wall, pole, or ceiling mounting.

Detailed Specifications

Specification Details
Model MS-100E
Detection System Passive Infrared
Detection Patterns Wide Angle (10 m), Curtain (10 m), Long Range (20 m)
Supply Voltage 10.5 V to 28 V DC (Non-polarity)
Current Consumption 30 mA or less
Output Type Dry contact relay, N.C. / N.O. selectable
Contact Rating 30 V AC/DC, 0.5 A max (resistive load)
Tamper Switch Dry contact, N.C. (30 V AC/DC, 2 A max)
Sensitivity Adjustment ~30% (Low) to ~170% (High), default 100%
Operation LED Lights at alarm
Installation Position Vertical: 0.8–1.5 m; Horizontal: up to 3 m
Operating Temperature –20 °C to +50 °C (–4 °F to 122 °F)
Weight Approx. 220 g (7.7 oz)
Body Material Body: AES resin, Cover: PE resin
Optional Accessories BCW-401 (ceiling/wall mount), BW-14 (wall mount fittings)

Warranty Information

1-Year Limited Warranty – Covers defects in materials and workmanship under normal use and conditions. Warranty excludes damage due to lightning, misuse, or improper installation.

Brand Description

TAKEX is a globally recognized manufacturer of precision security sensors. With a heritage rooted in Japanese engineering excellence, TAKEX is known for producing high-reliability sensors trusted across the security, automation, and building management industries. Their sensors combine advanced optics, durable builds, and flexible functionality, tailored to professional-grade systems.

SKU Field

SKU: MS-100E‑TAKEX

Practical Use Scenarios

  • Outdoor Perimeter Security: Use the long-range mode (20 m) to monitor driveways, fences, or gates.

  • Entrance Monitoring: Detect approach to front or side entrances in Wide Angle or Curtain mode.

  • Lighting Control: Automatically trigger exterior or garden lighting after dark.

  • Surveillance Activation: Connect to CCTV cameras to initiate recording on movement.

  • Smart Home Integration: Works with automation systems for custom scenes or alerts.

Datasheets / Downloads

Datasheet

Excellence for the Australian and New Zealand Market

  • Fully suited for outdoor installation across diverse ANZ climate zones.

  • Meets local electrical safety and durability standards.

  • Officially sourced from authorized TAKEX representatives in Australia.

  • Warranty honored locally for stress-free servicing or replacement.

  • Trusted by professional installers across residential, commercial, and industrial sectors.

Frequently Asked Questions (FAQs)

Q1: What is the maximum detection range of the MS-100E?
A1: The MS-100E can detect up to 20 m (66 ft) in Long Range mode, 10 m in Wide Angle or Curtain modes.

Q2: Is the MS-100E suitable for outdoor installations in Australia?
A2: Yes, it is weatherproof and designed to withstand outdoor conditions typical across Australia and New Zealand.

Q3: Can I connect the MS-100E to a light or camera?
A3: Absolutely. It features a dry contact relay (N.O./N.C. selectable) for triggering lights, alarms, or surveillance systems.

Q4: What mounting height is recommended for the MS-100E?
A4: For vertical installations, mount at 0.8 m to 1.5 m; for horizontal curtain mode, you can mount up to 3 m.

Q5: Does the MS-100E include tamper protection?
A5: Yes, it has a tamper output that triggers if the sensor is removed or opened.

Q6: What is the power requirement for the MS-100E?
A6: It operates on a 10.5–28 V DC non-polarity supply and consumes 30 mA or less.
