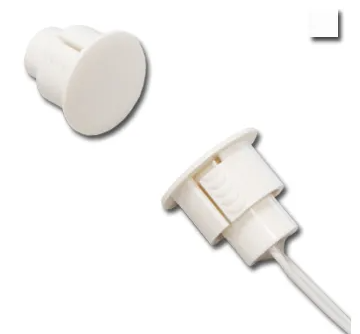

TAGF‑SD19WH Flush‑Mount Steel‑Door Magnetic Contact (Reed Switch) – White, Normally Closed, 3/4″ Diameter, 1½″ Wide Gap, 12″ Leads

High‑quality flush (recessed) magnetic contact designed for steel doors. The TAGF‑SD19WH reed switch delivers a wide gap detection of 1½″ (≈ 38.1 mm) using a durable, high‑grade magnet encased in a thick plastic shell to withstand compression or crushing during installation. Ideal for perimeter security systems where discreet, reliable detection is required. White finish blends neatly with standard frames. Normal‑Closed (N/C) circuit configuration ensures that opening the door breaks the circuit, triggering alarm panels.

What’s Included in the Box

• 1 × TAGF‑SD19WH magnetic contact (recessed/flush mount)

• Leads pre‑attached (12″ / 304.8 mm)

• Mounting instructions (hole sizes, recessing tips)

Main Features

• Flush (recessed) mount for discreet, tamper‑resistant installation in steel doors

• Steel‑door compatible design to maintain the wide gap even when mounted in steel

• Wide gap of 1½″ (≈ 38.1 mm), enabling detection even on loosely fitting or misaligned steel doors

• Stubby body: 3/4″ (19.05 mm) diameter × 0.84″ (21.34 mm) length, to reduce recessing depth

• White plastic shell protects the contact against crushing and mechanical damage

• 12″ (≈304.8 mm) leads, ready for wiring

• Normally Closed (N/C) circuit configuration

Detailed Specifications

Warranty Information

• Manufacturer’s warranty applies (terms may vary; confirm with supplier)

• Covers manufacturing defects; does not include damage from improper installation or physical abuse

Brand Description

TAG is a specialist in security magnetic contacts and reed switches, with products engineered for robustness and reliability in both residential and commercial alarm/security systems. Their steel‑door / wide‑gap models are particularly trusted where standard contacts lose sensitivity due to door‑frame interference or misalignment.

SKU / Part Code

TAGF‑SD19WH

Practical Use Scenarios

• Installing in steel‑framed entrance doors of commercial premises where large gaps may be present due to warped frames

• Hidden (flush) installation in doors to prevent tampering—ideal for high‑security buildings

• Use in alarm panels or security systems requiring normally closed loop wiring

• Settings where aesthetics matter—white color for matching frame or wall colour, minimal visible parts

Excellence for the Australian and New Zealand Market

• Complies with standard voltage/current ratings used in AUS/NZ residential and commercial security installations

• Sourced from authorised distributor or brand representative in Australia, ensuring product authenticity

• Engineered to suit local environmental and structural conditions (steel doors, wide gaps, temperature variations)

• Warranty support handled locally for fast replacements and support

FAQs

Q: What is the maximum permissible gap for part TAGF‑SD19WH when mounted in a steel door?
A: The TAGF‑SD19WH supports a wide gap of 1½ inches (≈ 38.1 mm), ideal for use on steel doors where alignment may be less precise.

Q: What are the electrical ratings (voltage/current) for TAGF‑SD19WH?
A: It is rated at 30 VDC, 0.5 A.

Q: Is TAGF‑SD19WH normally closed or normally open?
A: TAGF‑SD19WH is Normally Closed (N/C), meaning the circuit is closed when the door is shut and opens when the contact separates.

Q: How long are the leads on TAGF‑SD19WH and are they sufficient for typical installation?
A: The leads are 12 inches (≈304.8 mm), which is suitable for most standard installations.

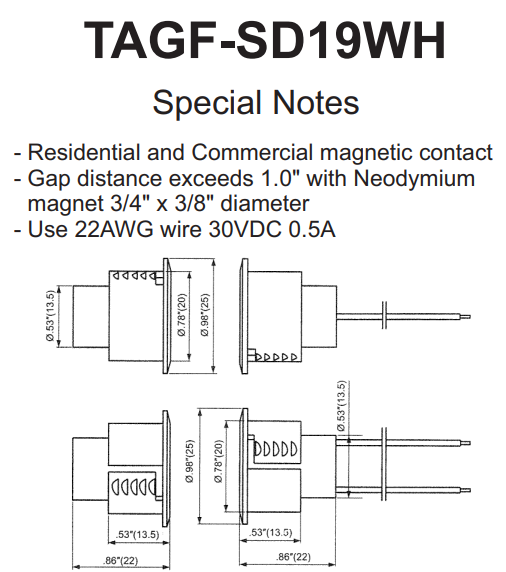

Q: What are the physical dimensions of TAGF‑SD19WH for recess mounting?
A: The body measures 3/4″ (19.05 mm) in diameter and 0.84″ (21.34 mm) in length, making it compact for flush installations.
