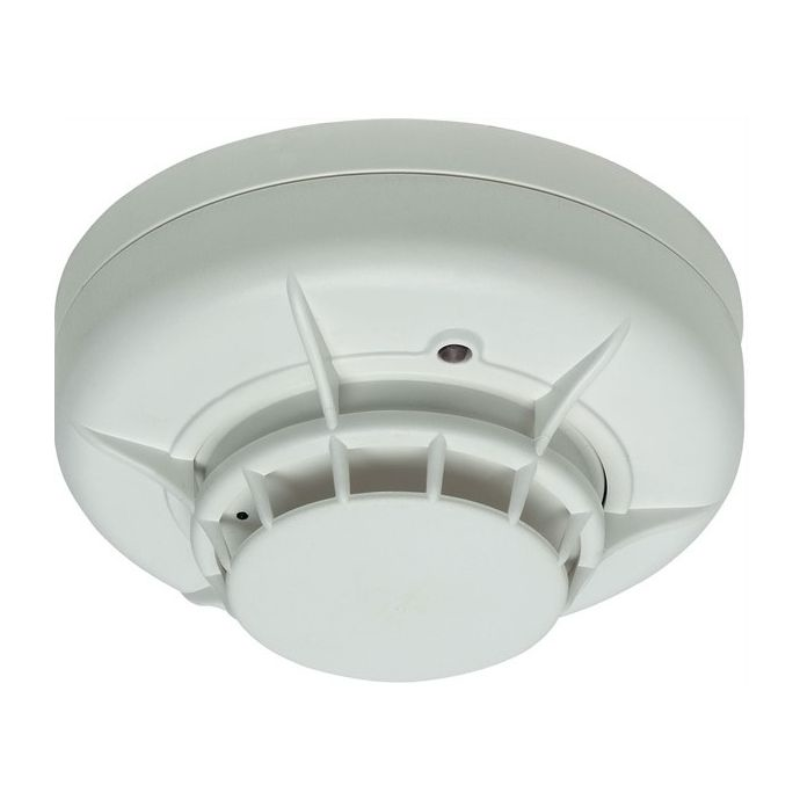

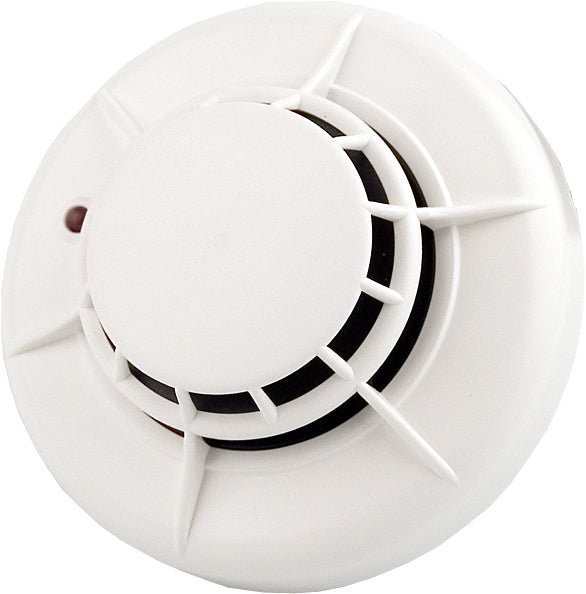

System Sensor ECO1004T A Fixed Temperature Thermal Detector – 78°C Trigger, EN54 Class BS, MED Approved, 12/24VDC

The ECO1004T A from System Sensor’s ECO1000 Series is a fixed temperature thermal detector, expertly designed for areas subject to rapid and frequent temperature changes. With a defined activation point at 78°C, it ensures precise fire detection without false triggering, making it ideal for commercial kitchens, engine rooms, and industrial spaces.

Built with a high-integrity thermal sensor and integrated ASIC (Application Specific Integrated Circuit), this detector delivers fast, reliable heat detection and long-term durability. It features a low-profile design, low power consumption, and broad base compatibility. With international certifications including EN54-5:2000 Class BS and MED 96/98/EC, the ECO1004T A offers both compliance and performance.

📦 What’s in the Box

• 1 × ECO1004T A Fixed Temperature Thermal Detector

• Installation and technical documentation

• Detector base sold separately

⭐ Main Features

• Fixed temperature threshold: Activates at 78°C for stable heat detection

• Low-profile form: Sleek, modern appearance suitable for visible installations

• Wide voltage support: Operates from 8 to 30VDC (nominal 12/24VDC)

• Remote testing enabled: Compatible with the ECO1000RTU handheld laser tester

• Built-in LED alarm indicator: Latching alarm LED with optional remote annunciator

• Tamper-resistant installation: Base options include anti-removal features

• Certified to EN54-5:2000 Class BS & MED 96/98/EC

• Extended 3-year warranty

• Eco-friendly design: RoHS compliant and ISO 14001 manufacturing certified

📊 Detailed Specifications

🛡 Warranty Information

Includes an extended 3-year manufacturer’s warranty when installed and maintained as per System Sensor guidelines. Authorized reseller purchases guarantee full coverage and local support.

🏭 Brand Description

System Sensor, part of the Honeywell group, is globally recognized for precision-engineered fire detection solutions. From optical smoke sensors to thermal detection systems, System Sensor products are trusted for safety, reliability, and compliance across commercial, marine, and industrial sectors.

🏷 SKU

ECO1004T A

🛠 Practical Use Scenarios

• Kitchens and food service areas where ambient temperatures fluctuate rapidly

• Marine engine rooms and mechanical spaces needing MED-certified detection

• Factories and warehouses with high background temperatures

• Hospital boiler rooms, utility spaces, and HVAC zones

• Upgrades to legacy conventional fire panels with modern, EN54-compliant devices

📄 Datasheets & Resources

• ECO1004T A Datasheet

🌏 Excellence for the Australian and New Zealand Market

• Certified to EN54-5:2000 Class BS, aligning with local fire safety regulations

• Fully MED-approved, suitable for marine use under Australian Maritime Safety Authority (AMSA) guidance

• Supported by authorized distributors in Australia and New Zealand

• Ideal for environments with rapid or high-temperature fluctuations

• Covered by direct manufacturer warranty through verified resellers

❓FAQs (Product Code ECO1004T A)

Q1: What type of heat detection does the ECO1004T A use?
A1: The ECO1004T A uses a fixed temperature thermal sensor that activates when the ambient temperature reaches 78°C—ideal for areas with fluctuating baseline temperatures.

Q2: Is the ECO1004T A detector suitable for use in kitchens or mechanical spaces?
A2: Yes, its fixed-temperature design makes it ideal for environments like kitchens, boiler rooms, and workshops where rapid temperature changes are common.

Q3: Can the ECO1004T A be tested without accessing the ceiling?
A3: Yes, it is compatible with the ECO1000RTU Remote Test Unit, which uses a laser to initiate a test signal from several metres away—no ladder required.

Q4: What certifications does the ECO1004T A carry?
A4: The ECO1004T A is certified to EN54-5:2000 Class BS, MED 96/98/EC (2009/26/EC), and CE/VdS/LPS, making it suitable for marine and commercial applications.

Q5: What base options are available for the ECO1004T A?
A5: Compatible bases include standard (ECO1000B), diode, resistor (470Ω), relay, and deep base variants, allowing integration with a wide range of conventional fire alarm panels
