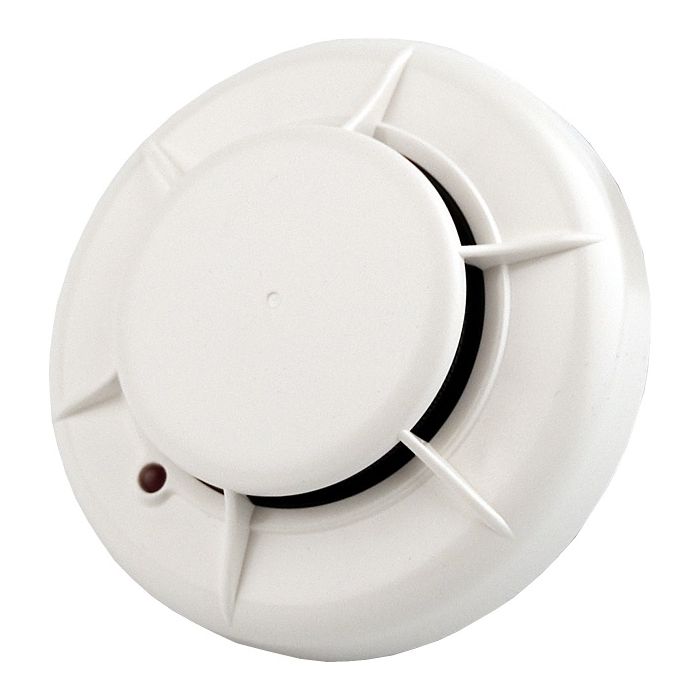

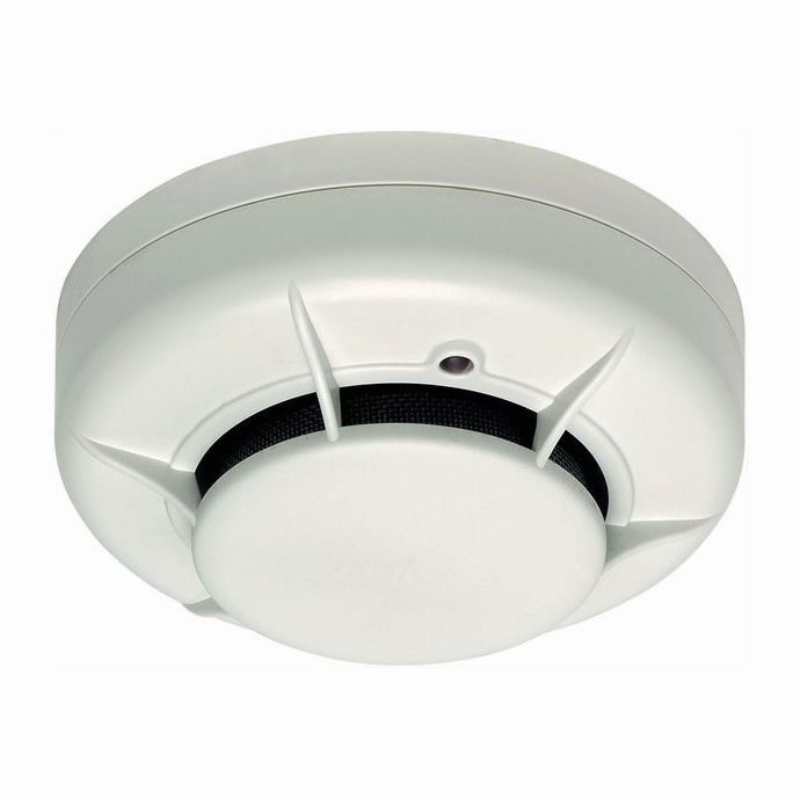

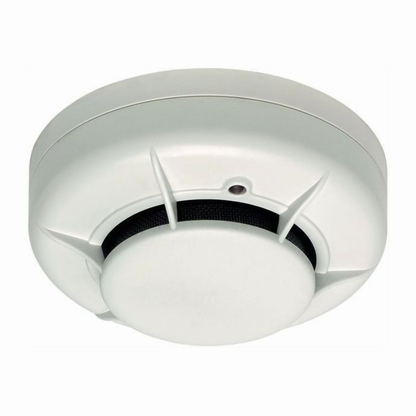

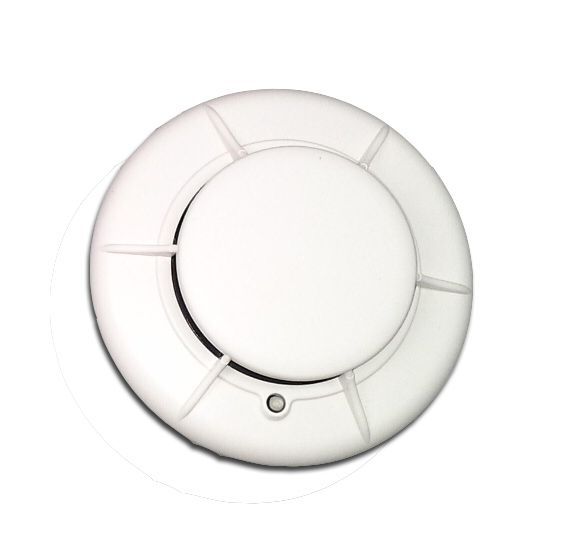

System Sensor ECO1003A Conventional Photoelectric Smoke Detector – Low Profile, EN54 & MED Approved, 12/24VDC

The System Sensor ECO1003A is a premium, conventional photoelectric smoke detector from the trusted ECO1000 Series. Designed for both commercial and marine environments, this detector combines advanced optical sensing technology with a sleek, low-profile housing. With automatic drift compensation, low current draw, and compatibility with a wide range of detector bases, the ECO1003A ensures rapid and reliable smoke detection across multiple applications.

Whether integrated into a 12V or 24V fire alarm system, this detector delivers exceptional performance, backed by international approvals including EN54-7:2000 and MED 96/98/EC (amended 2009/26/EC). Designed and manufactured by System Sensor in Italy, the ECO1003A is built to meet rigorous quality and environmental standards.

📦 What’s in the Box

• 1 × ECO1003A Photoelectric Smoke Detector

• Installation manual

• Warranty registration card

• Compatible base sold separately

⭐ Main Features

• Low-profile, compact design: Ideal for modern installations with aesthetic considerations

• Wide voltage compatibility: Operates from 8 to 30VDC (nominal 12/24VDC)

• Advanced photoelectric chamber: Fast and accurate smoke detection

• Automatic drift compensation: Reduces maintenance frequency

• Remote test capability: Compatible with laser-based ECO1000RTU Remote Test Unit

• Local & optional remote alarm indication: Built-in LED with remote LED output option

• Multiple base options: Supports standard, diode, resistor, deep, and relay bases

• Internationally approved: EN54-7:2000 and MED marine standards

• Extended 3-year warranty

• RoHS-compliant and environmentally responsible

📊 Detailed Specifications

🛡 Warranty Information

Covered by System Sensor’s extended 3-year warranty. Valid through authorized resellers. Regular maintenance ensures longevity beyond 20 years under suitable environmental conditions.

🏭 Brand Description

System Sensor is a global leader in fire detection technology, committed to high-performance sensing solutions for commercial, marine, and industrial sectors. Backed by Honeywell, System Sensor combines innovation with international safety compliance and environmental responsibility.

🏷 SKU

ECO1003A

🛠 Practical Use Scenarios

• Office buildings and commercial complexes requiring discrete but effective smoke detection

• Educational and healthcare institutions with 12V/24VDC fire systems

• Ships and marine vessels seeking MED-certified detectors

• Hotels and hospitality venues aiming for international compliance

• Any site with conventional fire control panels using the ECO1000 platform

📄 Datasheets & Resources

• ECO1003A Product Datasheet (PDF)

🌏 Excellence for the Australian and New Zealand Market

• Compatible with 12V and 24V fire alarm systems widely used in AU/NZ installations

• EN54 and MED approvals ensure international compliance including Australian regulations

• Products sourced via authorized System Sensor representatives only

• Extended warranty and technical support available through verified local partners

• Designed for long-term reliability in both urban and coastal (marine) Australian environments

❓FAQs (Product Code ECO1003A)

Q1: Is the ECO1003A compatible with both 12V and 24V systems?
A1: Yes, the ECO1003A smoke detector operates effectively within a voltage range of 8–30VDC, making it fully compatible with both 12V and 24VDC fire alarm systems.

Q2: Does the ECO1003A comply with Australian standards?
A2: While primarily certified to EN54-7:2000 and MED standards, the ECO1003A is suitable for systems used in Australia and New Zealand, provided it is installed by a certified professional and paired with compatible fire control panels.

Q3: What test equipment is compatible with the ECO1003A?
A3: The ECO1003A can be tested using the ECO1000RTU laser-based Remote Test Unit. It allows alarm testing from several metres without triggering spurious alarms.

Q4: What base types can I use with the ECO1003A?
A4: A wide variety of bases are available including standard, diode, resistor (470Ω), relay (12V/24V latching or non-latching), and deep base variants, allowing flexible installation across many fire panel brands.

Q5: How often should I service or clean the ECO1003A?
A5: Thanks to its advanced optical chamber and automatic drift compensation, the ECO1003A requires less frequent maintenance. However, annual inspections are still recommended to maintain peak performance.
