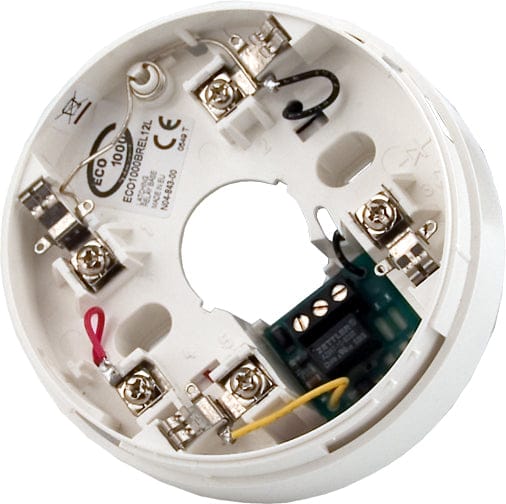

System Sensor ECO1000 Relay Base BREL12NL | Non-Latching Detector Base 10–15V DC | Fire Alarm Relay Module | HF-ECO1BREL12NL D750-02-00

The System Sensor ECO1000 BREL12NL Relay Base is a high-performance non-latching detector base designed for seamless integration with ECO1000 sensor heads in fire detection systems. Operating within a 10–15V DC range, this relay base provides automatic reset functionality, reliable alarm relay switching, and robust wiring connectivity, making it ideal for modern fire alarm installations across commercial and industrial environments.

What’s Included in the Box

• 1 × ECO1000 BREL12NL Relay Base

Main Features

• Non-latching relay base with automatic reset functionality

• Compatible with System Sensor ECO1000 detector heads

• Supports both 2-wire and 4-wire systems

• Built-in current limiting during alarm condition

• Relay contacts: Normally Open (NO), Normally Closed (NC), Common

• Shorting spring for easy circuit continuity testing

• Tamper-resistant locking feature

• Wide operating temperature range (-30°C to 70°C)

• Low standby current for energy efficiency

Detailed Specifications

Electrical

• Supply Voltage: 10–15V DC

• Standby Current: 20µA

• Contact Activation Time: 100ms

• Contact Reset Time: 100ms

• Contact Resistance: 100mΩ

• Contact Rating: 1A DC

Wiring Terminals

Base Terminals:

• Terminal 1: Supply In (-)

• Terminal 2: Supply Out (-)

• Terminal 4: Supply In/Out (+)

Relay Contacts (TB1 Block):

• TB1: Normally Open (NO)

• TB2: Normally Closed (NC)

• TB3: Common

Environmental

• Operating Temperature: -30°C to +70°C

• Humidity: 5% to 95% RH (non-condensing)

Physical

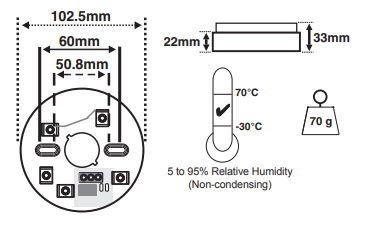

• Dimensions:

  • Diameter: 102.5mm

  • Height: 22–33mm

• Mounting: Pan head screws (max 4mm thread diameter)

• Cable Capacity:

  • Base terminals: 0.4mm² to 2mm²

  • Relay terminals: up to 1.5mm²

Warranty Information

• Manufacturer-backed warranty (subject to supplier terms)

• Warranty handled directly through authorized brand representatives

Brand Overview

System Sensor (Pittway Tecnologica S.r.l.) is a globally recognized manufacturer of advanced fire detection and alarm system components. Known for reliability and compliance with international safety standards, their ECO1000 series delivers dependable performance across a wide range of applications.

SKU

HF-ECO1BREL12NL

Practical Use Scenarios

• Commercial fire alarm systems in offices and retail buildings

• Industrial safety monitoring systems

• Warehouses and logistics facilities

• Integration with fire control panels requiring relay outputs

• Installations requiring automatic reset after alarm clearance

Datasheets / Resources

• Installation Manual: I56-1749-020
