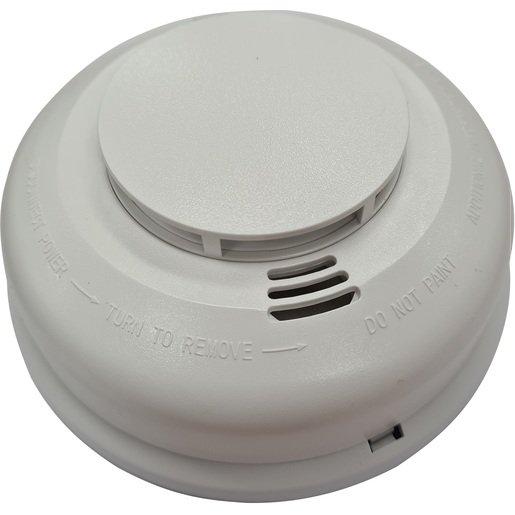

SYSTEM SENSOR 2012/24AUSI Photoelectric Smoke Alarm, Non Latching, Battery back up, 12/24V DC

The SYSTEM SENSOR 2012/24AUSI Photoelectric Smoke Alarm is an advanced, multi-voltage smoke detection system designed to provide reliable, early warning for residential and commercial buildings. This compact and low-profile detector ensures maximum performance and stability, making it ideal for open-area protection in spaces such as apartments, nursing homes, and offices.

Compliant with AS3786:2014, the 2012/24AUSI features an integrated 85dB(A) sounder, backup battery, and versatile connectivity options for seamless integration with third-party devices, such as alarm systems and access control systems. Its photoelectric technology ensures a quick response to a broad range of fires, enhancing safety and peace of mind.

With its interconnect capability for up to 24 units, user-friendly design, and diagnostic features, this smoke alarm is a practical and robust solution for modern fire safety needs.

What’s Included in the Box

• 1x SYSTEM SENSOR 2012/24AUSI Photoelectric Smoke Alarm
• Mounting Ring
• 9V Backup Battery
• Installation Guide

Main Features

• Photoelectric Smoke Detection: Quick response to developing fires in open areas.
• Integrated Temp-3 Sounder: Audible emergency evacuation signal compliant with ISO 8201 (85dB at 3 meters).
• Low-Profile Design: Aesthetic ceiling white housing for seamless integration into interiors.
• CSIRO Certified: Listed to AS3786:2014 for Australian compliance.
• Multi-Voltage Operation: Compatible with 12V/24V DC systems.
• Backup Battery: Includes a 9V DC carbon-zinc battery for power continuity during outages.
• Interconnect Feature: Connect up to 24 smoke alarms for broader coverage.
• NO/NC Alarm Relay Contacts: Versatile integration with third-party systems like alarms or access controls.
• Diagnostic & Hush/Test Button: Simplifies testing, maintenance, and alarm silencing.
• Bi-Color LED Indicators: Provides visual feedback for operational, alarm, and fault conditions.
• Custom ‘Easy-Clean’ Chamber: Simplifies maintenance and enhances performance.
• Automatic Diagnostic Test: Monitors the device’s operational health.

Detailed Specifications

Electrical Specifications

• Supply Voltage Range: 10V DC to 30V DC
• Standby Current: Max 60 μA average
• Alarm Current: Max 65 mA average @10~30V DC
• Sound Output Level: 85dB(A) at 3 meters
• Relay Contact Rating: 1 Form C, 1A @ 30V (DC or AC)
• Backup Battery: 9V DC carbon-zinc battery

Mechanical Specifications

• Dimensions: 55mm (H) × 135mm (Diameter)
• Weight: 220 grams

Environmental Specifications

• Operating Temperature Range: 0°C to 50°C
• Relative Humidity: 5% to 93% R.H.

Warranty Information

The SYSTEM SENSOR 2012/24AUSI includes a 3-year limited warranty, ensuring quality and reliable support for your safety system.

Brand Description

System Sensor is a global leader in fire safety solutions, offering innovative products designed for maximum reliability and ease of use. With a commitment to compliance and safety, System Sensor devices deliver trusted protection in both residential and commercial environments.

SKU

2012/24AUSI

Practical Use Scenarios

• Residential Properties: Ensure early warning detection for apartments, townhouses, or homes.
• Nursing Homes & Aged Care: Provide enhanced fire safety for vulnerable occupants.
• Commercial Buildings: Ideal for open areas such as offices, retail spaces, and common areas.
• Integrated Systems: Seamlessly connect to security alarms or access control systems for added functionality.
• Multi-Unit Residences: Interconnect up to 24 units for comprehensive coverage.

Excellence for the Australian and New Zealand Market

The SYSTEM SENSOR 2012/24AUSI Photoelectric Smoke Alarm is specifically tailored for the Australian and New Zealand market, offering:

• Full compliance with AS3786:2014 standards, ensuring high-quality fire protection.
• Certified by CSIRO, meeting rigorous Australian safety and performance benchmarks.
• Optimized for local voltage systems (12/24V DC), ensuring compatibility with regional infrastructure.
• Robust warranty and post-purchase support through authorized local distributors.

Datasheets & Resources

Download the full datasheet for detailed technical insights: System Sensor 2012/24AUSI Datasheet.
