Suprema X-Station 2: Smart IP RFID reader, IP65, Up to 500,000 Card users

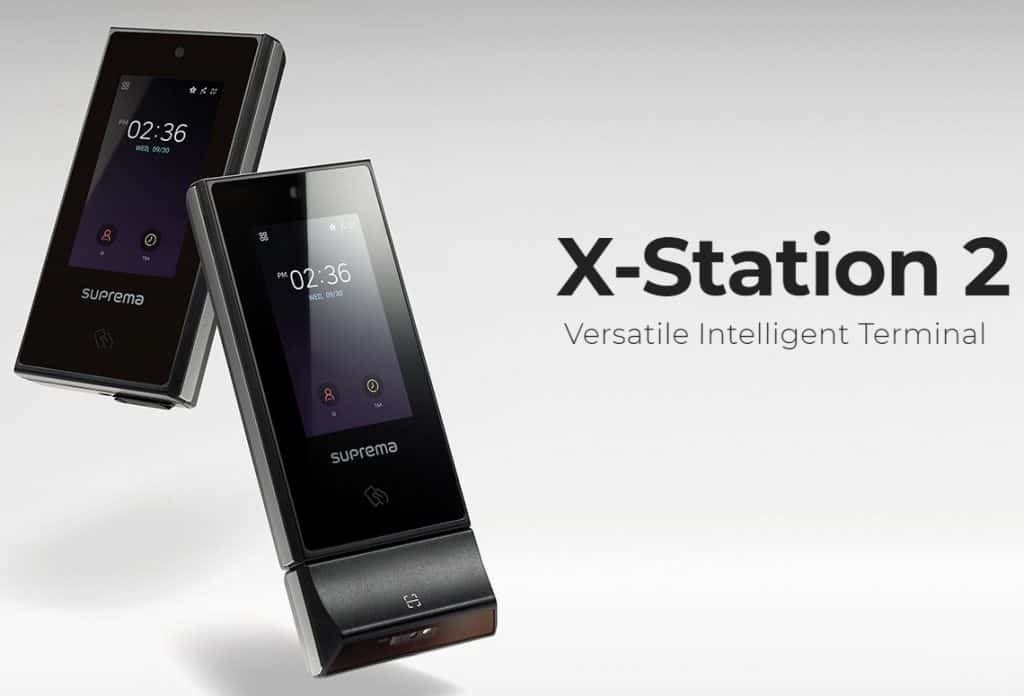

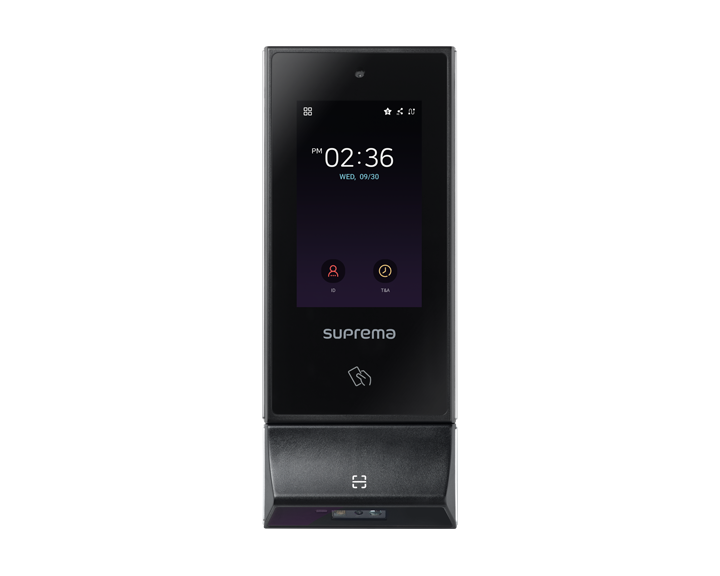

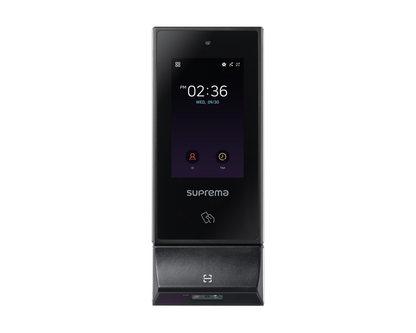

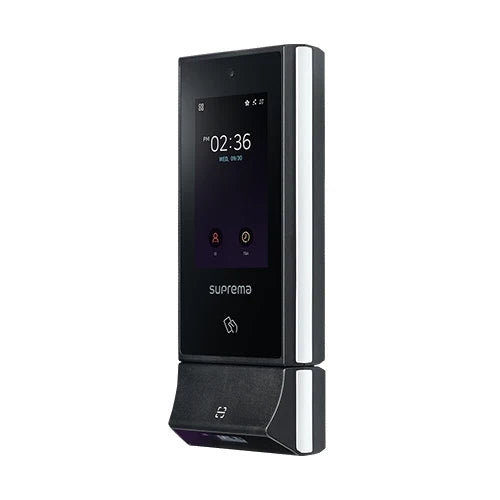

The Suprema X-Station 2 is an advanced multi-technology intelligent terminal designed to streamline secure access control. It combines cutting-edge features such as QR code reading, mobile access, RFID card recognition, and biometric fingerprint authentication, making it a perfect solution for diverse environments.

Specifications:

• Processor: 1.5 GHz Quad-Core CPU for seamless operation.
• Memory: 16 GB Flash + 1 GB RAM, ensuring smooth multitasking and large data handling.
• Display: 4" IPS color touchscreen with a resolution of 480 x 800 pixels for an intuitive interface.
• Camera: 2 MP CMOS camera for capturing image logs (1600 x 1200 resolution).

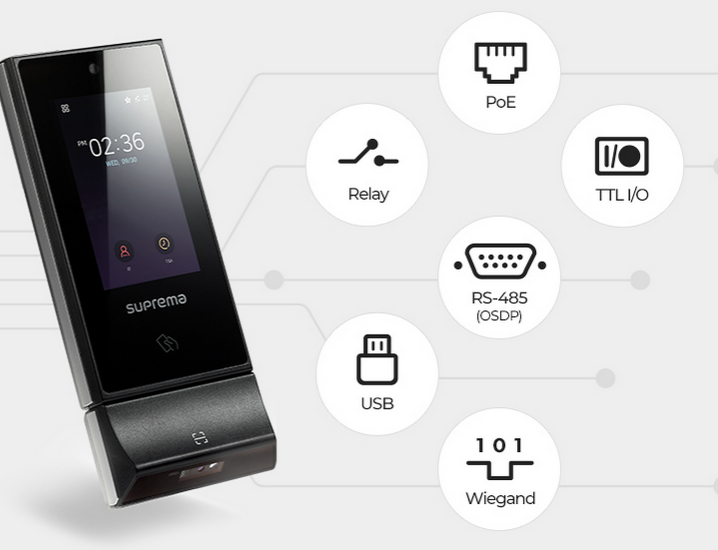

• Communication: Ethernet (10/100 Mbps), RS-485, and USB 2.0 for flexible connectivity.
• Power Supply: Supports Power over Ethernet (PoE) and operates on DC 12V or DC 24V.
• Dimensions: 82 mm x 208.5 mm x 25.9 mm.

Key Features:

1. Multi-Credential Flexibility:

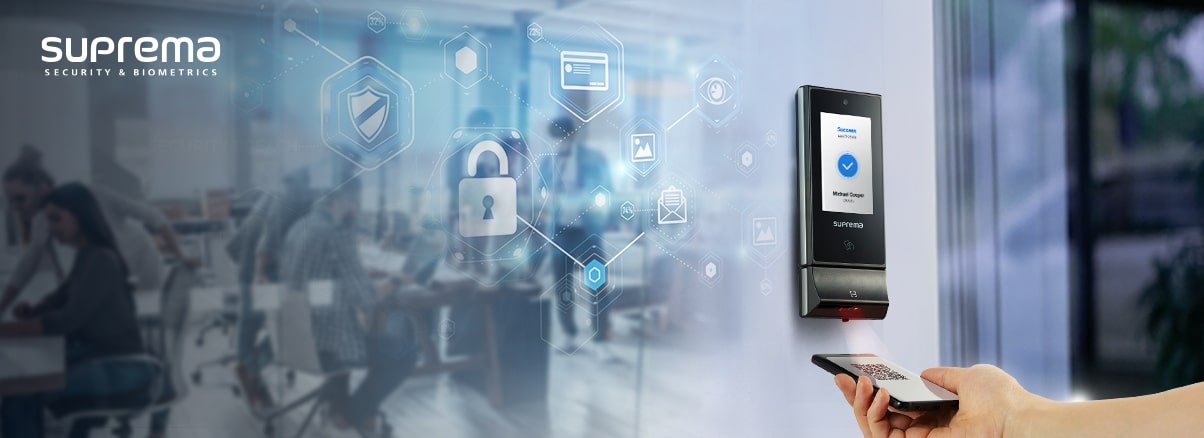

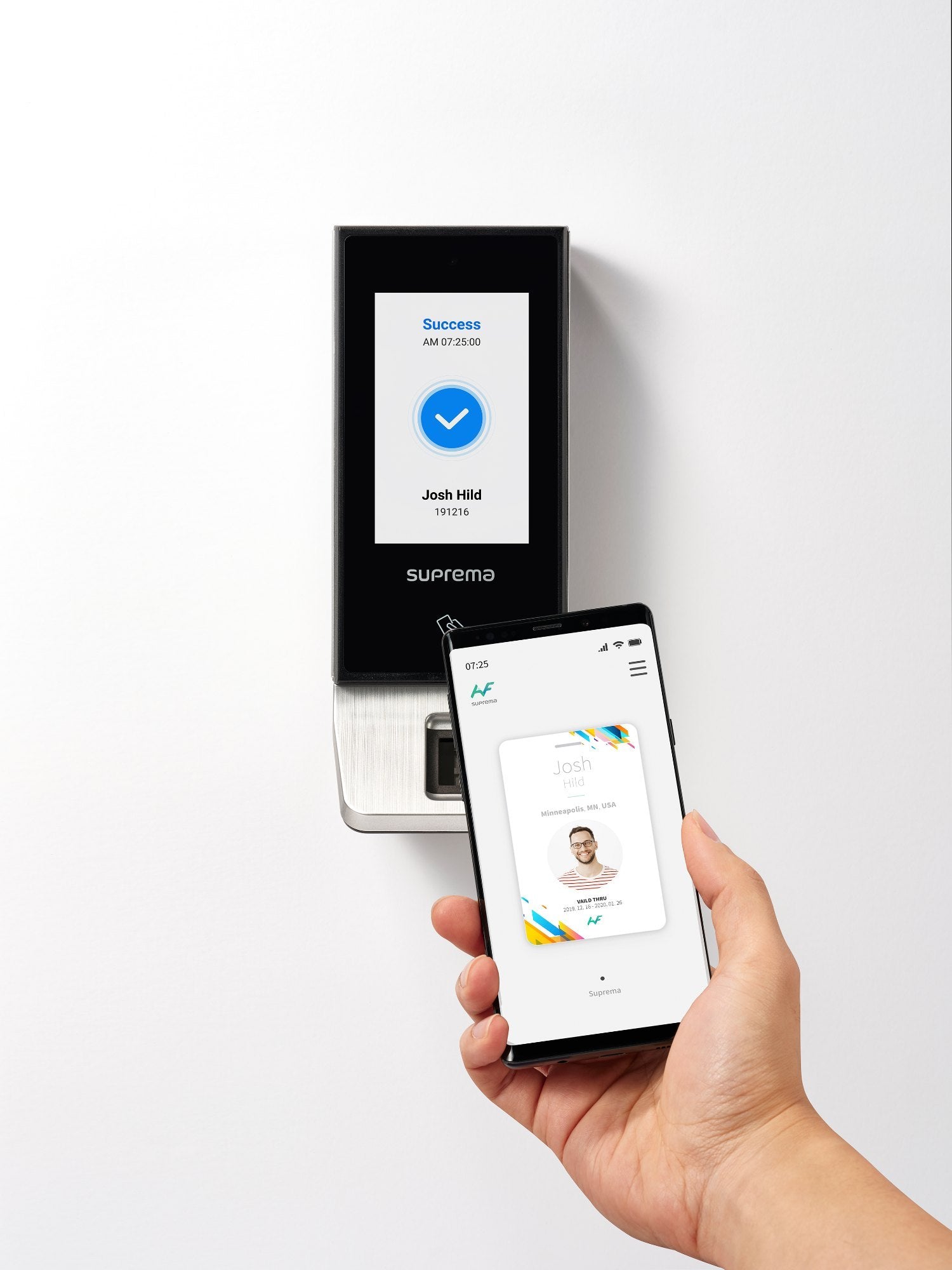

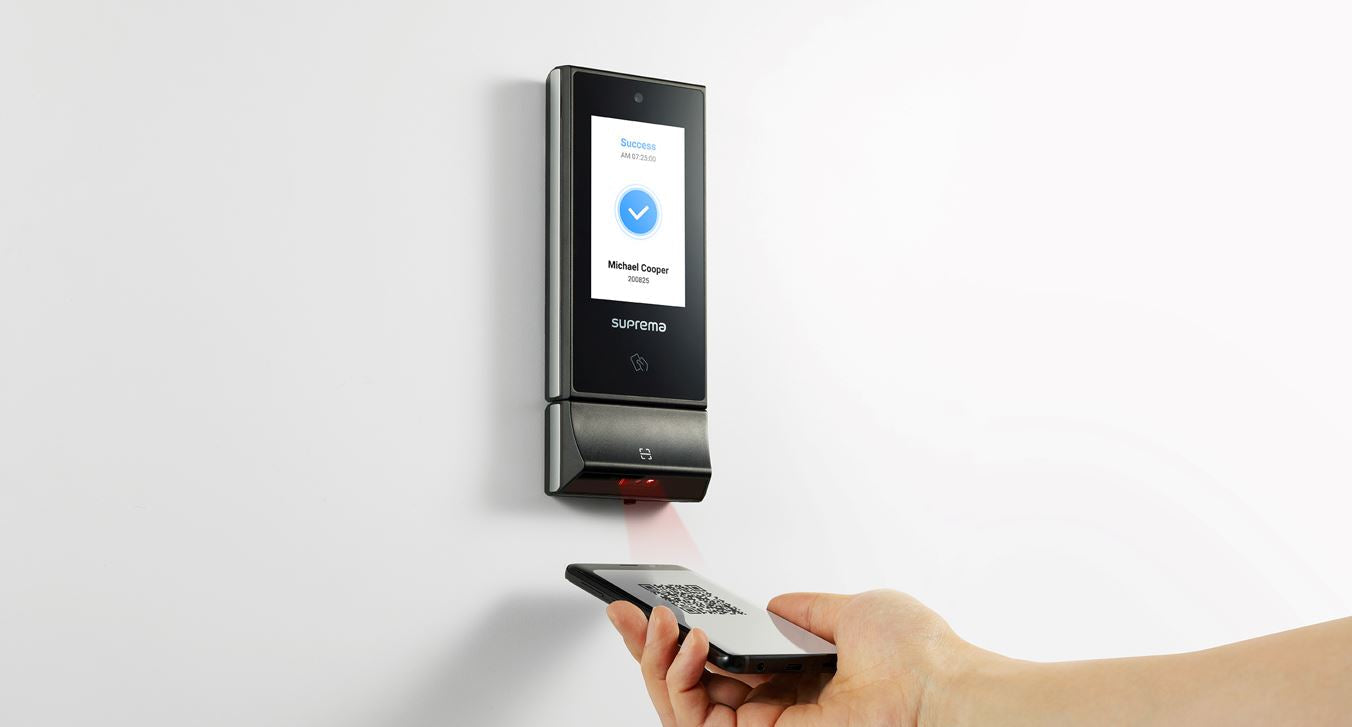

   • Supports QR codes, RFID cards (125 kHz & 13.56 MHz), fingerprints, and mobile credentials (NFC/BLE).
   • Compatible with MIFARE, DESFire EV1/EV2, iCLASS SE/SR/Seos, and more.

2. Enhanced Security:

   • Built-in cryptographic chip and secure boot process.
   • Open Supervised Device Protocol (OSDP) for secure communications.
   • Fake/live finger detection ensures robust biometric security.

3. High Capacity:

   • Stores up to 500,000 users and 5 million text logs or 50,000 image logs.
   • Fingerprint matching capabilities support up to 100,000 credentials in 1:N mode.

4. Durability and Usability:

   • IP65-rated for water and dust resistance.
   • Operates in temperatures ranging from -20°C to 50°C (-4°F to 122°F).
   • Customizable GUI on a capacitive touchscreen for ease of use.

5. Convenient Installation:

   • PoE support reduces wiring complexity.
   • Compact design for streamlined deployment.

Uses:

Ideal for office buildings, high-security areas, and enterprise environments requiring versatile access management systems.

What's Included in the Box:

• Suprema X-Station 2 terminal
• Installation kit
• Power and network cables
• User manual and quick start guide

Warranty:

Backed by Suprema’s standard warranty policy with coverage for manufacturing defects. Specific terms may vary by region.

Explore next-level access control with the Suprema X-Station 2. Its advanced features, durability, and ease of integration make it the ultimate choice for secure, scalable solutions.
