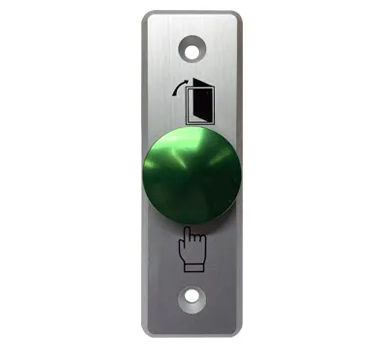

Stainless Steel Door Exit Switch Plate with Green Low‑Profile Mushroom Button – AW100112

The AW100112 Stainless Steel Exit Switch Plate delivers a sleek, low-profile design perfect for commercial and institutional access control applications. Built into a narrow 90 × 27 mm architrave plate, it features a green mushroom-style push button clearly labeled with both hand and door exit symbols. Engineered for 12 V DC access systems, this unit supports a single normally-open (NO) contact, ensuring a simple and reliable egress solution for secured door environments.

What’s Included in the Box

• 1 × Stainless steel switch plate (AW100112)

• 1 × Green low-profile mushroom head push button (NO contact only)

• Mounting screws and wire connectors

• Quick installation guide

Main Features

• Premium Stainless Steel Build – durable and corrosion-resistant

• Green Low‑Profile Mushroom Button – compact, user-friendly design

• Clear Labelling – exit hand symbol and door indicator for universal comprehension

• Single Normally‑Open Output – ideal for straightforward wiring on access systems

• 12 V DC Operation – compatible with common DC-powered access control systems

• Slim Architrave Form Factor – 90 × 27 mm for discrete installation

Detailed Specifications

Warranty Information

Includes a 12-month limited warranty covering manufacturing defects. Warranty claims are processed via the authorised distributor or manufacturer’s local support in Australia and New Zealand. Proof of purchase and product code (AW100112) are required to expedite support.

Brand Description

CCTV Tradie is committed to delivering robust, high-quality exit control hardware tailored for commercial and institutional environments. Our products are crafted from premium materials to ensure long-term durability and compliance with global safety standards.

Practical Use Scenarios

• Office & Retail Egress Points – discreet exit control for doorways

• Access-Controlled Facilities – seamless integration with electronic access systems

• Healthcare & Aged Care – clear exit indication promoting ease of movement

• Educational Campuses – reliable push-to-exit for classrooms and laboratories

• Secure Public Areas – ideal for hospitals, transport terminals, and hotels

Datasheets & Downloadable Resources

• [PDF Datasheet – AW100112 Stainless Steel Exit Switch Plate]

Excellence for the Australian and New Zealand Market

The AW100112 is tailored for compliance with Australian access control and building regulations. Featuring clear exit symbols for international accessibility (NDSS compliant), it meets domestic safety and design standards. Sourced directly from authorised brand channels, it ensures genuine material quality and secure supply. Warranty and support services are provided locally, with streamlined processing for Australia and New Zealand customers.

FAQs

Q1: What operating voltage does the AW100112 require?
A1: The AW100112 operates on 12 V DC, making it compatible with standard access control systems.

Q2: Does the AW100112 support Normally Closed (NC) contacts?
A2: No. The AW100112 provides a single Normally Open (NO) contact only.

Q3: What are the dimensions of the AW100112 switch plate?
A3: It measures 90 mm in height and 27 mm in width, ideal for slim vertical mounting.

Q4: How is the button on the AW100112 labeled?
A4: It’s marked with both a hand icon and a door exit symbol for clear egress interpretation.

Q5: Is the AW100112 suitable for outdoor installation?
A5: The stainless steel plate offers corrosion resistance, however, the AW100112 is rated primarily for indoor use. For outdoor deployments, additional protection or weatherproof enclosures are recommended.

Q6: Does the AW100112 meet Australian accessibility standards?
A6: Yes. The design aligns with NDSS requirements for visible exit signage and complies with Australian electrical and building regulation specifications.
