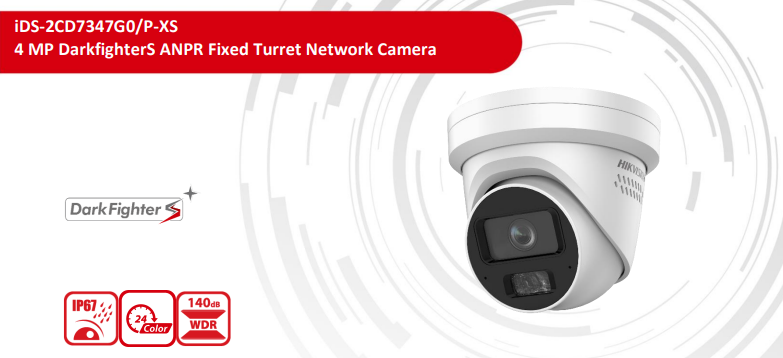

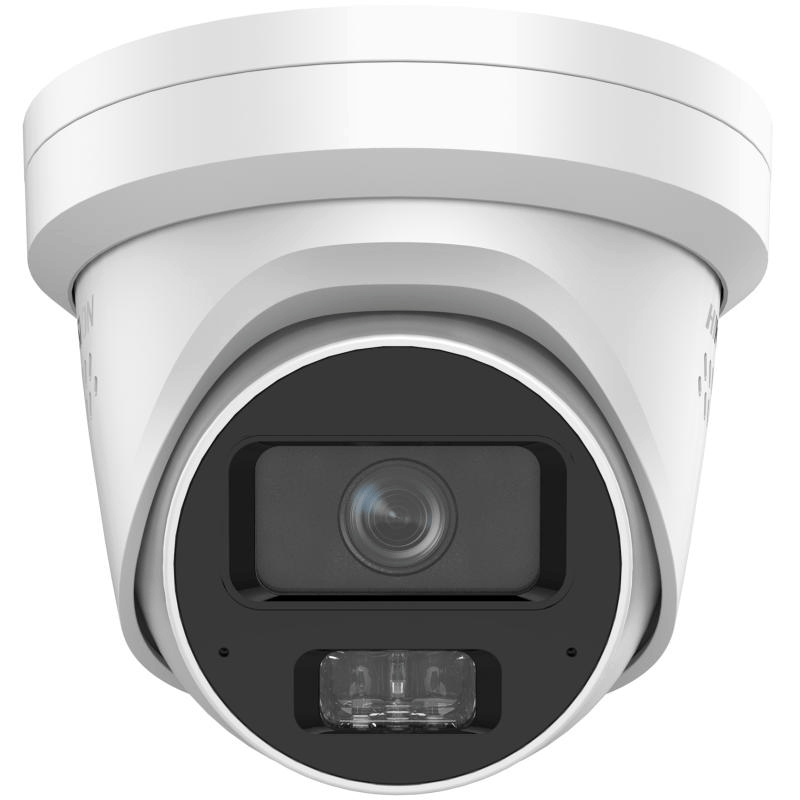

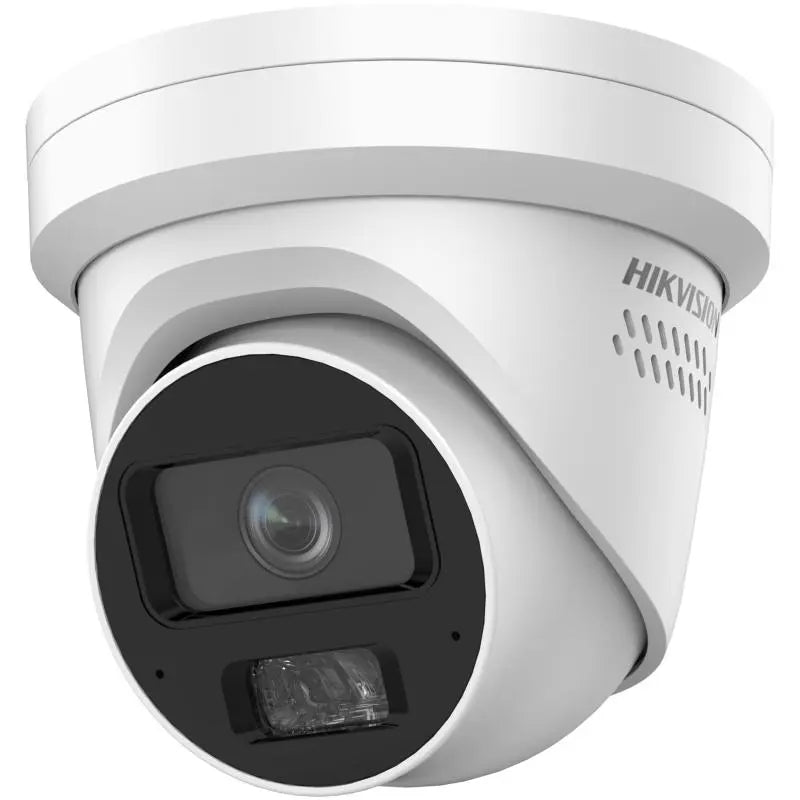

*Special Hikvision iDS-2CD7347G0/P-XS 4MP DarkfighterS ANPR Fixed Turret Network Camera with License Plate Recognition, HEOP, 140dB WDR & IP67 Protection

The Hikvision iDS-2CD7347G0/P-XS is a professional-grade 4MP DarkfighterS ANPR Fixed Turret Network Camera designed for intelligent vehicle monitoring, license plate recognition, traffic management, access control, and perimeter security applications. Equipped with Hikvision's advanced DarkfighterS ultra-low-light technology, embedded deep learning ANPR algorithms, and powerful vehicle attribute detection capabilities, this camera delivers exceptional accuracy in challenging lighting and environmental conditions.

Built on the Hikvision Embedded Open Platform (HEOP), the camera supports third-party application integration while providing 1.5 TOPS computing power for advanced analytics. With support for blocklists and allowlists, vehicle classification, 140dB WDR, hybrid IR and white light illumination, and IP67 weatherproof protection, the iDS-2CD7347G0/P-XS is an ideal solution for parking facilities, gated communities, logistics centres, industrial sites, commercial properties, and traffic monitoring systems.

What's Included in the Box

• 1 × Hikvision iDS-2CD7347G0/P-XS Network Camera
• 1 × Mounting Kit
• 1 × Waterproof Connector Set
• 1 × Quick Start Guide
• 1 × Installation Accessories Pack

Main Features

Advanced Automatic Number Plate Recognition (ANPR)

• Embedded deep-learning ANPR engine
• Automatic license plate capture and recognition
• High recognition accuracy for standard and complex plate formats
• Blocklist and allowlist management
• Separate alarm triggering based on vehicle categories
• Supports up to 10,000 vehicle records in database management systems



Vehicle Attribute Detection

Advanced AI-powered vehicle analysis:

• Vehicle type identification
• Vehicle colour detection
• Vehicle brand recognition
• License plate recognition
• Traffic event monitoring

Ideal for:

• Vehicle access control
• Parking management
• Logistics facilities
• Secure compounds
• Commercial premises

DarkfighterS Ultra-Low-Light Technology

The DarkfighterS platform delivers exceptional imaging in extremely low-light environments.

• Colour: 0.0003 Lux @ F1.0
• Black & White: 0.0001 Lux @ F1.0
• 0 Lux with supplemental lighting

Maintains highly detailed images even during nighttime operations.

140dB True Wide Dynamic Range

• Exceptional backlight compensation
• Clear imaging in entrances and exits
• Handles vehicle headlights effectively
• Improves ANPR performance in challenging lighting environments

Suitable for:

• Car parks
• Entry gates
• Loading docks
• Vehicle checkpoints

Hybrid Smart Illumination

• IR and White Light hybrid illumination
• Smart supplemental lighting
• Up to 40m illumination range
• Intelligent light adjustment

Provides optimal imaging day and night.

HEOP Open Platform Support

Supports Hikvision Embedded Open Platform:

• HEOP 2.0 OpenDevSDK
• Third-party application deployment
• C++ development environment
• TensorFlow support
• PaddlePaddle support
• Caffe support
• ONNX framework compatibility

Allows customised AI and business applications.

Advanced Perimeter Protection

Deep-learning analytics include:

• Line crossing detection
• Intrusion detection
• Region entrance detection
• Region exit detection
• Human and vehicle target filtering

Reduces false alarms and improves event accuracy.

Efficient Video Compression

Supports:

• H.265+
• H.265
• H.264+
• H.264
• MJPEG

Reduces bandwidth and storage requirements while maintaining image quality.

Five Video Streams

Supports five simultaneous video streams for:

• Recording
• Live viewing
• Mobile monitoring
• Analytics processing
• Third-party integrations

Ideal for enterprise surveillance systems.

Rugged Outdoor Construction

• IP67 weatherproof rating
• Aluminium alloy housing
• Suitable for harsh outdoor environments
• Designed for continuous operation

Reliable performance in demanding conditions.

Detailed Specifications

Camera

Specification	Details
Model	iDS-2CD7347G0/P-XS
Image Sensor	1/1.8" Progressive Scan CMOS
Resolution	4MP
Maximum Resolution	2688 × 1520
Shutter Speed	1s to 1/100,000s
Day/Night	IR Cut Filter
WDR	140dB
Image Stabilisation	EIS

Lens Options

Specification	2.8mm Version	4mm Version
Horizontal FOV	111.0°	94.7°
Vertical FOV	57.6°	49.4°
Diagonal FOV	138.4°	112.6°
Aperture	F1.0	F1.0

DORI Distances

2.8mm Lens

Function	Distance
Detect	61.5m
Observe	24.4m
Recognise	12.73m
Identify	6.2m

4mm Lens

Function	Distance
Detect	72.1m
Observe	28.6m
Recognise	14.4m
Identify	7.2m

Illumination

Specification	Details
Type	Hybrid IR & White Light
Range	Up to 40m
Smart Supplement Light	Yes
IR Wavelength	850nm

Video

Specification	Details
Compression	H.265+, H.265, H.264+, H.264, MJPEG
Streams	5
Bit Rate	32Kbps – 8Mbps
ROI	4 Regions per Stream
SVC	H.264 & H.265

Audio

Specification	Details
Audio Type	Mono
Compression	G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Sampling Rate	8kHz – 48kHz
Noise Filtering	Yes

Storage

Specification	Details
Memory Card Support	MicroSD / SDHC / SDXC
Maximum Capacity	1TB
NAS Support	NFS, SMB/CIFS
ANR	Supported

Network

• IPv4 / IPv6
• HTTPS
• SSL/TLS
• SRTP
• RTSP
• FTP / SFTP
• DHCP
• DNS
• SMTP
• SNMP
• QoS
• WebSocket
• ONVIF Profile S, G & T
• ISAPI
• SDK
• ISUP

Interface

Specification	Details
Ethernet	1 × RJ45 10/100Mbps
Alarm I/O	1 Input / 1 Output
Audio I/O	1 Input / 1 Output
RS-485	Supported
Reset Button	Yes
Power Output	12VDC, Max 100mA

Power

Specification	Details
DC Input	12VDC ±20%
PoE	IEEE 802.3af
Max Consumption (DC)	7.9W
Max Consumption (PoE)	9.69W

Physical Specifications

Specification	Details
Housing Material	Aluminium Alloy
Dimensions	Ø138.6 × 124.4mm
Weight	Approx. 820g
Protection Rating	IP67
Operating Temperature	-30°C to +60°C

Warranty Information

• 3 year Manufacturer Warranty Included
• Genuine Hikvision Product
• Warranty Support Through Authorised Distribution Channels
• Technical Support Available Through Approved Partners

Brand Information

Hikvision

Hikvision is one of the world's leading providers of intelligent video surveillance and security solutions. Known for innovation in artificial intelligence, deep learning analytics, ANPR technology, and enterprise-grade video security systems, Hikvision products are trusted globally across government, transport, commercial, industrial, and critical infrastructure sectors.

SKU

iDS-2CD7347G0/P-XS

Practical Use Scenarios

Vehicle Access Control

Automatically identify authorised and unauthorised vehicles entering gated facilities and private compounds.

Commercial Parking Facilities

Monitor vehicle entries and exits while maintaining detailed vehicle records and occupancy information.

Logistics & Warehousing

Track fleet movements and manage vehicle access to loading bays and secure logistics centres.

Industrial Sites

Provide perimeter protection and ANPR monitoring for restricted access areas.

Residential Communities

Control access to gated communities and apartment complexes with automatic license plate recognition.

Government & Critical Infrastructure

Enhance vehicle monitoring and security at high-security facilities and sensitive locations.

Datasheets & Downloadable Resources



• Hikvision iDS-2CD7347G0/P-XS Datasheet



Excellence for the Australian and New Zealand Market

The Hikvision iDS-2CD7347G0/P-XS is ideally suited to professional surveillance and traffic monitoring deployments throughout Australia and New Zealand.

Key advantages include:

• RCM compliant EMC certification for Australia and New Zealand markets
• IP67-rated weatherproof protection suitable for harsh outdoor environments
• Advanced ANPR technology for commercial and industrial access control
• Support for enterprise-grade vehicle monitoring systems
• Genuine products sourced through authorised distribution partners
• Manufacturer-backed warranty support
• ONVIF compatibility for seamless integration with existing security systems
• Advanced cybersecurity features including TLS 1.2 and TLS 1.3 encryption
• Suitable for transport, logistics, mining, government, education, healthcare, and commercial sectors

Frequently Asked Questions (FAQs)

Does the iDS-2CD7347G0/P-XS support automatic number plate recognition?

Yes. The iDS-2CD7347G0/P-XS includes embedded deep-learning ANPR technology capable of capturing and recognising vehicle license plates.

Can the iDS-2CD7347G0/P-XS recognise vehicle types and colours?

Yes. The iDS-2CD7347G0/P-XS supports vehicle attribute detection including vehicle type, colour, and brand recognition.

How many vehicle records can the iDS-2CD7347G0/P-XS store?

The iDS-2CD7347G0/P-XS supports blocklists and allowlists with up to 10,000 vehicle records.

Does the iDS-2CD7347G0/P-XS support third-party applications?

Yes. The iDS-2CD7347G0/P-XS supports Hikvision Embedded Open Platform (HEOP) and third-party application deployment.

What low-light technology is used in the iDS-2CD7347G0/P-XS?

The iDS-2CD7347G0/P-XS uses Hikvision DarkfighterS technology for exceptional low-light performance.

Is the iDS-2CD7347G0/P-XS suitable for outdoor installation?

Yes. The iDS-2CD7347G0/P-XS features an IP67-rated weatherproof aluminium housing for outdoor environments.

Does the iDS-2CD7347G0/P-XS support PoE?

Yes. The iDS-2CD7347G0/P-XS supports IEEE 802.3af Power over Ethernet.

What storage options are available on the iDS-2CD7347G0/P-XS?

The iDS-2CD7347G0/P-XS supports MicroSD cards up to 1TB as well as NAS storage and ANR functionality.

Does the iDS-2CD7347G0/P-XS support ONVIF?

Yes. The iDS-2CD7347G0/P-XS supports ONVIF Profiles S, G, and T.

What are the main applications for the iDS-2CD7347G0/P-XS?

The iDS-2CD7347G0/P-XS is ideal for ANPR, vehicle access control, parking management, gated communities, logistics facilities, industrial sites, and perimeter security applications.
