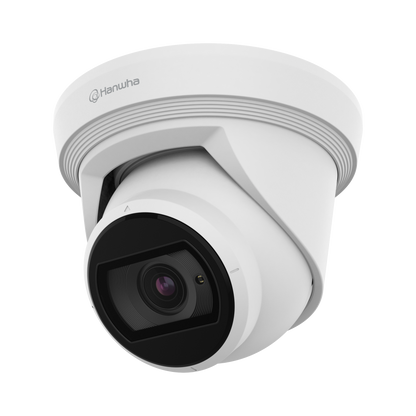

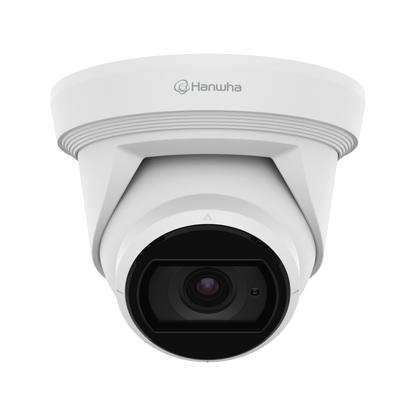

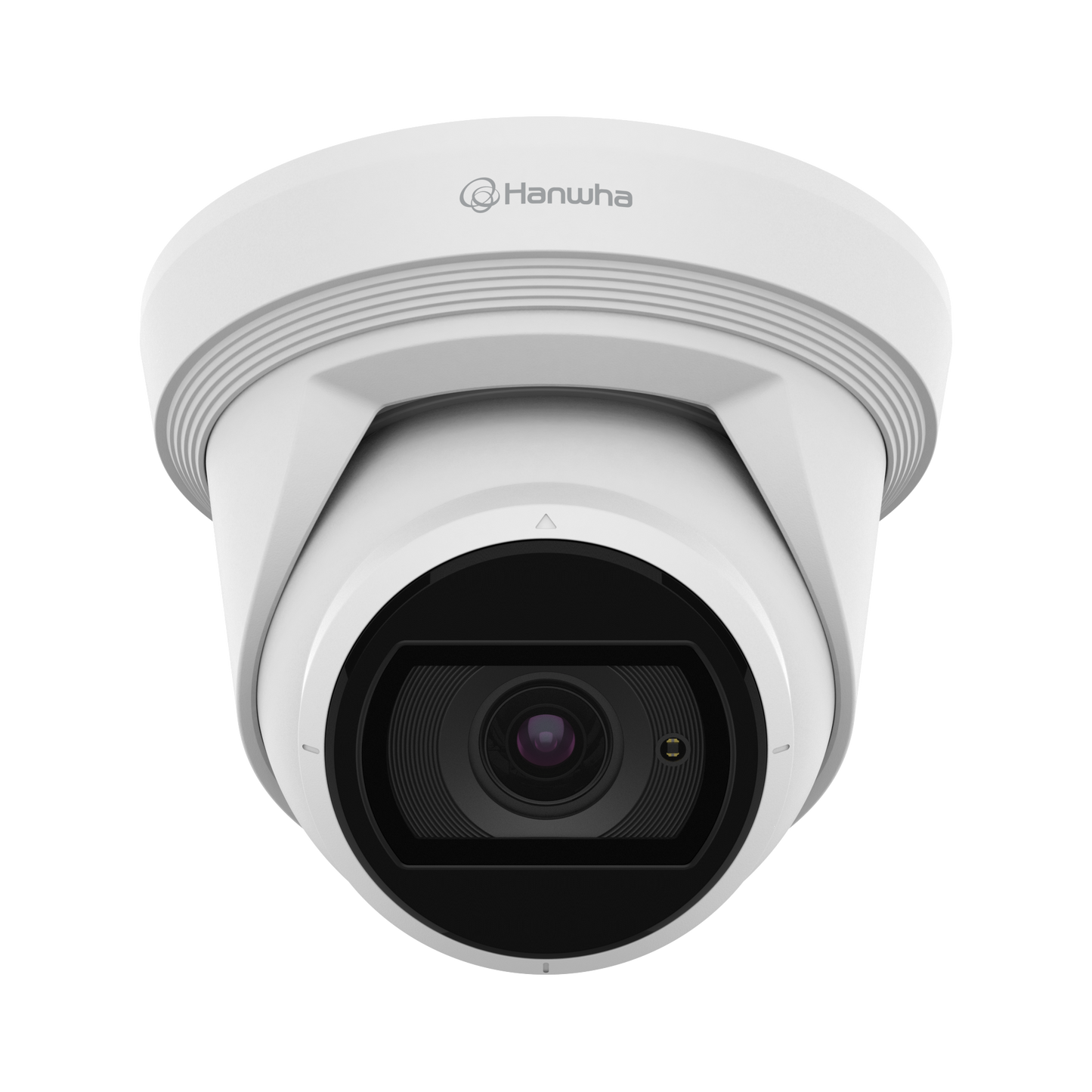

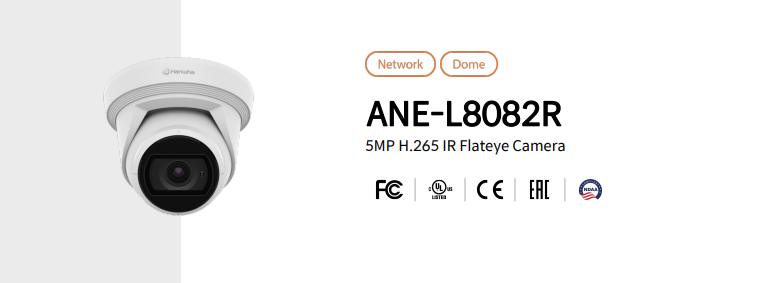

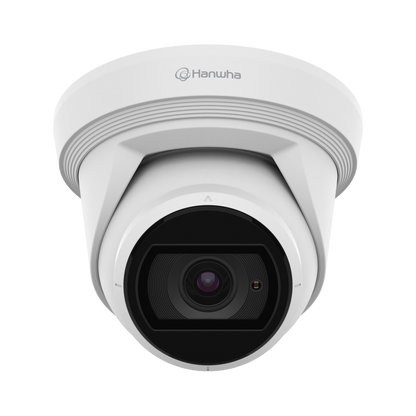

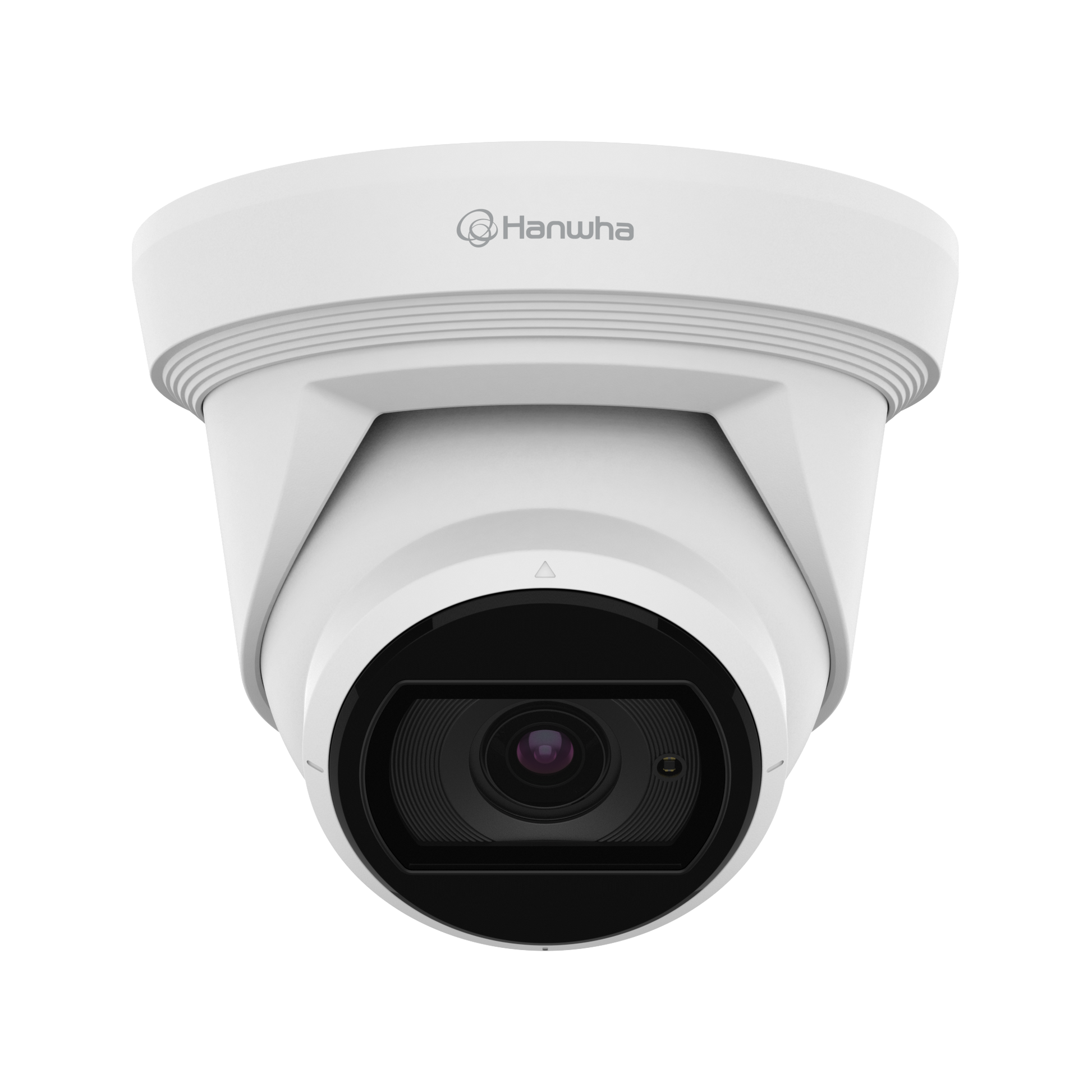

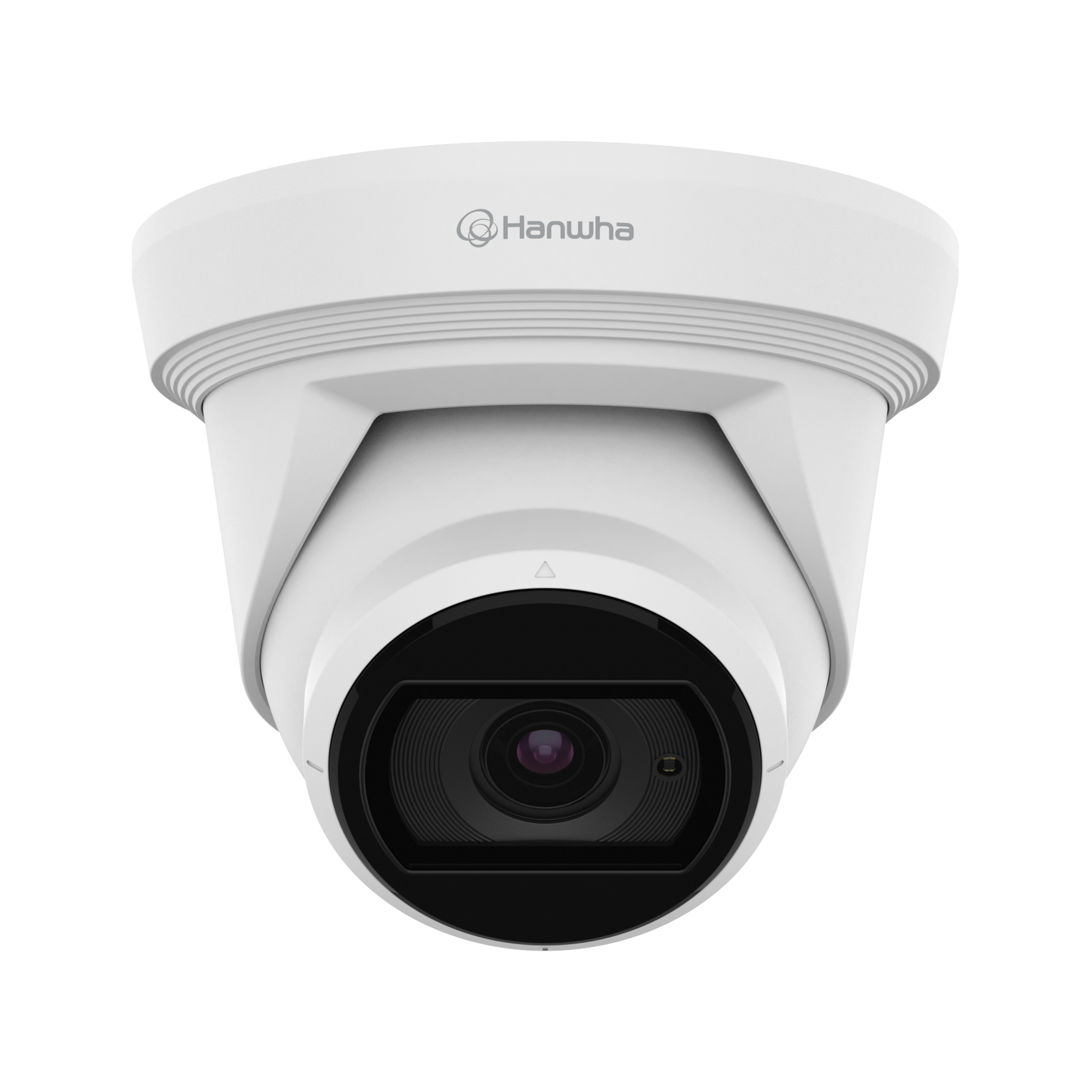

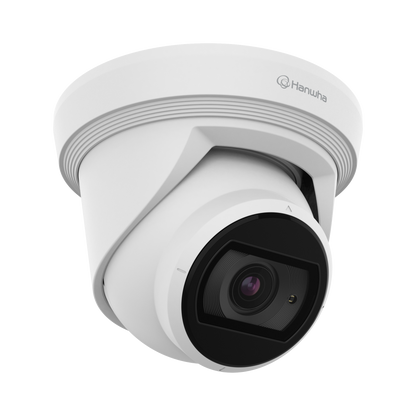

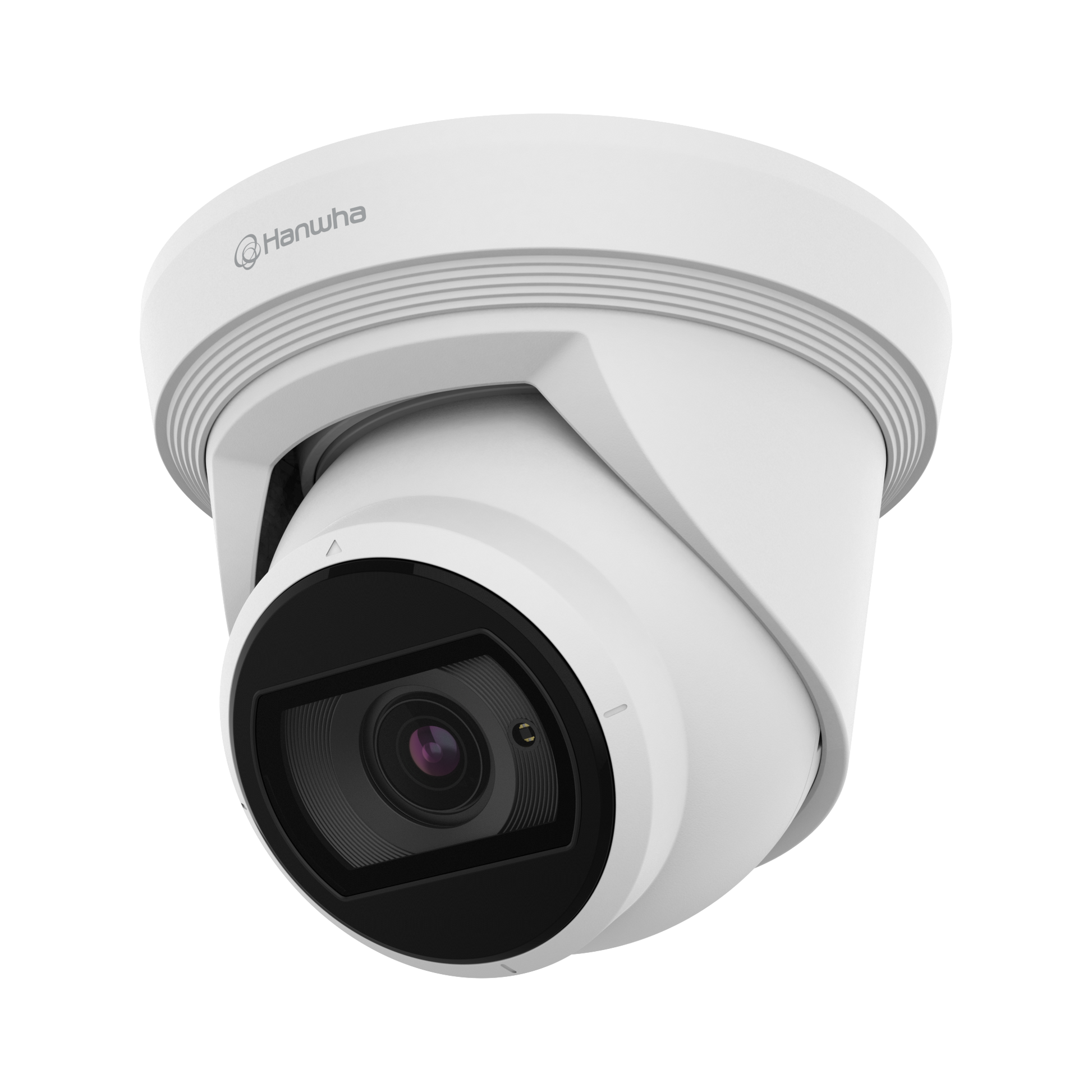

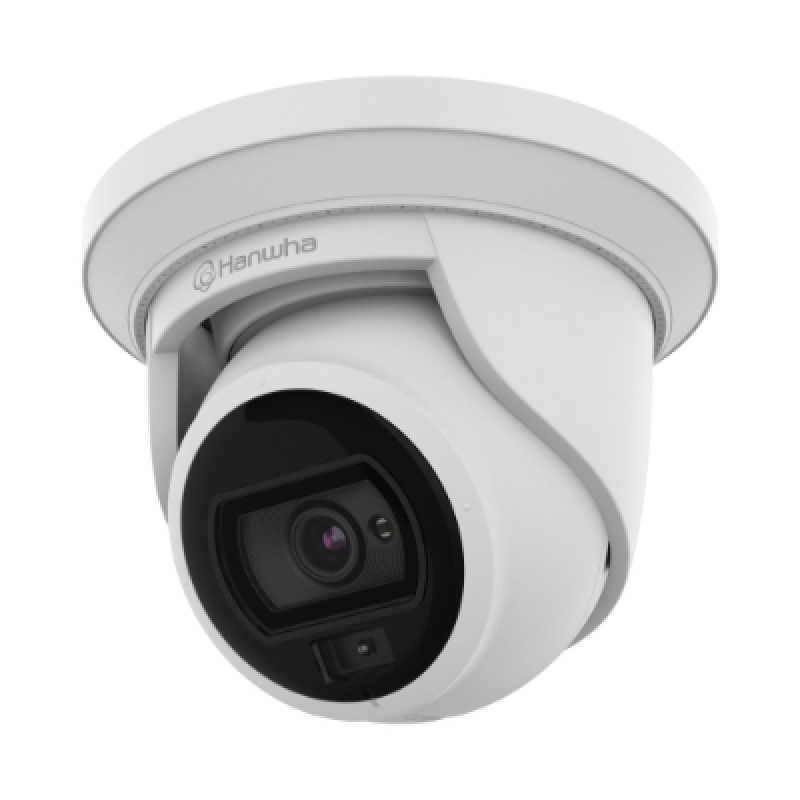

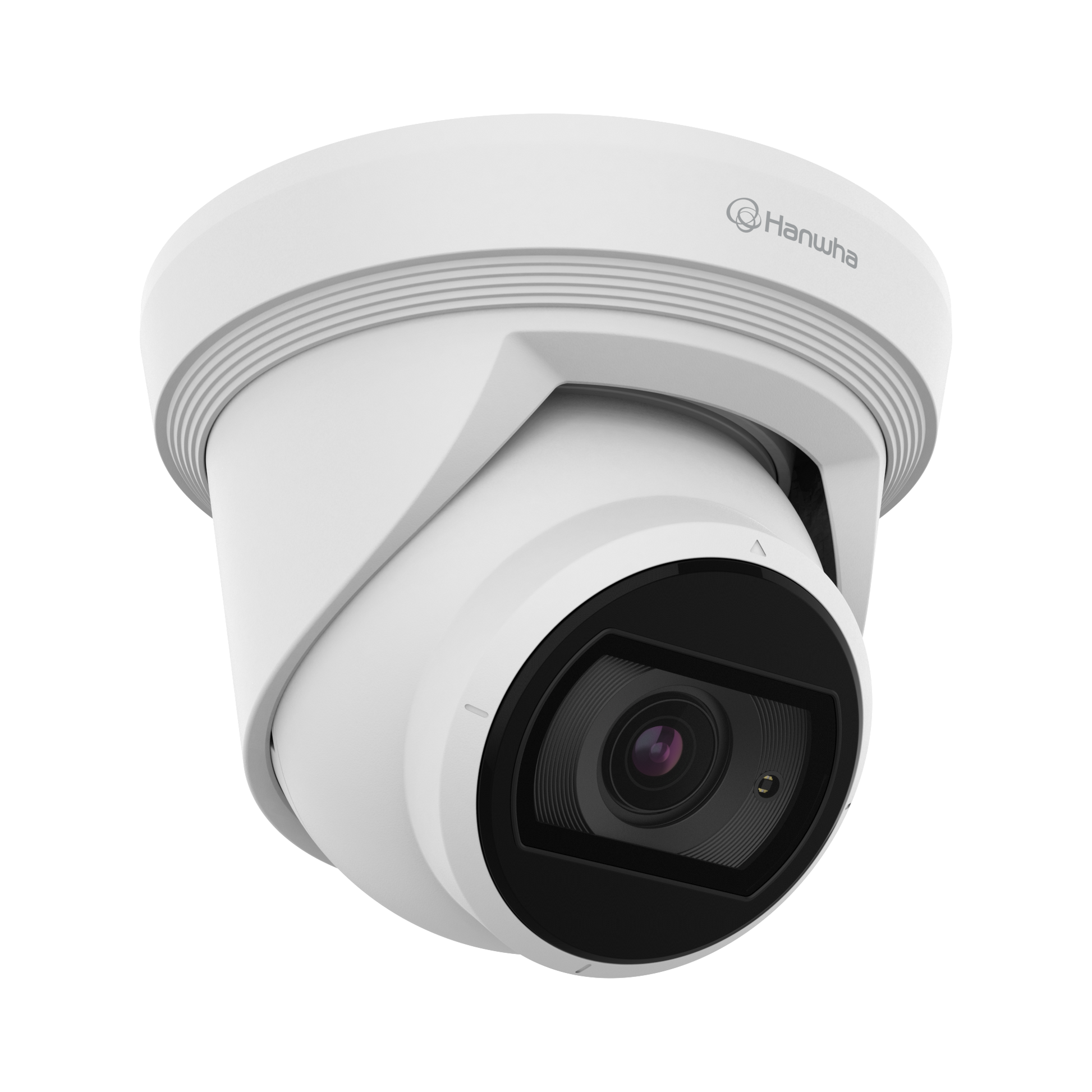

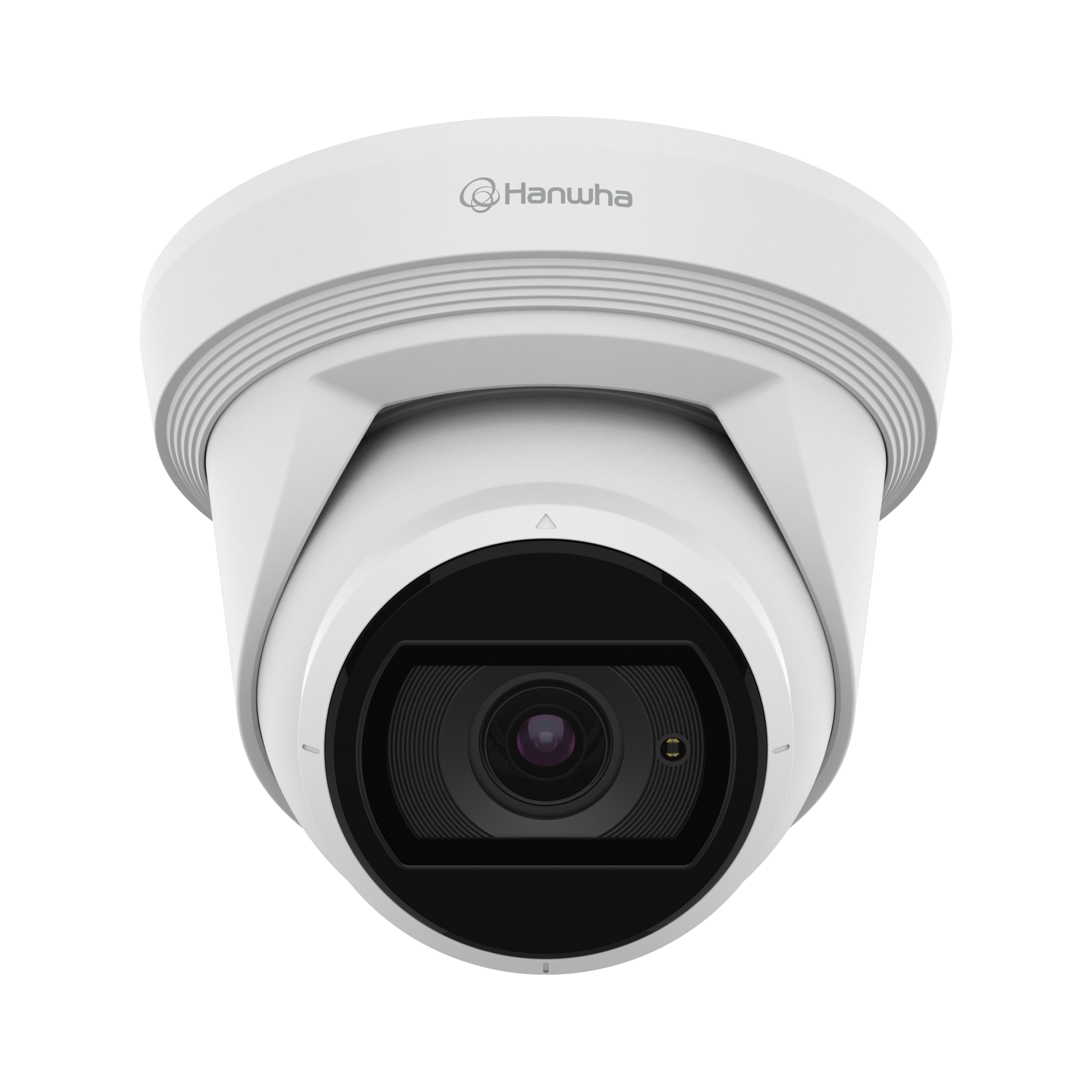

Special* Hanwha A Series 5MP Outdoor Flateye Vari Focal Camera – ANE-L8082R

The Hanwha A-Series 5MP Outdoor Flateye VF Camera (ANE-L8082R) is a high-performance security solution engineered for outdoor surveillance. Featuring a 5MP CMOS sensor, H.265 compression technology, and IR night vision, this camera delivers clear, high-resolution footage in various lighting conditions. With advanced analytics, motion detection, and tamper alerts, it ensures optimal security and efficiency. Its IP66/IP67 and IK10-rated housing makes it highly resistant to harsh weather conditions and physical impact, making it an ideal choice for industrial, commercial, and residential security applications.

Key Features

• High-Resolution Imaging: 5MP (2592 x 1944) resolution for crystal-clear visuals.

• Varifocal Lens: 3.3 - 10.3mm motorized varifocal lens for flexible field-of-view adjustments.

• Superior Low-Light Performance: 0.04Lux in color mode and 0Lux in B/W mode with IR LED.

• Advanced Video Compression: H.265, H.264, and MJPEG support with WiseStream™ for efficient bandwidth usage.

• Wide Dynamic Range (WDR): 120dB WDR enhances visibility in high-contrast lighting.

• Intelligent Video Analytics: Motion detection, tampering alerts, defocus detection, virtual area intrusion, and line crossing detection.

• Flexible Installation: Hallway view (90°/270°), LDC support, and various mounting options.

• Robust Build: IP66/IP67-rated waterproof and IK10 impact-resistant housing.

• Power-over-Ethernet (PoE) Support: Simplifies installation with a single cable for power and data.

• Micro SD/SDHC/SDXC Support: Local storage up to 128GB for added security.

Specifications

• Imaging Device: 1/2.8" CMOS sensor

• Lens: 3.3 - 10.3mm motorized varifocal, F1.6(W) ~ F3.3(T)

• Angle of View: H: 97° (Wide) ~ 29° (Tele), V: 70° (Wide) ~ 21° (Tele), D: 130° (Wide) ~ 36° (Tele)

• Illumination: 30m (98.42ft) IR range

• Compression: H.265, H.264, MJPEG

• Frame Rate: Up to 30fps (WDR off), 15fps (WDR on)

• Network Interface: RJ-45 (10/100BASE-T)

• Operating Temperature: -30°C to 60°C (-22°F to 140°F)

• Power Supply: PoE (IEEE802.3af, Class 3), max 10.4W

• Certifications: IP66/IP67, IK10, RCM, IEC/EN 63000, IEC/EN 60529, IEC/EN 62262

What’s Included

• Hanwha A-Series 5MP Outdoor Flateye VF Camera (ANE-L8082R)

• Mounting Accessories

• Quick Start Guide

Compatible Accessories (Sold Separately)

• Wall Mounts: SBP-300WMW, SBP-300WMW1, SBP-400WMW, SBP-160WMW1

• Ceiling Mounts: SBP-300CMW1, SBP-300CMTW, SBP-300CMTS

• Pole Mounts: SBD-180PMW, SBP-300PMW2

• Corner Mounts: SBP-300KMW1, SBP-156KMW

Practical Use Cases

• Commercial Buildings: Enhanced security with motion detection and intrusion alerts.

• Industrial Facilities: Durable construction withstands harsh environmental conditions.

• Retail Stores: Protects against theft and vandalism with high-resolution surveillance.

• Residential Security: 24/7 monitoring with IR night vision and local storage.

Excellence for the Australian and New Zealand Market

The Hanwha A-Series 5MP Outdoor Flateye VF Camera is designed to meet the highest security standards in Australia and New Zealand. With RCM compliance and adherence to IEC environmental and impact resistance certifications, it ensures optimal performance in diverse climatic conditions. Hanwha Vision works with authorized brand representatives to ensure quality assurance and warranty support, making this camera a trusted choice for the region.

Datasheets

Datasheet

FAQs

Q: Does the camera support remote access?
A: Yes, it supports ONVIF Profile S/G/T and Wisenet open platform for seamless remote access.

Q: What is the maximum storage capacity?
A: It supports micro SD/SDHC/SDXC up to 128GB.

Q: Can this camera be used indoors?
A: Yes, while optimized for outdoor use with IP66/IP67-rated housing, it can also be installed indoors.

Q: Is the power supply included?
A: No, this camera requires PoE (IEEE802.3af, Class 3) for power.
