*Special Bundle HiLook 6MP AI CCTV & Wired Alarm – 4x IPC-T361H-MU-AUS + HL-NVR-104MH-C/4P(B) + HA-ALARM-KIT1

Enhance your security infrastructure with this powerful, all-in-one HiLook AI CCTV & Wired Alarm Bundle, featuring 4 x 6MP AI cameras, a 4-channel 4K PoE NVR, and the HA-ALARM-KIT1 hybrid alarm panel. Designed for homes, businesses, and warehouses across Australia and New Zealand, this exclusive bundle delivers high-resolution surveillance, real-time audio monitoring, smart detection, and professional-grade intrusion protection—all in one cost-effective package.

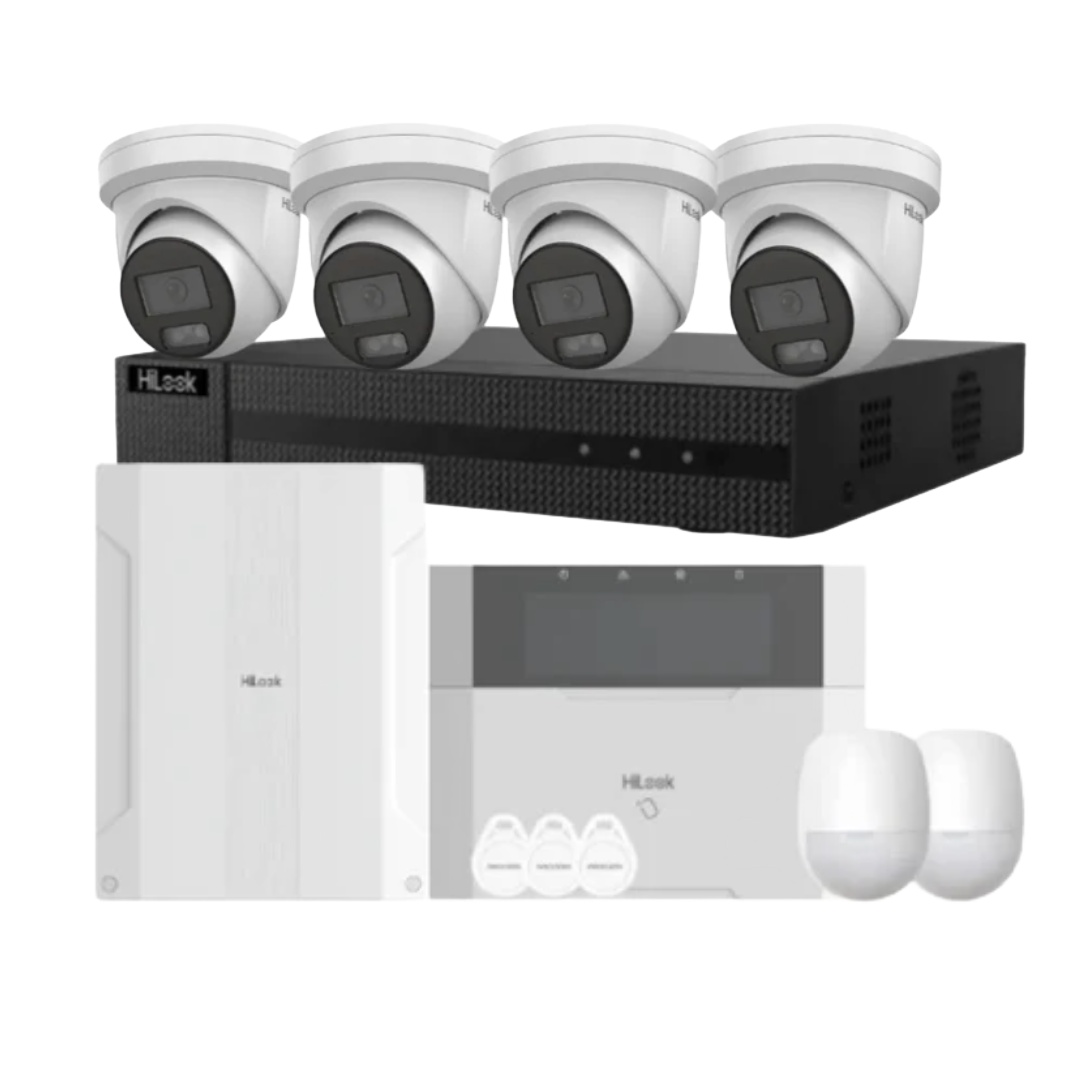

🔧 What’s Included in the Box

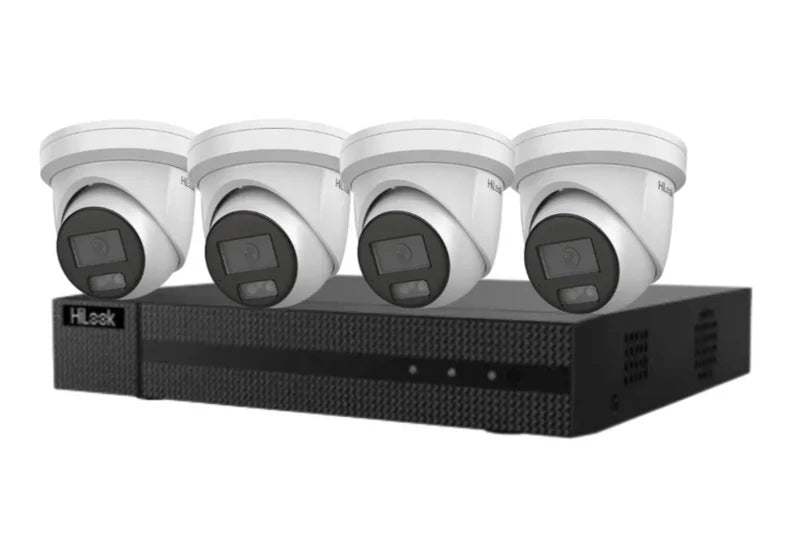

Video Surveillance:

• 4 × HiLook IPC-T361H-MU#AUS 6MP AI Fixed Turret Cameras

• 1 × HiLook HL-NVR-104MH-C/4P(B) 4-Channel 4K PoE NVR


• Mounting Templates & Screws

• Power Adapter, Quick Start Guides, Allen Keys

Alarm System:

• 1 × Alarm Control Panel (HA‑ALARM‑P48)

• 1 × Wired LCD Keypad (HA‑ALARM‑KP) with RF Receiver

• 2 × Wired PIR Motion Detectors

• 3 × RFID Arming/Disarming Tags

Required but Not Included:

• Siren kit (1x power pack, 1x 12V backup battery, 1x indoor sounder, 1x outdoor siren)

• HDD (Choose your HDD below)

⭐ Main Features

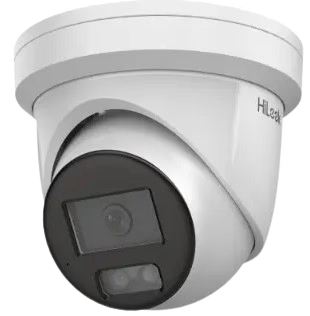

HiLook IPC-T361H-MU#AUS Cameras

• 6MP resolution (3200 × 1800) for ultra-clear imaging

• AI-based human & vehicle detection reduces false alerts

• Built-in dual microphones for two-way audio monitoring

• 120 dB WDR for optimal image clarity in varying lighting

• IP67-rated weatherproof metal housing

• Night vision up to 30m with Smart IR

• Wide viewing angles: 2.8mm (105°) or 4mm (78°) lens

• MicroSD storage support up to 512GB

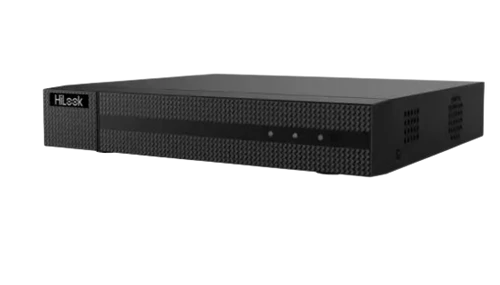

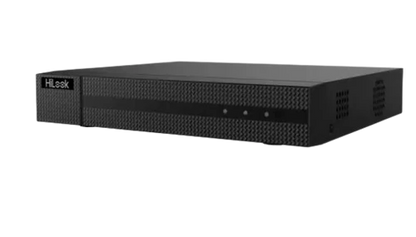

HiLook HL-NVR-104MH-C/4P(B) NVR

• Supports 4 × 6MP cameras

• 1-ch@8MP or 4-ch@1080p decoding

• 4 × PoE ports for power and data over one cable

• HDMI & VGA outputs up to 4K

• 1 SATA interface, supports HDDs up to 8TB

• H.265+/H.264+ compression saves storage space

HiLook HA‑ALARM‑KIT1 Hybrid Alarm System

• 8 on-board wired zones, expandable to 48 zones

• 4 on-board outputs (2 relay, 2 I/O)

• Multi-area support (up to 16 partitions)

• Multiple control methods: keypad, RFID tags, app (via IP module), and optional 4G/PSTN

• Tamper detection, LED status indicators

• Supports end-of-line resistors for wire integrity monitoring

📐 Detailed Specifications

HiLook IPC-T361H-MU#AUS Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Lens: Fixed 2.8mm or 4mm

• Min. Illumination: 0.005 Lux @ F1.6 (Color), 0 Lux (IR)

• IR Distance: Up to 30m

• Audio: Dual microphones

• Power: 12V DC or PoE

• Dimensions: Ø127.3 × 96.3 mm | Weight: 515g

• Operating Temp: -30°C to 60°C

HL-NVR-104MH-C/4P(B) NVR

• Inputs: 4 IP channels

• Compression: H.265+/H.265/H.264+/H.264

• Decoding: 1-ch@8MP or 4-ch@1080p

• PoE Ports: 4 × RJ-45

• Bandwidth: 40 Mbps

• Outputs: HDMI, VGA up to 4K

• Power: 48V DC | ≤ 10W (PoE off)

• Dimensions: 265 × 225 × 48 mm | Weight: ≤ 1kg

HA‑ALARM‑KIT1 Alarm System

• Zones: 8 on-board (expandable to 48)

• Areas: Up to 16

• Power Output: Bell – 12V 1.2A, AUX – 12V 1.5A

• Input: 15V DC, 2.5A

• Backup Battery: 12V 7Ah (not included)

• Dimensions: 261 × 199 × 86.4 mm | Weight: 997g

• Operating Temp: -10°C to +40°C | Humidity: 10%-90%

🛡️ Warranty Information

• 2-Year Return-to-Base Warranty

• Full compliance with Australian Consumer Law for manufacturing defects

• Direct support and warranty handling for AU/NZ customers

🏷️ Brand Description

HiLook by Hikvision combines trusted Hikvision engineering with affordability, offering robust security solutions tailored for installers and value-conscious consumers. Their product range supports both standalone and integrated security setups with simplified installation and professional-grade performance.

🏠 Practical Use Scenarios

• Residential Homes: Protect entry points and common areas with smart AI cameras and easy-to-use alarm keypads.

• Retail & Office Spaces: Configure multiple zones to cover entry, inventory, and customer areas.

• Warehouses & Rural Properties: Add external sirens and 4G modules for off-site, real-time alerts.

• Integrated Systems: Connect to broader Hikvision ecosystems with relay outputs, PIRCAMs, and mobile app control.

📂 Datasheets & Downloads

• • HiLook IPC-T361H-MU#AUS Datasheet

  • HiLook HL-NVR-104MH-C/4P(B) Datasheet

  • Brochure

🌏 Excellence for the Australian and New Zealand Market

This premium HiLook bundle is engineered for full compatibility with Australian and New Zealand requirements. All components meet relevant electrical safety standards and are backed by local warranty support. The alarm system supports NDSS-compliant practices for intrusion protection and is sourced exclusively from authorized distributors. Our support and warranty are handled directly with HiLook/Hikvision, ensuring hassle-free service for local customers.

❓ FAQs – HiLook 6MP CCTV + Alarm Kit Bundle (Product Code: HL-BUNDLE-4CAM-ALARM)

Q1: What resolution do the HiLook cameras support? (HL-BUNDLE-4CAM-ALARM)
A1: Each camera supports 6MP (3200 × 1800) resolution for detailed, clear video footage.

Q2: Is this alarm system suitable for large commercial spaces? (HL-BUNDLE-4CAM-ALARM)
A2: Yes, the system supports up to 48 zones and 16 partitions, making it ideal for large or multi-area facilities.

Q3: Does the NVR support remote viewing? (HL-BUNDLE-4CAM-ALARM)
A3: Yes, using the Hik-Connect app, users can monitor their system remotely via mobile or PC.

Q4: Are power supplies and batteries included? (HL-BUNDLE-4CAM-ALARM)
A4: No, the siren kit (power supply, indoor/outdoor siren, and backup battery) is required but sold separately.

Q5: What is the difference between 2.8mm and 4mm lenses? (HL-BUNDLE-4CAM-ALARM)
A5: The 2.8mm lens offers a wider field of view (105°), while the 4mm lens provides narrower, more focused coverage (78°).

Q6: Can the alarm be integrated with smart home systems? (HL-BUNDLE-4CAM-ALARM)
A6: Yes, via relay outputs and optional communication modules (IP/GPRS/4G), it can integrate with broader automation systems.

SKU: HL-BUNDLE-4CAM-ALARM
