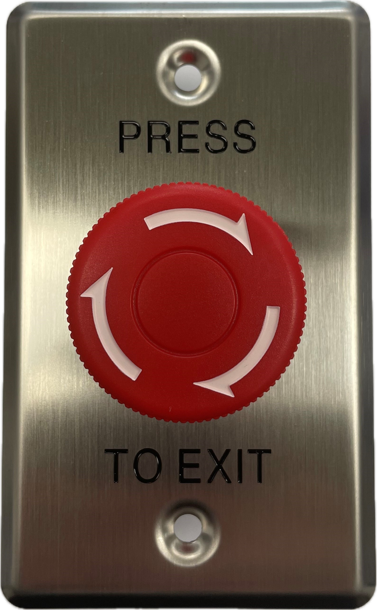

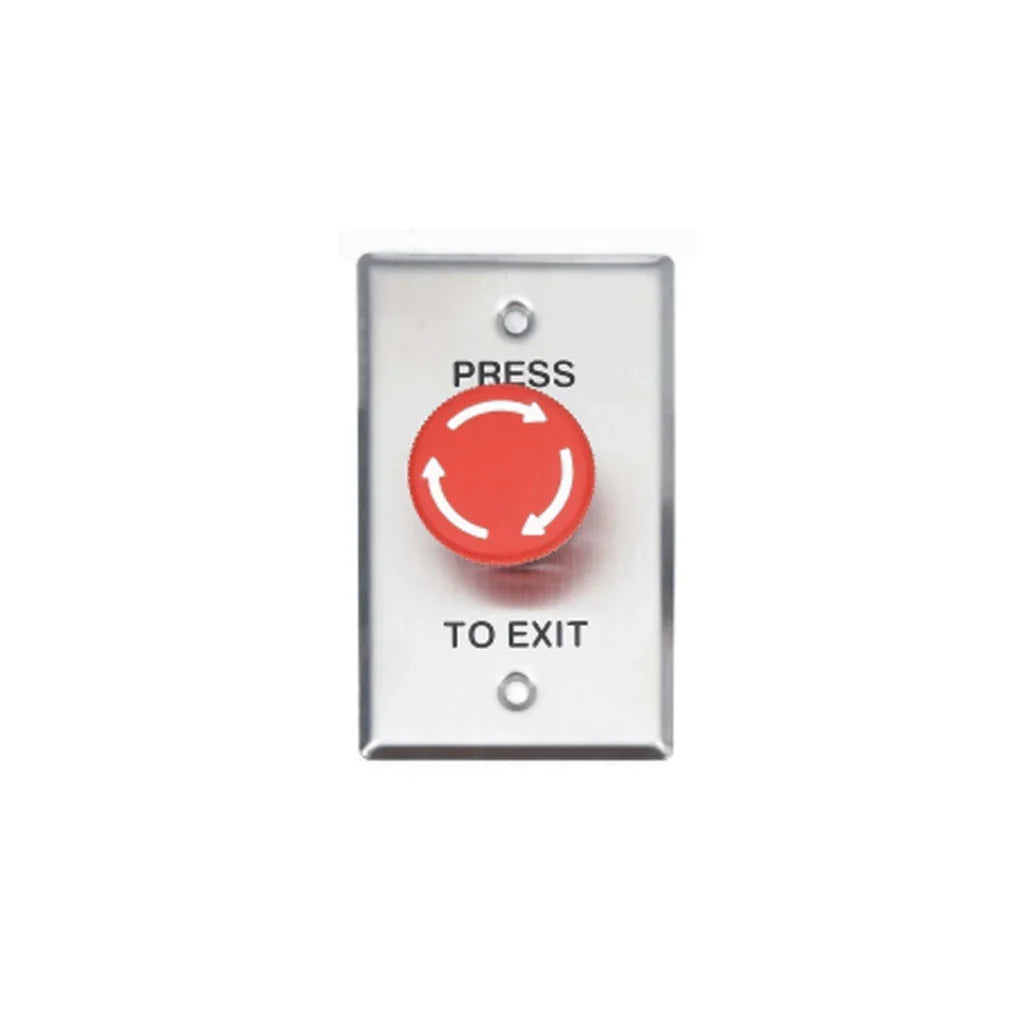

SMART Twist-to-Release Button with Red Mushroom Head on Curved Edge Stainless Steel Plate, "Press to Exit" Engraved (Latching)

The SMART Twist-to-Release Button combines functionality and durability in a sleek, user-friendly design. Featuring a red mushroom head button on a curved-edge stainless steel plate, this device is ideal for use in exit doors or emergency release applications. The button is latching, meaning it stays in place once activated until manually twisted to reset. The "Press to Exit" engraving in red ensures visibility and clarity for users in critical situations. This high-quality unit is designed for both aesthetic appeal and reliable performance, making it perfect for both commercial and residential applications.

What's in the Box

• 1 x SMART Twist-to-Release Button (ARLSWP-23R)
• 1 x Installation Manual
• 1 x Mounting Kit (screws and dowels)
• 1 x Wiring Diagram

Features

• Mushroom Head Button: The red mushroom head design provides a clear, easy-to-activate button for emergency or exit situations.
• Engraved Text: The "Press to Exit" text is clearly engraved in red, ensuring visibility and ease of identification.
• Latching Switch Action: Once the button is pressed, it remains activated until manually reset by twisting the button.
• Durable Stainless Steel Plate: The button is mounted on a stainless steel plate with a curved edge, ensuring both durability and a modern aesthetic.
• Standard Plate Style: The button is housed in a standard plate style, making it suitable for various installations.
• High-Quality Materials: Made from high-grade materials for long-lasting performance and resistance to wear and tear.
• Clear User Instructions: The button clearly indicates its purpose, making it intuitive to use in emergencies.

Specifications

• Button Type: Mushroom Head
• Button Color: Red
• Plate Material: Stainless Steel
• Plate Style: Standard
• Engraved Text: "Press to Exit" (Red)
• Switch Action: Latching
• Dimensions:
  • Height: 115mm
  • Width: 70mm
  • Depth: 53mm
• Power Supply: Requires connection to a compatible control system for activation (installation specifics vary).
• Mounting: Surface mounted with included screws and dowels.
• Operating Environment: Ideal for indoor and outdoor applications with the appropriate enclosure.

Warranty

The SMART Twist-to-Release Button is backed by a 12-month warranty, covering defects in materials and workmanship under normal use. The warranty does not cover damage resulting from misuse, environmental conditions, or improper installation.

Applications

• Emergency Exit Systems: Ideal for installation in exit doors or areas requiring emergency exit release.
• Access Control Systems: Used in various security systems for easy and reliable exit access.
• Commercial and Residential Installations: Suitable for high-traffic areas in commercial buildings, schools, hospitals, and residential complexes.
• High-Visibility Settings: Perfect for situations where clear instructions are necessary for user safety and ease of use.

The SMART Twist-to-Release Button offers a reliable, durable, and user-friendly solution for emergency exits, providing clear indication and easy operation. With its stylish stainless steel design, it's a perfect choice for both functionality and aesthetics.

Datasheet
