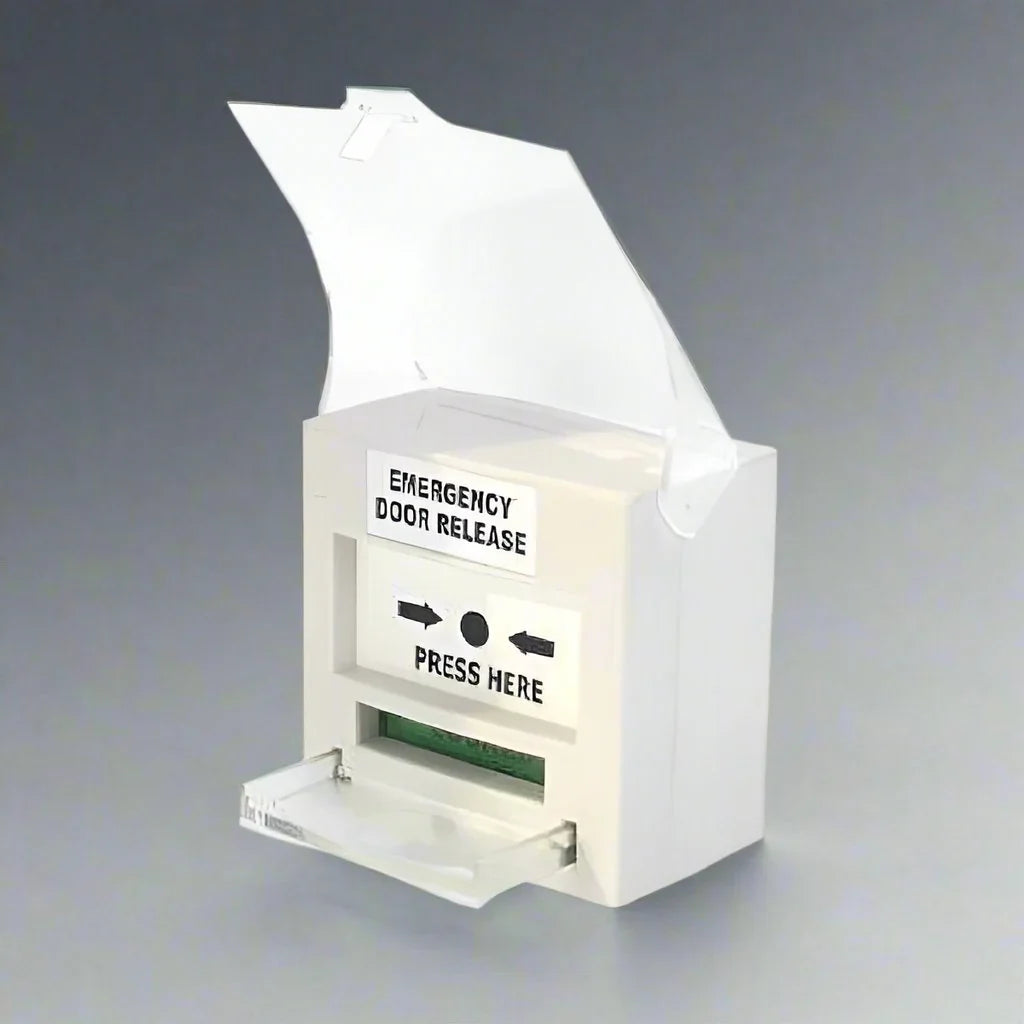

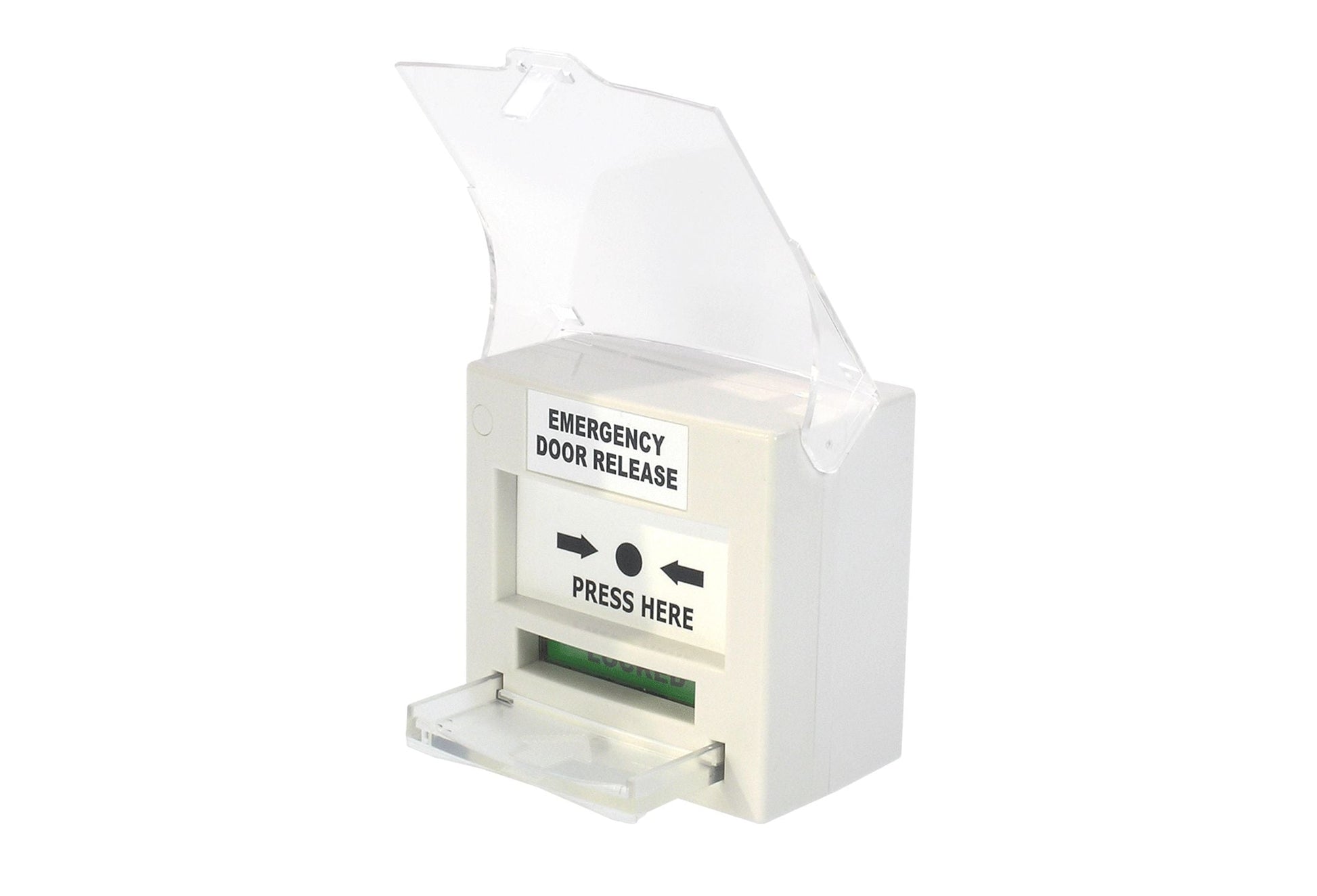

SMART Resettable "Emergency Door Release" Break Glass (BGA) White with 1x DPDT Output, Standard Surface Mounted

The SMART Resettable "Emergency Door Release" Break Glass (BGA) is designed to offer both safety and ease of use in emergency scenarios. Featuring a white plastic casing, this break glass device is ideal for installation in high-traffic areas such as schools, hospitals, shopping malls, and commercial buildings. The resettable operating element ensures no dangerous glass shards are present, making it safer for both users and the environment. Its 1x DPDT output and surface mount design make installation simple and secure. This device can be easily reset after activation, ensuring continued functionality in emergency situations.

What's in the Box

• 1 x SMART Resettable Break Glass (BGA) Device (CP32W)
• 1 x Resettable Key
• 1 x Installation Manual
• 1 x Mounting Kit (including screws and dowels)
• 1 x Wiring Diagram

Features

• Resettable Design: Unlike traditional break glass units, this resettable model produces no glass shards, providing a safer solution for high-traffic areas.
• "Emergency Door Release" Text: The device clearly displays the "Emergency Door Release" message for quick recognition and use in emergency situations.
• Durable White Casing: Made with high-quality plastic in a white color, offering a clean, professional look.
• Surface Mounting: Designed for easy surface mounting, making it suitable for a wide range of installation environments.
• 1x DPDT Output: Provides a Double Pole Double Throw (DPDT) output for easy integration with access control and alarm systems.
• Resettable Key Included: The unit includes a resettable key, making it simple to restore the device to its initial state after activation.
• No Dangerous Glass Shards: The resettable nature of the device eliminates the risk of glass shards, making it safer for users in busy public spaces.
• Detachable Terminal Blocks: For quick and easy installation, this model features detachable terminal blocks for wiring.
• LED Indicator (Optional): The unit can be equipped with an LED indicator to provide visual confirmation of the device’s status.

Specifications

• Operating Voltage: 12/24 VDC (Default: 24VDC)
• Contact Resistance: 100 mΩ
• Contact Rating: 5A at 125/250 VAC
• Trigger Mechanism: Press to activate (plastic breaking)
• Output Type: 1x DPDT Output
• Dimensions:
  • Height: 115mm
  • Width: 70mm
  • Depth: 53mm
• Mounting: Surface mounted
• Key Included: Yes, for resetting the device
• Material: White plastic for casing and plate
• Optional Features: LED indicator, blue backlight, built-in 80db buzzer
• Environmental Standards: CE certified (332113), Patented (Taiwan M444599)
• Color Options: Available in multiple colors (Green, Blue, Yellow, White, Red)

Warranty

The SMART Resettable Break Glass (BGA) device comes with a 12-month warranty. This warranty covers defects in materials and workmanship under normal use. The warranty does not cover damages caused by misuse, improper installation, environmental factors, or external physical damage.

Applications

• Commercial Buildings: Ideal for use in high-traffic areas such as shopping malls, office buildings, and schools.
• Emergency Access Systems: Suitable for access control systems where emergency door release is required.
• Public Spaces: Perfect for environments where safety and emergency response are a priority.
• Security Systems: Works seamlessly with existing security systems for alarm triggering or door release.

The SMART Resettable "Emergency Door Release" Break Glass (BGA) offers a safer, more convenient alternative to traditional break glass units, with a resettable design and clear emergency instructions. Its robust features, easy installation, and 12-month warranty make it an excellent choice for ensuring safety and accessibility in various environments.
