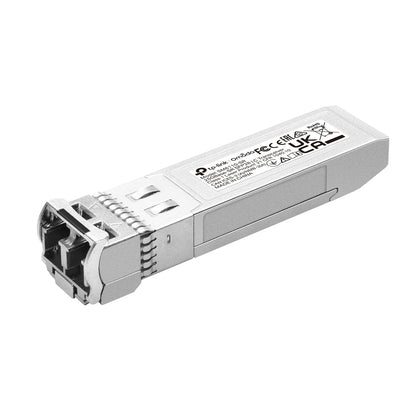

SM6110-SR | TP-Link Omada 25GBase-SR SFP28 LC Transceiver – Multi-Mode 25G/10G Fiber Module

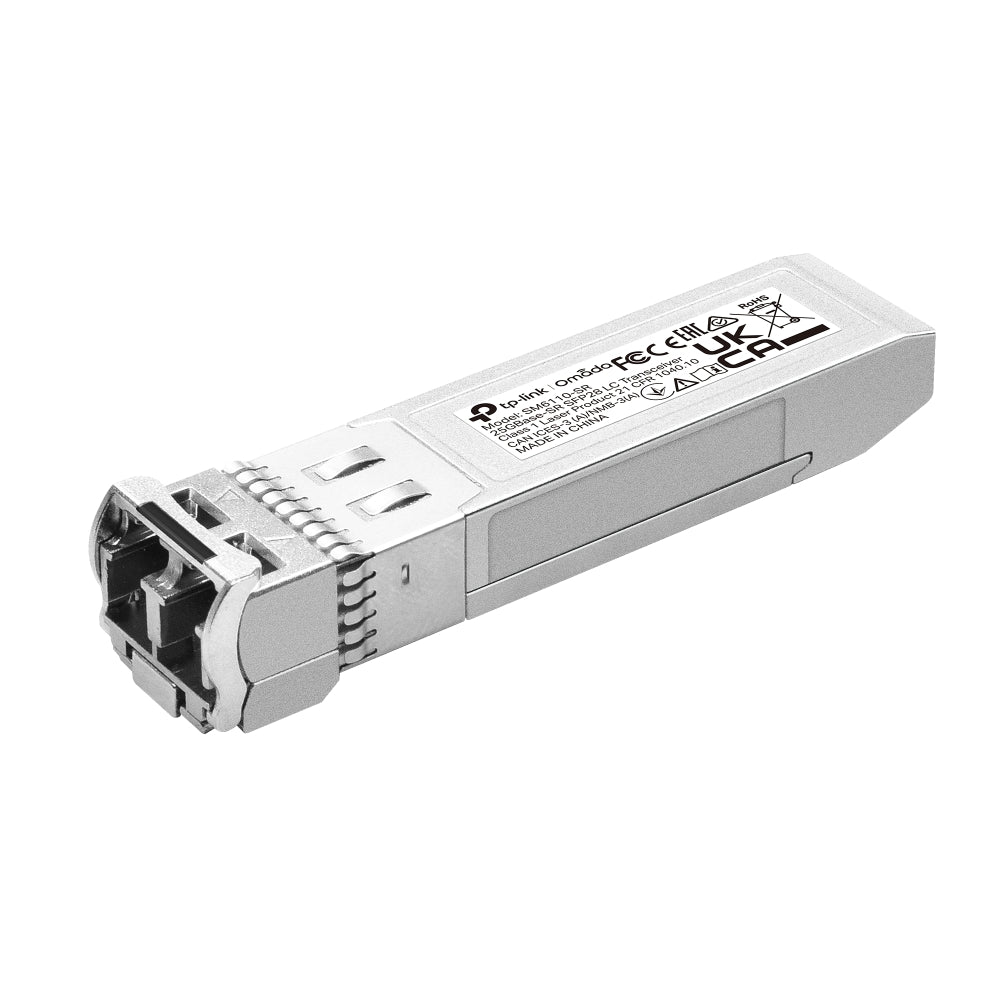

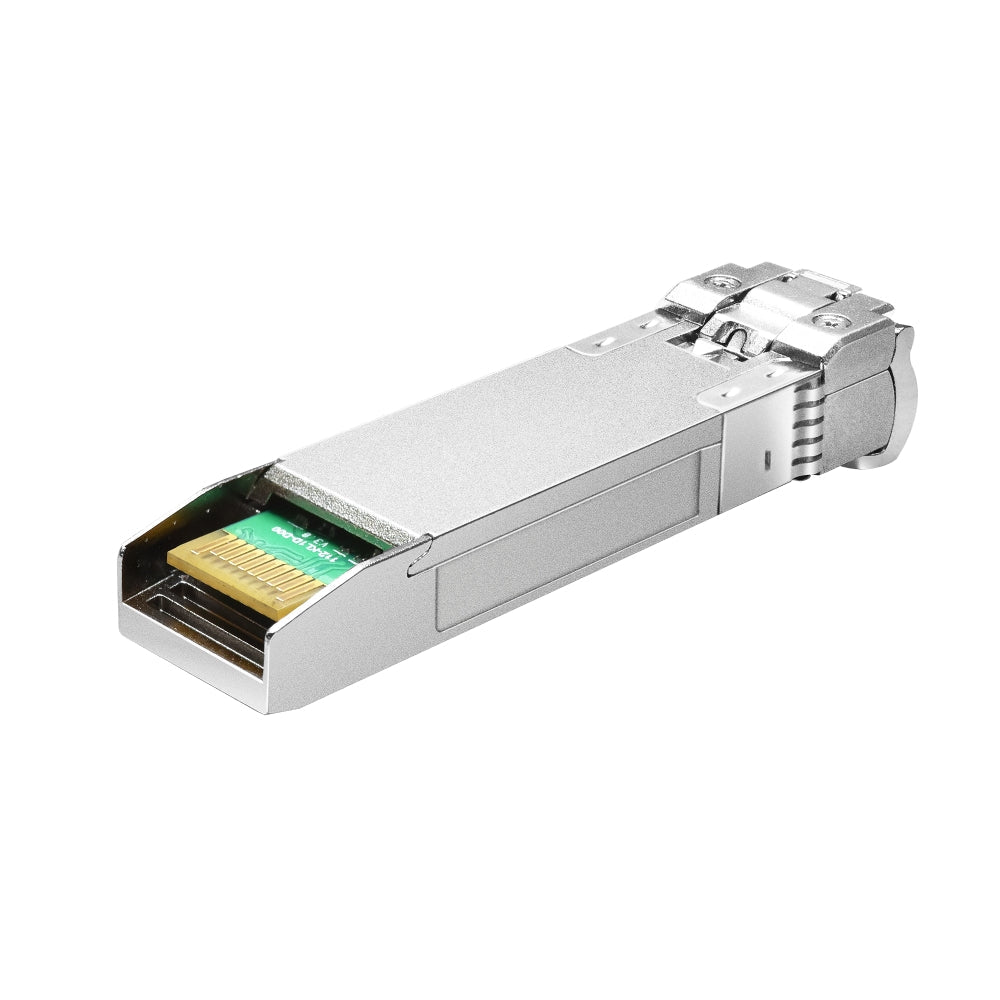

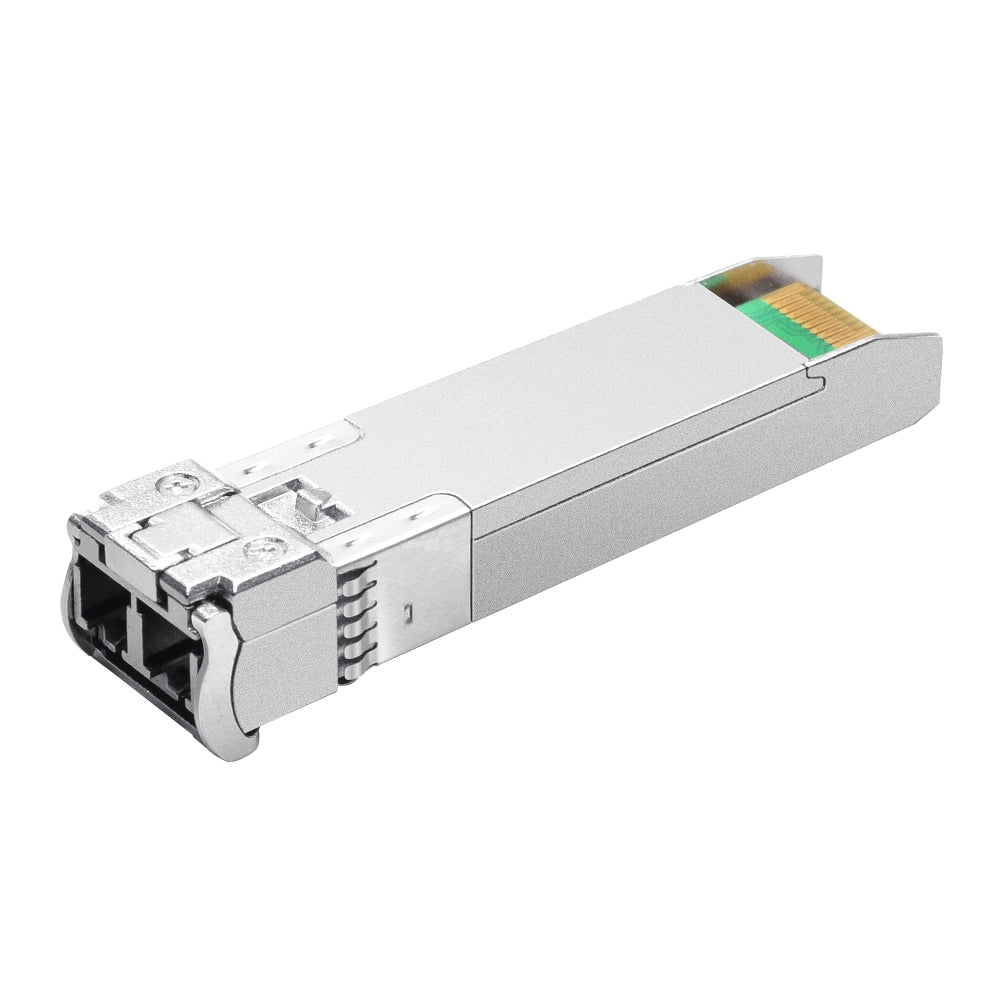

The TP-Link SM6110-SR is a hot-swappable 25GBASE-SR SFP28 LC transceiver engineered for short-range high-speed data transmission over multi-mode fiber (MMF). Supporting dual-speed operation at 25.78 Gbps and 10.31 Gbps, it offers wide compatibility with SFP+/SFP28 MSA-compliant devices and TP-Link Omada switches such as the SX6632YF, SG3428X, and SG3452X.

Featuring Digital Diagnostic Monitoring (DDM), it enables real-time tracking of crucial parameters such as optical power and temperature. The SM6110-SR offers seamless plug-and-play integration into existing fiber infrastructures, supporting distances of up to 100 m (OM4) or 300 m (OM3) at 10G speeds, making it an ideal solution for short-haul, high-performance networks.

What's in the Box

• SM6110-SR Transceiver

• Installation Guide

• SFP28 Cable

Main Features

✅ Dual-speed operation: 25.78 Gbps and 10.31 Gbps
✅ Up to 100m (OM4) / 70m (OM3) at 25G, or 300m (OM3) at 10G
✅ Compatible with Omada switches like SX6632YF, SG3428X, SG3452X
✅ Supports Digital Diagnostic Monitoring (DDM)
✅ Fully compliant with SFP+/SFP28 MSA, IEEE 802.3ae/by
✅ Low power consumption under 1W
✅ Hot-swappable for uninterrupted deployment
✅ Compact, durable, and ideal for enterprise networking

Detailed Specifications

Form Factor

• SFP28

Standards & Protocols

• IEEE 802.3ae, IEEE 802.3by

• SFF-8402, SFF-8431, SFF-8432, SFF-8472

• eCPRI, CPRI, TCP/IP

Wavelength

• 850 nm

Connector Type

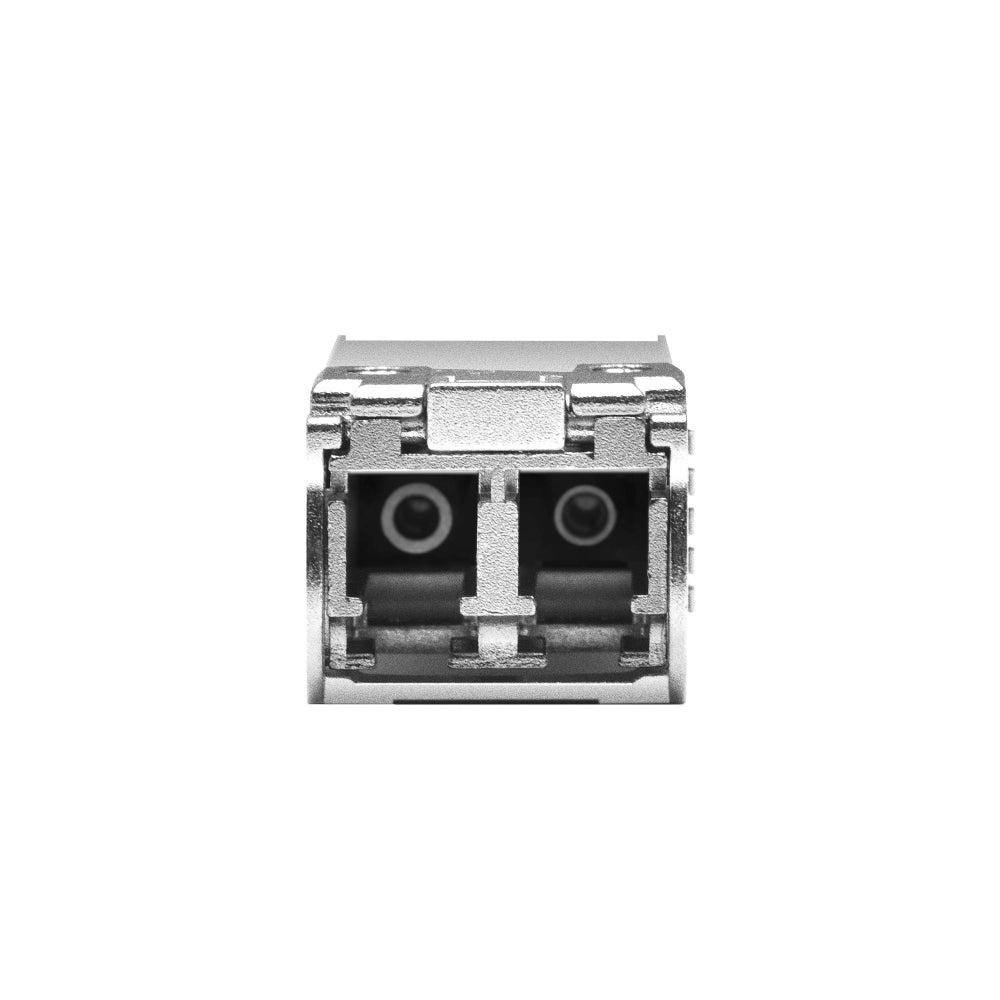

• Duplex LC/UPC

Fiber Type

• 50/125 µm or 62.5/125 µm Multi-Mode

Max Cable Lengths

• 70m (OM3) @25.78Gbps

• 100m (OM4) @25.78Gbps

• 300m (OM3) @10.31Gbps

Power Supply

• 3.3V

• Max Power Consumption: ≤ 1W

Data Rate

• Dual Rate: 25.78 Gbps and 10.31 Gbps

Digital Diagnostic Monitoring (DDM)

• Supported

Hot Swappable

• Yes

Dimensions

• 2.24 × 0.55 × 0.53 in (57 × 14 × 13.45 mm)

Certifications

• CE, FCC, RoHS

Warranty Information

Manufactures warrenty applied

Brand Description

TP-Link Omada is known for its reliable, cost-efficient networking infrastructure tailored to both enterprise and service provider applications. The Omada SFP+ and SFP28 series provides top-tier transceivers built for scalable, high-bandwidth networks.

SKU

SM6110-SR

Practical Use Scenarios

🏢 Data Center Interconnects – Reliable short-range 25G/10G links between racks
🔄 Switch-to-Switch Aggregation – Seamlessly connect aggregation and access switches
📡 Enterprise Campus Networks – Ideal for horizontal fiber uplinks within buildings
🖧 Omada Ecosystem Integration – Plug-and-play compatibility with Omada Layer 3/Layer 2+ switches

Datasheets / Downloadable Resources

📄 Datasheets

Excellence for the Australian and New Zealand Market

The SM6110-SR meets full RoHS, CE, and FCC certifications, ensuring compliance with Australian and New Zealand IT infrastructure standards. It is exclusively distributed through authorized TP-Link channels, providing local support, direct warranty handling, and fast logistics. This product is optimized for use in regulated sectors such as education, corporate, and telecommunications across Australia and New Zealand.

FAQs

Q1. What fiber types are compatible with the SM6110-SR? (SM6110-SR)
The SM6110-SR supports 50/125 µm or 62.5/125 µm multimode fiber for short-range high-speed links.

Q2. What is the max transmission distance of the SM6110-SR? (SM6110-SR)
It supports 100m on OM4 fiber, 70m on OM3 at 25G, and 300m on OM3 at 10G.

Q3. Is the SM6110-SR transceiver compatible with Omada switches? (SM6110-SR)
Yes, it works with Omada switches like SX6632YF, SG3428X, and SG3452X, and any SFP+/SFP28 MSA-compliant device.

Q4. Does the SM6110-SR support DDM for real-time diagnostics? (SM6110-SR)
Yes, it includes Digital Diagnostic Monitoring (DDM) to monitor temperature, optical power, and voltage.

Q5. Is the SM6110-SR hot-swappable? (SM6110-SR)
Yes, it is hot-pluggable, allowing tool-free installation or replacement without downtime.
