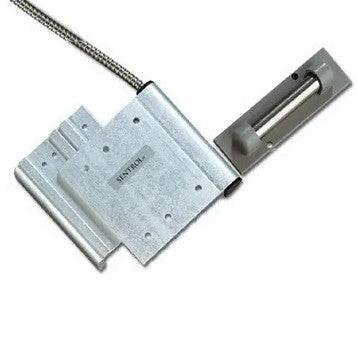

SENTROL, Reed switch, Magnetic Curtain door contact for overhead doors, 3" gap, Closed loop, Includes 18" stainless steel armoured cable,

SENTROL Magnetic Curtain contact is ideal for overhead doors, providing a reliable security solution for a 3" gap with an enclosed loop. It also comes with a 18" stainless steel armoured cable for added durability.

The 2302 magnetic contacts are designed specifically for curtainstyle overhead doors. The unique design allows the contact to be mounted directly to the channel of the door, with the magnet mounted horizontally in the door slats off the floor and out of harm’s way. This eliminates service calls and false alarm situations that occur when typical floor mount contacts become damaged or as the door becomes misaligned with normal use. The interlocking mounting bracket adjusts to fit any size channel width.

Specifications

Voltage: 2302: 100 VAC/VDC max. 2304: 30 VAC/VDC max.

Current: 2302: 0.5 A max. 2304: 0.25 A max.

Power: 2302: 7.5 W max. 2304: 3.0 W max.

Loop type: 2302: Closed 2304: Open or Closed

Electrical configuration: 2302: Normally open 2304: SPDT

Gap distance: Up to 3 in.

Lead type: 2 ft. stainless steel armored cable

Dimensions: 3.6 x 3.0 x 0.65 in. (92 x 76 x 16 mm)

Housing: Die-cast aluminum

Color: Aluminum

• Designed specifically for curtain-style overhead doors

• Interlocking mounting bracket

• Magnet mounts in door channel

• Fits most door types

• Reduced installation time and fewer service calls

• Mounting hardware included

Data sheet
