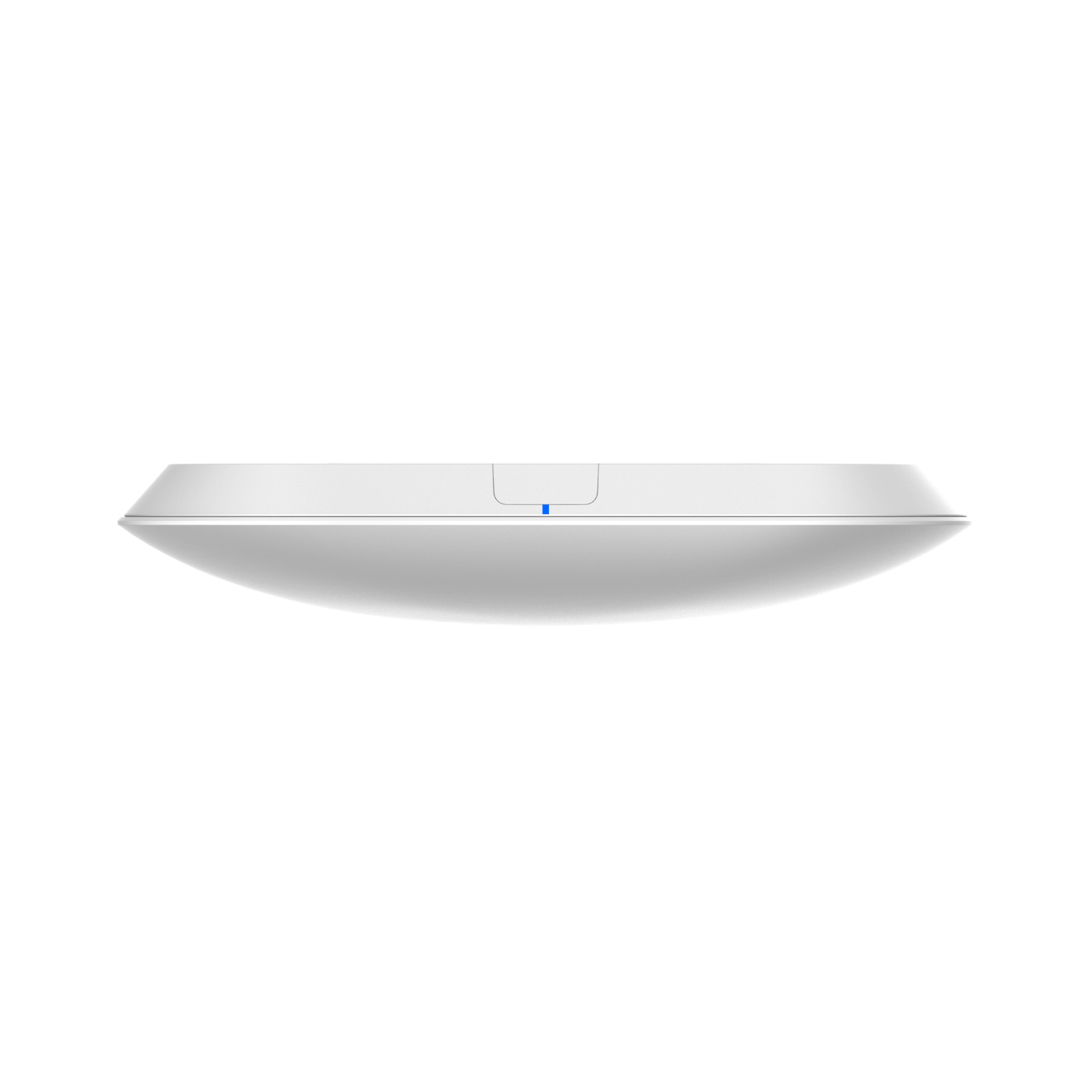

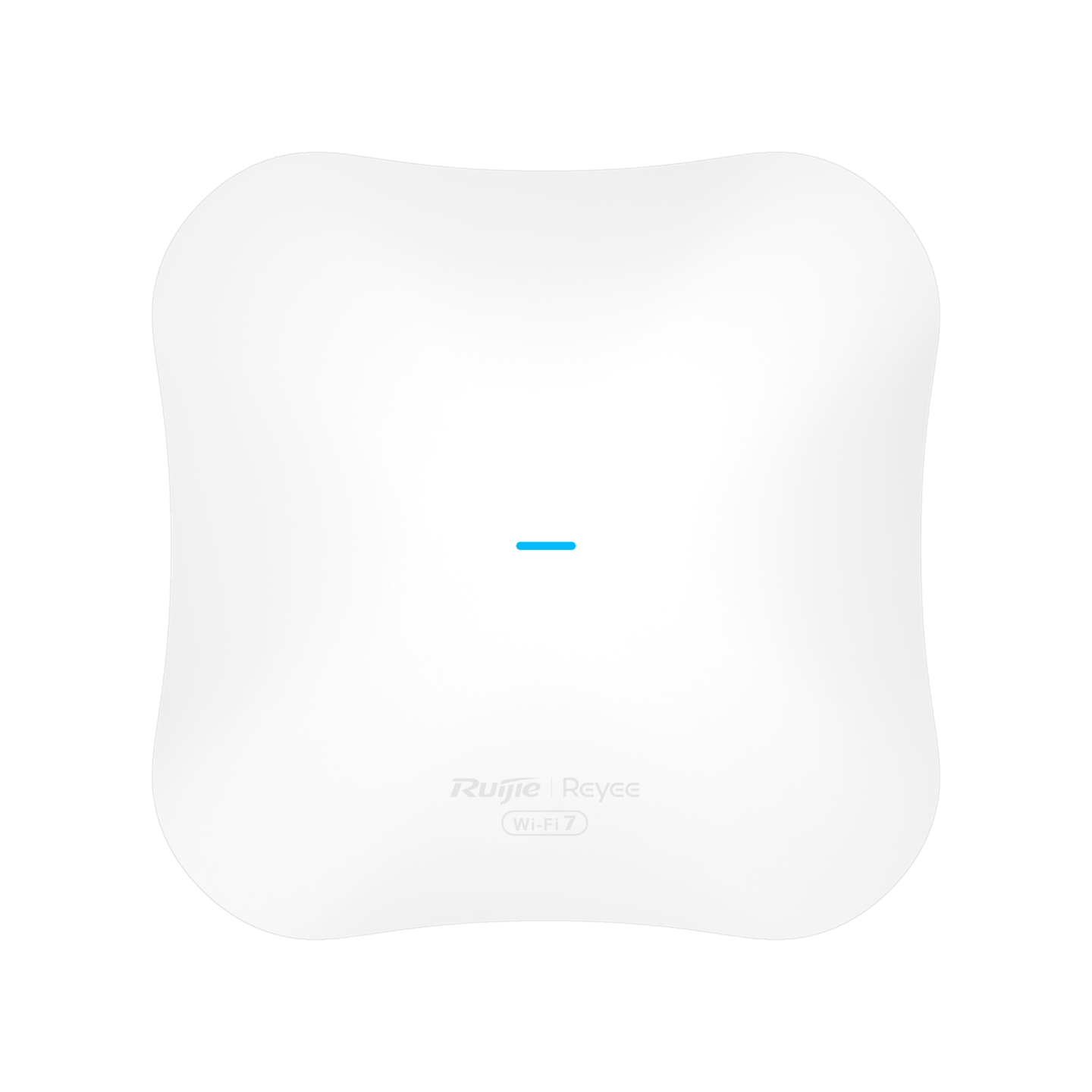

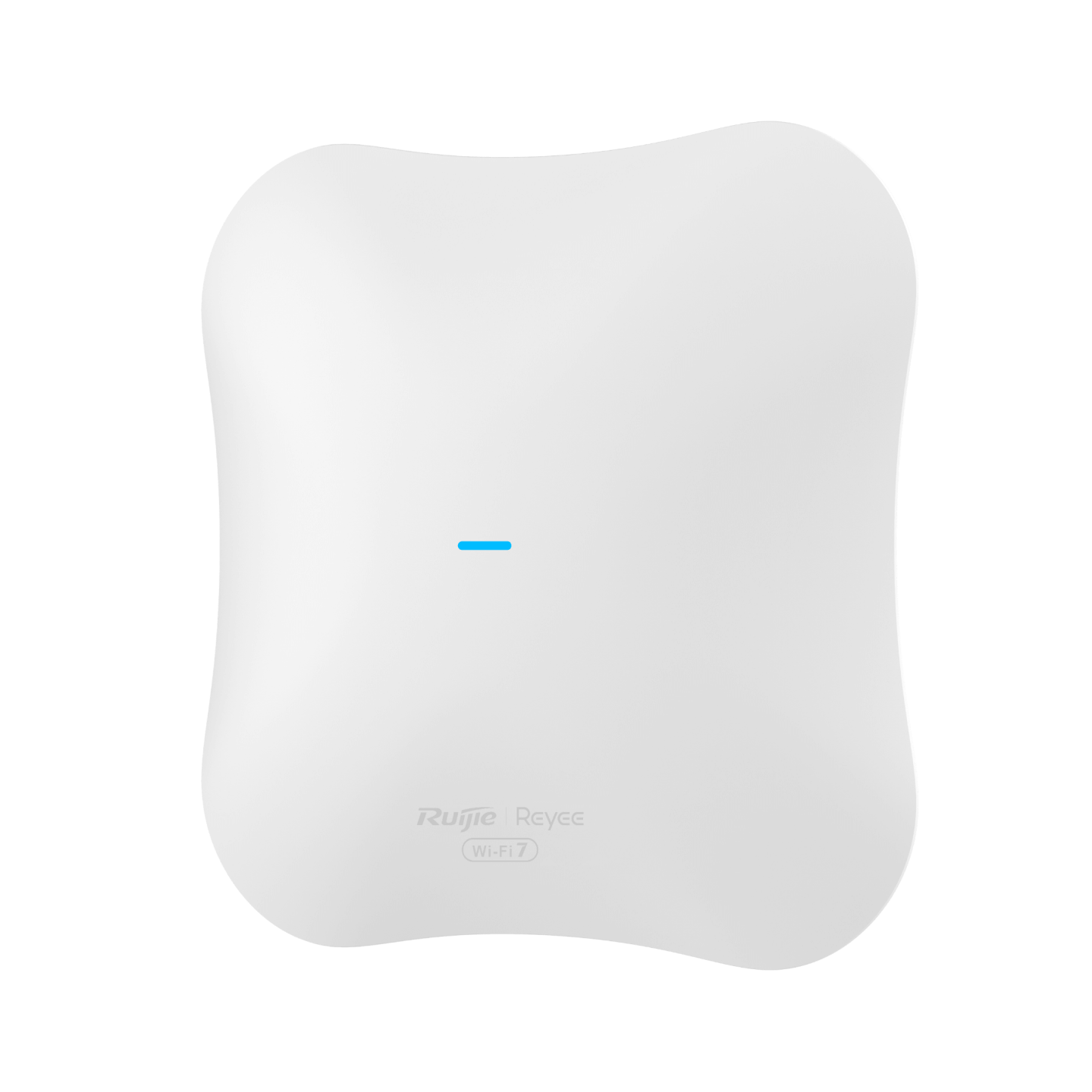

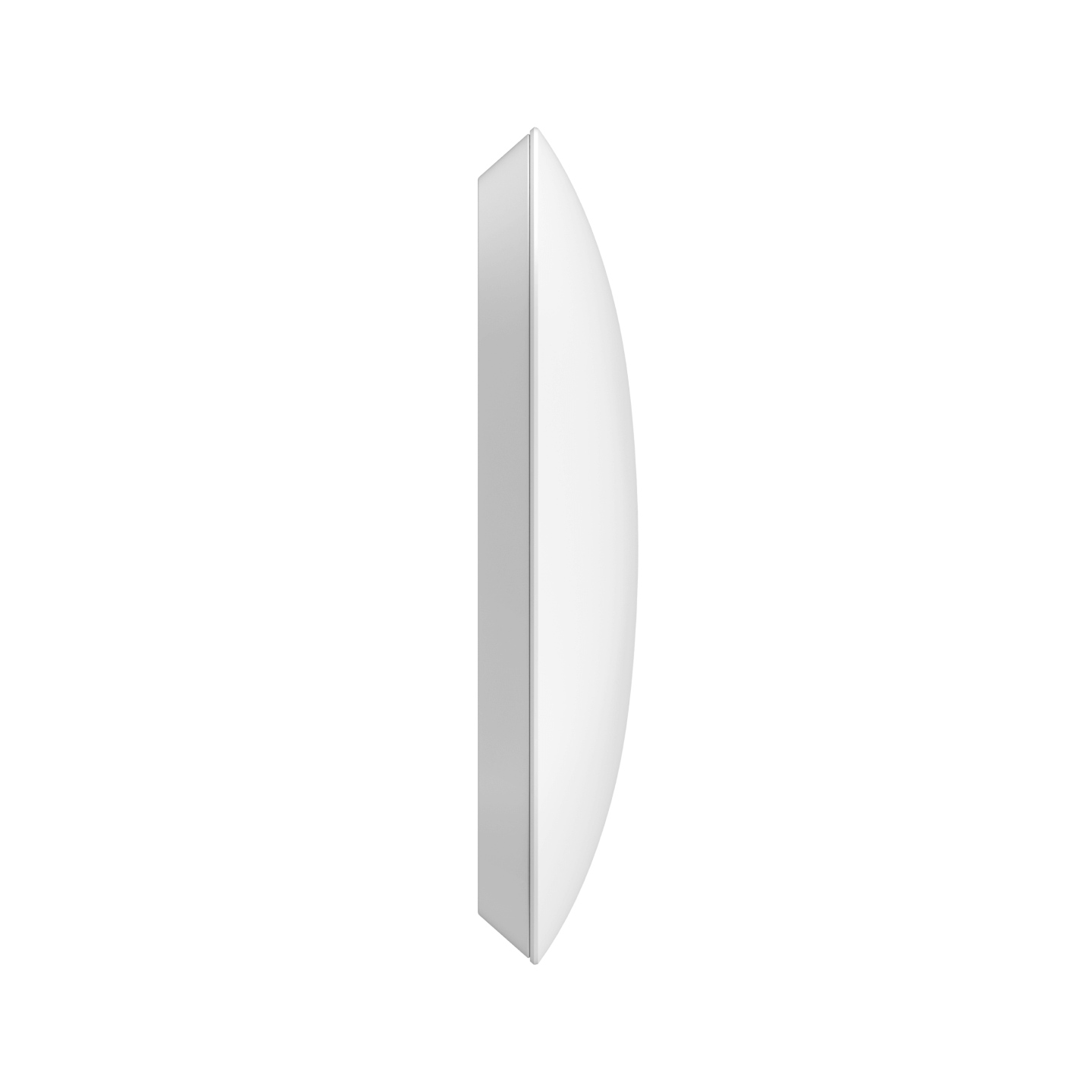

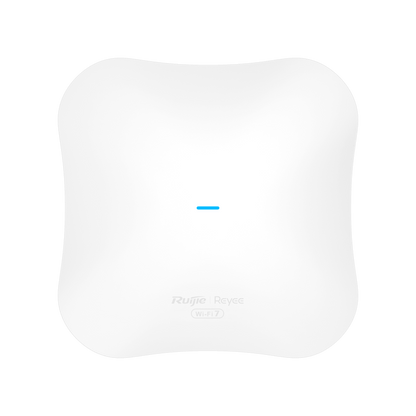

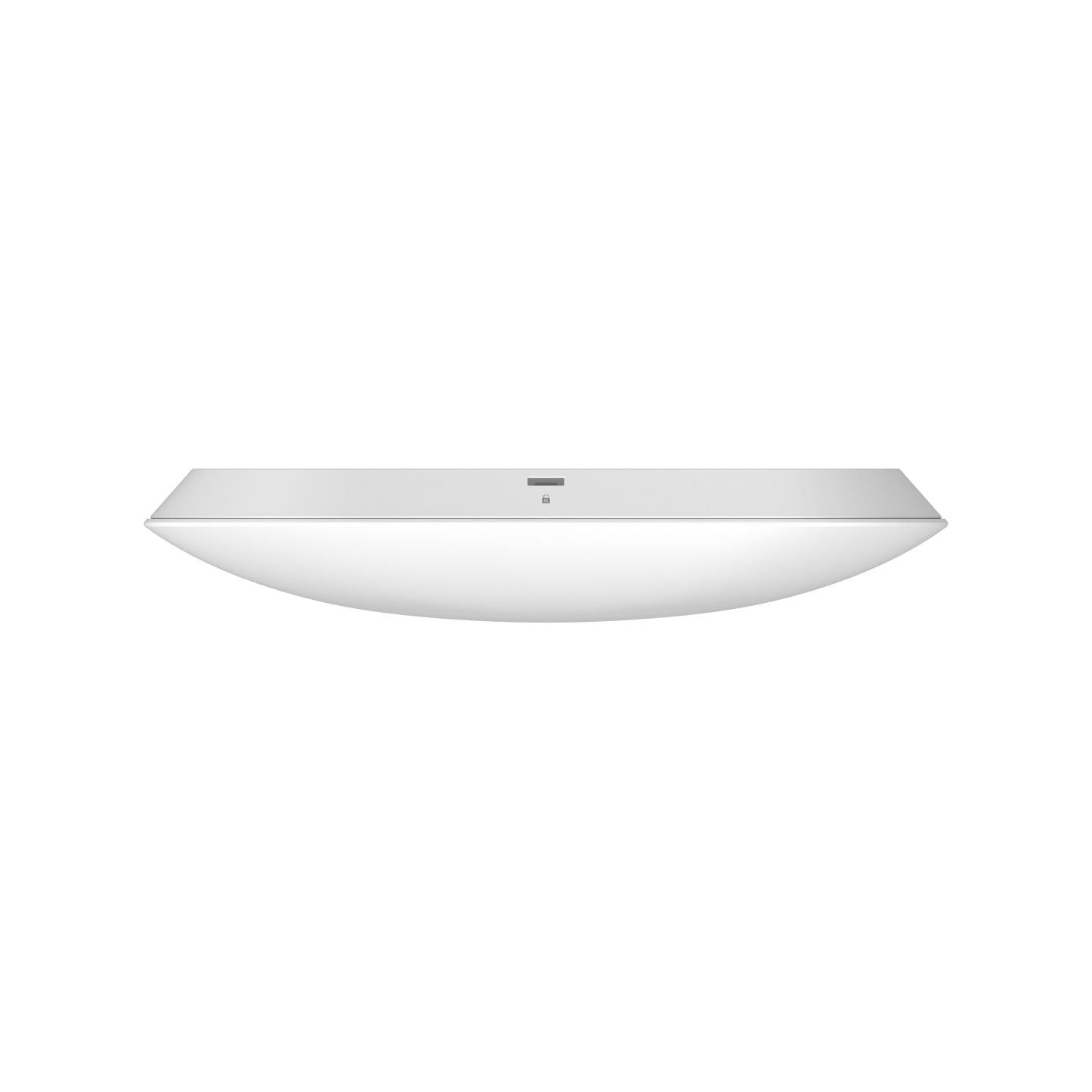

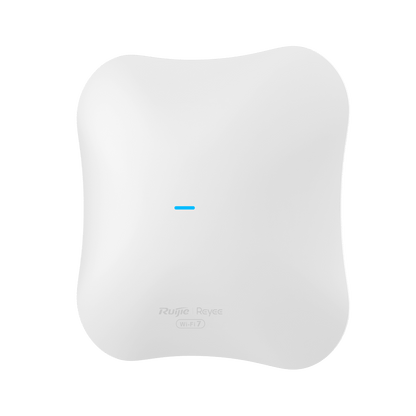

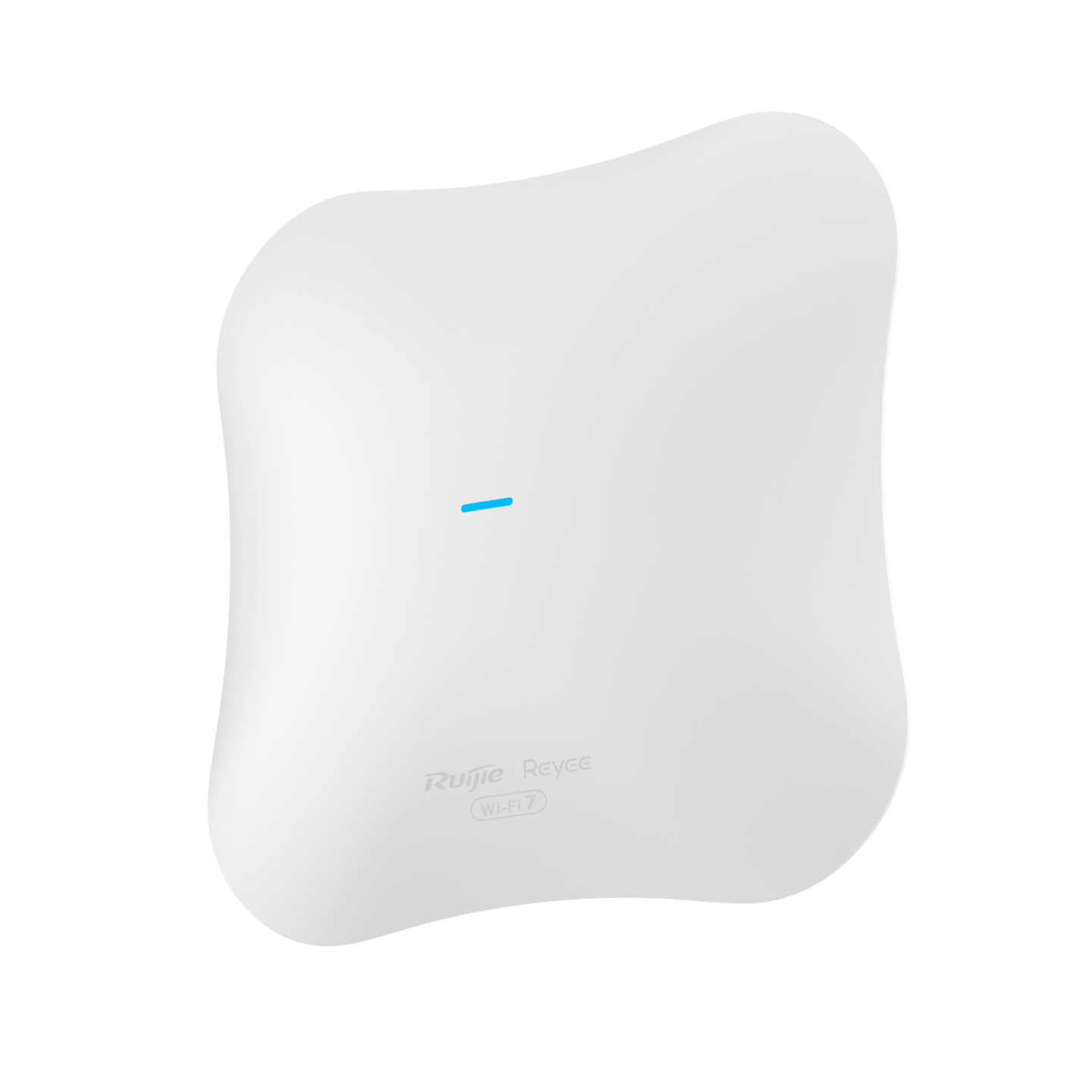

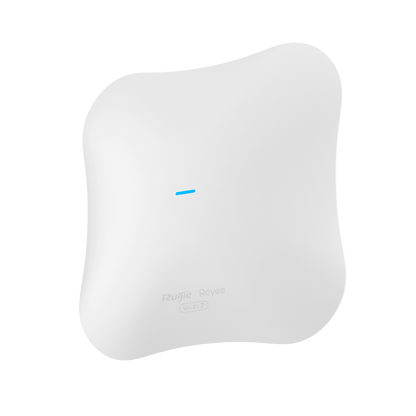

Ruijie RG-RAP72Pro – Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point

Ruijie RG-RAP72Pro – Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point

$473.82 AUD
$715.02 AUD $473.82 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The RG-RAP72Pro is Ruijie’s high-performance Wi-Fi 7 (802.11be) ceiling-mount access point, delivering a massive 5011 Mbps wireless throughput. Ideal for demanding environments such as enterprise offices, hotels, conference centres, and smart campuses, this AP provides rock-solid coverage, ultra-low latency, and advanced multi-device support.

Featuring Multi-Link Operation (MLO) and 4K-QAM modulation, the RG-RAP72Pro ensures faster-than-ever data delivery with consistent connectivity across multiple frequency bands. Combined with a 2.5GE uplink, AI Wireless Optimization, and Reyee Mesh, it’s engineered for next-generation enterprise networking.

Highlights & Benefits

  • 🚀 True Wi-Fi 7 Performance – BE5040 Class

    • Achieve blazing-fast 5011 Mbps speeds with enhanced 4K-QAM and multi-link data transmission.

  • 🔄 MLO – Multi-Link Operation for Stability

    • Seamlessly uses multiple radios for intelligent link balancing and failover.

  • 🌐 Dual-Band MIMO Connectivity

    • 3×3 MIMO @ 5 GHz and 2×2 MIMO @ 2.4 GHz ensures broad coverage and dense client support.

  • ⚙️ AI Wireless Optimization (WIO 3.0)

    • Automatic RF tuning and channel optimization for low-interference environments.

  • 🧠 Smart Networking with Reyee Mesh

    • Zero-touch deployment and automatic wireless backhaul with mesh-enabled APs.

  • 🔌 Flexible Uplink with 2.5GE Port

    • Full utilization of Wi-Fi 7 speeds with 2.5 Gigabit Ethernet connectivity.

  • 🛡️ Enterprise-Grade Security

    • Supports WPA3, VLANs, ACL, captive portal, and seamless Ruijie Cloud integration.

Technical Specifications

Category Details
Model RG-RAP72Pro
Wi-Fi Protocols 2.4 GHz: 802.11b/g/n/ax/be
5 GHz: 802.11a/n/ac/ax/be
MIMO 2×2 @ 2.4 GHz
3×3 @ 5 GHz
Total Data Rate Up to 5011 Mbps
Wireless Features OFDMA, BSS Coloring, MU-MIMO, Beamforming, MLO, 4K-QAM
Client Capacity Max 511 clients
Recommended: 110 concurrent devices

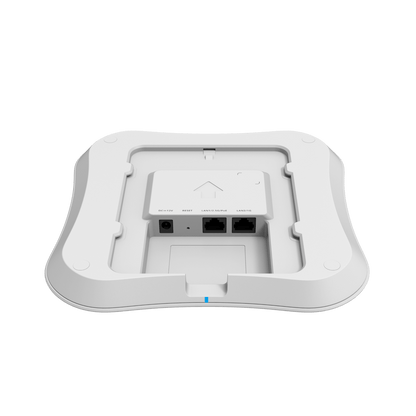

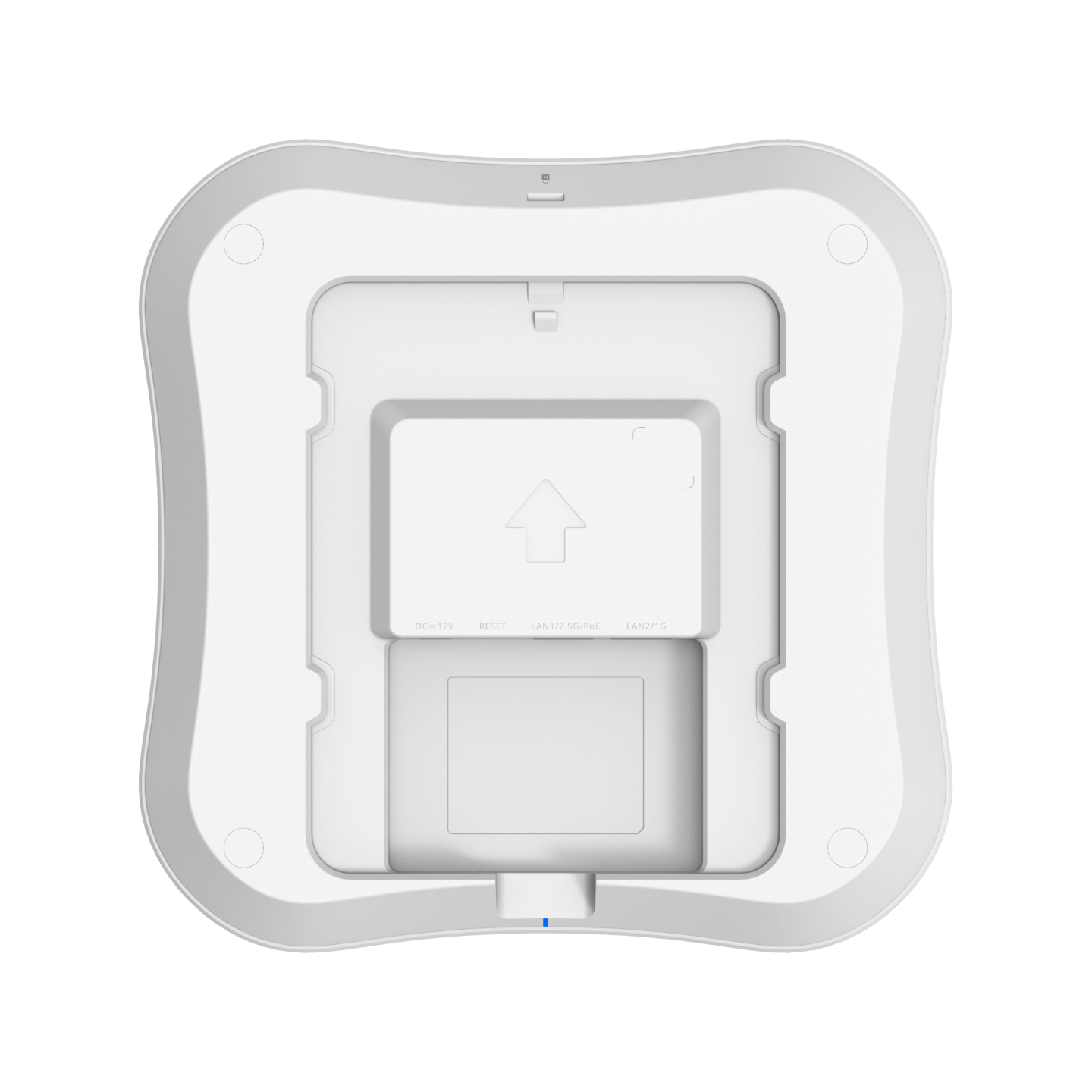

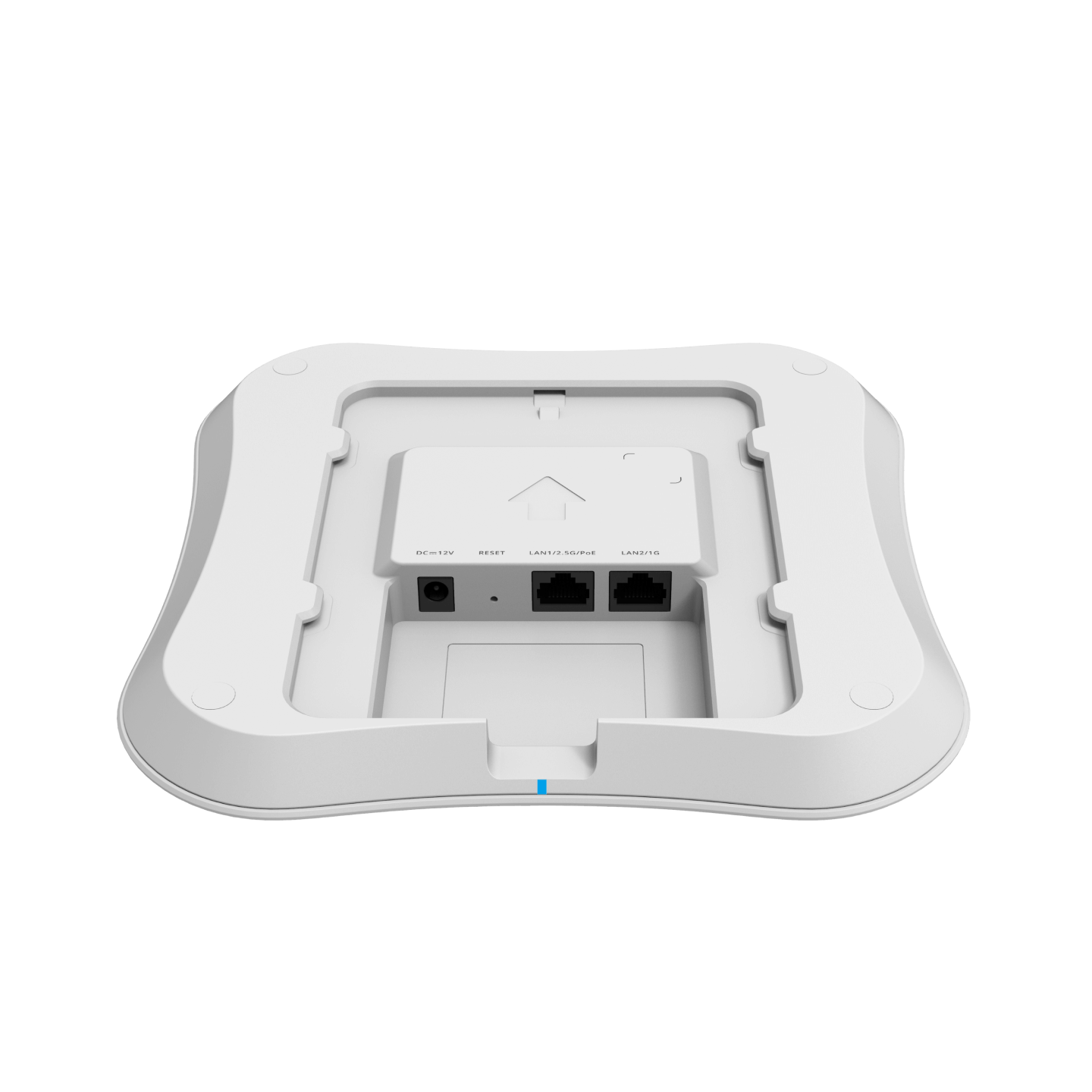

Ethernet Ports 1 × GE port
1 × 2.5GE port
PoE Standard IEEE 802.3at (PoE+)
Power Options 802.3at PoE or 12V/2.5A DC input
Max. Power Consumption < 30 W
Dimensions 208 × 208 × 40 mm (8.19 × 8.19 × 1.57 in.)
Weight ≤ 0.65 kg (1.43 lbs)
Operating Temperature 0°C to 40°C (32°F to 104°F)
IP Rating IP41 – Indoor use
Certifications CE, RoHS, FCC, ISED, cTUVus
Warranty 3-Year Manufacturer Warranty

What’s in the Box

  • 1 × RG-RAP72Pro Access Point

  • Mounting Bracket & Screw Set

  • Quick Start Guide

  • Regulatory Compliance Information

Use Case Scenarios

Environment Use Case
Hotels & Hospitality High-speed internet in guest rooms, lounges, conference rooms
Enterprise Offices Ultra-fast wireless for hybrid workspaces and heavy video conferencing
Smart Education Stable Wi-Fi for digital classrooms and faculty collaboration
Coworking Spaces Multiple device support with isolated SSIDs and roaming support
High-Density Areas Support for hundreds of simultaneous client connections

Management Platforms

  • Ruijie Cloud – Free centralized cloud-based management

  • Reyee App – Remote configuration and monitoring via mobile

  • Standalone Portal – Built-in captive portal for guest access

  • Reyee Mesh – Seamless wireless meshing and smart handoff

Excellence for the Australian and New Zealand Market

✅ Complies with ANZ Standards – CE, FCC, ISED, RoHS, cTUVus
✅ Optimized for Dense Urban and Enterprise Deployments
✅ PoE-ready for Local Building Infrastructure
✅ Locally Distributed via Authorized ANZ Resellers
✅ Full Warranty Handling through Authorized Channels
✅ Designed for Easy Integration into ANZ Hospitality and Business Venues

Downloadable Resources

📄 Download RG-RAP72Pro Datasheet – PDF

FAQs – RG-RAP72Pro (Product Code: RG-RAP72Pro)

Q1: What is the maximum wireless speed of the RG-RAP72Pro (Product Code: RG-RAP72Pro)?

The RG-RAP72Pro delivers an impressive 5011 Mbps, utilizing Wi-Fi 7 (802.11be) with 4K-QAM and MLO enhancements.

Q2: Does RG-RAP72Pro (Product Code: RG-RAP72Pro) support Multi-Link Operation (MLO)?

Yes, MLO is supported for simultaneous multi-band transmission, enhancing throughput and reducing latency.

Q3: What is the difference between RG-RAP72 and RG-RAP72Pro (Product Code: RG-RAP72Pro)?

The RG-RAP72Pro offers higher speed (BE5040 vs BE3060), 3x3 MIMO at 5 GHz, and MLO support, making it ideal for heavier workloads.

Q4: How is RG-RAP72Pro (Product Code: RG-RAP72Pro) powered?

It supports both 802.3at PoE and 12V/2.5A DC power, offering flexibility in deployment.

Q5: Is RG-RAP72Pro (Product Code: RG-RAP72Pro) approved for the Australian and New Zealand market?

Yes, it holds CE, FCC, ISED, RoHS, and cTUVus certifications, making it suitable for use in Australia and New Zealand.
