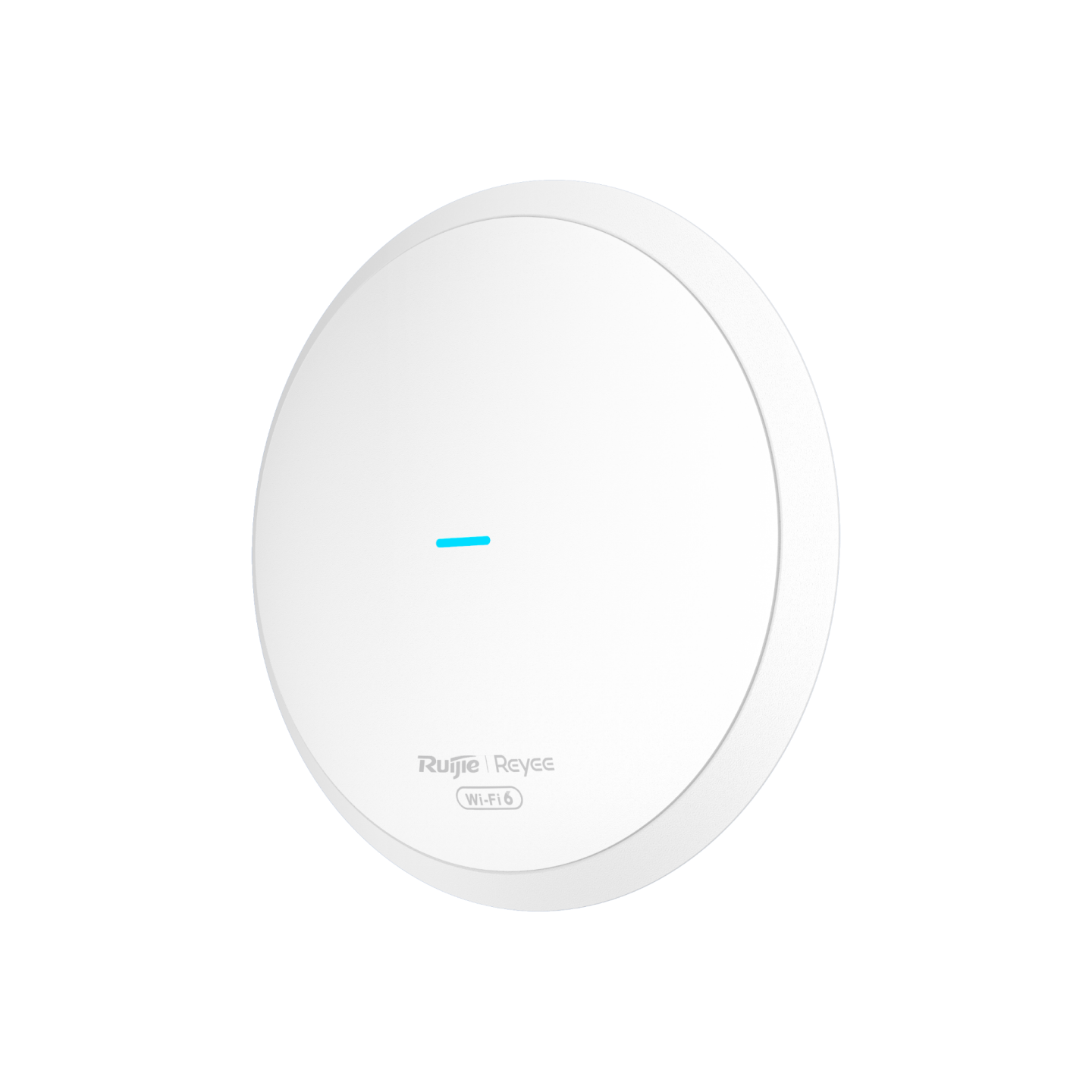

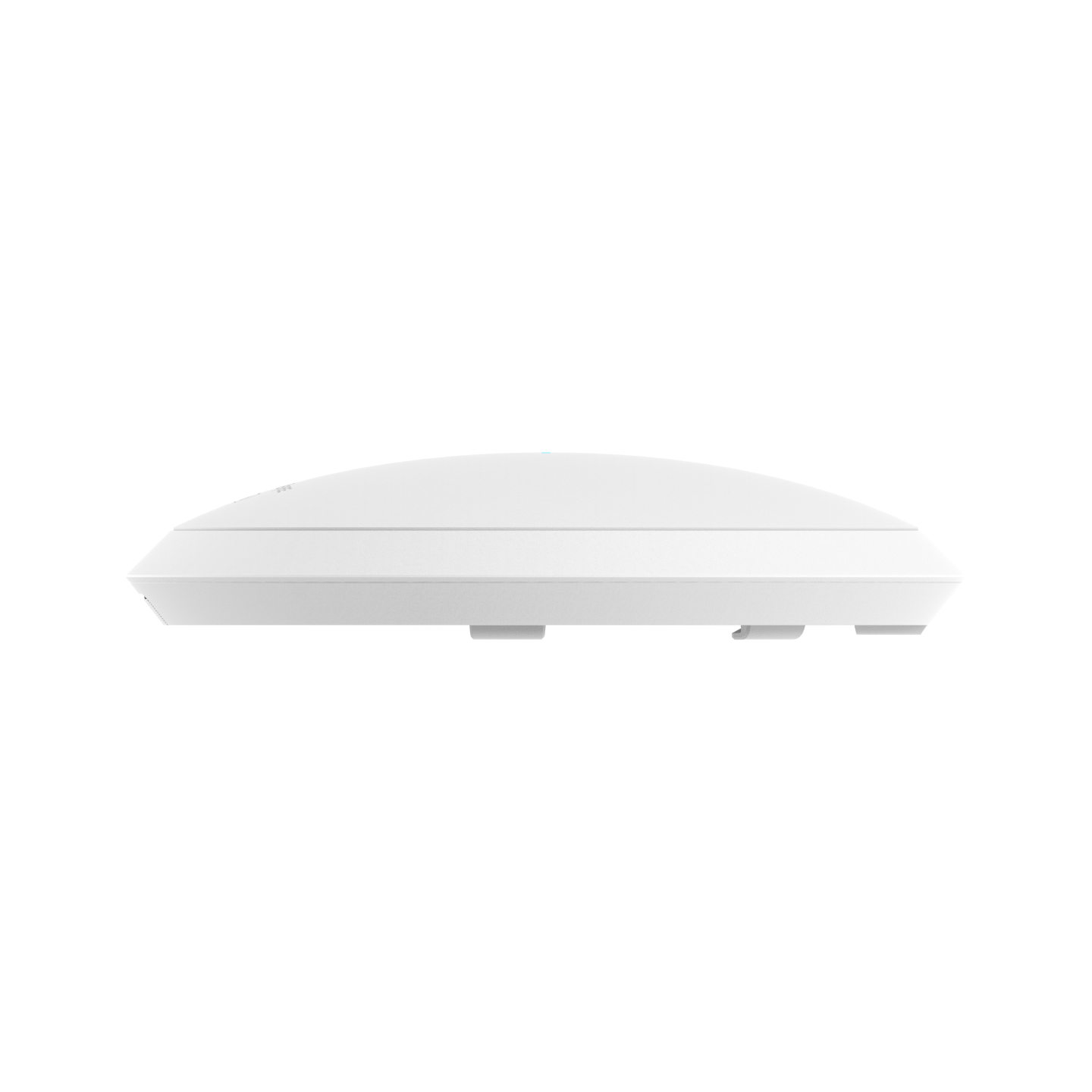

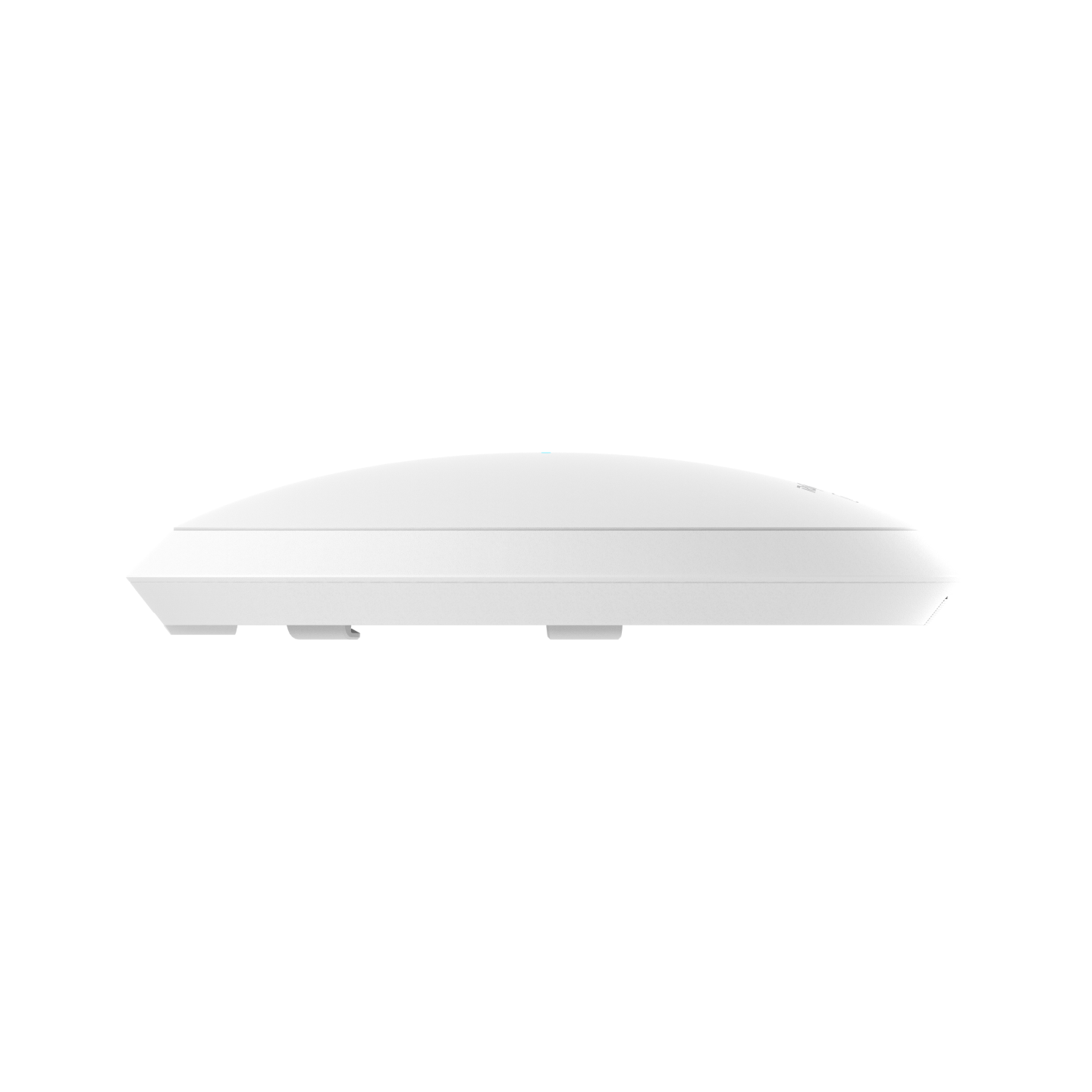

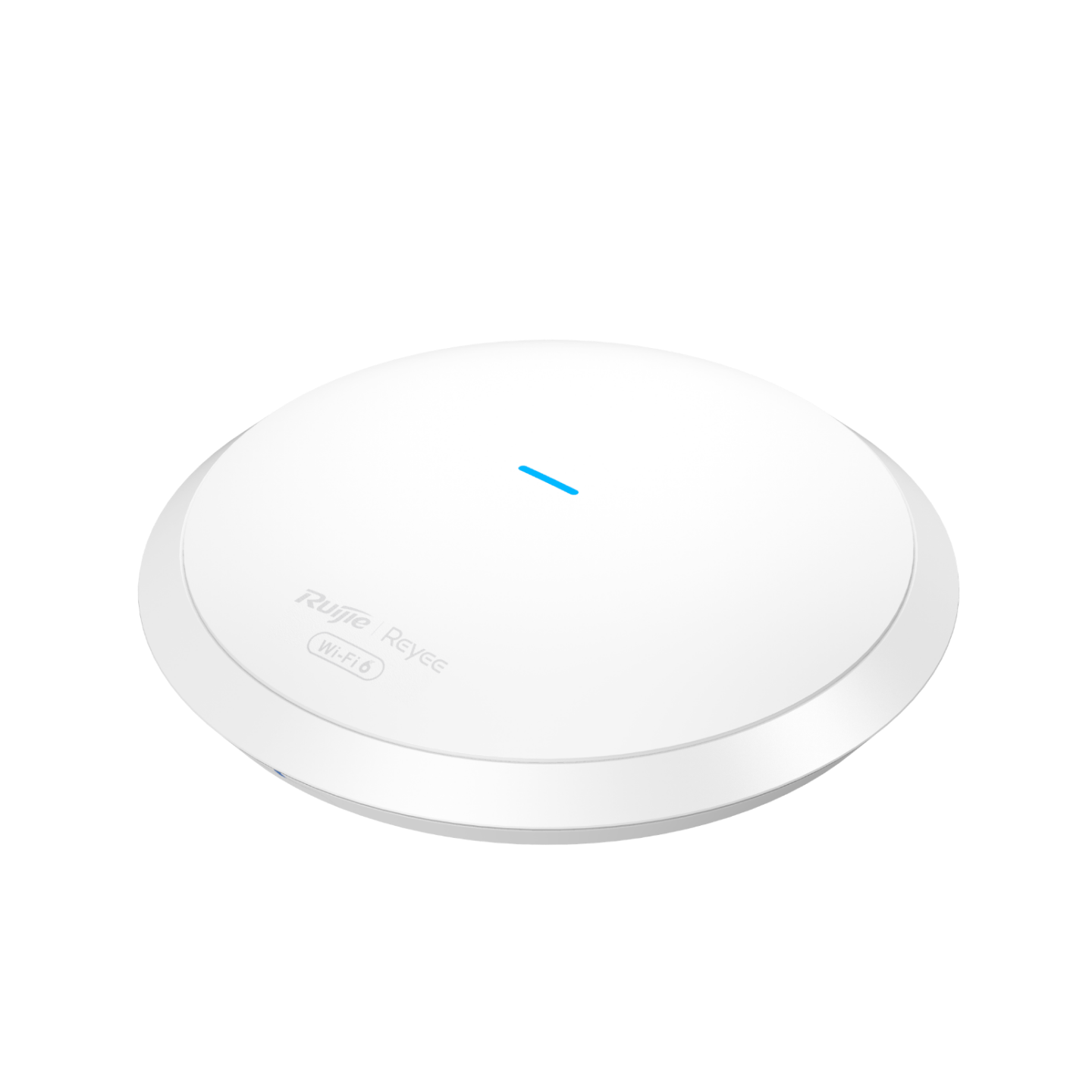

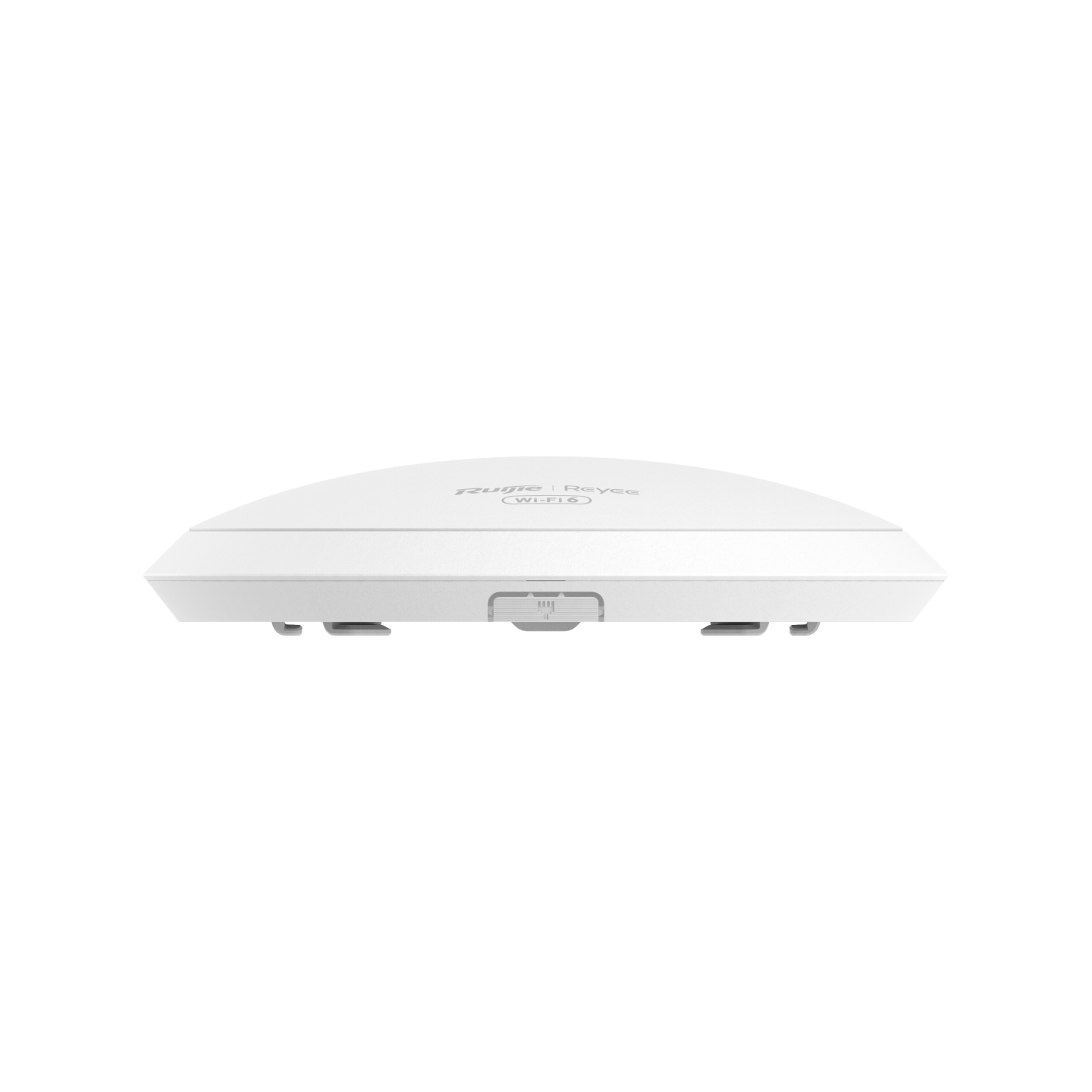

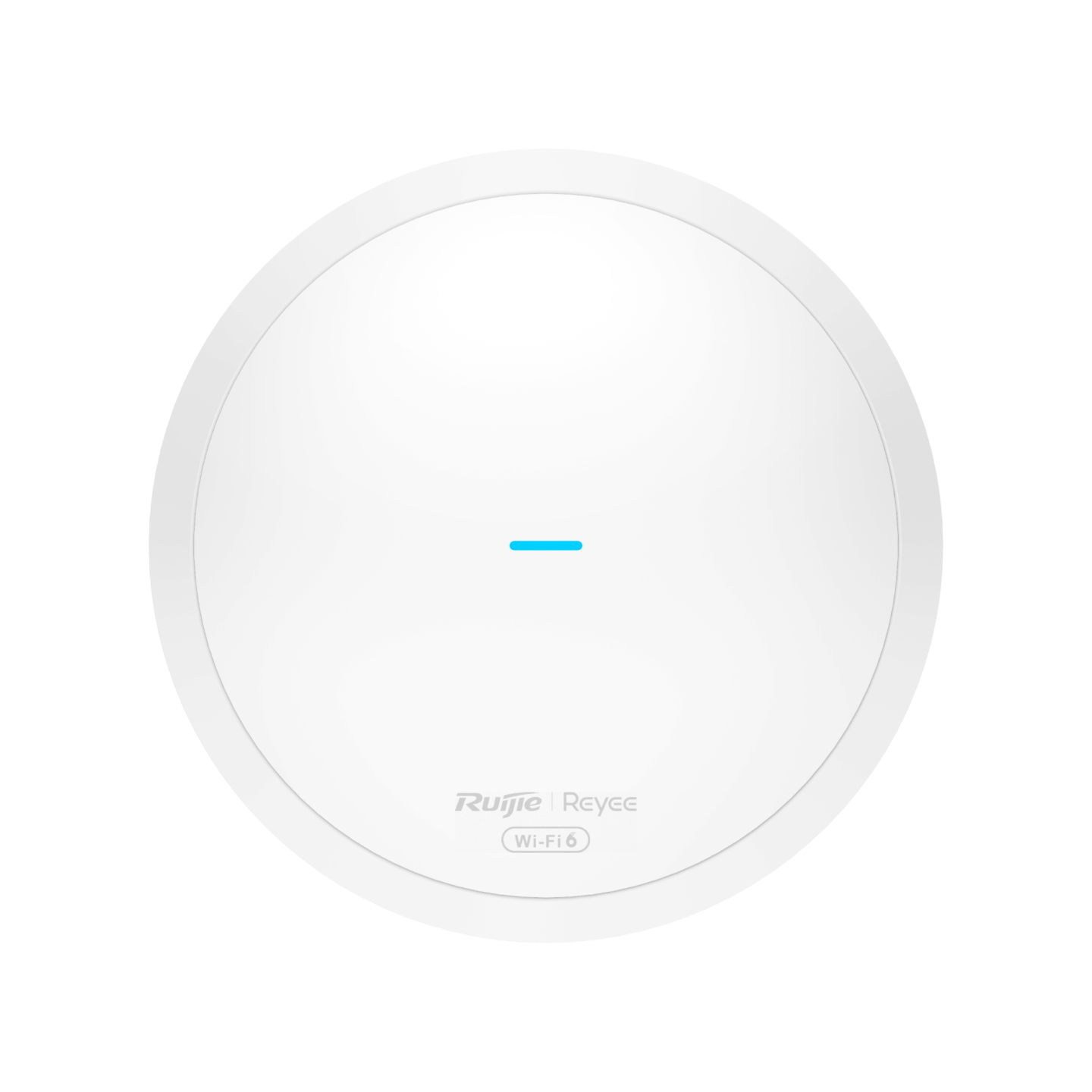

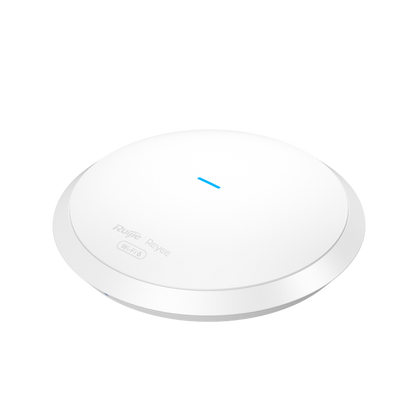

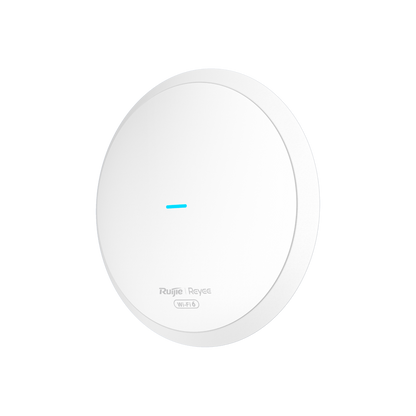

Ruijie RG-RAP62 – Compact Wi-Fi 6 AX1800 Ceiling-Mount Access Point

Ruijie RG-RAP62 – Compact Wi-Fi 6 AX1800 Ceiling-Mount Access Point

$272.65 AUD
$598.74 AUD $272.65 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Ruijie RG-RAP62 is a compact, high-performance Wi-Fi 6 AX1800 ceiling-mount access point designed for hotels, restaurants, offices, classrooms, retail stores, and other high-density indoor environments. It combines dual-band Wi-Fi 6 speeds with modern aesthetics, easy installation, and enterprise-grade cloud management.

This access point supports Reyee Mesh, AI Wireless Optimization (WIO), and is powered via 802.3af/at PoE, ensuring simple deployment without additional cabling. Its compact circular design is ideal for visibly sensitive environments such as boutique hotels or cafes.

Key Features

  • Wi-Fi 6 (802.11ax) Dual-Band

    • Up to 1774 Mbps combined wireless throughput

    • 2×2 MIMO @ 2.4 GHz and 5 GHz

  • Smart Mesh Networking

    • Supports Reyee Mesh for automatic wireless uplink and roaming

  • Cloud-Managed

    • Free cloud management via Ruijie Cloud and Reyee mobile app

  • AI Wireless Optimization (WIO)

    • Automatically adjusts radio performance based on real-time interference

  • Compact Design

    • Ø175 mm × 39 mm, less than 0.4 kg—perfect for ceiling installs

  • PoE Powered

    • Supports IEEE 802.3af/at PoE for simplified cabling

  • Integrated Captive Portal

    • AP can operate in standalone mode for guest Wi-Fi with local portal

Technical Specifications

Category Details
Model RG-RAP62
Wi-Fi Standard IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Bands Dual-band: 2.4 GHz + 5 GHz
Max Wireless Speed 1774 Mbps (AX1800)
MIMO 2×2 @ 2.4 GHz and 2×2 @ 5 GHz
Max Clients 256 (Recommended: 100 active concurrent clients)
Coverage Area Up to 125㎡ (approx. 1350 ft²)
Antenna Type Internal omnidirectional antennas

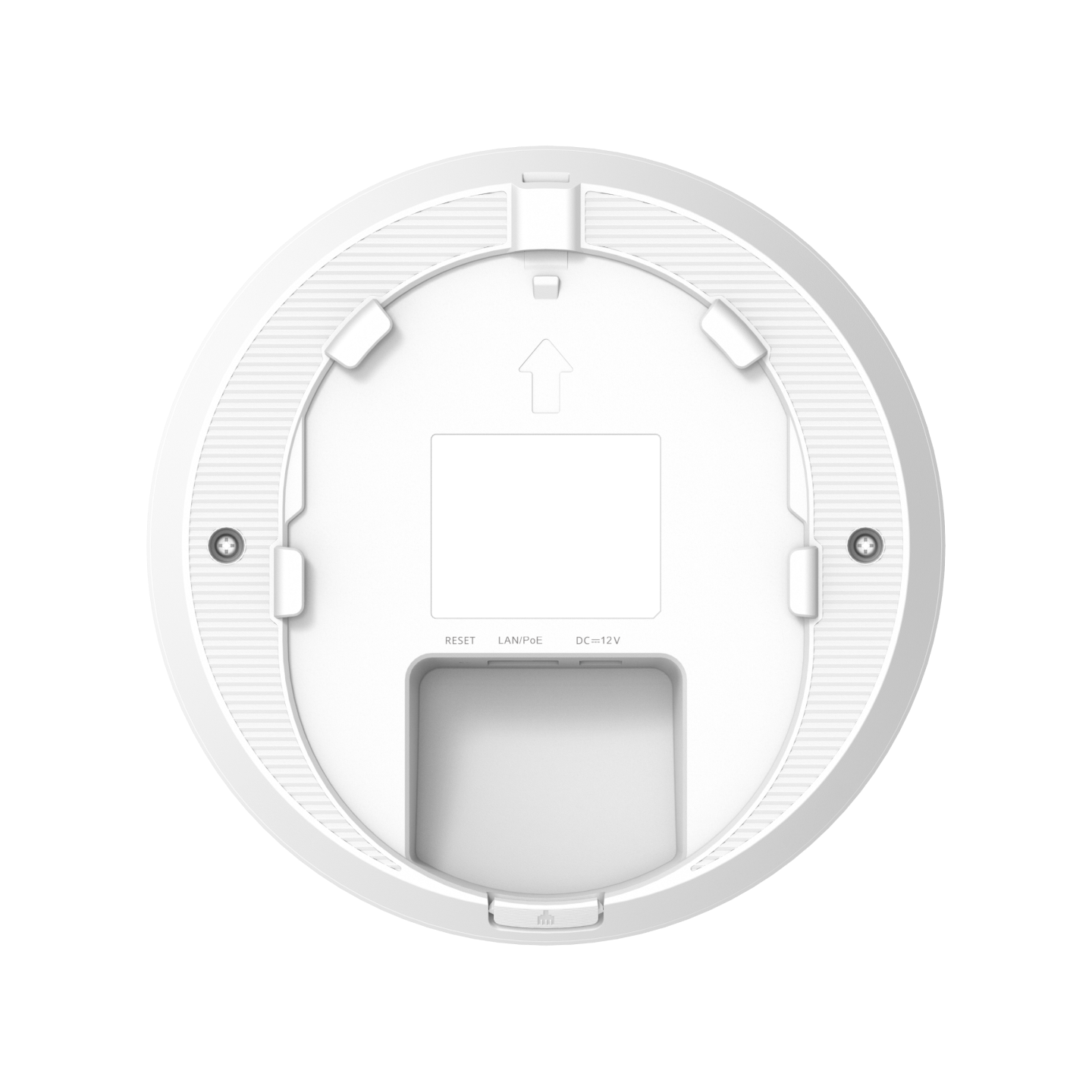

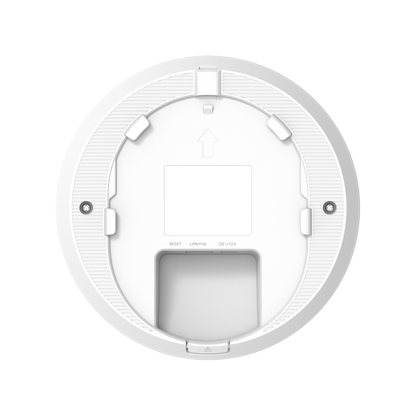

Network Interface 1 × 10/100/1000BASE-T Ethernet port
Power Supply PoE (IEEE 802.3af/at)
Power Consumption ≤ 12.95 W
Mounting Method Ceiling-mount or wall-mount
Operating Temperature 0°C to 40°C (32°F to 104°F)
Dimensions Ø175 mm × 39 mm (Ø6.89 in. × 1.54 in.)
Weight ≤ 0.4 kg (0.88 lbs)
Certifications CE, RoHS
Warranty 3-Year Manufacturer Warranty

In the Box

  • RG-RAP62 Access Point

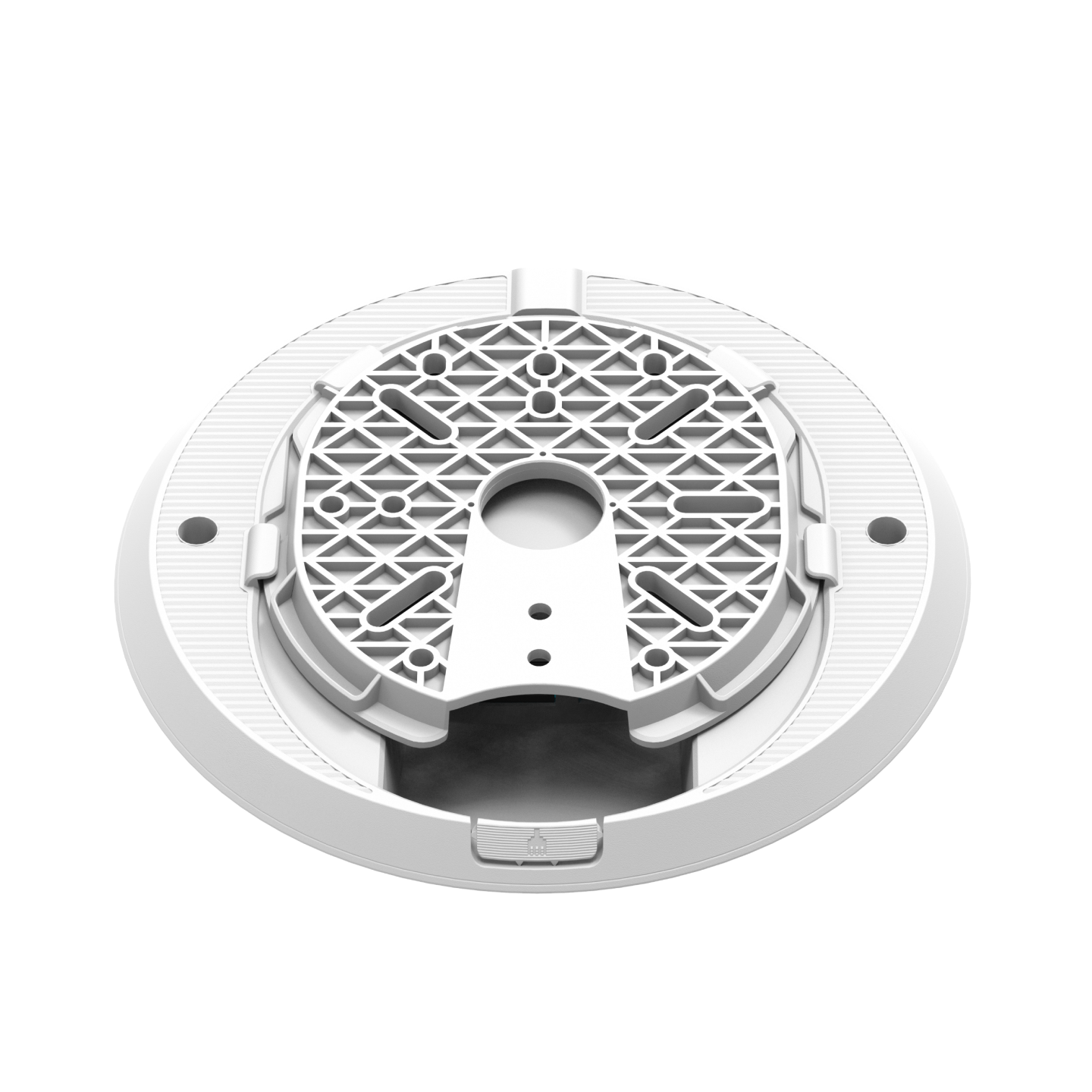

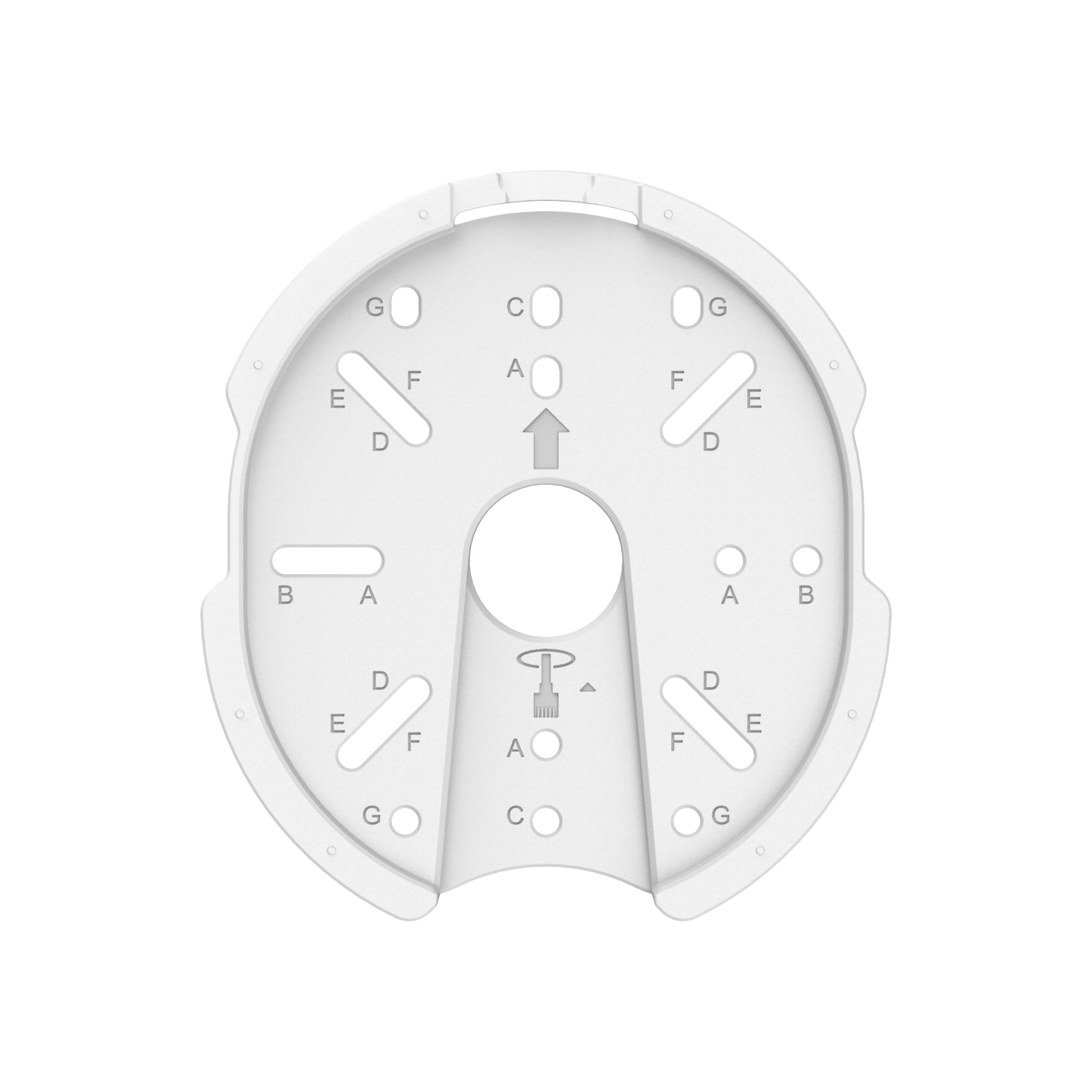

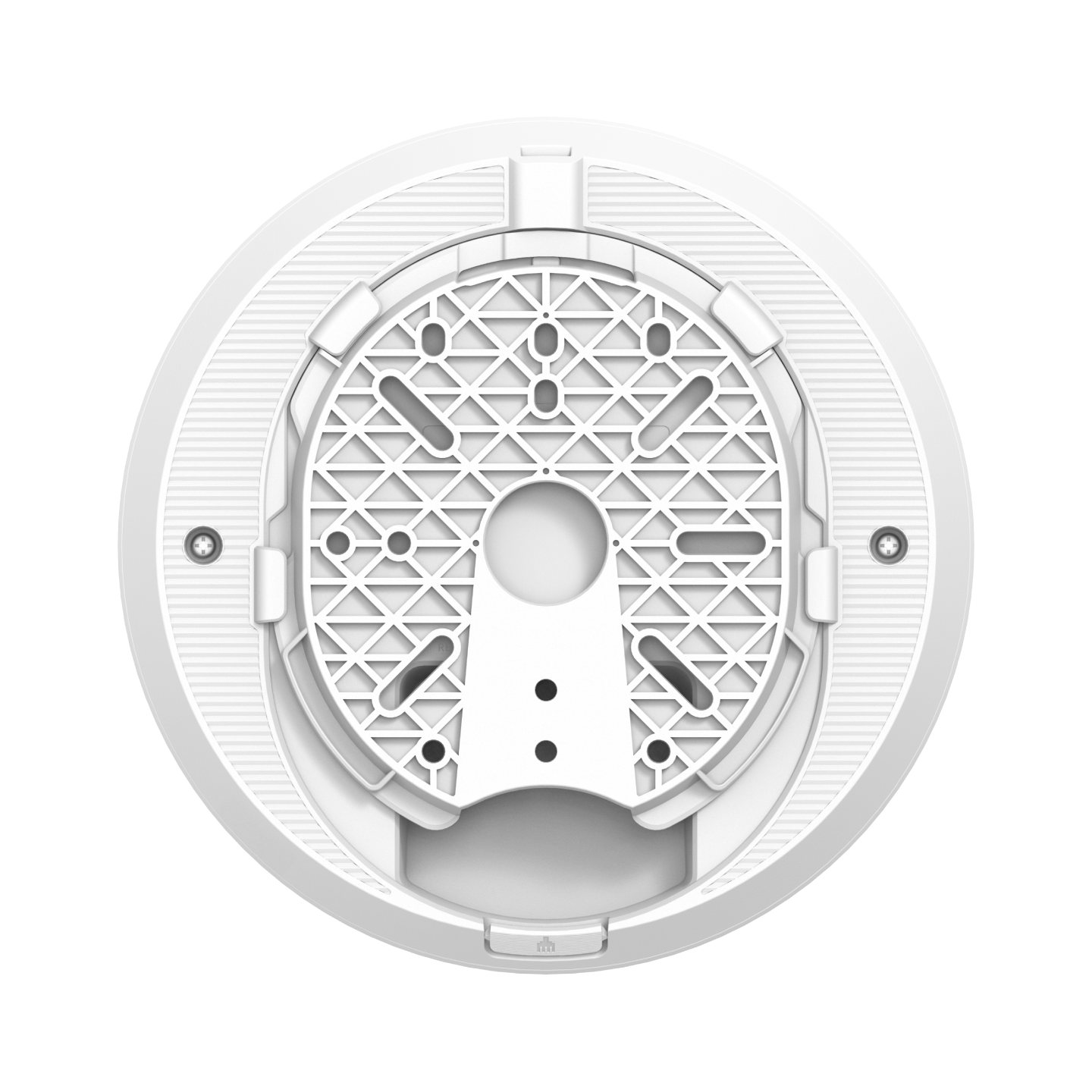

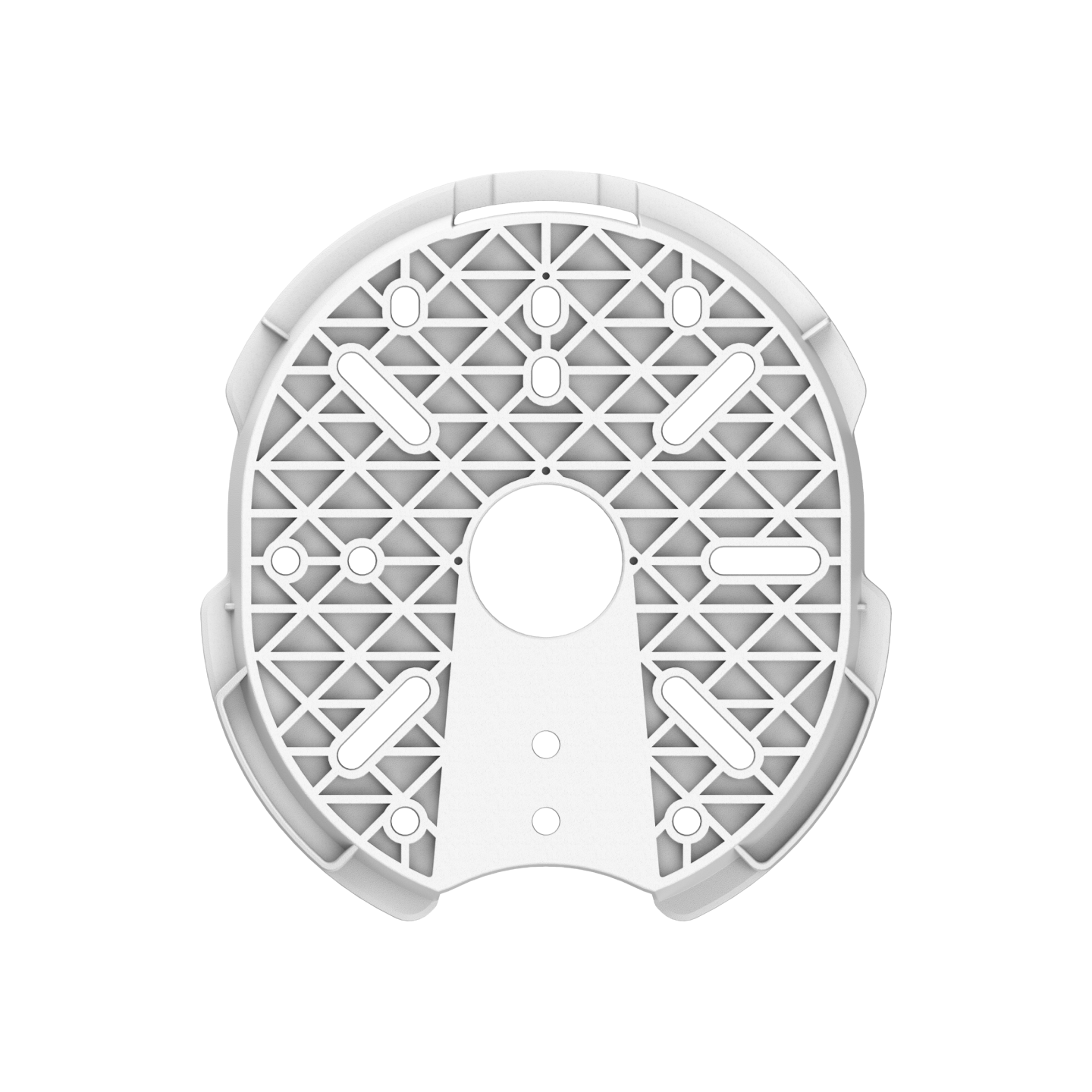

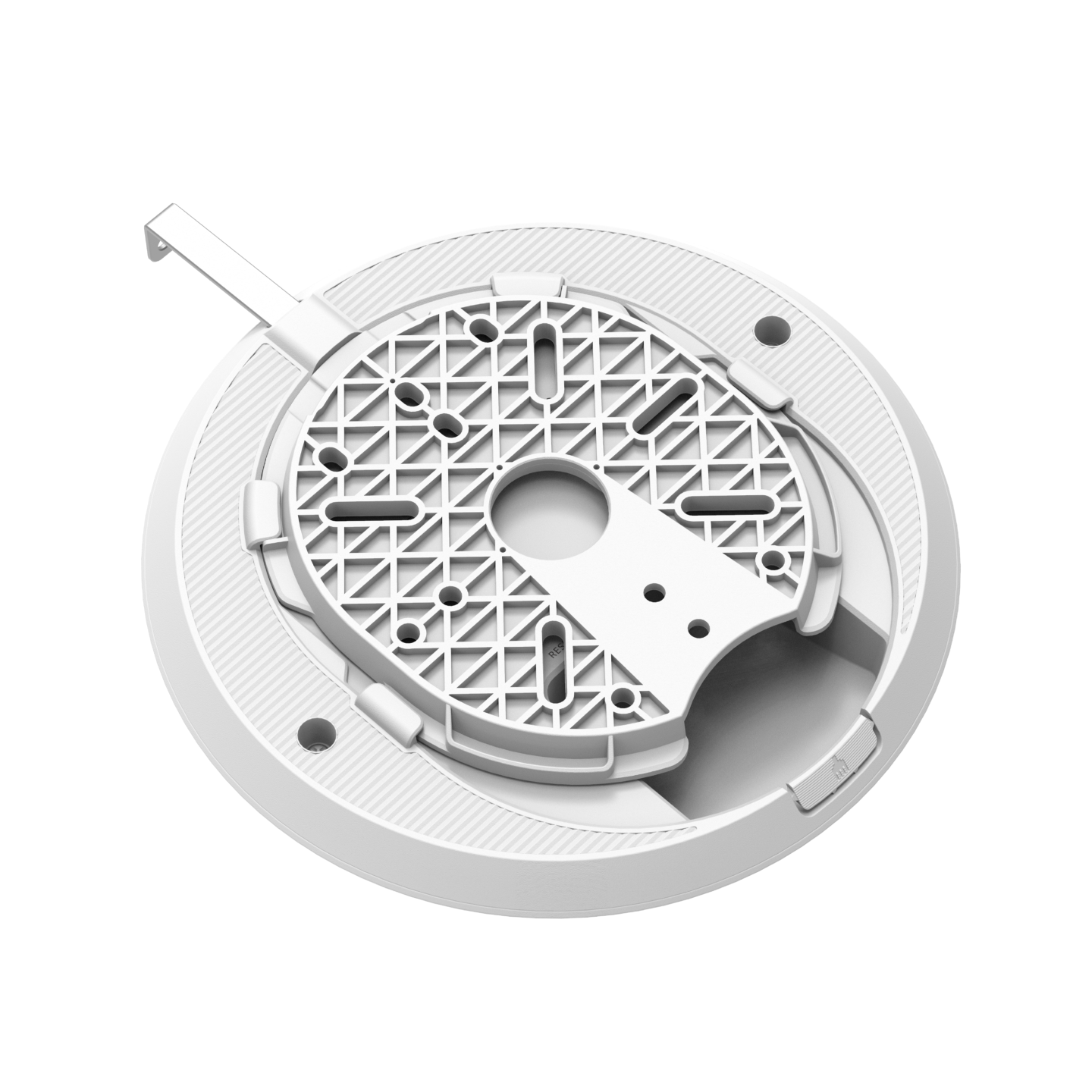

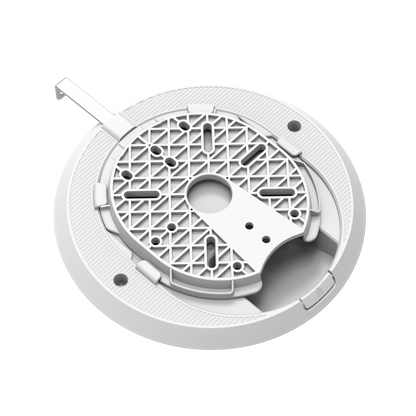

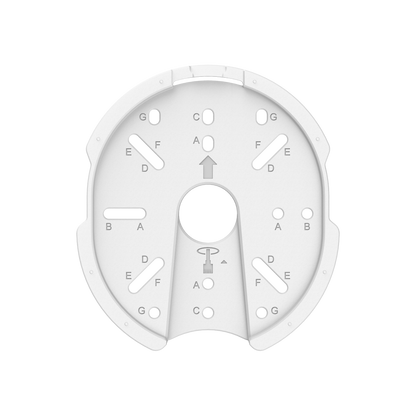

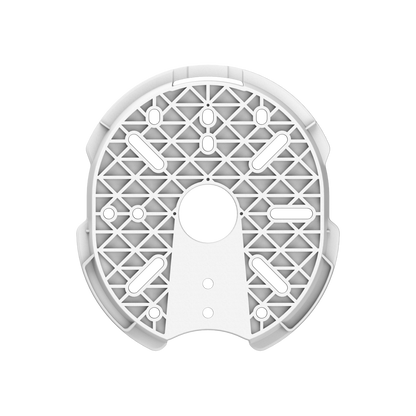

  • Mounting Kit

  • Quick Start Guide

  • Warranty & Compliance Documentation

Ideal Use Cases

  • Hotels & Hospitality – Sleek design blends with decor, supports high guest turnover

  • Restaurants & Cafés – Compact ceiling mount with reliable guest Wi-Fi

  • Offices & SMBs – Scalable solution for up to 256 connected devices

  • Retail Stores – High coverage and centralized management

  • Education – Ideal for classrooms, lecture halls, and admin offices

Management Options

Platform Features
Ruijie Cloud Web-based centralized management (Free for life)
Reyee App (iOS/Android) Mobile setup, monitoring, alerts, guest Wi-Fi
Standalone Local Web UI, Captive Portal

Competitive Advantages in ANZ Market

  • Designed for ANZ environments with stable operation across wide indoor temperatures

  • Free cloud license—no subscription fees or annual renewals

  • High-density client support for remote learning and hybrid work setups

  • Mesh-ready out of the box for flexible multi-AP coverage

  • Easy installation—ideal for retrofits or new builds in hospitality & retail

Datasheet / Download Link

Other Wi-Fi 6 Ceiling-Mount Models in the Series

Model Wi-Fi Speed LAN Ports Special Feature
RG-RAP2260(G) 1775 Mbps 2 × GE Entry-level AX
RG-RAP2260 2976 Mbps 1 × 2.5GE 160 MHz channel support
RG-RAP2260(E) 3202 Mbps 1 × 2.5GE Enhanced speed & coverage
RG-RAP2260(H) 5950 Mbps Dual 2.5GE Premium AX, enterprise-grade
RG-RAP2266 2976 Mbps 1 × GE Round design for aesthetic ceiling
