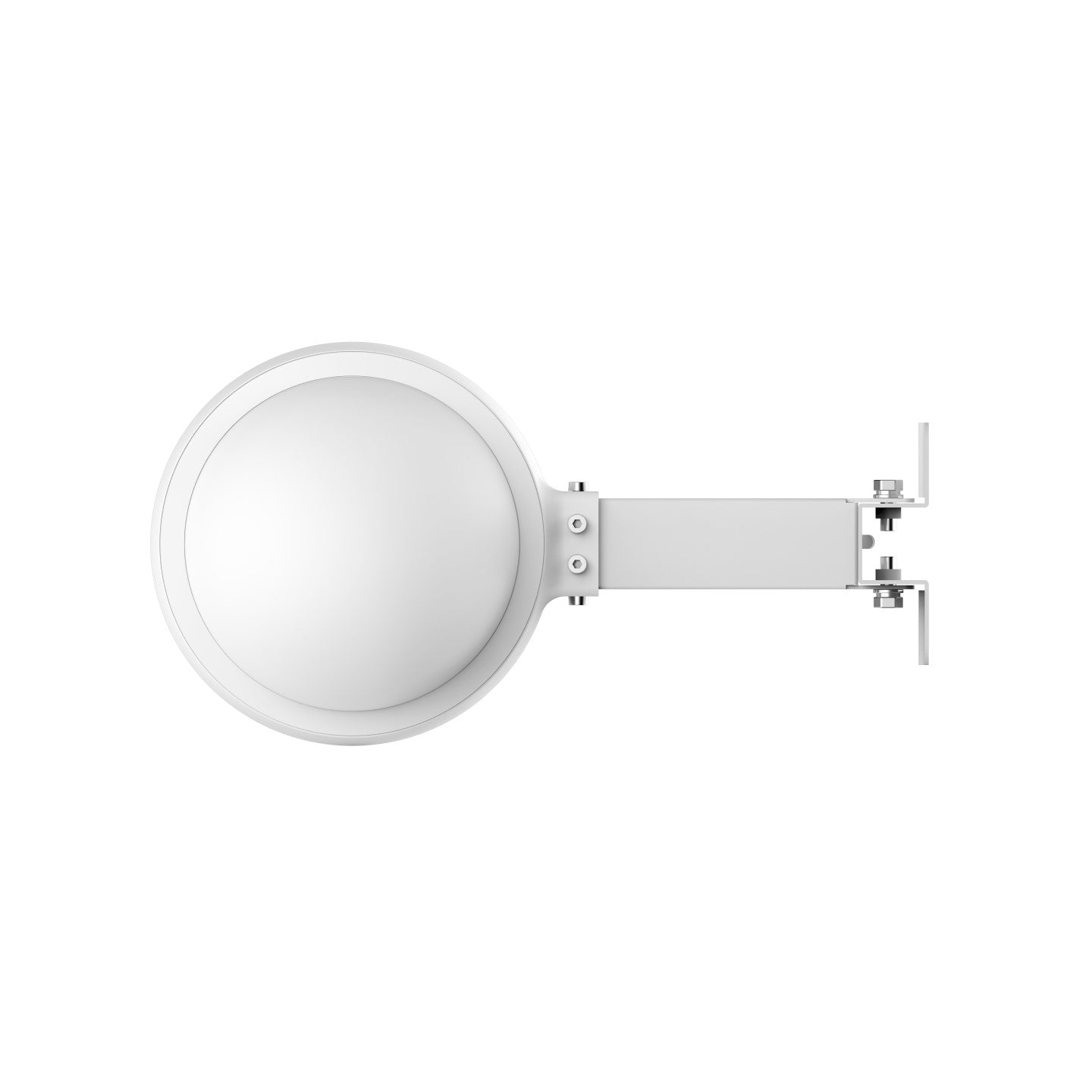

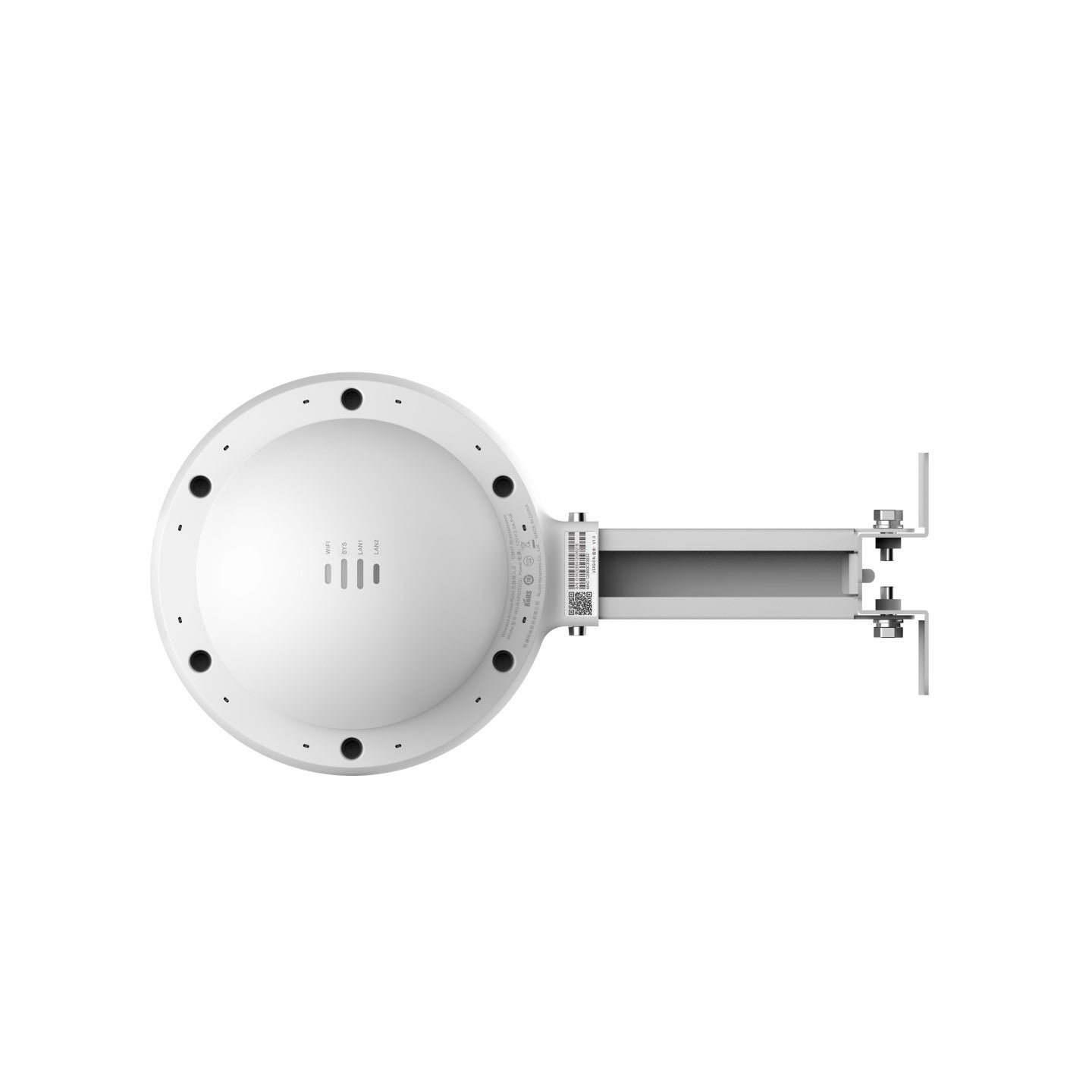

Ruijie RG-RAP52-OD – Reyee Wi-Fi 5 AC1300 Dual-Band Outdoor Access Point

The Ruijie RG-RAP52-OD is a compact and weatherproof Wi-Fi 5 (802.11ac Wave 2) outdoor access point designed for homes, villas, retail stores, and small commercial areas. With a peak wireless speed of 1267 Mbps, support for Reyee Mesh, and IP65 weather resistance, this access point delivers reliable and scalable outdoor connectivity even in harsh environments.

Equipped with 2x2 MIMO on both 2.4 GHz and 5 GHz bands, and enhanced by detachable antennas, the RG-RAP52-OD offers customizable coverage that ensures robust signal strength and optimized performance for up to 110 clients.

Highlights & Benefits

• 🌐 AC1300 Dual-Band Performance

  • Provides up to 1267 Mbps of wireless throughput, ideal for simultaneous HD streaming, online shopping, and business operations.

• ☁️ Reyee Mesh and Cloud Management

  • Enables seamless wireless mesh networking and centralized cloud-based monitoring via Ruijie Cloud or Reyee App.

• 🌧️ IP65 Outdoor Protection

  • Durable weatherproof casing allows year-round deployment in rain, dust, or high-humidity environments.

• 🛠️ Flexible Mounting Options

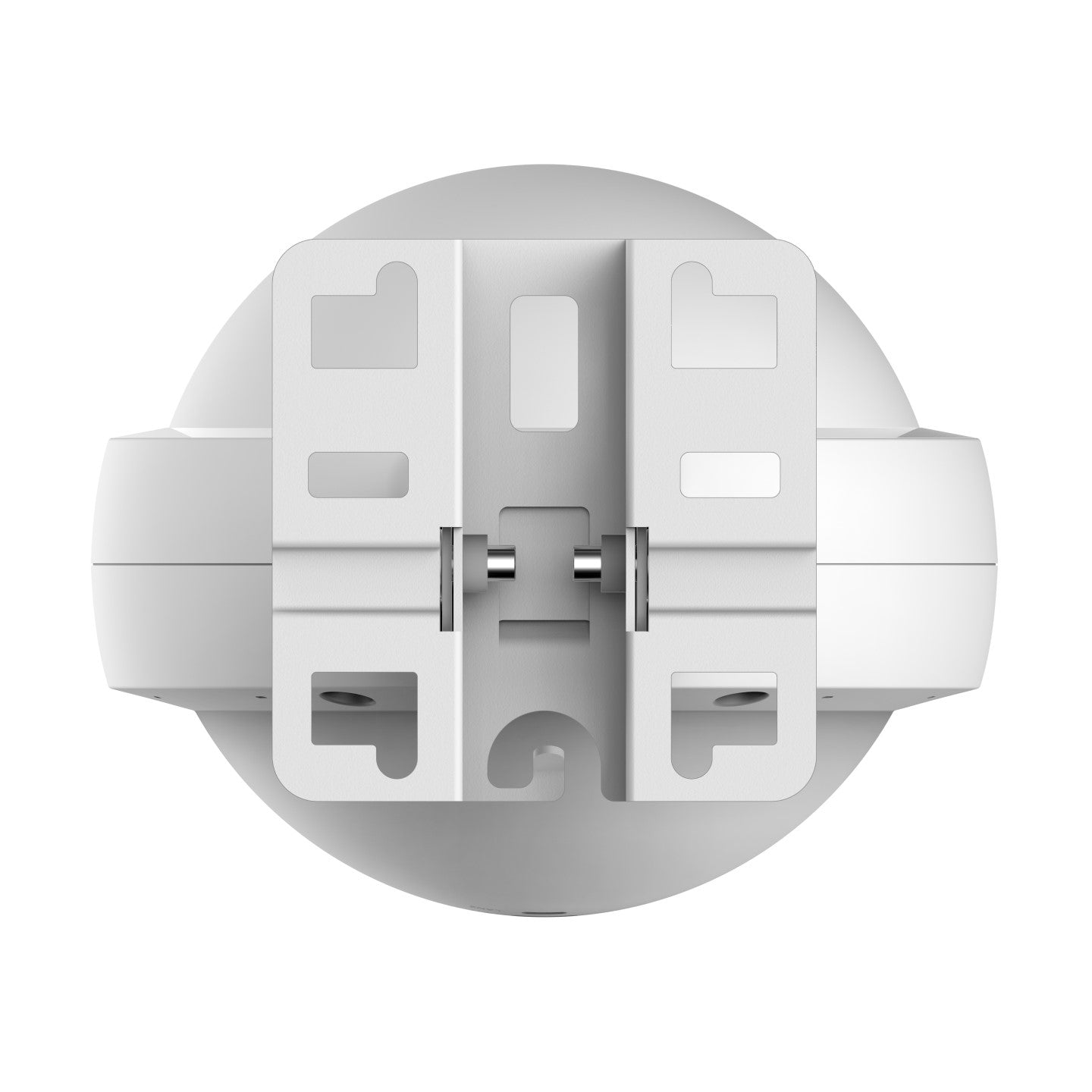

  • Mounts easily on walls or poles, with detachable antennas for better alignment and signal direction control.

• 🧠 AI Roaming and Standalone Portal

  • Smart wireless optimization and guest login page customization make it ideal for customer-centric spaces.

Technical Specifications

What’s in the Box

• 1 × RG-RAP52-OD Access Point

• 2 × Detachable External Antennas

• Mounting Bracket and Screw Kit

• Quick Start Guide

• Regulatory Compliance Sheet

Use Case Scenarios

Management & Configuration

• Reyee App – Mobile app for zero-touch provisioning and monitoring

• Ruijie Cloud – Centralized cloud platform for multi-site management

• Standalone Portal – Built-in captive portal for local guest access

• Mesh Support – Wireless backhaul to other Reyee APs with intelligent switching

Excellence for the Australian and New Zealand Market

✅ Certified for ANZ Use – CE and RoHS compliant
✅ Built to Withstand Harsh Outdoor Conditions – Rated IP65 and operates up to 70°C
✅ Ideal for Small Business and Residential Applications
✅ Sourced through Authorized ANZ Distribution Partners
✅ Manufacturer Warranty Managed via Official Channels in AU/NZ

Downloadable Resources

📄 Download RG-RAP52-OD Datasheet – PDF

FAQs – RG-RAP52-OD (Product Code: RG-RAP52-OD)

Q1: What is the maximum wireless speed of the RG-RAP52-OD (Product Code: RG-RAP52-OD)?

The AP delivers up to 1267 Mbps, combining 2.4GHz (400 Mbps) and 5GHz (867 Mbps) bands using Wi-Fi 5 (802.11ac Wave 2).

Q2: Can the RG-RAP52-OD (Product Code: RG-RAP52-OD) be used in rainy or dusty conditions?

Yes, it features IP65 weatherproof protection, ideal for outdoor deployment in all weather.

Q3: Does RG-RAP52-OD (Product Code: RG-RAP52-OD) support PoE?

Yes, it supports IEEE 802.3af PoE and 24V passive PoE, offering flexible installation options.

Q4: What’s the client capacity for RG-RAP52-OD (Product Code: RG-RAP52-OD)?

It supports up to 110 simultaneous clients, with a recommended 80 for optimal performance.

Q5: Is the RG-RAP52-OD (Product Code: RG-RAP52-OD) compliant for use in Australia and New Zealand?

Absolutely. The access point holds CE and RoHS certifications, making it fully compliant for ANZ markets.
