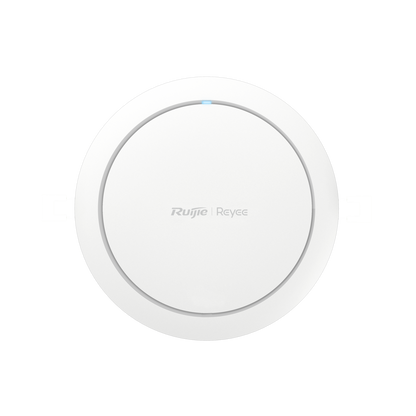

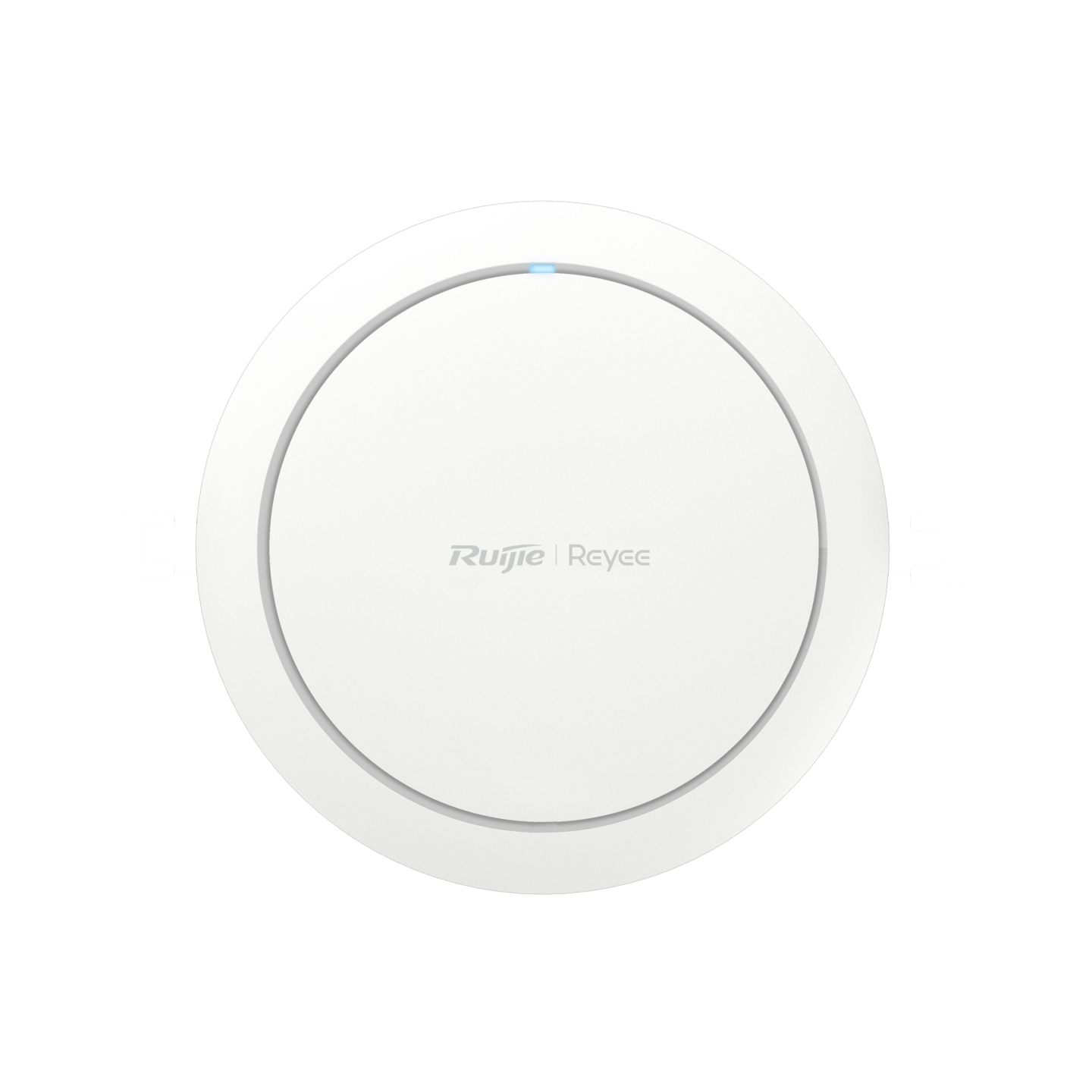

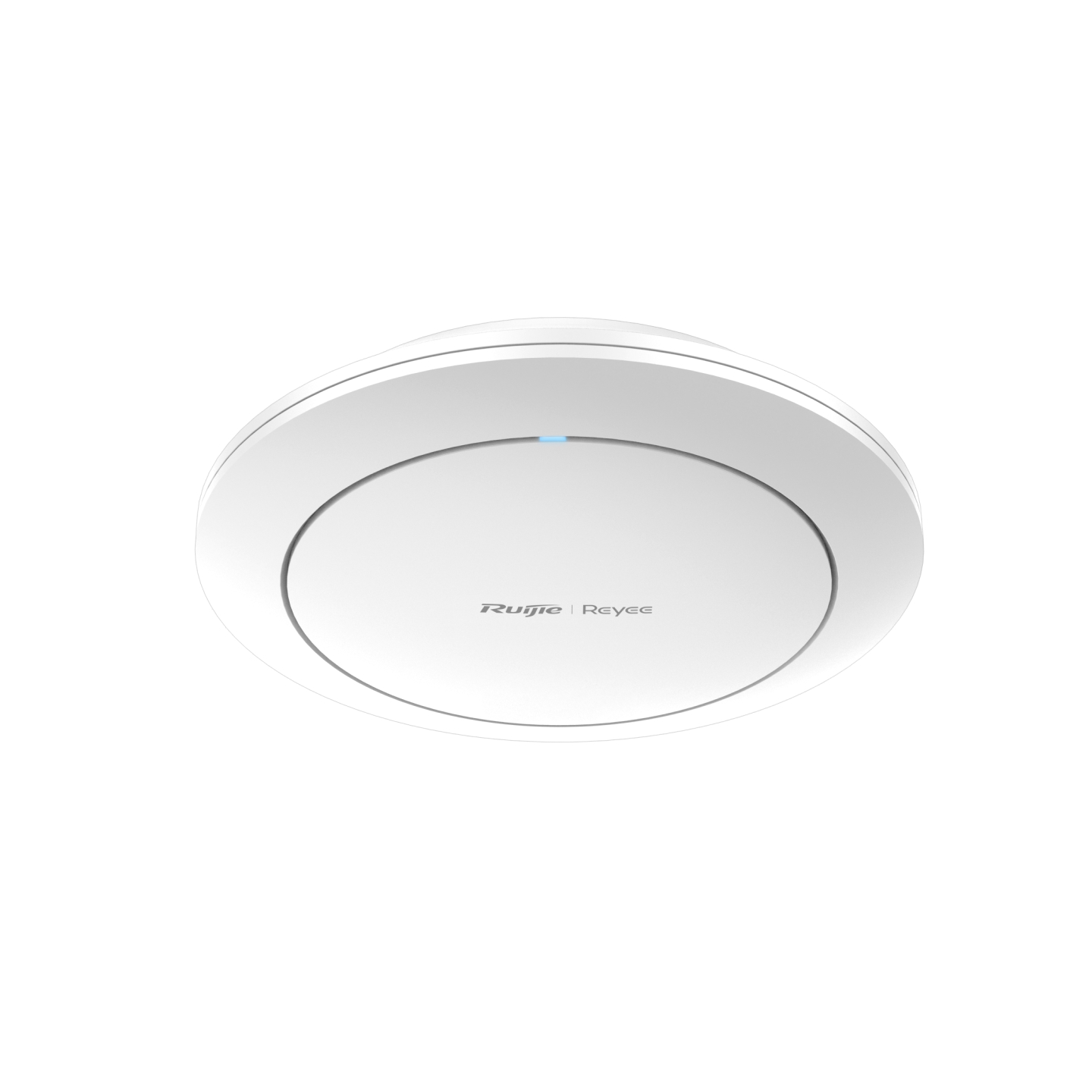

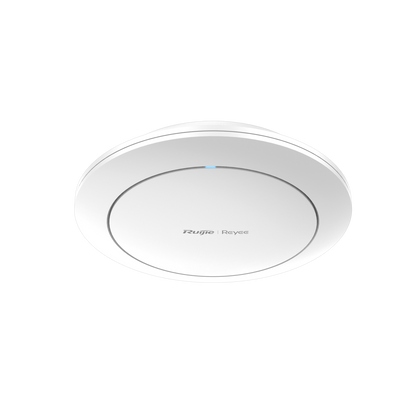

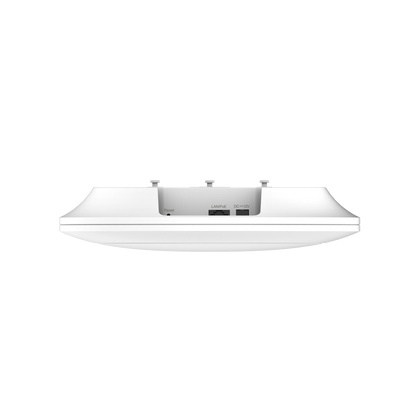

Ruijie RG-RAP2266 – AX3000 Wi-Fi 6 Indoor Ceiling-Mount Access Point

Ruijie RG-RAP2266 – AX3000 Wi-Fi 6 Indoor Ceiling-Mount Access Point

$283.09 AUD
$637.50 AUD $283.09 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Ruijie RG-RAP2266 is a powerful, high-speed Wi-Fi 6 AX3000 ceiling-mount access point designed for demanding indoor environments such as hotels, corporate offices, schools, retail outlets, and shared workspaces. Combining high-performance dual-radio architecture with aesthetic circular design, it offers exceptional performance and style—ideal for ceiling-visible spaces like hotel lobbies and boardrooms.

With support for Reyee Mesh, 802.11k/v roaming, and centralized Ruijie Cloud management, this AP simplifies deployment and enhances user experience in medium to high-density wireless networks.

Key Features

  • Wi-Fi 6 AX3000 (802.11ax)

    • Dual-radio operation with speeds up to 2976 Mbps

    • 2×2 MU-MIMO @ 2.4 GHz + 2×2 MU-MIMO @ 5 GHz

  • Elegant Round Design

    • Ø220 mm, modern circular aesthetics for décor-sensitive installations

  • High Capacity & Coverage

    • Supports up to 512 clients, with 110 recommended active connections

  • Cloud-Managed & Mesh-Ready

    • Free lifetime access to Ruijie Cloud, supports Reyee Mesh networking

  • Standalone Portal Capability

    • Built-in captive portal for guest Wi-Fi without external controller

  • Secure & Efficient

    • Powered via 802.3at PoE, with max power draw of 18W

Technical Specifications

Category Details
Model RG-RAP2266
Wi-Fi Standard IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Max Wireless Speed 2976 Mbps
MIMO 2×2 @ 2.4 GHz + 2×2 @ 5 GHz
Coverage Area Up to 130–150㎡ (approx. 1,400–1,600 ft²)
Recommended Clients Up to 110 (Max: 512)

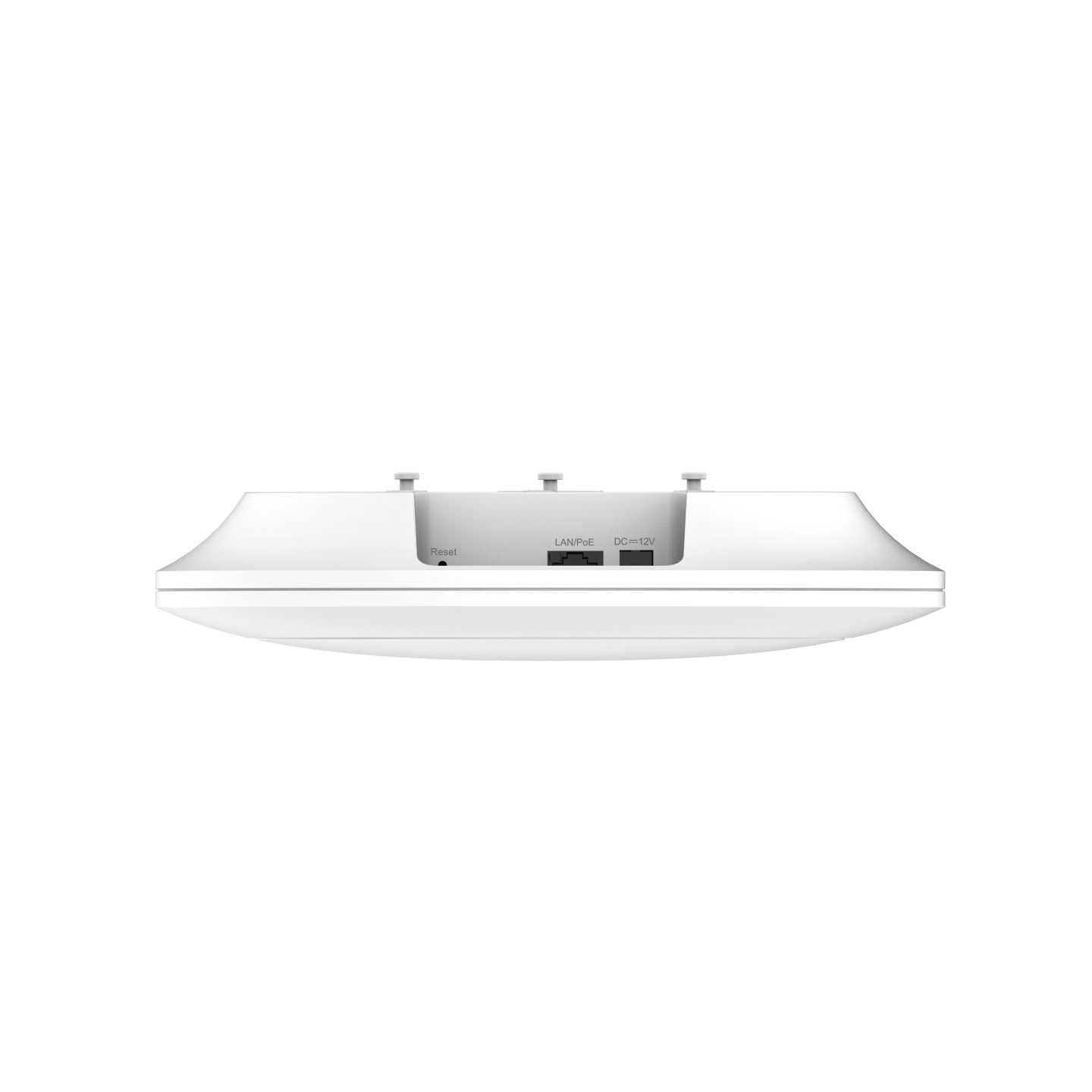

Ports 1 × 10/100/1000 Mbps RJ45 Ethernet port
PoE Standard IEEE 802.3at (PoE+)
PoE Out Not supported
Power Consumption ≤ 18W

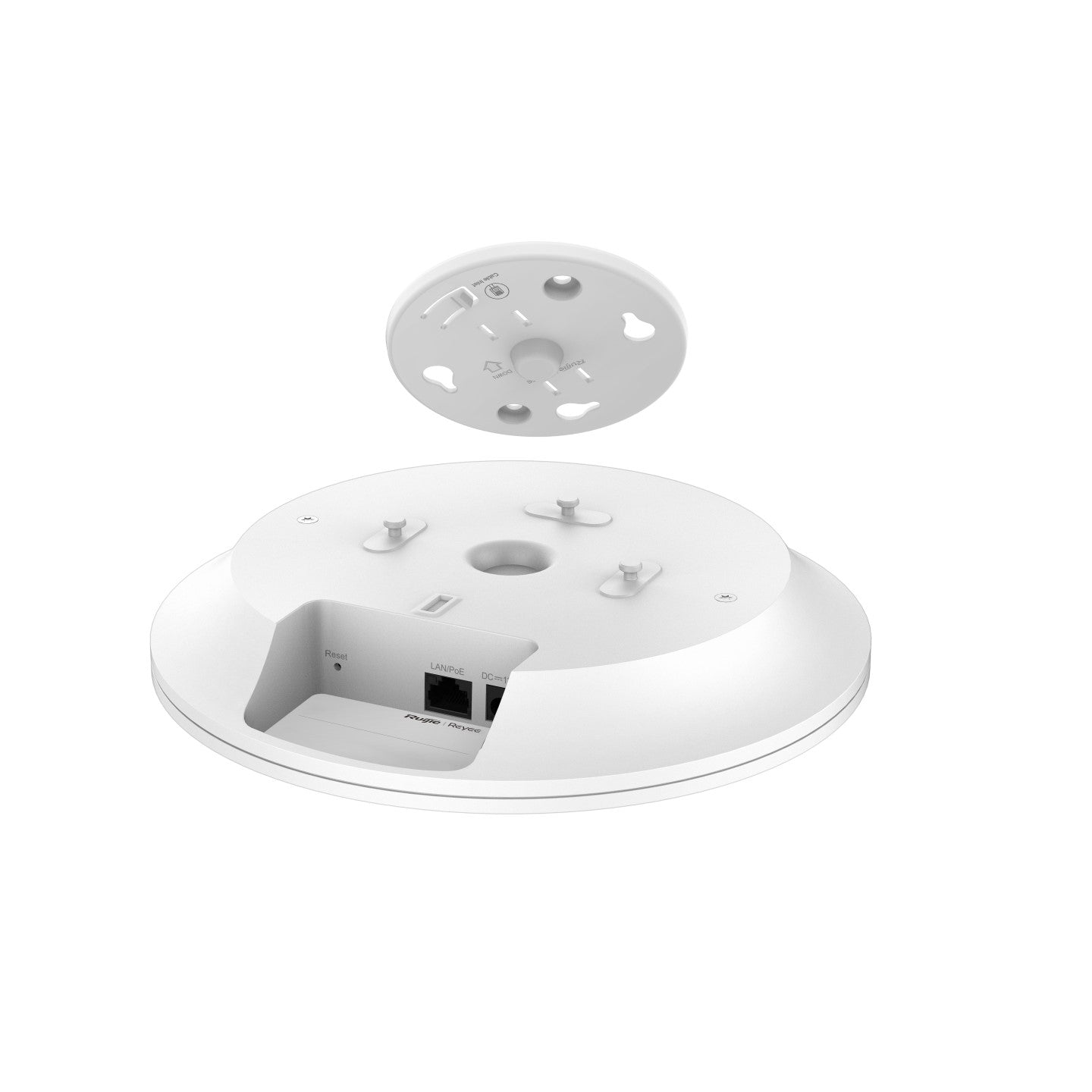

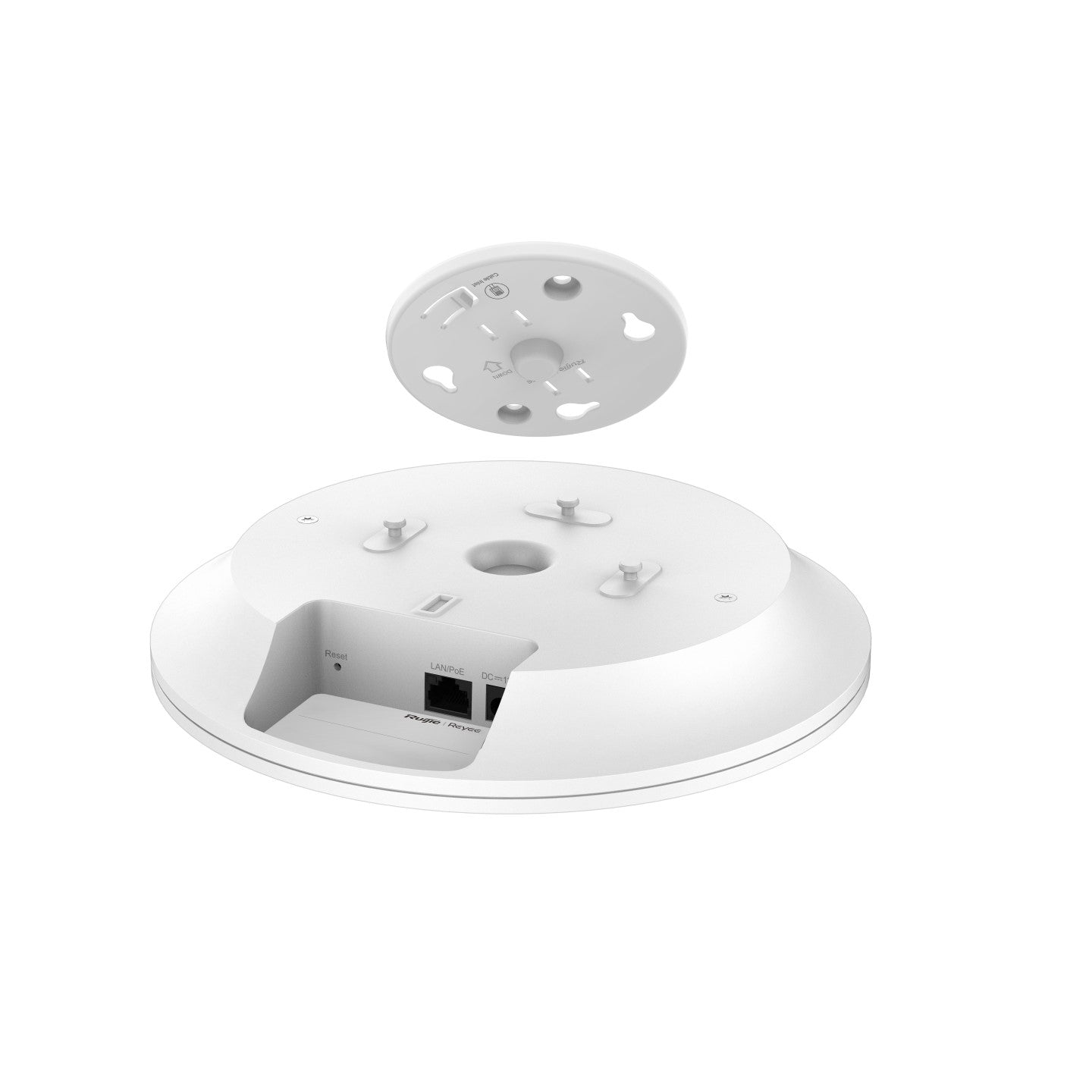

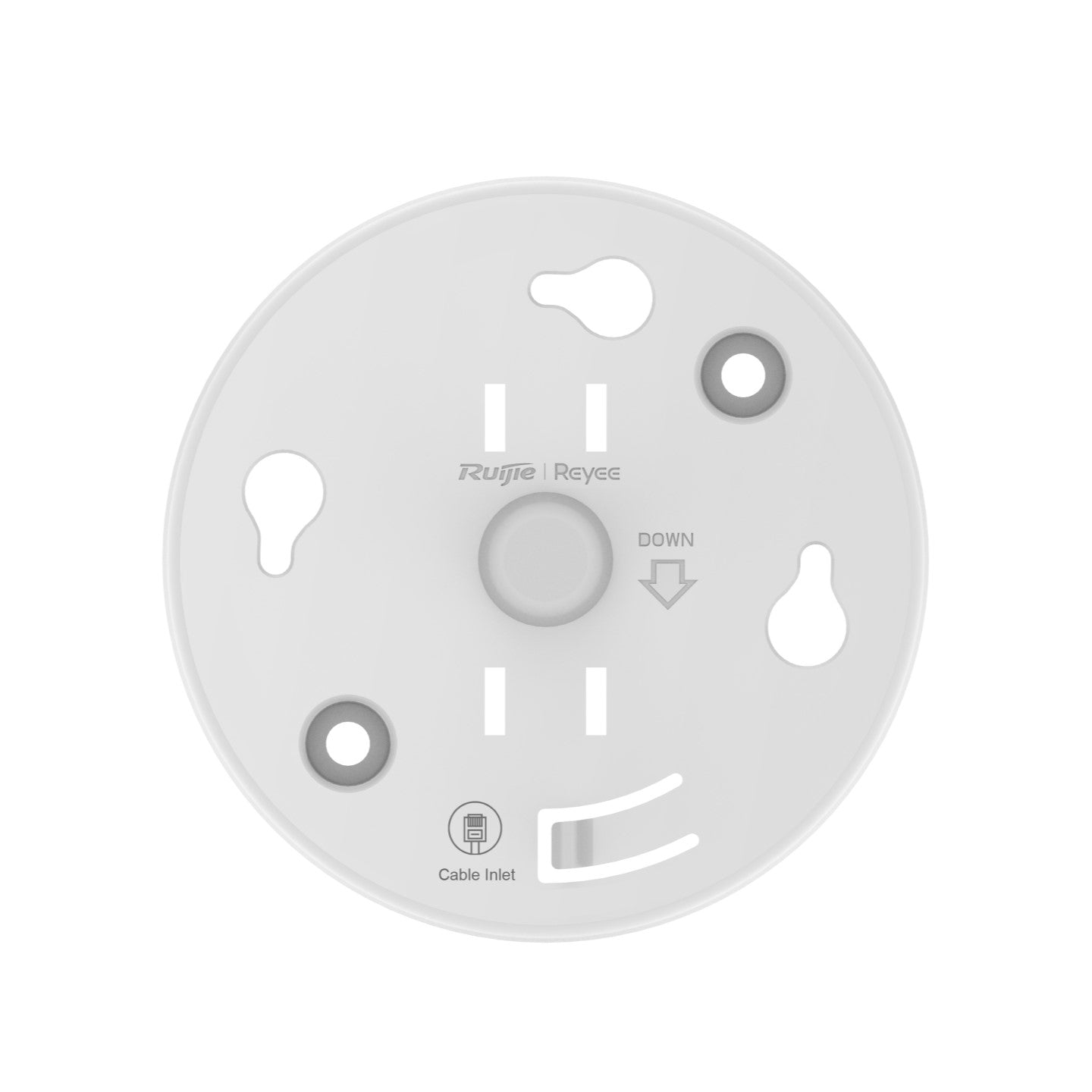

Mounting Type Ceiling-mount (easy install, twist-lock design)
Management Options Ruijie Cloud, Reyee App, Local Web UI
Operating Temp. 0°C to 40°C (32°F to 104°F)
Dimensions Ø220 mm × 52.6 mm (8.66 in. × 2.07 in.)
Weight < 0.55 kg (1.21 lbs)
Certifications CE, RoHS
Warranty 3-Year Manufacturer Warranty

Ideal Applications

  • Hospitality – Guest rooms, reception, dining & conference areas

  • Corporate Offices – Workstations, meeting rooms, open spaces

  • Retail Chains – POS terminals, customer Wi-Fi, digital signage

  • Education – Classrooms, lecture halls, libraries

  • Public Buildings – Airports, galleries, council facilities

Deployment Benefits in ANZ

  • Designed for Australian/NZ power and compliance standards

  • Free cloud management—no recurring licensing cost

  • High user density handling—perfect for busy public spaces

  • Easy to deploy in existing ceiling infrastructure

  • Low profile and discreet—ideal for premium aesthetic environments

Management Platforms

Platform Features
Ruijie Cloud Free centralized cloud management (no license fees)
Reyee App Easy setup, alerts, monitoring from iOS/Android
Standalone Portal Captive portal functionality built into the AP
Local Web GUI Traditional device-level configuration

Comparison with Other Wi-Fi 6 Ceiling-Mount Models

Model Max Speed LAN Ports PoE PoE Out Best For
RG-RAP62 1775 Mbps 1 × GE 802.3af/at No Compact installs, light use
RG-RAP2260(G) 1775 Mbps 2 × GE 802.3at No Small offices, classrooms
RG-RAP2260 2976 Mbps 1 × 2.5GE 802.3at No High-speed office floors
RG-RAP2260(E) 3202 Mbps 1 × 2.5GE 802.3at No Heavy streaming/media areas
RG-RAP2260(H) 5950 Mbps 2 × 2.5GE 802.3at No Premium environments
RG-RAP2266 2976 Mbps 1 × GE 802.3at No Stylish, large-area coverage

Download Resources

📄 Download RG-RAP2266 Datasheet – PDF
