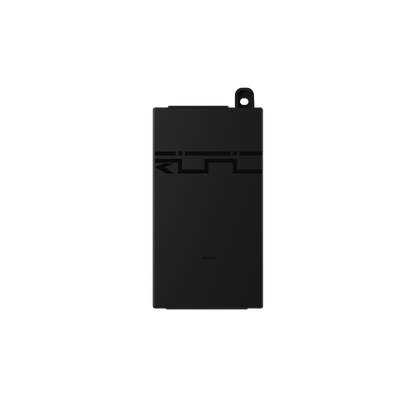

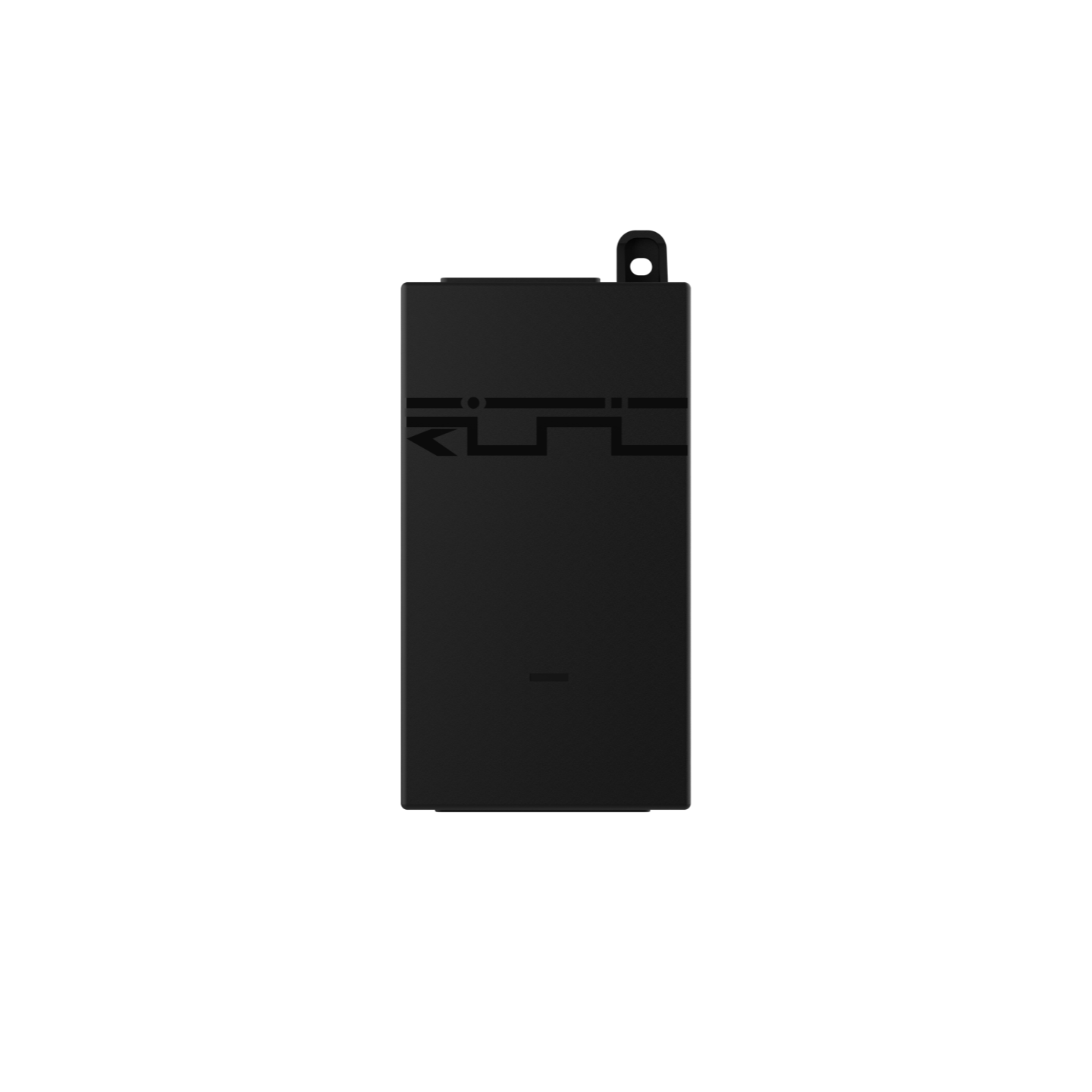

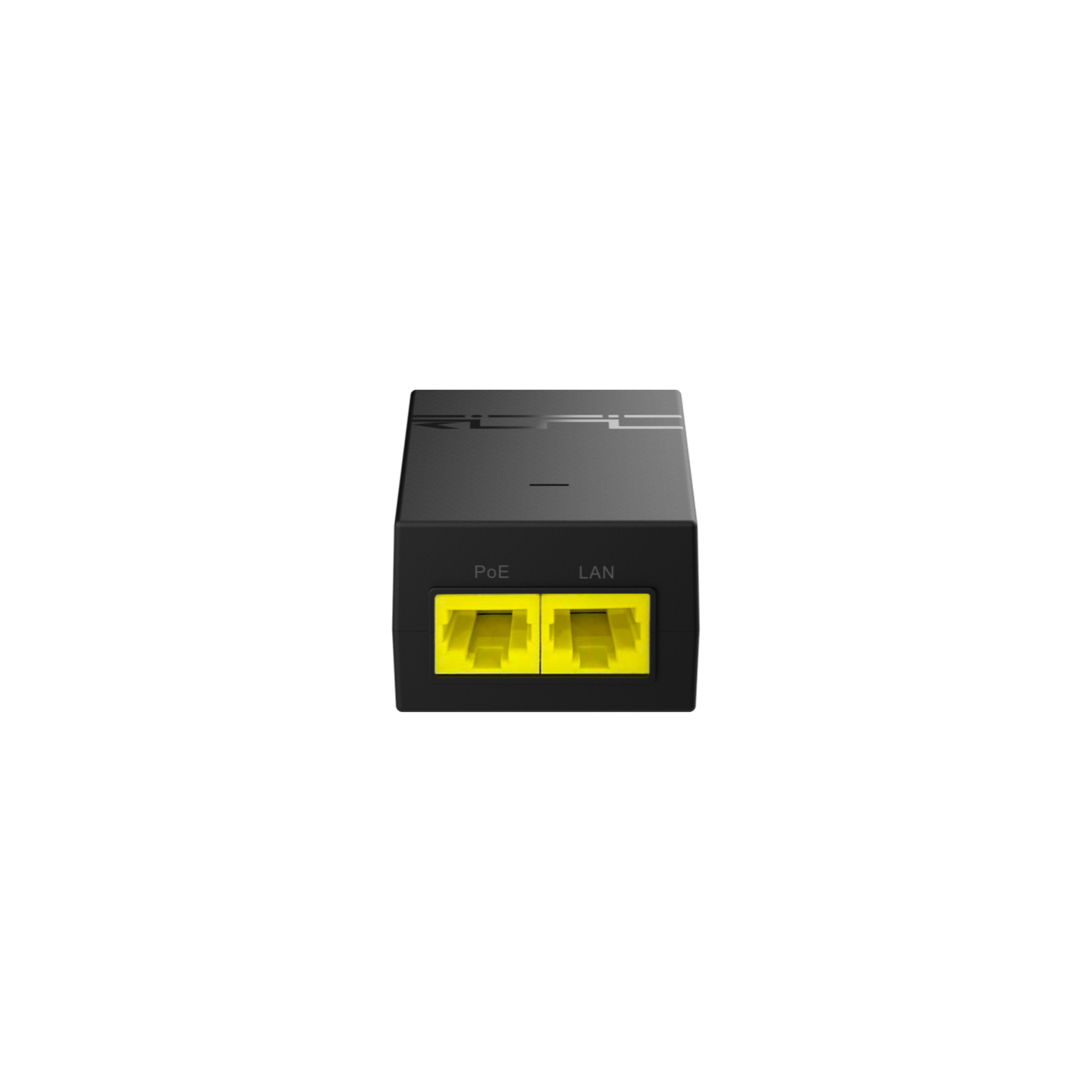

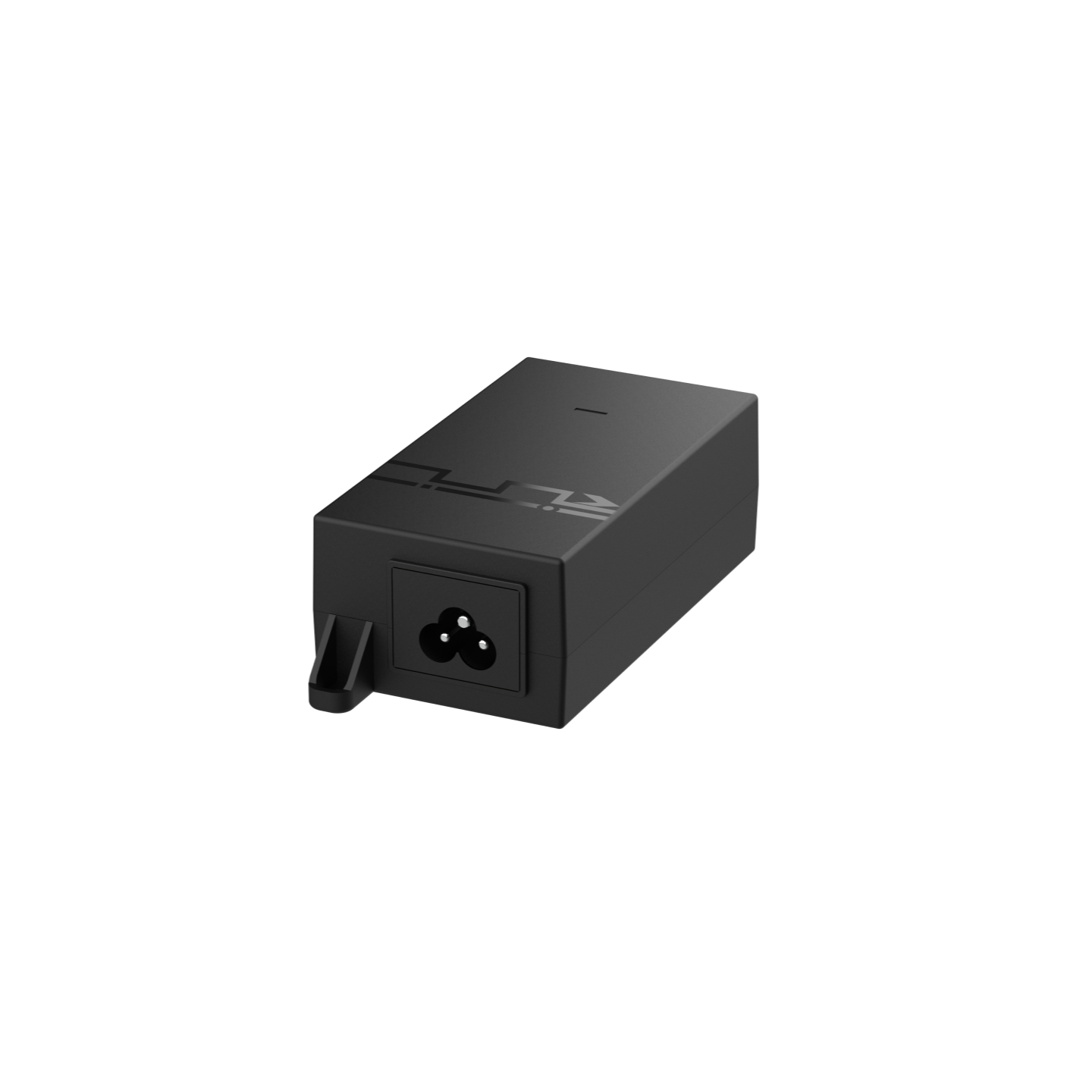

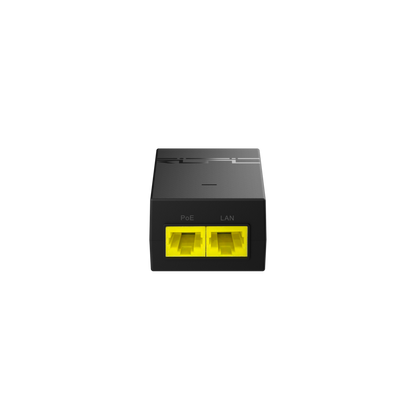

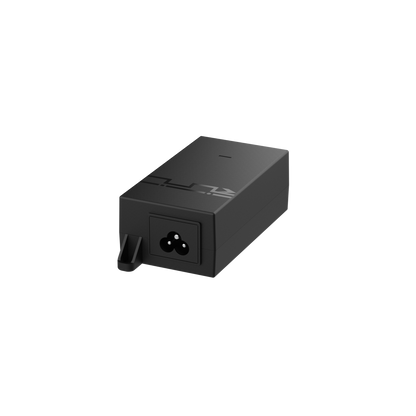

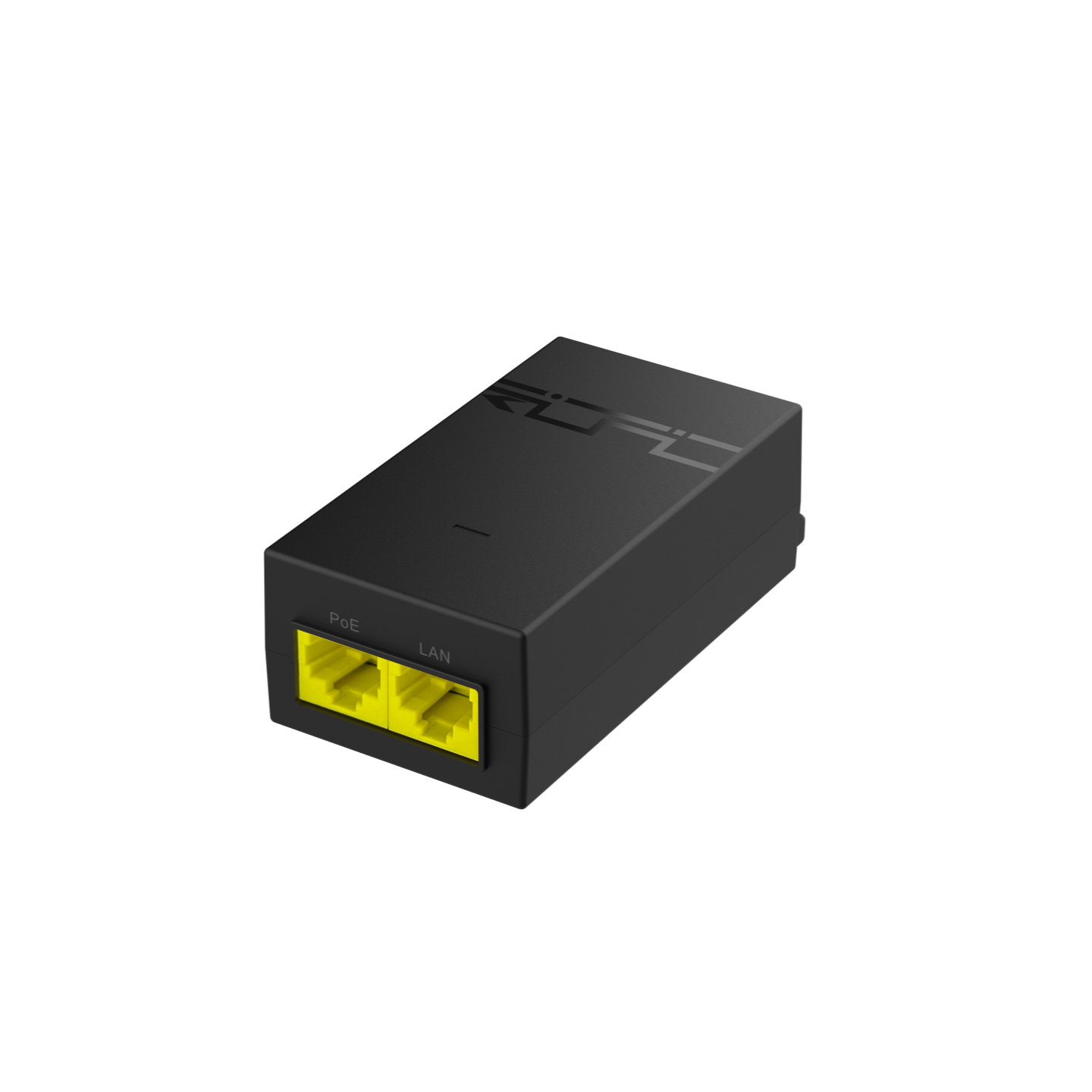

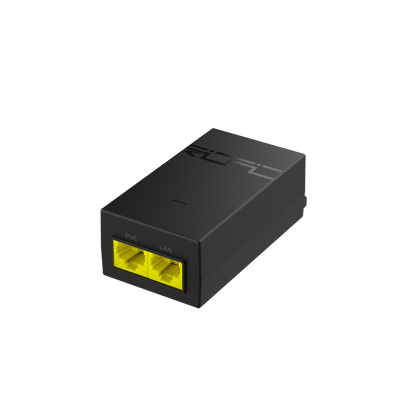

Ruijie RG-POE-AF15 – 1-Port Passive PoE Injector (52V, 15.6W, Gigabit)
Ruijie RG-POE-AF15 – 1-Port Passive PoE Injector (52V, 15.6W, Gigabit)
Regular price
$33.66 AUD
Regular price
$80.58 AUD
Sale price
$33.66 AUD
Duties and taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Ruijie RG-POE-AF15 is a compact 1-port passive PoE injector designed to provide stable and high-performance 52V DC power and data over a single Ethernet cable. Supporting Gigabit (1000Base-T) connections and outputting up to 15.6W, it’s ideal for powering devices such as wireless access points, IP cameras, and VoIP phones in indoor environments like hotels, homes, offices, and retail outlets.
This injector is built with overcurrent protection, low inrush current, and wide temperature tolerance, ensuring consistent operation even in less-than-ideal electrical conditions.
Key Features & Benefits
🔌 Passive PoE Output – 52V, 15.6W
Delivers consistent power for 802.3af PoE-compatible devices without a complex switch.
🚀 Gigabit Data Transmission (1000Base-T)
Ensures high-speed networking without bandwidth bottlenecks.
🌡️ Wide Operating Temperature: -10°C to +45°C
Suitable for diverse indoor deployments across ANZ.
⚡ High Surge Tolerance – Max. Discharge Current: 2000 A (8/20 µs)
Protects devices against power fluctuations.
🧰 Compact and Lightweight Design
Easily mountable or desktop-deployable without cluttering your network setup.
🛡️ 3-Year Manufacturer Warranty
Long-term peace of mind with Ruijie reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | RG-POE-AF15 |
| PoE Output | Passive PoE, 52 V DC @ 0.3 A, Max 15.6 W |
| PoE Standard | Passive PoE (Non-802.3af/at auto negotiation) |
| Ethernet Port | 1 × 1000Base-T (RJ45, Gigabit) |
| Input Voltage | 100–240 V AC @ 50/60 Hz |
| Max Input Current | 0.5 A |
| Inrush Current | < 80 A @ 230 V AC |
| Surge Protection | Max. Discharge Current: 2000 A (8/20 μs) |
| Operating Temp. | -10°C to +45°C (14°F to 113°F) |
| Storage Temp. | -40°C to +70°C (-40°F to 158°F) |
| Dimensions | 92 × 46.5 × 29.5 ±1 mm (3.62 × 1.83 × 1.16 ±0.04 in.) |
| Weight | 95 ± 5 g (3.35 ± 0.18 oz) |
| Certifications | CE, RoHS |
| Warranty | 3 Years Manufacturer Warranty |
Perfect For
| Use Case | Why It’s Ideal |
|---|---|
| Hotel Wi-Fi | Power ceiling or wall-mounted APs without needing PoE switches |
| Home Network | Connect mesh APs, cameras, or smart devices without bulky gear |
| Retail/Office POS | Clean power/data delivery for POS terminals or IP-based surveillance systems |
| IoT Environments | Easily power IoT sensors or mini access points in remote indoor locations |
Installation & Compatibility
-
✔ Compatible with Ruijie RG-RAP series APs (e.g., RAP62, RAP1260, RAP72)
-
✔ Use with shielded Cat5e/Cat6 cables for best performance
-
✔ Suitable for desktop or wall mounting
-
❌ Not suitable for active PoE negotiation (does not auto-negotiate 802.3af/at)
In the Box
-
✅ 1 × RG-POE-AF15 PoE Injector
-
✅ Quick Start Guide
-
✅ Power Cord (Region-Specific Plug)
Need More Power?
Check out:
-
🔋 RG-POE-AT30 – 31.2W Passive PoE Injector
-
🔋 RG-POE-50-60W-MG – 60W Multi-Gigabit PoE Injector (2.5G port)
