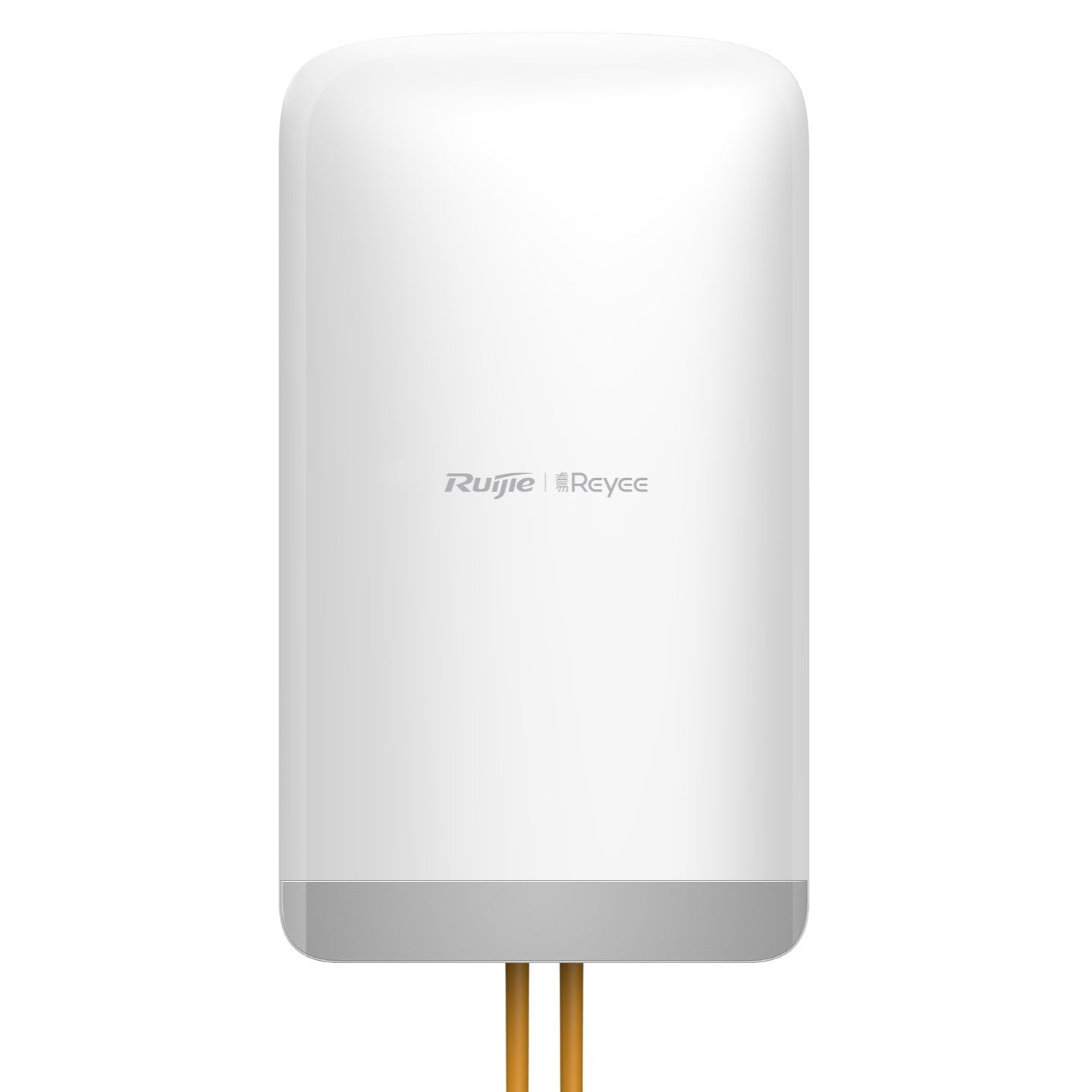

The Ruijie RG-EST350 V2 is a high-performance 5GHz wireless bridge designed for long-range point-to-point (PTP) communication up to 5 kilometres, ideal for factories, large surveillance networks, transportation corridors, and inter-building connectivity. Leveraging 802.11ac dual-stream MIMO wireless technology, this model ensures real-time, stable data transmission in mission-critical applications.
Pre-configured for instant deployment, the RG-EST350 V2 eliminates the complexity of wireless alignment and advanced configuration. Its rugged IP54-rated housing and -30℃ to +65℃ operating range provide exceptional durability in diverse outdoor environments. Supporting up to 20 x 2MP cameras at 5KM or 45 x 2MP cameras at 3KM, the unit is built to deliver high-bandwidth performance for video surveillance or industrial automation.Datasheet
What’s Included in the Box
-
1 × Ruijie RG-EST350 V2 Wireless Bridge Unit
-
Mounting Bracket with Accessories
-
PoE Injector or Power Adapter
-
Quick Installation Guide
-
Warranty & Support Documentation
Main Features
-
5KM Wireless Transmission – Supports long-distance point-to-point communication with real-time responsiveness
-
Factory-Paired for Plug & Play – Pre-configured bridge pairs remove the need for alignment or advanced setup
-
High Camera Load Capacity – Supports 45 × 2MP cameras at 3KM or 20 × 2MP cameras at 5KM
-
Dual GE Ports – Offers versatile uplink and device-side connectivity
-
802.11ac Dual-Stream (2×2 MIMO) – Ensures high throughput and signal reliability on the 5GHz band
-
Weatherproof Outdoor Design – IP54-rated housing, suitable for harsh industrial or transportation environments
-
Wide Temperature Tolerance – Operates efficiently from -30℃ to +65℃, ideal for extreme outdoor use
-
Cloud-Based Monitoring – Compatible with Ruijie Cloud for real-time diagnostics and management
-
Mobile App Management – Supports remote reboot and status monitoring via Ruijie Reyee App
-
SON (Self-Organising Network) – Enhances stability and adaptability in PTMP scenarios
Detailed Specifications
| Specification | Details |
|---|---|
| Wireless Standard | IEEE 802.11ac (Wi-Fi 5) |
| Frequency Band | 5GHz |
| MIMO Configuration | 2x2 Dual-Stream |
| Channel Width | Auto / 20 / 40 / 80 MHz |
| Transmission Range | Up to 5KM (Line-of-Sight PTP) |
| Camera Capacity (3KM) | Up to 45 × 2MP Cameras |
| Camera Capacity (5KM) | Up to 20 × 2MP Cameras |
| Ethernet Ports | 2 × Gigabit Ethernet Ports |
| Power Input | 1 × PoE In (IEEE 802.3af/at compatible) |
| Operating Temperature | -30℃ to +65℃ |
| Enclosure Protection Rating | IP54 (weather-resistant) |
| Device Management | Ruijie Cloud, Reyee App |
| Restart via Mobile App | Supported |
| SON Network Support | Yes |
| SNMP | Not Supported |
| AI Heatmap | Not Supported |
| Installation Type | Outdoor / Wall or Pole Mountable |
Warranty Information
3 years manufacture warranty applied.
Brand Description
Ruijie Networks offers powerful and scalable network infrastructure solutions, trusted globally for their intelligent features, performance-driven hardware, and user-friendly remote management tools. Their bridges and wireless solutions are engineered to meet the demanding needs of surveillance, industrial, and transport sectors.
Practical Use Scenarios
-
Industrial Campuses & Factories – Wirelessly connect distant warehouse units or production lines
-
Transport Infrastructure – Extend surveillance and communication networks along highways, rail stations, or bridges
-
Large Construction Sites – Connect site offices or monitoring points without cabling
-
School or University Campuses – Securely bridge buildings for IP camera and access control integration
-
Energy or Mining Facilities – Provide backbone connectivity across large operational fields
Excellence for the Australian and New Zealand Market
Tailored for long-range deployments in challenging ANZ environments, the RG-EST350 V2 delivers strong 5GHz connectivity, extreme temperature resistance, and high camera load capacity. Its IP54 weatherproof rating and PoE-based power make installation simple and compliant with Australian and New Zealand infrastructure standards. Supported by local warranty and expert distribution networks, it offers system integrators a reliable wireless solution for critical infrastructure.
FAQs (Product Code: RG-EST350-V2)
Q1: How far can the RG-EST350 V2 transmit wirelessly?
A1: It can transmit stable real-time data up to 5 kilometres in clear, line-of-sight environments. (Product Code: RG-EST350-V2)
Q2: How many IP cameras can this bridge support?
A2: It supports up to 20 × 2MP cameras at 5KM, or 45 × 2MP cameras at 3KM. (Product Code: RG-EST350-V2)
Q3: Is the device weatherproof?
A3: Yes, the RG-EST350 V2 is IP54-rated for weather resistance and designed for outdoor use. (Product Code: RG-EST350-V2)
Q4: Do I need to manually configure the units before installation?
A4: No, the devices are factory-paired and ready for plug-and-play installation without complex alignment. (Product Code: RG-EST350-V2)
Q5: Can I manage the unit remotely?
A5: Yes, full monitoring and basic maintenance, like rebooting, can be done via Ruijie Cloud or the Reyee mobile app. (Product Code: RG-EST350-V2)
