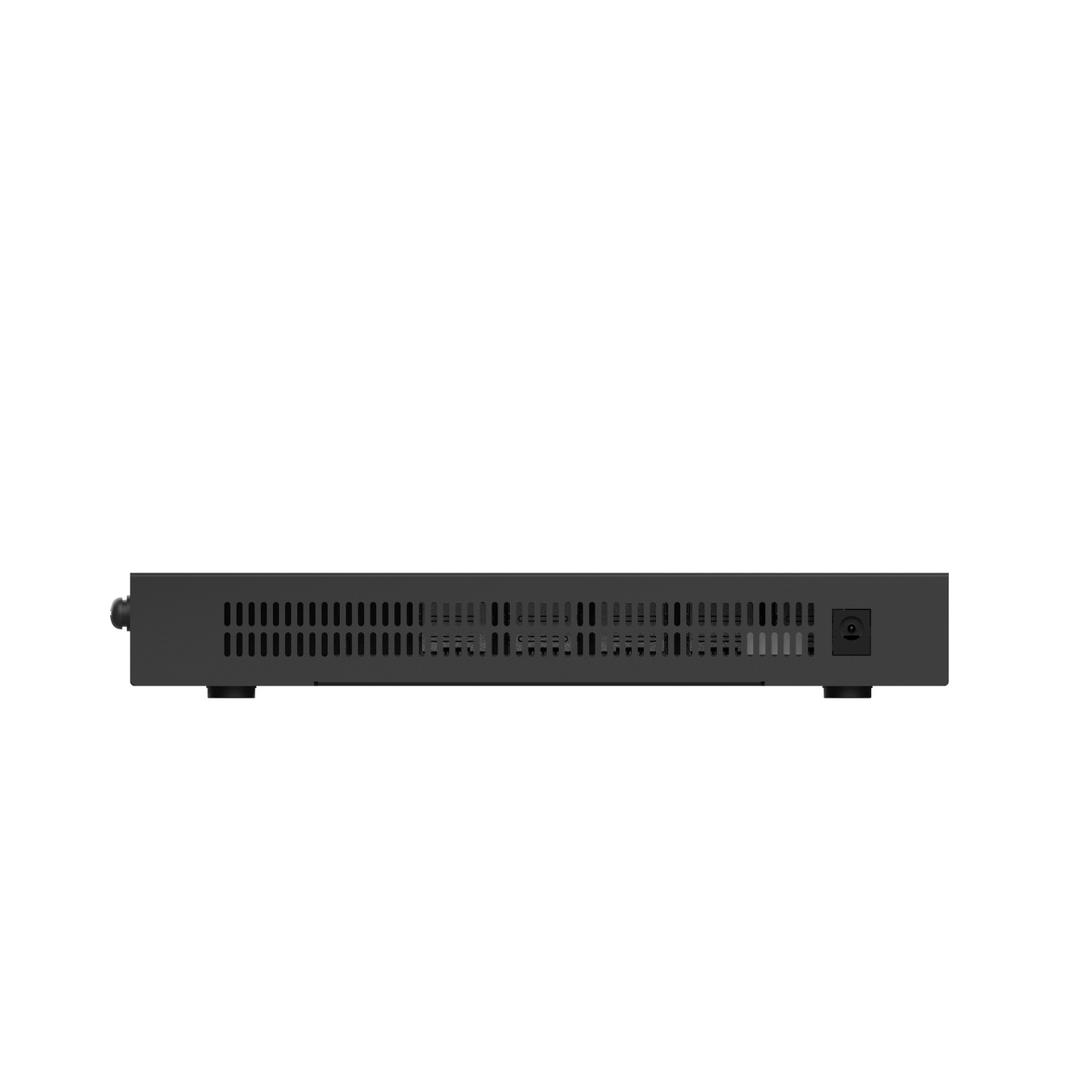

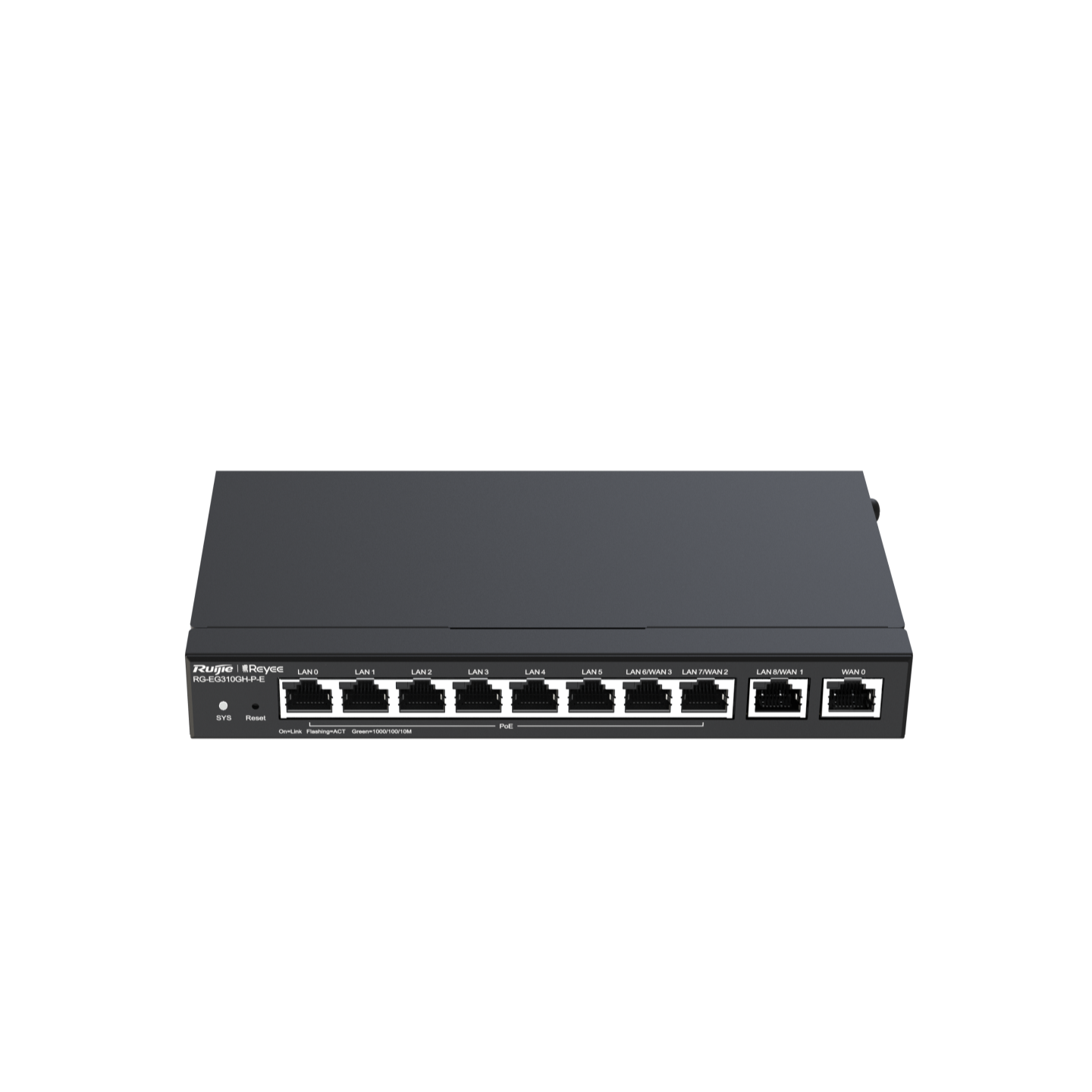

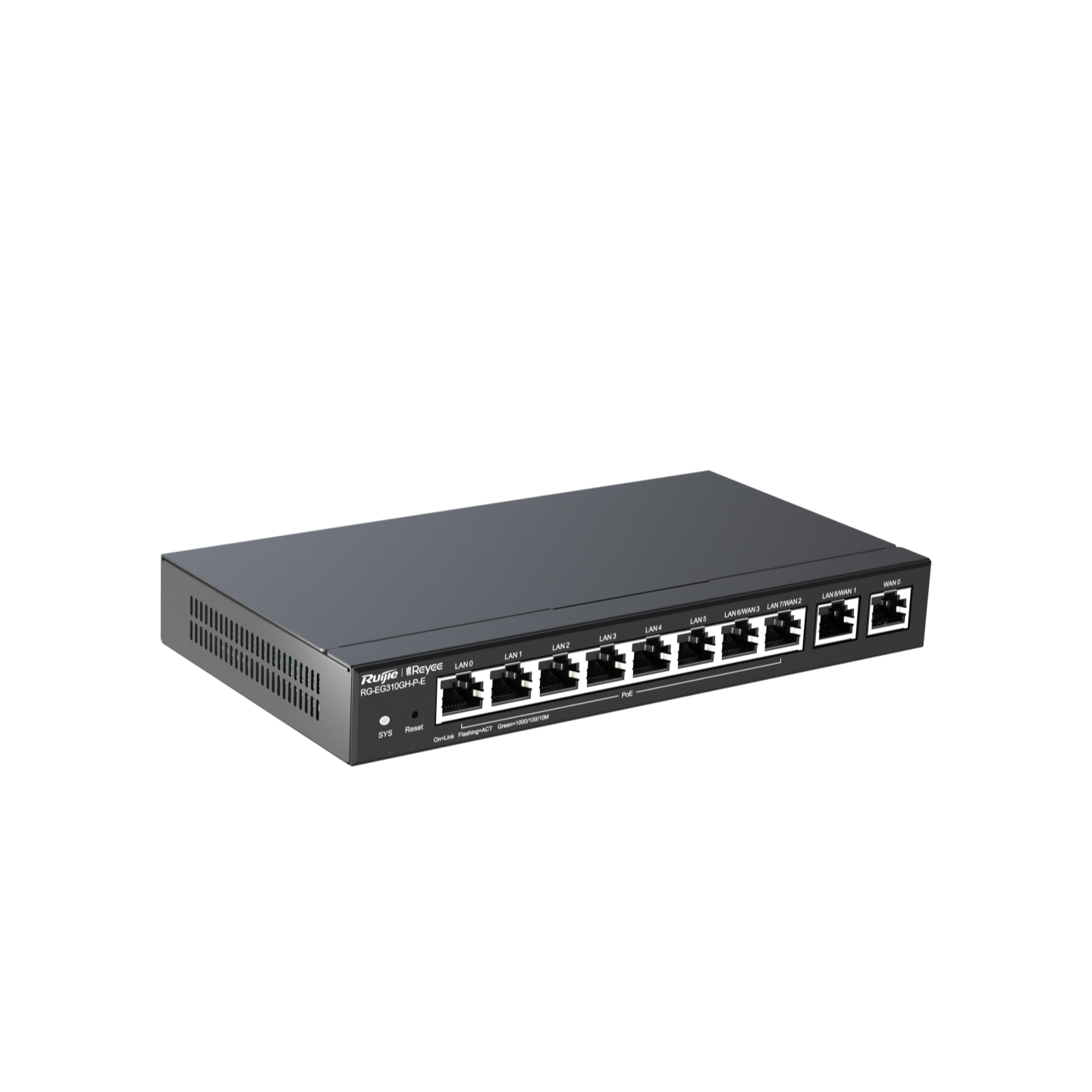

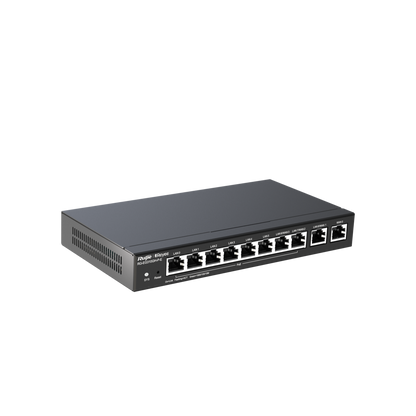

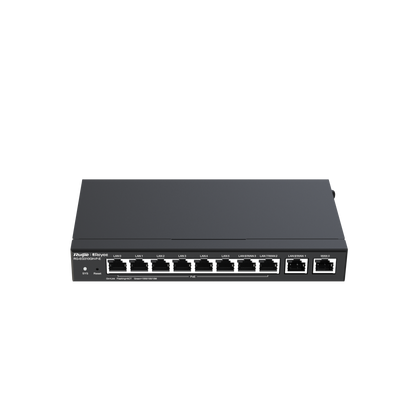

Ruijie RG-EG310GH-P-E, Reyee10-Port High Performance Cloud Managed PoE Office Router

The RG-EG310GH-E Reyee High-Performance Cloud Managed Office Router is a professional-grade business gateway designed for medium-sized offices, branch deployments, enterprise networks, and organisations requiring secure remote connectivity. Built to handle demanding workloads, the RG-EG310GH-E delivers up to 1.5Gbps throughput while providing intelligent traffic management, advanced VPN capabilities, Multi-WAN redundancy, and centralised cloud administration.

Powered by a dual-core 1.35GHz processor with 512MB RAM and 256MB flash storage, the RG-EG310GH-E supports up to 350 concurrent users and 64 VPN tunnels. Its rack-mountable 1U design makes it ideal for professional network environments where reliability, scalability, and secure communications are essential. Combined with Ruijie Cloud management, traffic visualisation tools, and application-aware bandwidth control, the RG-EG310GH-E provides businesses with complete visibility and control over network performance.

---

What's Included in the Box

• 1 × RG-EG310GH-E Reyee Cloud Managed Office Router

• Rack Mounting Accessories

• Power Cable

• Quick Installation Guide

• Product Documentation

---

Main Features

• High-performance cloud-managed office router

• Up to 1.5Gbps routing throughput

• Supports up to 350 concurrent users

• Supports up to 64 VPN tunnels

• Supports up to 300 VPN users

• Multi-WAN load balancing

• WAN failover and redundancy

• Policy-Based Routing (PBR)

• IPSec VPN support

• OpenVPN support

• PPTP VPN support

• L2TP VPN support

• Tunnel-based traffic management

• Traffic visualisation and monitoring

• Application-based bandwidth management

• User-based bandwidth management

• Cloud portal authentication

• Free DDNS service

• Dynamic application database updates

• Custom application library support

• Remote monitoring and maintenance

• Firmware upgrades through Ruijie Cloud

• Rack-mountable 1U design

• Free cloud management

---

Detailed Specifications

Hardware Specifications

Ethernet Ports

• 10 × 10/100/1000BASE-T Gigabit Ethernet Ports

• 6 × Fixed LAN Ports

• 1 × Fixed WAN Port

• Supports Up to 4 WAN Connections

Processor

• Dual-Core Processor

• 1.35GHz Clock Frequency Per Core

Memory

• RAM: 512MB

• Flash Memory: 256MB

Physical Specifications

• Dimensions: 440 × 200 × 43.6 mm

• Weight: 2.4kg

Installation

• Rack Mountable

• 1U Rack Space Requirement

Environmental Specifications

• Operating Temperature:

  • 0°C to 40°C

  • 32°F to 104°F

---

Software Features

WAN Management

• Up to 4 WAN Connections

• Multi-WAN Load Balancing

• WAN Failover

• Redundancy Link Support

• Aggregated Bandwidth

• Automatic WAN Configuration

• Customisable Link Weight Allocation

• Policy-Based Routing (PBR)

VPN Services

• IPSec VPN

• OpenVPN

• PPTP VPN

• L2TP VPN

• 64 VPN Tunnels

• Up to 300 VPN Users

• Tunnel-Based Traffic Control

Traffic Management

• Real-Time Traffic Visualisation

• Traffic User Ranking

• Application Ranking

• Application-Based QoS

• User-Based Bandwidth Allocation

• Network Performance Monitoring

Security & Authentication

• Cloud Portal Authentication

• Secure Remote Access

• Dynamic Application Library Updates

• Custom Application Library Support

Cloud Management

• Ruijie Cloud Management

• Reyee App Management

• Remote Monitoring

• Remote Maintenance

• Firmware Upgrades via Cloud

• Free DDNS Service

Layer 3 Features

• Static Routing

• Layer 3 Authentication

---

Performance Capacity

Throughput

• Up to 1500Mbps

Concurrent Clients

• Recommended for Up to 350 Concurrent Users

VPN Capacity

• Up to 64 VPN Tunnels

• Up to 300 VPN Users

---

Practical Use Scenarios

Corporate Office Networks

The RG-EG310GH-E provides secure, high-speed internet access and advanced traffic control for medium-sized businesses and corporate offices.

Branch Office Connectivity

Create secure site-to-site VPN connections between headquarters and remote branches using enterprise-grade VPN technologies.

Remote Workforce Support

Enable secure remote access for employees working from home or travelling while maintaining centralised policy control.

Multi-ISP Business Connectivity

Leverage Multi-WAN load balancing and failover capabilities to maximise internet uptime and ensure business continuity.

Bandwidth-Critical Applications

Prioritise video conferencing, cloud applications, ERP systems, financial software, and business-critical services.

Managed IT Environments

Ideal for managed service providers and IT departments seeking centralised cloud-based administration across multiple sites.

---

Warranty Information

• Manufacturer Warranty: Refer to the official Ruijie/Reyee warranty policy applicable in your region.

• Warranty support is provided through authorised distributors and manufacturer support channels.

• Access to firmware updates and cloud management services through the Ruijie ecosystem.

---

Brand Description

Reyee by Ruijie Networks

Reyee, a professional networking brand from Ruijie Networks, delivers cloud-managed networking solutions designed for enterprise, education, hospitality, retail, and commercial environments. Reyee products combine advanced security, intelligent management, and enterprise-grade networking performance with simplified deployment and maintenance.

---

Datasheets & Resources

Available resources may include:

• Product Datasheet

• Compliance Documentation

• Installation Guide

• Configuration Guide

• Implementation Cookbook

• Software Downloads

• Firmware Updates

• Release Notes

• Cloud Management Documentation

---

Excellence for the Australian and New Zealand Market

The RG-EG310GH-E is ideally suited for Australian and New Zealand businesses requiring enterprise-grade routing, secure VPN services, Multi-WAN redundancy, and cloud-based network management. Its rack-mountable design and advanced performance capabilities make it ideal for business-critical environments.

Key advantages for Australian and New Zealand customers include:

• Optimised for NBN Enterprise Ethernet, fibre, and business broadband services

• High-performance 1.5Gbps routing throughput

• Enterprise-grade VPN support for remote workers and branch offices

• Multi-WAN redundancy and intelligent load balancing

• Advanced bandwidth and traffic management

• Cloud-based deployment, monitoring, and maintenance

• Rack-mountable 1U form factor for professional network cabinets

• Genuine products sourced through authorised distribution channels

• Access to official firmware updates and manufacturer support

• Warranty support handled according to official manufacturer policies

---

FAQs

Q1: What is the maximum throughput of the RG-EG310GH-E?

The RG-EG310GH-E supports routing throughput of up to 1500Mbps for high-performance business networking environments.

Q2: How many VPN users does the RG-EG310GH-E support?

The RG-EG310GH-E supports up to 300 VPN users and up to 64 VPN tunnels simultaneously.

Q3: What VPN protocols are supported by the RG-EG310GH-E?

The RG-EG310GH-E supports IPSec, OpenVPN, PPTP, and L2TP VPN protocols.

Q4: Does the RG-EG310GH-E support Multi-WAN load balancing?

Yes, the RG-EG310GH-E supports up to four WAN connections with intelligent load balancing, redundancy, failover, and Policy-Based Routing.

Q5: How many concurrent users can the RG-EG310GH-E support?

The RG-EG310GH-E is recommended for networks with up to 350 concurrent users.

Q6: Does the RG-EG310GH-E provide traffic visualisation and monitoring?

Yes, the RG-EG310GH-E includes traffic visualisation tools, application rankings, user rankings, and network monitoring functions.

Q7: Can the RG-EG310GH-E prioritise business-critical applications?

Yes, the RG-EG310GH-E supports application-based and user-based bandwidth management to prioritise critical services and users.

Q8: Do the LAN ports on the RG-EG310GH-E support Layer 3 functionality?

Yes, the RG-EG310GH-E LAN ports support Layer 3 static routing and authentication capabilities.

Q9: Can the RG-EG310GH-E support more than 64 PPPoE clients?

Yes, updated firmware released by Ruijie increased PPPoE client support to 128 clients on the RG-EG310GH-E.

Q10: Does the RG-EG310GH-E include free cloud management?

Yes, the RG-EG310GH-E includes free Ruijie Cloud management for remote administration, monitoring, maintenance, and firmware upgrades.
