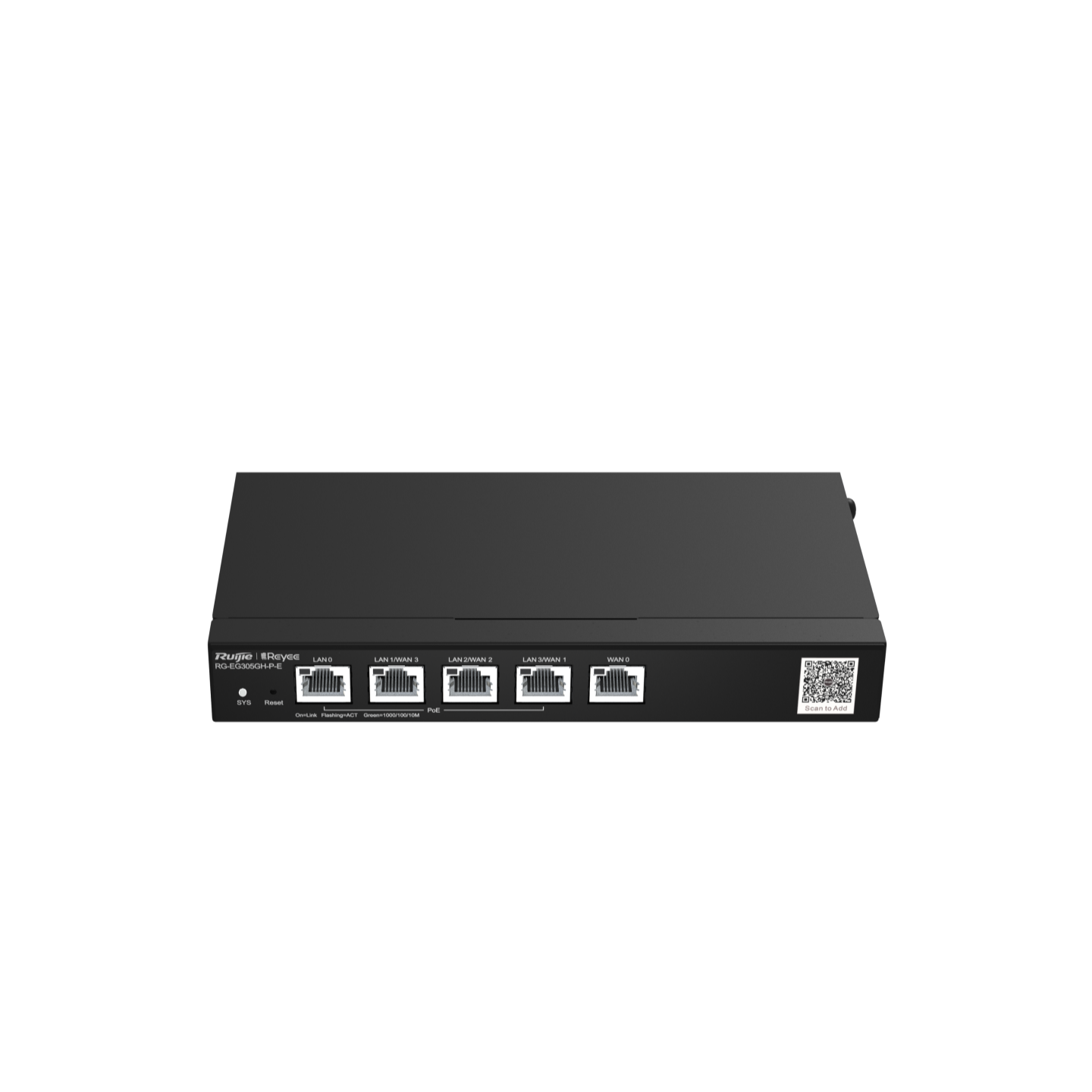

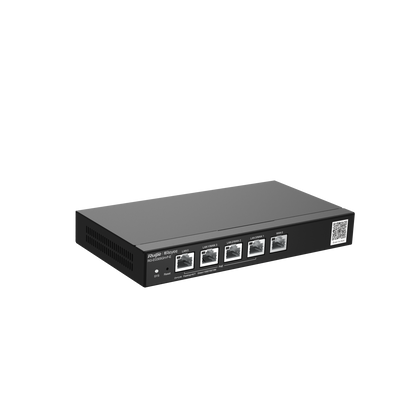

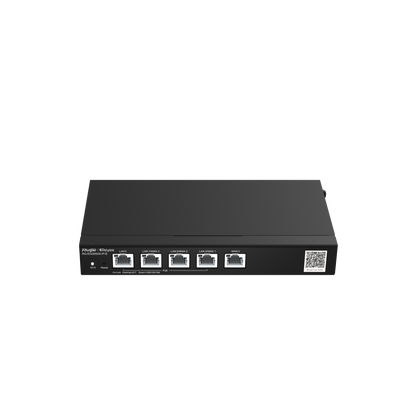

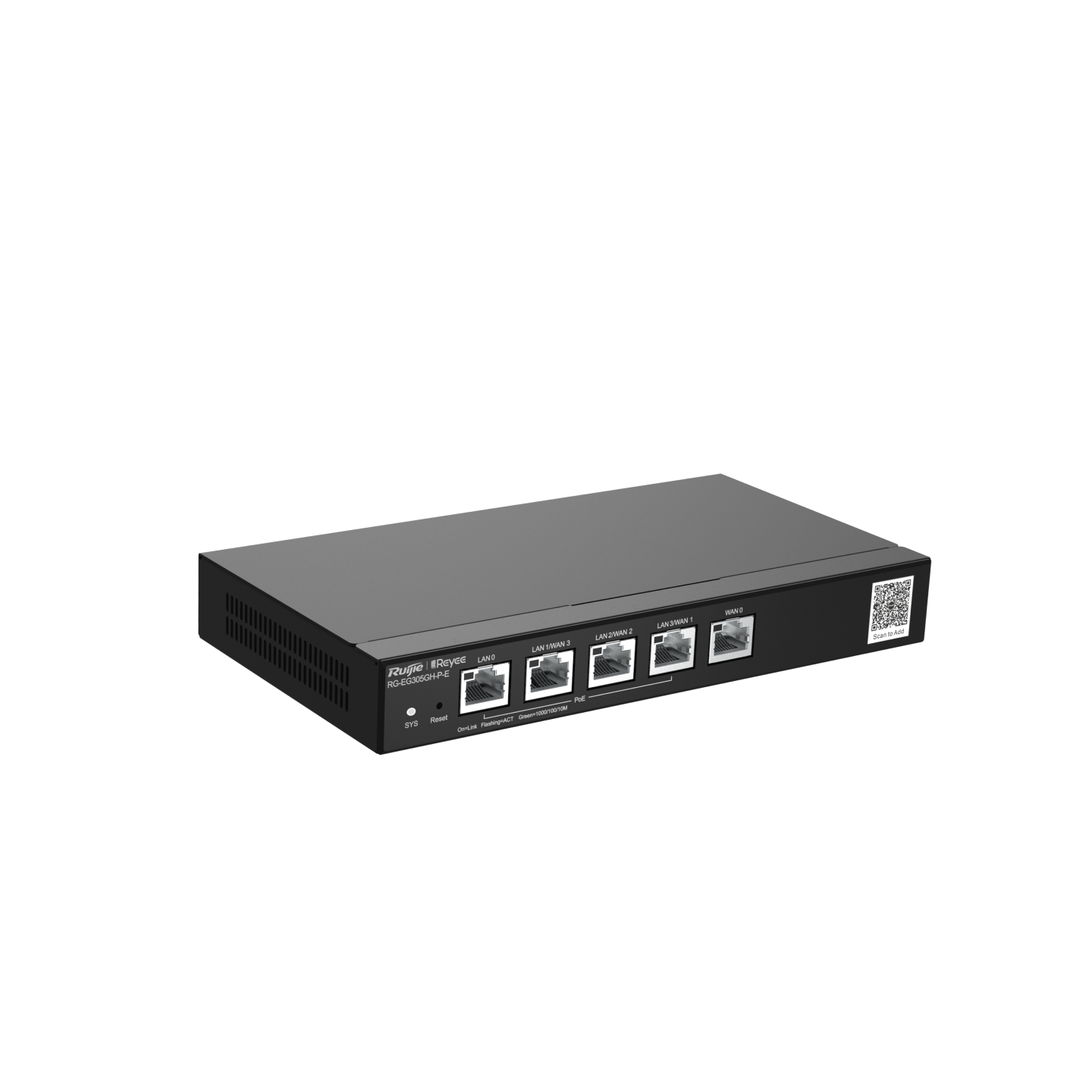

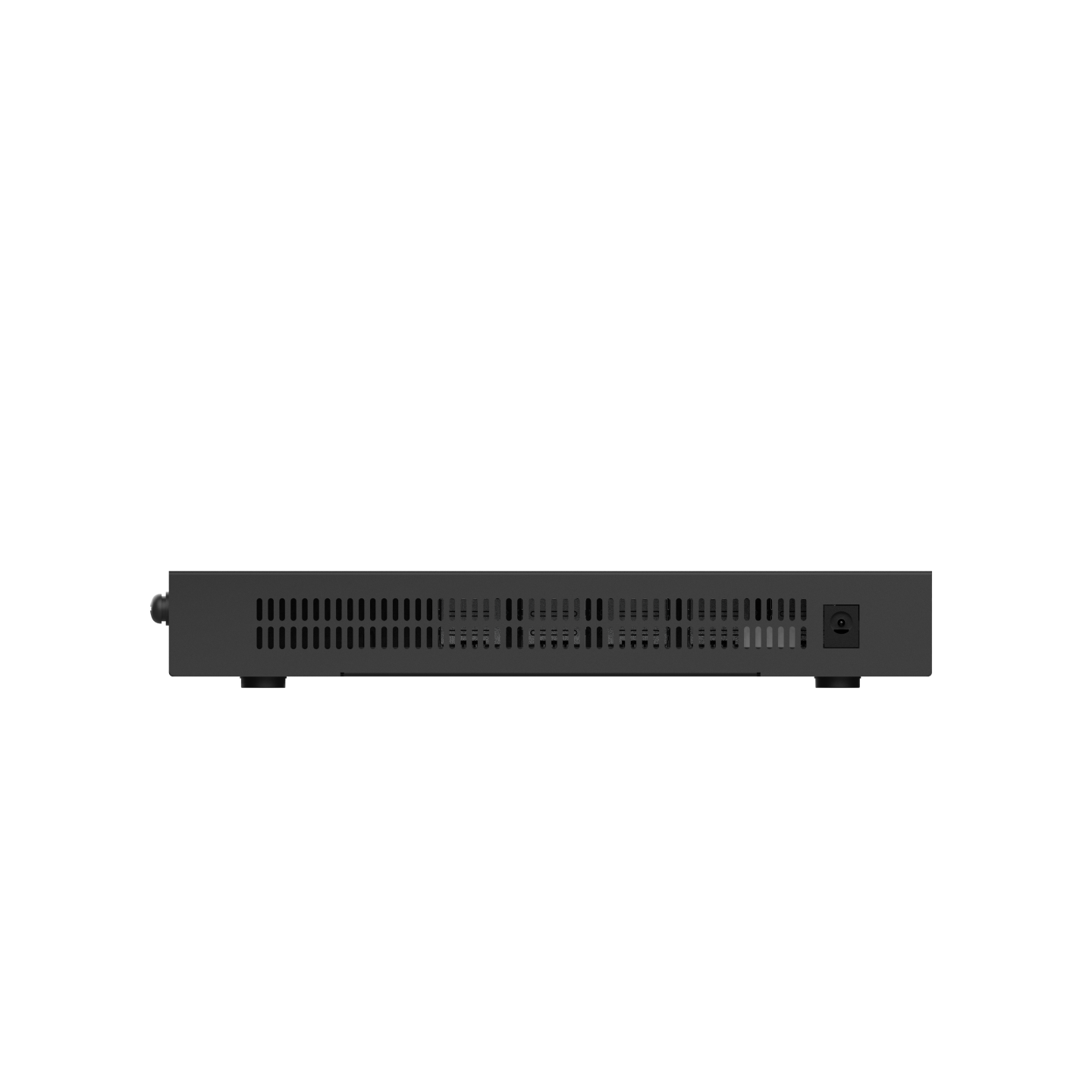

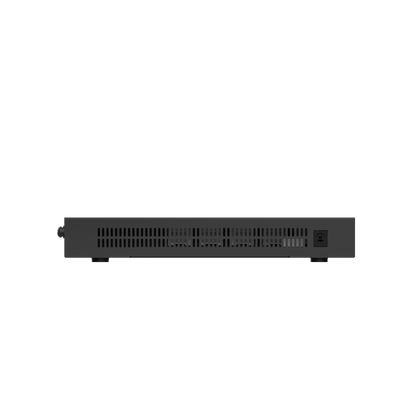

Ruijie RG-EG305GH-P-E, Reyee 5-Port High Performance Cloud Managed PoE Office Router

The RG-EG305GH-P-E Reyee High-Performance Cloud Managed PoE Office Router is a professional business gateway engineered for modern office environments, branch networks, and organisations with remote employees. Designed to provide high-speed connectivity, secure VPN access, intelligent traffic management, and simplified cloud administration, the RG-EG305GH-P-E delivers enterprise-grade functionality in a compact and easy-to-deploy platform.

Powered by a dual-core 1.35GHz processor and equipped with 512MB RAM, the router achieves up to 1.5Gbps throughput while supporting up to 350 concurrent users and 64 VPN tunnels. Advanced capabilities including Multi-WAN load balancing, Policy-Based Routing (PBR), application-aware bandwidth management, user-based traffic prioritisation, cloud portal authentication, and remote monitoring make the RG-EG305GH-P-E an ideal networking solution for growing businesses and distributed office environments.

---

What's Included in the Box

• 1 × RG-EG305GH-P-E Reyee Cloud Managed PoE Router

• 1 × Power Adapter

• 1 × Quick Installation Guide

• Product Documentation

---

Main Features

• High-performance cloud-managed office router

• Up to 1.5Gbps routing throughput

• Supports up to 350 concurrent users

• Supports up to 64 VPN tunnels

• Up to 300 VPN users

• Multi-WAN load balancing

• WAN redundancy and failover

• Policy-Based Routing (PBR)

• IPSec VPN support

• OpenVPN support

• L2TP VPN support

• PPTP VPN support

• Tunnel-based traffic control

• Application-based bandwidth management

• User-based bandwidth management

• Traffic visualisation and monitoring

• Free DDNS service

• Cloud portal authentication

• Remote monitoring and maintenance

• Firmware upgrades via Ruijie Cloud

• Dynamic application library updates

• Custom application library support

• Integrated PoE functionality

• 60W PoE power budget

• Free cloud management platform

---

Detailed Specifications

Hardware Specifications

Ethernet Ports

• 5 × 10/100/1000BASE-T Gigabit Ethernet Ports

• 1 × Fixed LAN Port

• 1 × Fixed WAN Port

• Supports Up to 4 WAN Connections

Processor

• Dual-Core Processor

• 1.35GHz Clock Frequency Per Core

Memory

• RAM: 512MB

• Flash Memory: 256MB

PoE Specifications

• Total PoE Budget: 60W

Physical Specifications

• Dimensions: 202 × 108 × 28 mm

• Weight: 1.2kg

Installation

• Desktop Mounting

Environmental Specifications

• Operating Temperature:

  • 0°C to 40°C

  • 32°F to 104°F

---

Software Features

WAN Management

• Up to 4 WAN Connections

• Multi-WAN Load Balancing

• WAN Failover

• Redundancy Link Support

• Aggregated Bandwidth

• Automatic WAN Configuration

• Customisable Link Weight Allocation

• Policy-Based Routing (PBR)

VPN Services

• IPSec VPN

• OpenVPN

• L2TP VPN

• PPTP VPN

• 64 VPN Tunnels

• Up to 300 VPN Users

• Tunnel-Based Traffic Management

Traffic Management

• Real-Time Traffic Visualisation

• User Traffic Ranking

• Application Traffic Ranking

• Application-Based QoS

• User-Based Bandwidth Allocation

Security & Authentication

• Cloud Portal Authentication

• Secure Remote Access

• Dynamic Application Database Updates

• Custom Application Library

Cloud Management

• Ruijie Cloud Management

• Reyee App Management

• Remote Monitoring

• Remote Maintenance

• Cloud-Based Firmware Upgrades

• Free DDNS Service

Layer 3 Features

• Static Routing

• Layer 3 Authentication

---

Performance Capacity

Throughput

• Up to 1500Mbps

Concurrent Clients

• Recommended for Up to 350 Concurrent Users

VPN Capacity

• Up to 64 VPN Tunnels

• Up to 300 VPN Users

---

Practical Use Scenarios

Corporate Office Networks

The RG-EG305GH-P-E provides secure and reliable connectivity for offices requiring high-performance internet access, VPN connectivity, and traffic management.

Remote Workforce Connectivity

Support remote employees through secure VPN access while maintaining centralised management and visibility.

Branch Office Networking

Deploy secure site-to-site and remote-access VPNs for distributed business locations.

Multi-ISP Business Internet

Use Multi-WAN load balancing and redundancy to maximise uptime and maintain business continuity.

Bandwidth-Sensitive Applications

Prioritise critical business applications such as video conferencing, ERP systems, finance platforms, and cloud services.

Managed Business Networks

Cloud-based administration enables IT teams and managed service providers to monitor and maintain networks remotely.

---

Warranty Information

• Manufacturer Warranty: Refer to the official Ruijie/Reyee warranty policy applicable in your region.

• Warranty support is provided through authorised distributors and manufacturer support channels.

• Access to firmware updates and cloud management services through the Ruijie ecosystem.

---

Brand Description

Reyee by Ruijie Networks

Reyee, a professional networking brand from Ruijie Networks, delivers cloud-managed networking solutions designed for businesses, hospitality venues, education, retail, and enterprise environments. Reyee products combine enterprise-grade security, intelligent cloud management, and high-performance networking technologies to simplify business connectivity.

---

Datasheets & Resources

Available resources may include:

• Product Datasheet

• Compliance Documentation

• Installation Guide

• Configuration Guide

• Implementation Cookbook

• Software Downloads

• Firmware Updates

• Release Notes

• Cloud Management Documentation

---

Excellence for the Australian and New Zealand Market

The RG-EG305GH-P-E is ideally suited for Australian and New Zealand businesses requiring high-performance routing, secure VPN access, Multi-WAN redundancy, and cloud-based management. Its advanced traffic control features and enterprise-grade performance make it an excellent solution for offices, remote work environments, and distributed business operations.

Key advantages for Australian and New Zealand customers include:

• Optimised for NBN Enterprise Ethernet, fibre, and business-grade internet services

• High-performance 1.5Gbps throughput for demanding business applications

• Advanced VPN capabilities for branch offices and remote workers

• Multi-WAN load balancing and failover for improved uptime

• Intelligent bandwidth and traffic management

• Cloud-based administration and monitoring

• Genuine products sourced through authorised distribution channels

• Access to official firmware updates and manufacturer support

• Warranty support handled according to official manufacturer policies

• Designed for business-critical networking environments

---

FAQs

Q1: What is the maximum throughput of the RG-EG305GH-P-E?

The RG-EG305GH-P-E supports routing throughput of up to 1500Mbps, making it suitable for high-performance office and business networks.

Q2: How many VPN users does the RG-EG305GH-P-E support?

The RG-EG305GH-P-E supports up to 300 VPN users and up to 64 VPN tunnels simultaneously.

Q3: What VPN protocols are supported by the RG-EG305GH-P-E?

The RG-EG305GH-P-E supports IPSec, OpenVPN, L2TP, and PPTP VPN protocols.

Q4: Does the RG-EG305GH-P-E support Multi-WAN load balancing?

Yes, the RG-EG305GH-P-E supports up to four WAN connections with intelligent load balancing, failover, redundancy, and Policy-Based Routing.

Q5: What PoE budget does the RG-EG305GH-P-E provide?

The RG-EG305GH-P-E includes a total PoE power budget of 60W.

Q6: How many concurrent users can the RG-EG305GH-P-E support?

The RG-EG305GH-P-E is recommended for networks with up to 350 concurrent users.

Q7: Does the RG-EG305GH-P-E provide traffic monitoring and visualisation?

Yes, the RG-EG305GH-P-E includes real-time traffic visualisation, user traffic ranking, and application traffic monitoring tools.

Q8: Can the RG-EG305GH-P-E prioritise business-critical applications?

Yes, the RG-EG305GH-P-E supports application-based and user-based bandwidth management to prioritise critical business services.

Q9: Do the LAN ports on the RG-EG305GH-P-E support Layer 3 functionality?

Yes, the RG-EG305GH-P-E LAN ports support Layer 3 static routing and authentication functions.

Q10: Does the RG-EG305GH-P-E include free cloud management?

Yes, the RG-EG305GH-P-E includes free Ruijie Cloud management for remote monitoring, maintenance, firmware upgrades, and centralised administration.
