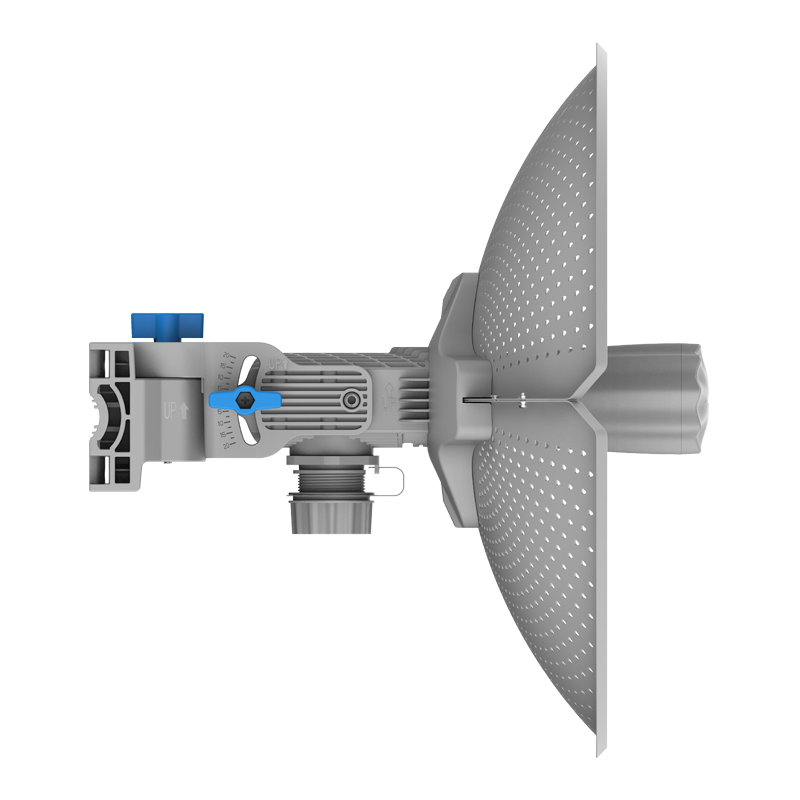

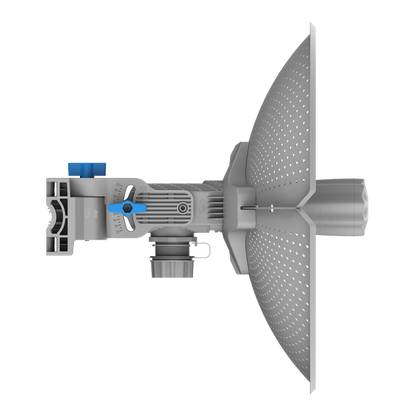

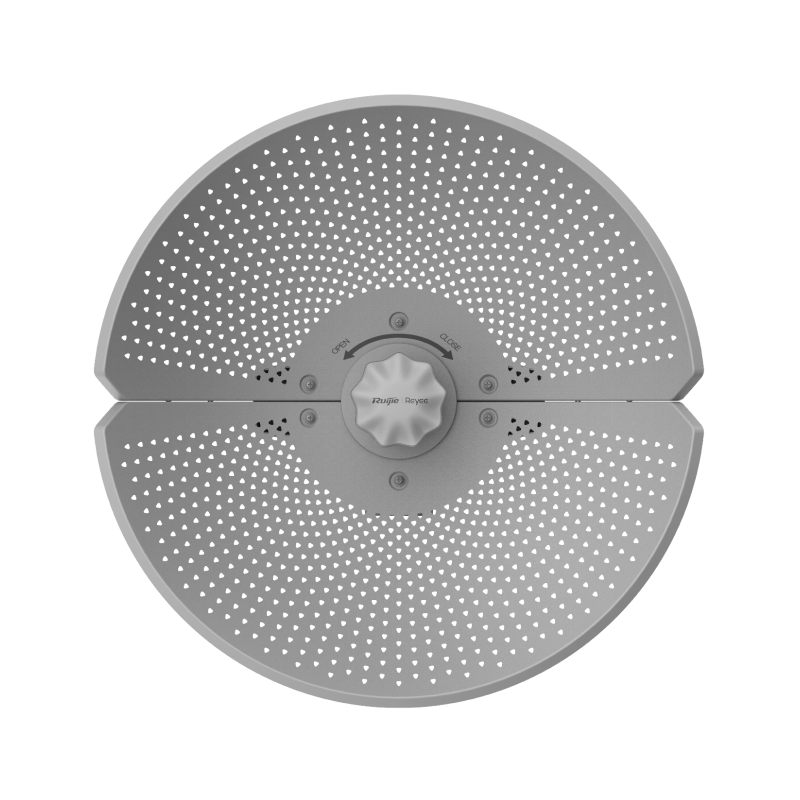

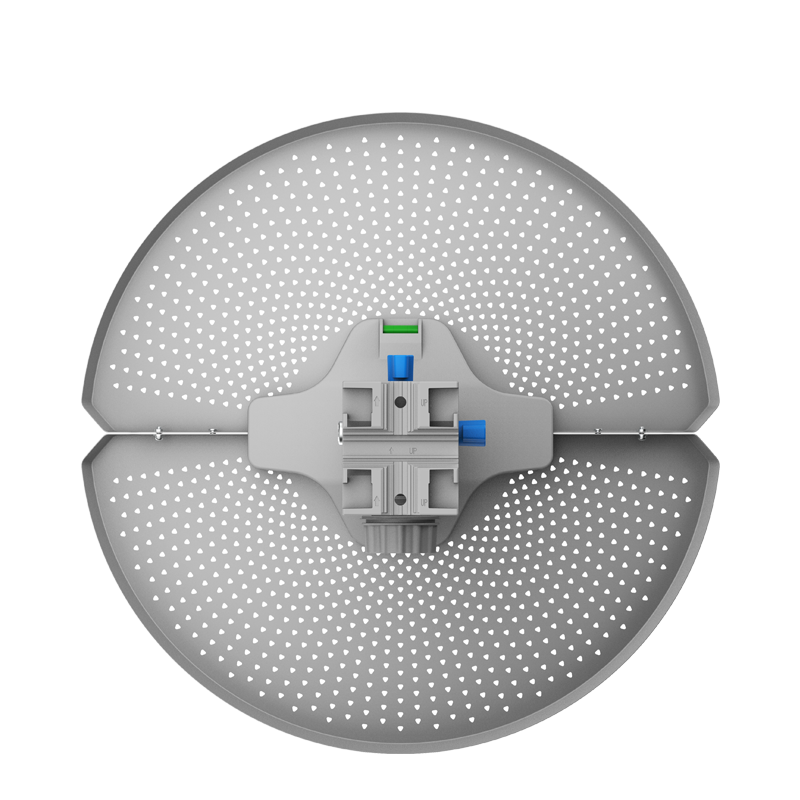

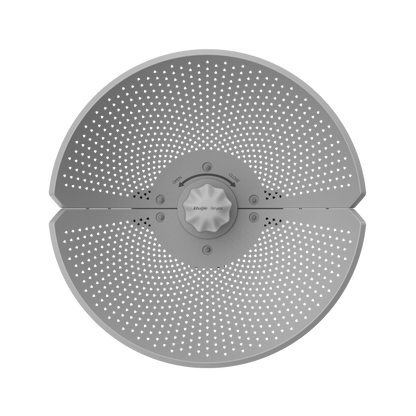

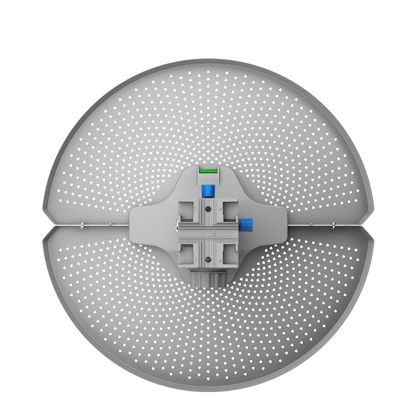

Ruijie RG-AirMetro460G Wireless Bridge CPE – 5GHz, 867 Mbps, 23 dBi, 15 km PTP/PTMP, IP65, 1GE Port, Cloud-Managed Outdoor CPE

The Ruijie RG-AirMetro460G is a high-performance outdoor wireless bridge CPE from the RG-AirMetro Series, purpose-built for WISPs, CCTV backhaul, industrial facilities, and urban infrastructure deployments. Supporting both Point-to-Point (PTP) and Point-to-MultiPoint (PTMP) modes, it delivers 867 Mbps capacity over the 5 GHz band, ensuring reliable long-distance connectivity of up to 15 km.

With 23 dBi high-gain antennas, rugged IP65-rated housing, and protection against ±24 kV ESD and 6 kV surges, the RG-AirMetro460G is engineered for robust outdoor performance in harsh climates. The unit offers 24 V Passive PoE power supply, one-touch pairing in 30 seconds, and all-in-one cloud-based management, making deployment simple and efficient for service providers and enterprises alike.

What’s Included in the Box

• 1 × RG-AirMetro460G CPE Unit

• Mounting Kit

• Quick Start Guide

• Waterproof Accessories

Key Features

• Long-Range Wireless Connectivity – Supports PTP working distances up to 15 km.

• High Capacity – 5 GHz band with speeds up to 867 Mbps.

• Fast Deployment – One-touch pairing (30 sec) or app-based pairing (2 mins).

• Industrial Durability – IP65-rated, withstands –40℃ to +70℃ and winds up to 220.32 km/h (137 mph).

• Robust Protection – ±24 kV ESD and 6 kV surge protection.

• Cloud Management – Centralized configuration, monitoring, and management.

• Flexible Powering – Powered via 24 V Passive PoE.

• LED Indicators – Includes signal strength, LAN, and system LEDs for quick diagnostics.

Technical Specifications

• Model: RG-AirMetro460G

• Wireless Capacity: 5 GHz, up to 867 Mbps

• Antenna Gain: 23 dBi

• Beam Angle: H: 9°, V: 9°

• Working Distance: Max. 15 km

• Ports: 1 × 10/100/1000 Mbps GE port

• Power Supply: 24 V Passive PoE

• LEDs: 3 Signal LEDs, 1 LAN LED, 1 System LED

• Dimensions: Ø368.5 mm × 271 mm (including mounting kit)

• Operation Temperature: –40℃ to +70℃ (–40°F to +158°F)

• Wind Resistance: Up to 220.32 km/h (137 mph)

• Environmental Rating: IP65

• ESD Protection: ±24 kV Contact/Air

• Surge Protection: 6 kV

• Pairing Options: One-touch or app pairing

• Certification: CE

Warranty Information

The Ruijie RG-AirMetro460G comes with a limited manufacturer’s warranty, covering material and workmanship defects. Warranty claims and service are supported through authorized Ruijie distribution partners.

Brand Overview

Ruijie Networks is a leading provider of networking and communication solutions, offering advanced products for wireless, cloud, and security infrastructure. With a strong focus on performance, durability, and simplified management, Ruijie delivers solutions trusted by enterprises, ISPs, and government sectors worldwide.

SKU

RG-AirMetro460G

Practical Use Scenarios

• WISP Operators: Extend connectivity to rural and suburban customers.

• CCTV Networks: Backhaul video streams across long distances with low latency.

• Factories & Industrial Sites: Provide high-speed wireless links for monitoring and automation.

• City Surveillance & Roads: Connect cameras and sensors for smart city infrastructure.

• Campus Networks: Interconnect multiple buildings without expensive cabling.

Technical Documents & Downloads

• RG-AirMetro460G Datasheet

Excellence for the Australian and New Zealand Market

• Certified to CE Standards, suitable for ANZ deployments.

• Engineered for Harsh Outdoor Conditions – Survives extreme weather and wind loads.

• Optimized for WISP & CCTV Applications in AU/NZ – Reliable long-distance wireless bridging.

• Available via Authorized Ruijie Distributors – Ensuring authenticity and warranty support.

• Local Warranty Support – Fast resolution via official Ruijie service channels.

Frequently Asked Questions (FAQs) – SKU: RG-AirMetro460G

Q1: What is the maximum working distance of the RG-AirMetro460G?
A1: The RG-AirMetro460G supports Point-to-Point wireless links up to 15 km, ensuring stable long-distance connectivity.

Q2: What power method is used in the RG-AirMetro460G?
A2: The device is powered by 24 V Passive PoE, simplifying installation with single-cable power and data.

Q3: How weatherproof is the RG-AirMetro460G?
A3: With an IP65 rating, the RG-AirMetro460G withstands rain, dust, and extreme temperatures from –40℃ to +70℃.

Q4: Does the RG-AirMetro460G support fast installation?
A4: Yes, the unit allows one-touch pairing in 30 seconds or app-based pairing within 2 minutes, streamlining setup.

Q5: What is the maximum capacity of the RG-AirMetro460G?
A5: It supports 867 Mbps throughput on the 5 GHz band, ideal for CCTV and data-heavy applications.

Q6: What protection does the RG-AirMetro460G provide against surges and ESD?
A6: It includes ±24 kV ESD protection and 6 kV surge protection for reliable outdoor use.

Q7: Can the RG-AirMetro460G be managed remotely?
A7: Yes, it supports all-in-one cloud management, simplifying configuration and monitoring across multiple sites.
