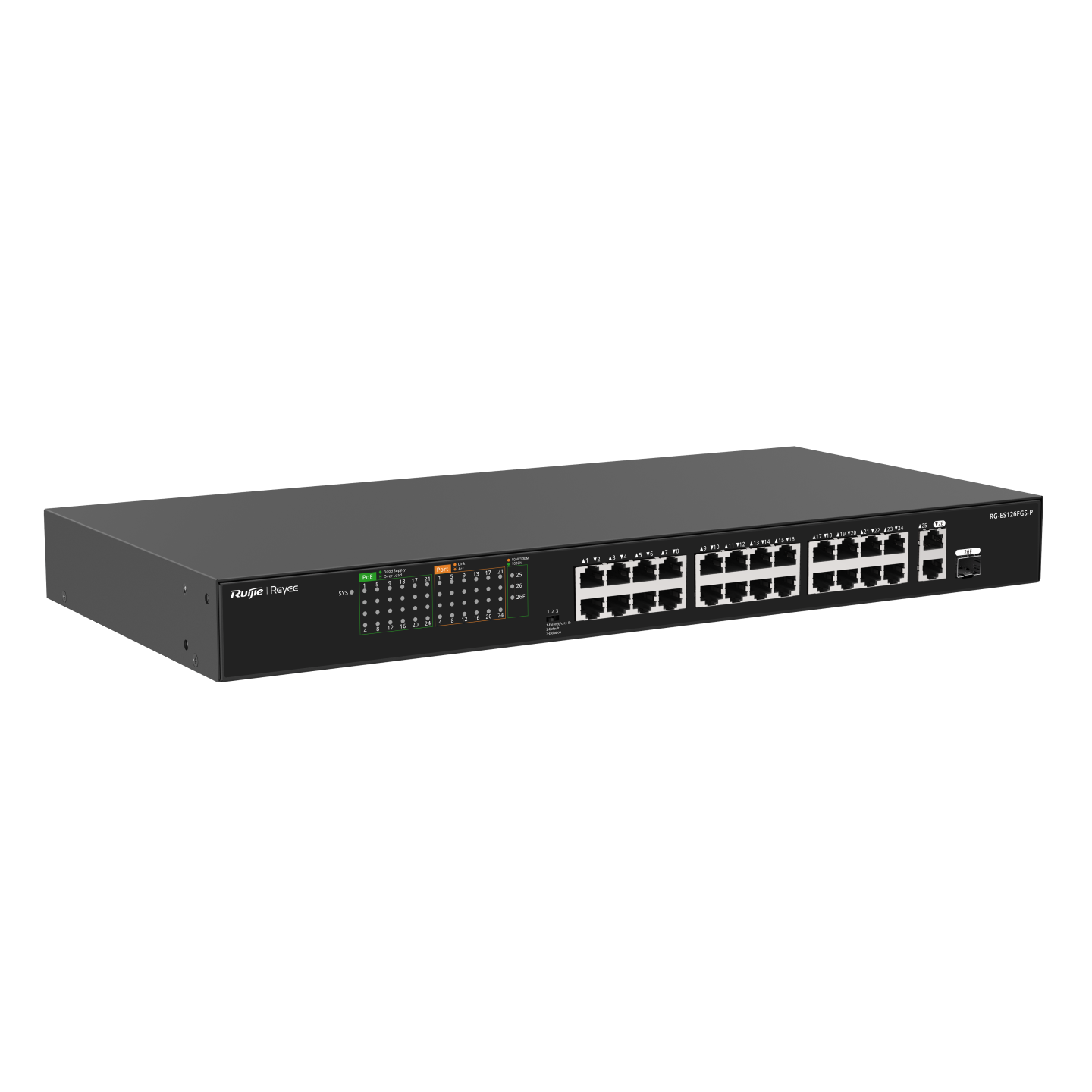

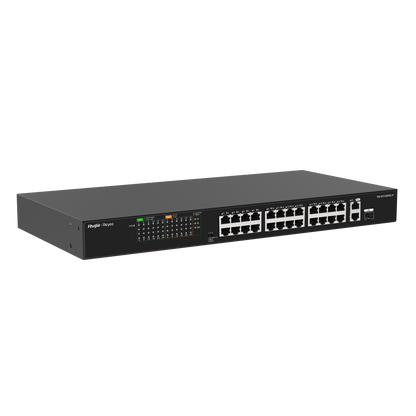

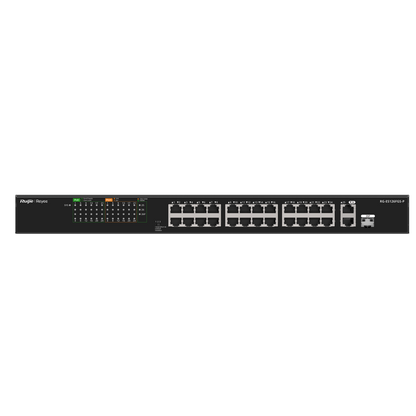

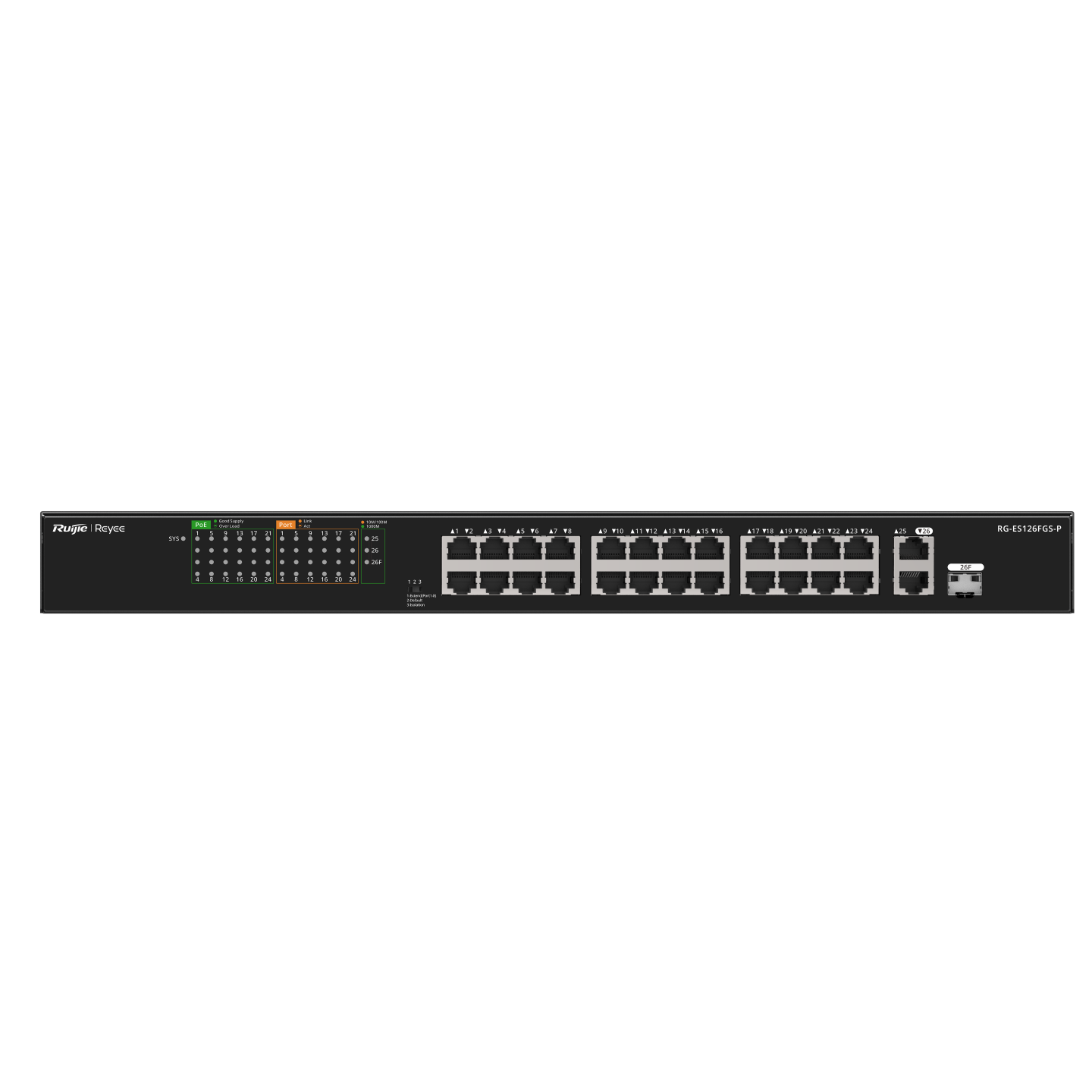

Ruijie Reyee RG-ES126FGS-P 26-Port Unmanaged PoE Switch | 24 PoE+ Ports | 2 Gigabit Uplink Ports | 1 SFP Combo Port | 370W PoE Budget

The Ruijie Reyee RG-ES126FGS-P is a high-capacity 26-port unmanaged PoE switch specifically designed for large-scale CCTV surveillance systems and business network deployments. Featuring 24 x 10/100 Mbps PoE+ ports, 2 Gigabit RJ45 uplink ports, and 1 Gigabit SFP combo uplink port, this switch provides extensive connectivity while delivering a substantial 370W total PoE power budget to support multiple IP cameras, wireless access points, VoIP phones, and other powered devices.

Built with intelligent PoE management technology, the RG-ES126FGS-P includes PoE Auto Recovery (PoE Watchdog), Port Isolation, and Extend Mode supporting transmission distances up to 250 metres, ensuring reliable performance in demanding surveillance environments. Its plug-and-play design allows for rapid deployment without configuration, while Ruijie Cloud visibility provides convenient monitoring when installed alongside a managed Ruijie switch. Combining enterprise-level PoE capacity, enhanced CCTV functionality, and dependable performance, this switch is an ideal solution for security integrators, commercial facilities, retail stores, educational campuses, and hospitality venues.

---

What's Included in the Box

• 1 × Ruijie Reyee RG-ES126FGS-P Unmanaged PoE Switch

• Power Cable

• Installation Guide

• Warranty Information

---

Main Features

• 26-Port Layer 2 Unmanaged PoE Switch

• 24 × 10/100 Mbps PoE+ Ports

• 2 × 10/100/1000 Mbps Gigabit Uplink Ports

• 1 × Gigabit SFP Combo Uplink Port

• 370W Total PoE Budget

• Up to 30W PoE Output Per Port

• Plug-and-Play Installation

• Intelligent PoE Management

• PoE Auto Recovery (PoE Watchdog)

• Extend Mode with Up to 250m Transmission Distance

• Port Isolation Security Feature

• CCTV Network Optimisation

• Energy-Efficient Operation

• Industrial-Quality PCB Design

• Ruijie Cloud Visibility*

• 3-Year Manufacturer Warranty

*Cloud visualisation requires at least one managed Ruijie switch deployed within the same network.

---

Detailed Specifications

General

• Model: RG-ES126FGS-P

• Product Category: Layer 2 Unmanaged Switch

• Deployment Type: Desktop / Rackmount Installation

Ports

• Total RJ45 Ports: 26

• Total Optical Ports: 1

• Fast Ethernet Ports:

  • 24 × 10/100BASE-T

• Gigabit RJ45 Ports:

  • 2 × 10/100/1000BASE-T

• Gigabit SFP Ports:

  • 1 × 1GE SFP Combo Port

PoE Specifications

• PoE Output Ports: 24

• PoE+ Output Ports: 24

• Total PoE Budget: 370W

• Maximum PoE Output Per Port: 30W

• PoE Power Pins:

  • 1–2 (+)

  • 3–6 (-)

Performance

• Switching Capacity: 8.8 Gbps

• Forwarding Rate: 6.5 Mpps

Network Features

• Intelligent PoE Management

• PoE Auto Recovery (Watchdog)

• Port Isolation

• Flexible Extend Mode

• CCTV Network Optimisation

Long-Distance Transmission

• Supports Distances Up to 250m (820 ft)

• Ideal for Large CCTV and Security Deployments

Cloud Features

• Ruijie Cloud Visualisation Supported

• Requires One Managed Ruijie Switch on the Same Network

Environmental

• Operating Temperature:

  • 0°C to 45°C

  • 32°F to 113°F

---

Warranty

• 3-Year Manufacturer Warranty

---

About Ruijie Reyee

Ruijie Reyee is a globally recognised networking brand specialising in professional switches, wireless networking solutions, routers, and cloud-managed infrastructure products. Designed for reliability, simplicity, and performance, Reyee solutions are trusted by businesses, educational institutions, hospitality providers, and security professionals worldwide.

---

SKU

RG-ES126FGS-P

---

Practical Use Scenarios

Large CCTV Surveillance Installations

Power and connect up to 24 PoE-enabled IP cameras while benefiting from intelligent PoE management and extended transmission capabilities.

Retail and Shopping Centres

Support security systems, wireless infrastructure, point-of-sale equipment, and business networking requirements.

Educational Facilities

Ideal for campus-wide surveillance systems, classrooms, administration buildings, and public areas.

Hospitality and Accommodation

Provide reliable networking for guest services, security infrastructure, wireless access points, and VoIP communications.

Warehouses and Industrial Sites

Support large-scale surveillance networks and operational infrastructure across extensive facilities.

Commercial Buildings

Deliver centralised PoE connectivity for security, communications, and network expansion projects.

---

Datasheets & Downloadable Resources

Available resources include:

• Product Datasheet

• Installation Guide

• Compliance Documentation

• Implementation Cookbook

• FAQ Documentation

• Technical Support Resources

---

Excellence for the Australian and New Zealand Market

The Ruijie Reyee RG-ES126FGS-P has been selected for professional surveillance and networking deployments throughout Australia and New Zealand. Sourced through authorised distribution channels, it ensures genuine manufacturer warranty support, access to official technical resources, and dependable performance in local commercial environments. With its massive 370W PoE budget, high-density PoE connectivity, intelligent CCTV features, and flexible uplink options, the RG-ES126FGS-P is ideally suited for large-scale ANZ security and networking projects.

---

FAQs

Q1. What is the RG-ES126FGS-P used for?

The RG-ES126FGS-P is designed for large CCTV surveillance systems, business networking, wireless access points, VoIP phones, and other PoE-powered network devices.

Q2. How many PoE devices can the RG-ES126FGS-P support?

The RG-ES126FGS-P features 24 PoE+ ports and can power up to 24 compatible PoE devices within its 370W power budget.

Q3. What is the PoE budget of the RG-ES126FGS-P?

The RG-ES126FGS-P provides a substantial 370W total PoE budget, making it suitable for high-density surveillance and networking deployments.

Q4. Does the RG-ES126FGS-P support Gigabit uplinks?

Yes. The RG-ES126FGS-P includes two Gigabit RJ45 uplink ports and one Gigabit SFP combo uplink port for high-speed backbone connectivity.

Q5. Does the RG-ES126FGS-P support fibre connectivity?

Yes. The RG-ES126FGS-P includes a Gigabit SFP combo port that can be used for fibre network uplinks when equipped with a compatible SFP module.

Q6. What is PoE Auto Recovery on the RG-ES126FGS-P?

The RG-ES126FGS-P automatically detects and restarts unresponsive PoE-powered devices, helping maintain continuous network operation.

Q7. Does the RG-ES126FGS-P support long-distance CCTV deployments?

Yes. The RG-ES126FGS-P supports transmission distances of up to 250 metres in Extend Mode, ideal for remote camera installations.

Q8. Does the RG-ES126FGS-P include network security features?

Yes. The RG-ES126FGS-P includes Port Isolation functionality to improve network security and optimise CCTV performance.

Q9. Can the RG-ES126FGS-P be monitored through Ruijie Cloud?

Yes. The RG-ES126FGS-P can be visualised within Ruijie Cloud when deployed alongside at least one managed Ruijie switch.

Q10. Is the RG-ES126FGS-P suitable for large-scale surveillance deployments?

Absolutely. The RG-ES126FGS-P is specifically designed for medium to large CCTV installations requiring high PoE capacity and reliable long-distance connectivity.

Q11. What warranty comes with the RG-ES126FGS-P?

The RG-ES126FGS-P includes a comprehensive 3-year manufacturer warranty.

Q12. Is the RG-ES126FGS-P suitable for Australian and New Zealand commercial projects?

Yes. The RG-ES126FGS-P is ideal for retail centres, schools, hospitality venues, warehouses, commercial buildings, and professional surveillance installations throughout Australia and New Zealand.
