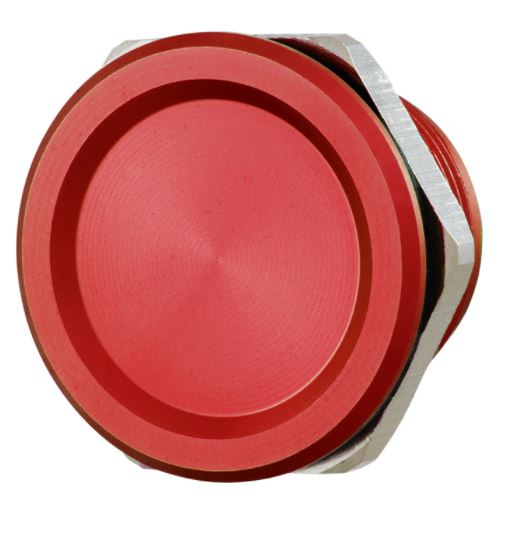

Rosslare PX-13 Rugged Piezoelectric Switch – 22mm IP68 Anti-Vandal N.O. Push Button for Access Control

Rosslare's PX-13 combines solid-state piezoelectric switching technology with a durable metal enclosure. Actuation is detected through the solid metal surface, allowing the switch to operate without the mechanical movement associated with conventional push buttons.

This design makes the PX-13 particularly suitable for high-use and exposed environments. Its fully potted construction protects the internal electronics against water, dirt and dust, while the AL6061 aluminium alloy body with Type II anodisation provides a rugged, corrosion-resistant finish.

The switch produces a normally open switching pulse when actuated and uses a simple two-wire, non-polarised interface. Rosslare specifies the current PX-13 for switching voltages up to 30 V AC/DC and a maximum switching current of 1 A. The current manufacturer datasheet also specifies a button life of up to 20 million cycles.

The PX-13 can be integrated with Rosslare access controllers, security systems and compatible third-party equipment. In access control installations, it can be used as a REX/request-to-exit button or system input.

What's Included in the Box

• 1 × Rosslare PX-13 Rugged Piezoelectric Switch in the ordered colour/version

Main Features

• Rugged solid-state piezoelectric switch technology
• Normally Open (N.O.) switching operation
• Standard 22 mm panel mounting thread
• IP68-rated waterproof construction
• Suitable for indoor and outdoor installations
• No mechanical switch movement or moving parts
• Up to 20 million actuation cycles according to the current Rosslare datasheet
• Switches 0–30 V AC/DC according to the current manufacturer datasheet
• Maximum switching current: 1 A
• Impulse time greater than 50 ms on actuation
• Two-wire interface
• No polarity requirement
• Fully potted construction for resistance to water, dust and dirt
• AL6061 aluminium alloy construction with Type II anodisation
• Anti-vandal design
• Non-sparking and non-magnetic construction
• Corrosion-resistant design
• Can be operated using a finger or glove
• Operating temperature range from -40°C to +70°C
• Compatible with Rosslare controllers, security systems and many third-party systems
• Suitable for REX and general system-input applications

Detailed Specifications

*The user's supplied legacy documentation states 5–12 VDC and contains differing lifespan information. Rosslare's current official PX-13 datasheet specifies 0–30 V AC/DC, 1 A maximum and up to 20 million cycles, so these current manufacturer specifications have been prioritised.

Ordering Information

Note: Colour and ordering codes above are based on the supplied product documentation. Confirm the required colour and current ordering code before purchase where a particular finish is essential.

SKU

SKU / Product Code: PX-13

Manufacturer: Rosslare

Product Family: Rugged Piezoelectric Switches

Compatible Systems

The PX-13 is designed for integration with Rosslare access controllers, security systems and compatible third-party equipment. The supplied documentation specifically identifies controllers including the AC-225, AC-215 and AC-115 as examples of compatible Rosslare systems.

Typical integration includes:

• Request-to-exit (REX) input
• Access control system input
• Alarm input
• Event input
• Security system switching
• Compatible third-party dry-contact/input applications

Always verify the electrical input requirements of the connected controller or system before installation.

Practical Use Scenarios

Access Control Request-to-Exit:
Install the PX-13 as a durable REX button at controlled doors where frequent daily operation demands a switch without conventional moving contacts.

Outdoor Entry and Exit Points:
The IP68 construction makes the PX-13 suitable for appropriately designed outdoor access-control installations exposed to rain, moisture, dirt and dust.

High-Traffic Commercial Buildings:
Its solid-state piezoelectric operation and long rated service life make it well suited to offices, commercial premises and other frequently accessed facilities.

Industrial Environments:
The aluminium enclosure, wide operating-temperature range and fully potted construction provide a practical switching solution for demanding environments.

Security and Alarm Inputs:
The PX-13 can serve as a system input for compatible Rosslare access controllers and other suitable security equipment.

Public-Facing Installations:
Anti-vandal construction and the absence of moving switch components make the PX-13 suitable for exposed, frequently used installations.

Warranty Information

The supplied legacy documentation states a 5-year limited product warranty. However, Rosslare's current official PX-13 datasheet lists a Lifetime Warranty, and Rosslare's current warranty policy categorises the PX-13, PX-23 and PX-34 under a limited lifetime warranty. Current warranty terms and conditions should therefore be checked at the time of purchase.
Warranty claims remain subject to Rosslare's applicable warranty conditions, eligibility requirements and RMA procedures.

About Rosslare

Rosslare develops professional electronic security and access-control products for enterprise, commercial and residential applications. Its product portfolio includes access controllers, readers, credentials, door accessories, detectors and associated security-system products.

Datasheets & Downloadable Resources

Official PX-13 Datasheet:
Download the Rosslare PX-13 Datasheet (PDF)

Rosslare Door Accessories & Product Resources:
Rosslare Door Accessories

Rosslare Download Centre:
Rosslare Download Centre

Rosslare Warranty Policy:
Rosslare Warranty Information

Excellence for the Australian and New Zealand Market

The Rosslare PX-13 is well suited to professional Australian and New Zealand access-control projects requiring a rugged, weather-resistant and long-life switching solution. Its IP68 ingress protection, broad operating-temperature range and robust piezoelectric technology make it particularly useful where equipment may be exposed to demanding indoor or outdoor conditions.

For Australian and New Zealand projects, installers should confirm that the complete access-control installation, including power supplies, controllers, cabling and associated hardware, complies with all applicable local standards and regulatory requirements.

No claim of NDSS approval or a specific Australian/New Zealand product certification has been included because this was not supported by the supplied documentation or verified manufacturer information.

Warranty support should be handled in accordance with the applicable seller and Rosslare warranty process. Rosslare's current warranty policy provides for an RMA process for eligible warranty claims.

FAQs

What is the Rosslare PX-13 used for?

The Rosslare PX-13 is a rugged piezoelectric switch designed for access control, request-to-exit (REX), security-system inputs and compatible general-purpose switching applications.

Is the Rosslare PX-13 waterproof?

Yes. The Rosslare PX-13 is rated IP68, with its potted construction designed to protect against water, dirt and dust.

Can the Rosslare PX-13 be installed outdoors?

Yes. The Rosslare PX-13 is specified by Rosslare for both indoor and outdoor environments and operates from -40°C to +70°C.

What mounting size does the Rosslare PX-13 require?

The Rosslare PX-13 uses a standard 22 mm mounting thread, making it suitable for compatible panel-mounted installations.

What voltage can the Rosslare PX-13 switch?

Rosslare's current official datasheet specifies the Rosslare PX-13 for 0–30 V AC/DC, with a maximum switching current of 1 A.

Does the Rosslare PX-13 require correct wire polarity?

No. The Rosslare PX-13 uses a two-wire interface with no polarity requirement, simplifying connection to compatible systems.

How long does the Rosslare PX-13 switch last?

The current manufacturer datasheet rates the Rosslare PX-13 for up to 20 million cycles, benefiting from piezoelectric technology with no conventional moving switch mechanism.

Is the Rosslare PX-13 compatible with Rosslare access controllers?

Yes. The Rosslare PX-13 is designed for compatibility with Rosslare controllers and security systems and can also be integrated with many compatible third-party systems.

What colours are available for the Rosslare PX-13?

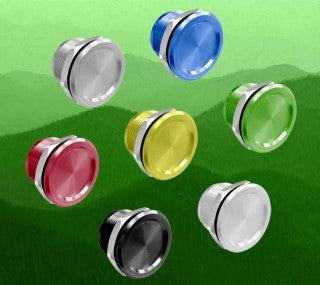

The supplied ordering documentation lists Rosslare PX-13 variants in Black, Gold, Blue, Green, Natural, Red and White. Colour availability should be confirmed when ordering.

What warranty does the Rosslare PX-13 have?

Rosslare's current warranty information lists the Rosslare PX-13 under its limited lifetime warranty category. Warranty eligibility and claims remain subject to Rosslare's applicable warranty terms and RMA process.
