ROSSLARE ME‑0515M‑A Multi‑Purpose Switch Mode Power Supply & Enclosure – Dual 12 VDC@2 A Outputs, PTC Resettable Fuses, Battery Backup, LED Bar – 228 × 224 × 84 mm – 240 VAC Input

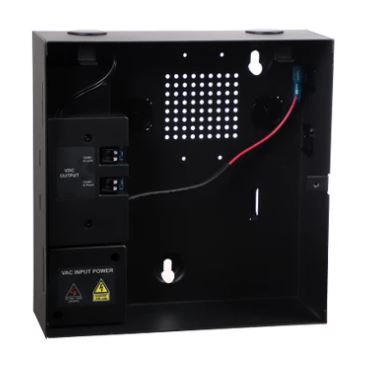

The ROSSLARE ME‑0515M‑A is a professional-grade multi-purpose switch mode power supply enclosed in a compact metal case, ideal for security, access control, and CCTV applications. Featuring dual 12 VDC outputs at 2 A each with PTC resettable fuses, an integrated LED status bar, and seamless battery backup support, this power enclosure is designed to deliver uninterrupted performance in mission-critical installations. Its wide AC input range (100–240 VAC) makes it globally deployable and fully compatible with Australian and New Zealand electrical standards.

What’s Included in the Box

• 1 × ME‑0515M‑A power‑management enclosure with switch‑mode supply & PM‑05 module

• 1 × IEC C13 mains power inlet with PowerLock™ clamp

• 1 × Internal LED bar indicator (10 white LEDs)

• Wall mounting hardware

• Installation manual

Note: Backup battery (12 V, 7 Ah sealed lead-acid) is not included.

Main Features

• Universal input voltage: 100–240 VAC, 50/60 Hz, 1.5 A max input current

• Internal SMPS provides 15 VDC at 4 A to PM‑05 module

• Two independent 12 VDC output channels @ 2 A each with isolated PTC resettable fuses

• Integrated 13.8 V battery charger with UPS-style automatic switchover

• LED bar with 10 white indicators (10 mA each) for power/battery status

• Secure PowerLock™ C13 power socket prevents accidental disconnection

• Heavy-duty metal enclosure with wall-mount compatibility (228 × 224 × 84 mm)

• Designed for high-reliability installations like security panels and NVR racks

• 24-month manufacturer warranty

Detailed Specifications

Warranty Information

The ME‑0515M‑A is covered by a 24‑month limited manufacturer warranty, ensuring reliable performance and peace of mind for professional installers and system integrators.

Brand Description

ROSSLARE Enterprises Ltd is a global provider of high-quality security products and access control solutions. Renowned for innovation, reliability, and performance, Rosslare has earned trust among professional installers and system designers worldwide. Their product portfolio includes readers, controllers, accessories, and integrated power systems suited for commercial, industrial, and institutional markets.

Practical Use Scenarios

• Powering access control panels and electric door locks in commercial buildings

• Supplying isolated power to CCTV cameras and NVRs in professional security systems

• Creating a UPS-ready power hub for alarm systems using a 12 V sealed lead-acid battery

• Reliable dual output for intercoms, proximity readers, and other low-voltage devices

• Ideal for integrators seeking a clean, wall-mounted power enclosure with LED status visibility

Excellence for the Australian and New Zealand Market

• Fully compatible with 230–240 VAC mains, standard in Australia and New Zealand

• Meets local installation standards for commercial and residential electrical setups

• Product supplied exclusively through authorised Rosslare representatives for the ANZ region

• Warranty service and support are handled directly via the brand or authorised distributors

• Ideal fit for ANZ infrastructure – enclosure size suits standard wall-mount configurations used locally

SKU Field

SKU: ME‑0515M‑A

Datasheets & Downloadable Resources

• Data sheet

FAQs (Product Code: ME‑0515M‑A)

Q1: Does the ME‑0515M‑A support 240 V mains in Australia?
A1: Yes, the ME‑0515M‑A accepts a universal AC input from 100 V to 240 V, making it fully compatible with Australian and New Zealand power standards.

Q2: Can I connect two separate devices to the ME‑0515M‑A and have each individually protected?
A2: Absolutely. The unit features two isolated 12 VDC output channels, each protected by a self-resetting PTC fuse, allowing for independent and safe operation of two devices.

Q3: Is the backup battery included in the ME‑0515M‑A package?
A3: No, the 12 V 7 Ah sealed lead-acid battery is not included. It must be purchased separately.

Q4: What voltages and current ratings does the ME‑0515M‑A provide?
A4: Internally, it supplies 15 VDC at 4 A to the power module, which outputs two 12 VDC channels at 2 A each.

Q5: What are the ME‑0515M‑A dimensions and how is it mounted?
A5: The unit measures 228 mm (H) × 224 mm (W) × 84 mm (D) and is designed for wall mounting using the included hardware.
