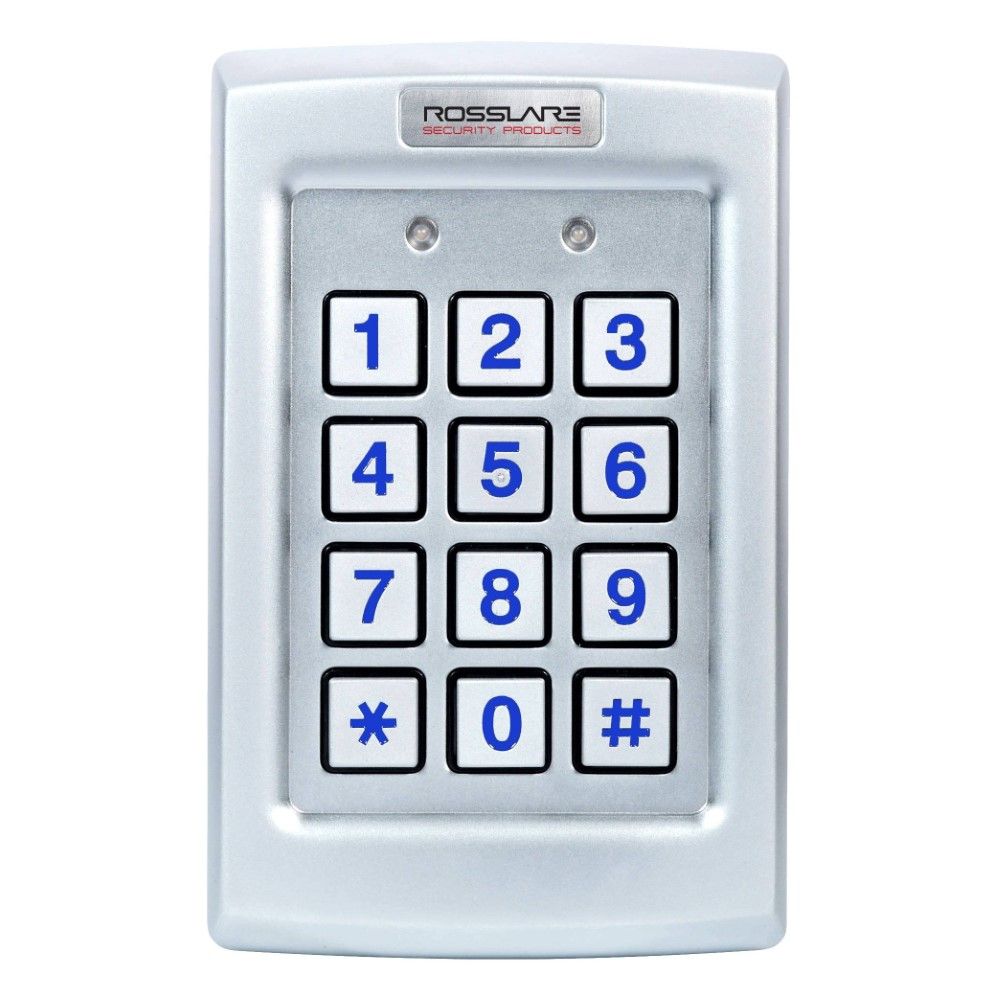

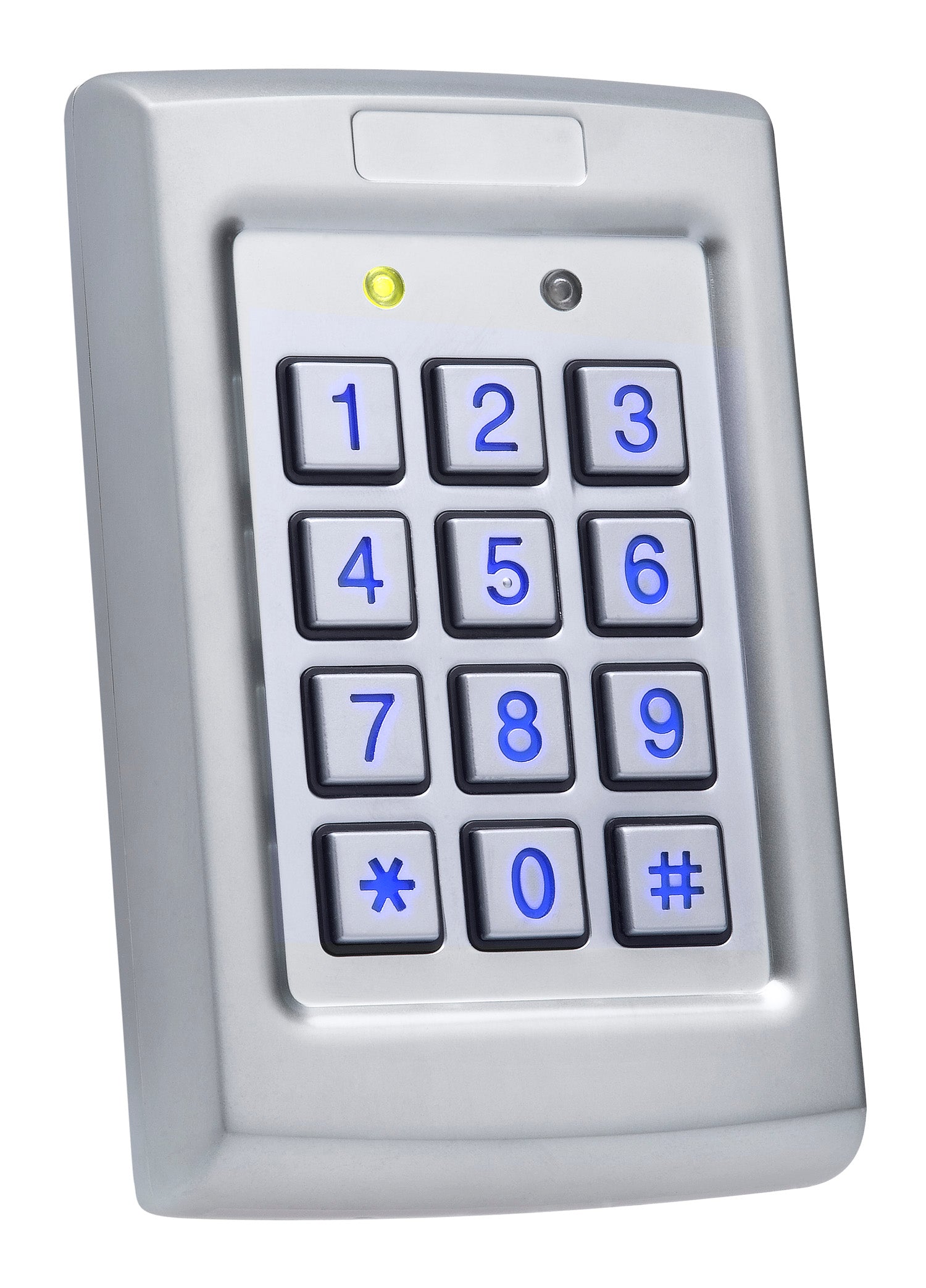

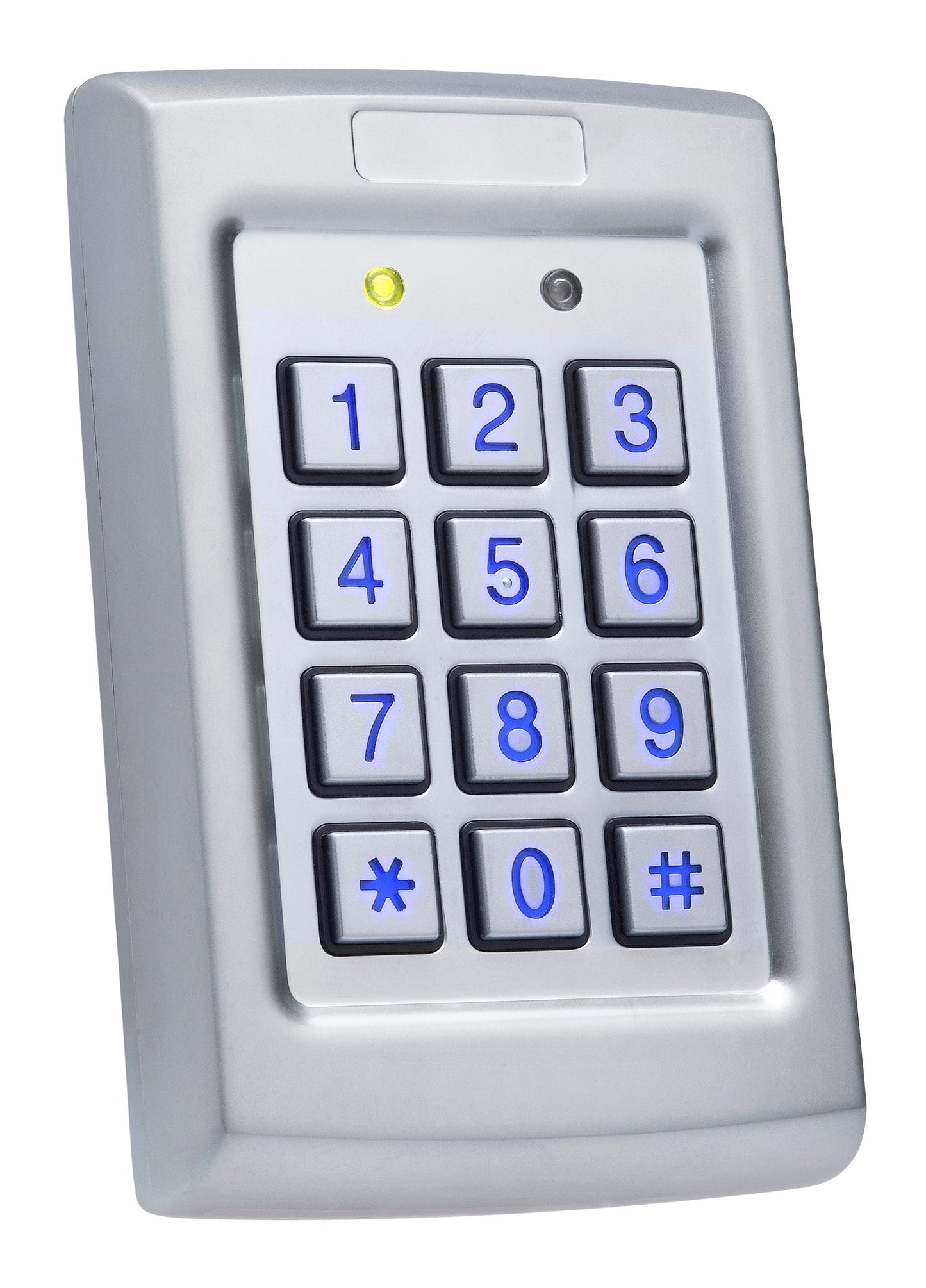

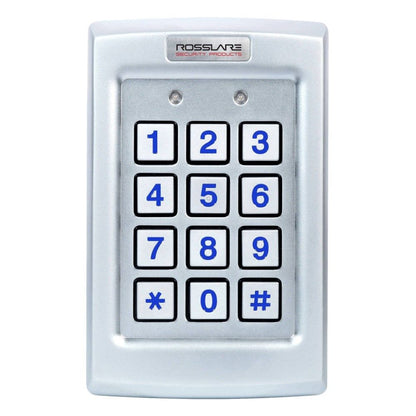

Rosslare AYC-Q54B Convertible Weather & Vandal-Resistant Keypad with backlight

The Rosslare AYC-Q54B is a robust, weatherproof, and vandal-resistant access control keypad designed to deliver secure and reliable performance. With its durable metallic housing, backlit keys, and advanced security features, it is suitable for both indoor and outdoor applications. This keypad can function as a standalone controller or integrate seamlessly into broader access control systems, making it an ideal choice for residential, commercial, and industrial environments.

Key Features

Design and Durability

• Weather-Resistant: Rated IP65, ensuring reliable performance in harsh outdoor conditions.
• Vandal-Resistant Construction: Built with a sturdy metallic housing to withstand tampering and physical abuse.
• Backlit Keypad: Large, blue backlit keys ensure visibility in low-light environments, with auto-dimming functionality for energy efficiency.

Access Control

• PIN Credential Support: Accepts 4- to 8-digit PINs for secure access.
• Convertible Functionality: Automatically converts into a 500-user standalone controller when paired with Rosslare’s PS-x25T intelligent power supply.
• Advanced PIN Transmission Modes: Offers 8 selectable modes, including Key Stream, Binary, Parity, and 3x4 Matrix for system compatibility.

Enhanced Security

• Optical Tamper Detection: Detects tampering on both the backplate and cover for added protection.
• Tri-Colored LEDs and Sounder: Provides clear visual and auditory feedback during operation and programming.
• Secure Installation: Includes a security screw and tool set to prevent unauthorized opening.

User-Friendly Features

• Menu-Based Programming: Simplifies configuration using the keypad, LED, and sounder indicators.
• Flexible Mounting Options: Comes with a mounting and drilling label for easy installation.
• Shielded Interface Cable: 60 cm (23.6 inches) shielded cable enhances signal integrity and installation flexibility.

Specifications

• Capacity: Standalone mode supports up to 500 users.
• Power Supply Compatibility: Automatically recognizes Rosslare’s PS-x25T intelligent power supply family.
• LED Indicators: Dual tri-colored LEDs for status and programming feedback.
• Sounder: Integral sounder for operation and alerts.
• Operating Temperature: Suitable for all weather conditions.
• Ingress Protection: IP65 for outdoor use.
• Dimensions: Compact and aesthetically pleasing design.
• Warranty: 60 months (5 years).

What’s in the Box

1. Rosslare AYC-Q54B Keypad Unit
2. Mounting and Drilling Label
3. Security Screw and Tool Set
4. Installation Manual

Applications

• Residential Access Control: Ideal for securing homes or apartment complexes.
• Commercial Spaces: Suitable for offices, retail stores, and warehouses.
• Outdoor Access Points: IP65-rated protection makes it perfect for gates, parking lots, and exterior doors.

The Rosslare AYC-Q54B combines rugged construction, advanced features, and aesthetic design, making it a top choice for secure and reliable access control in any environment.
