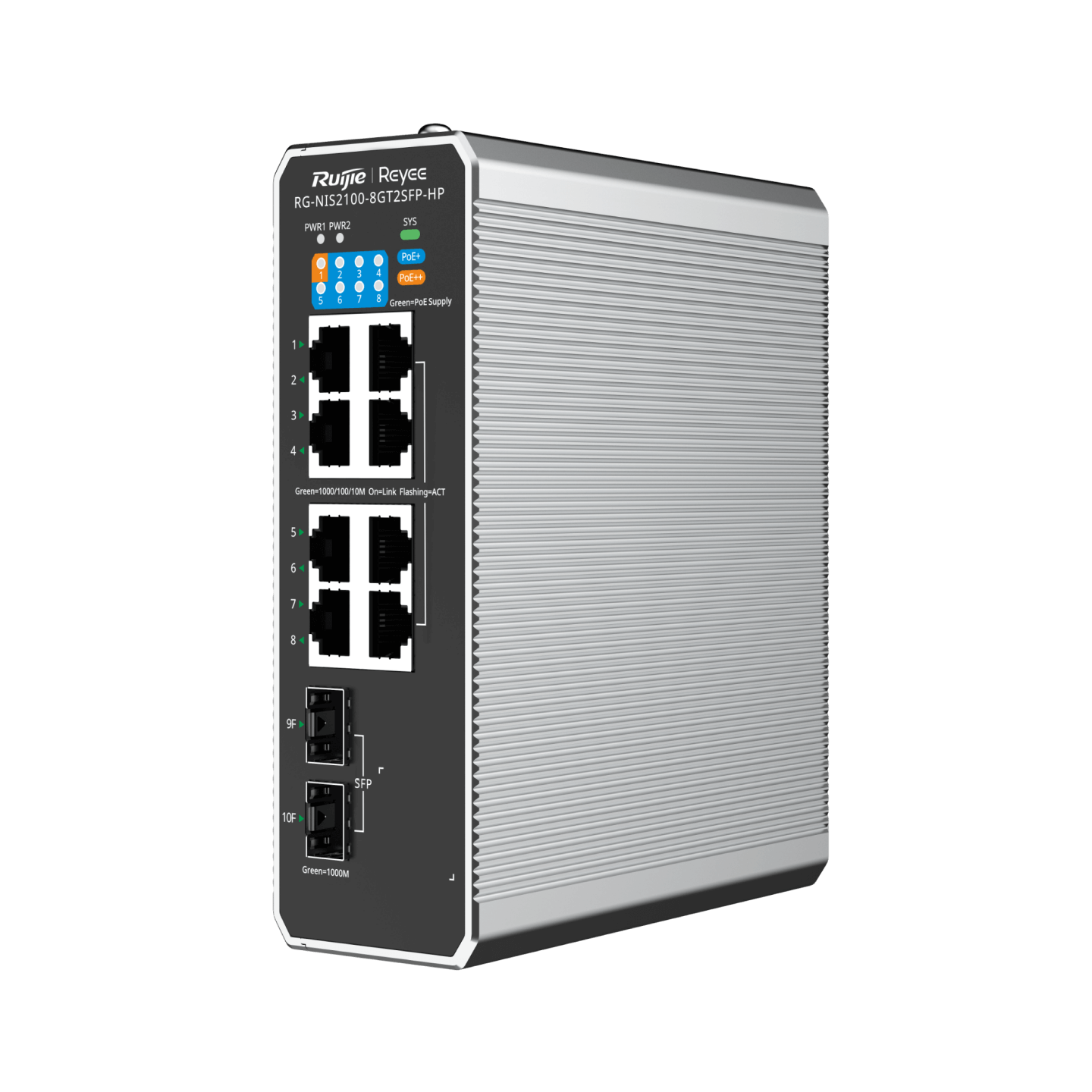

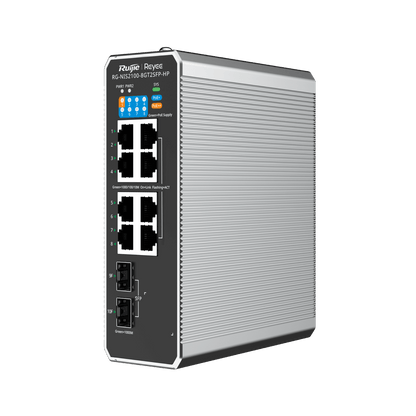

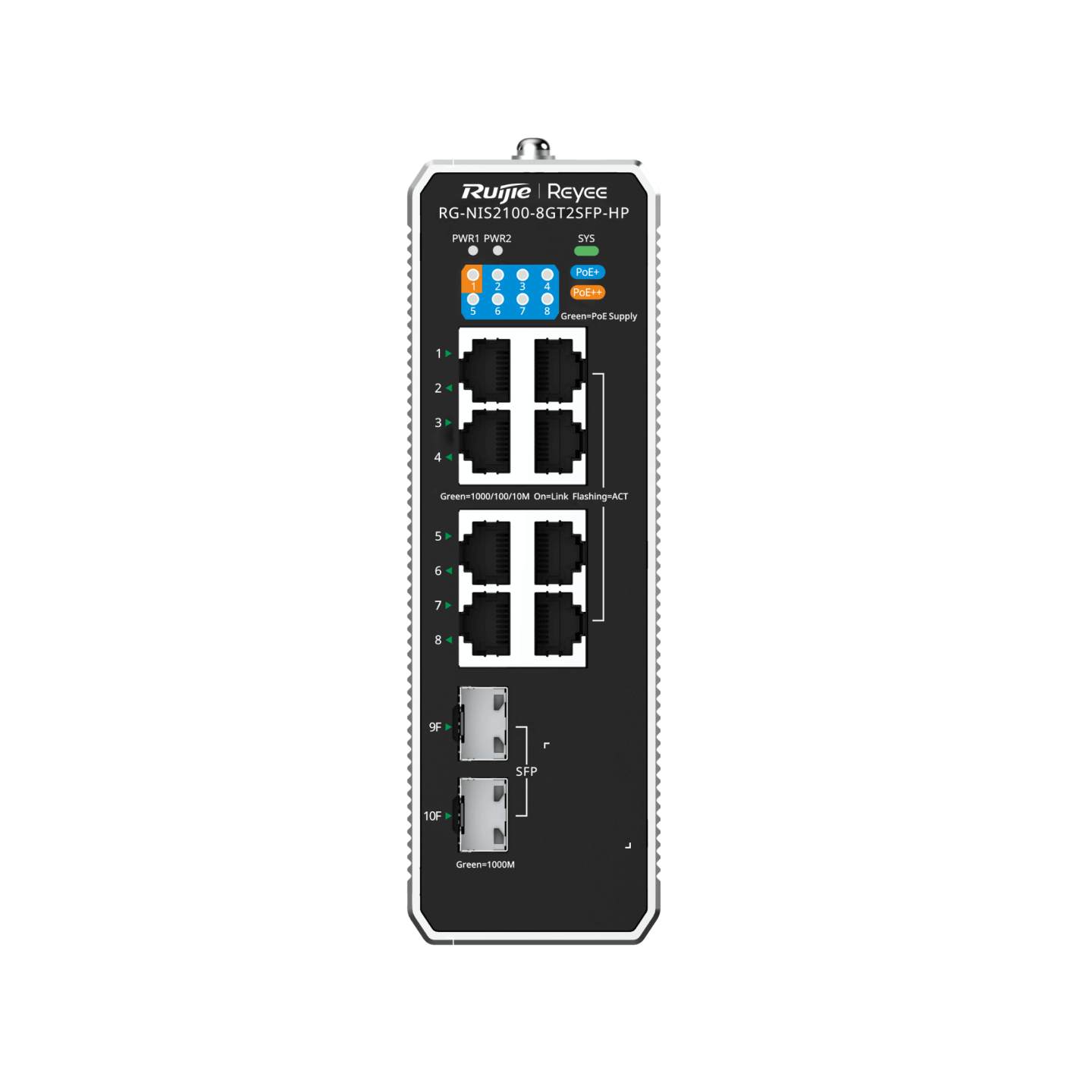

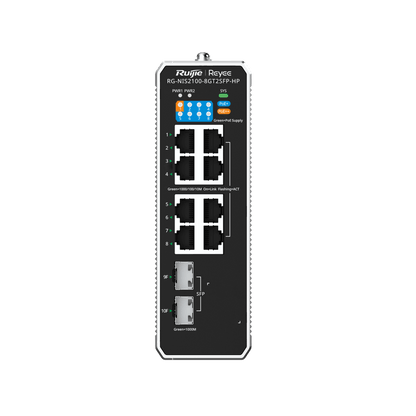

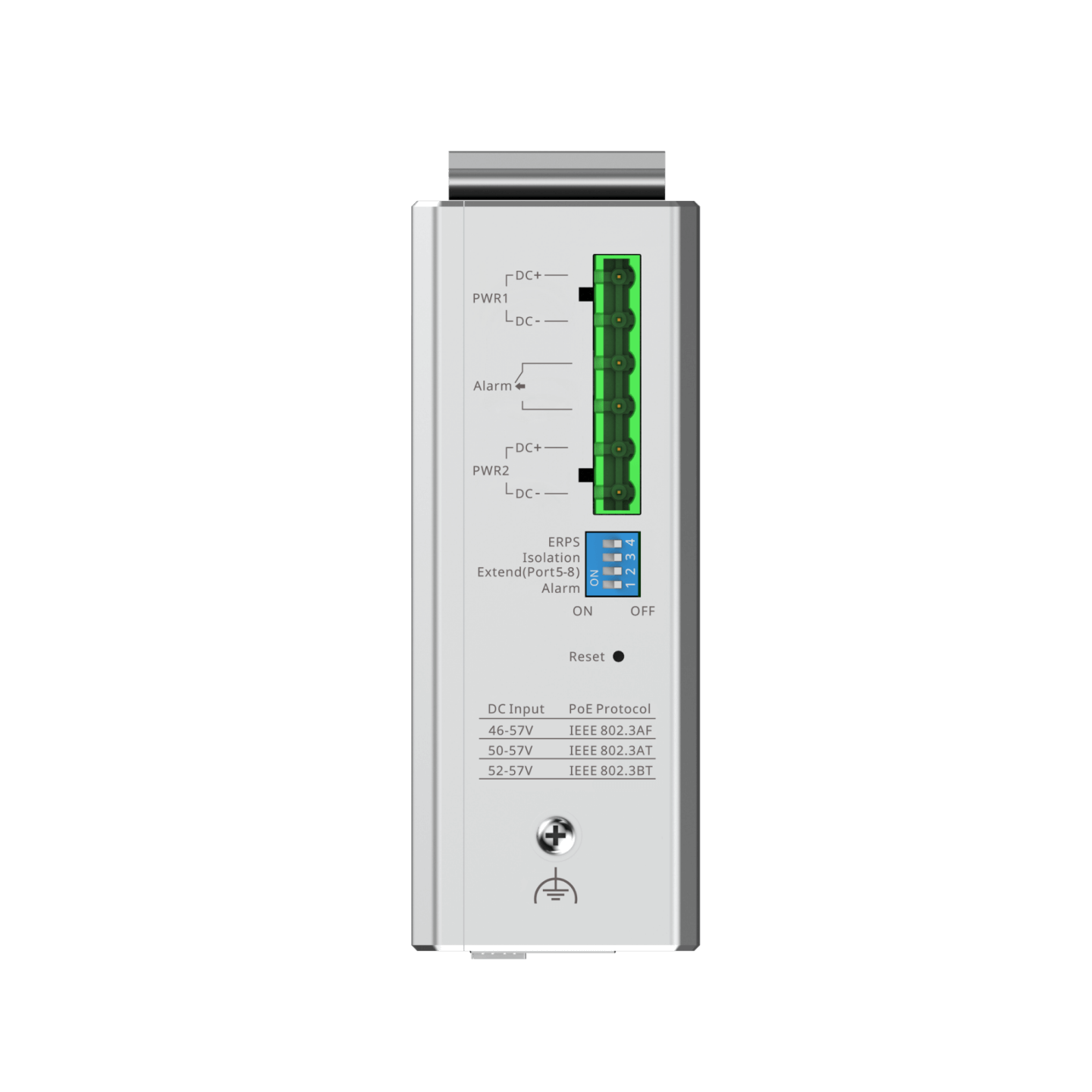

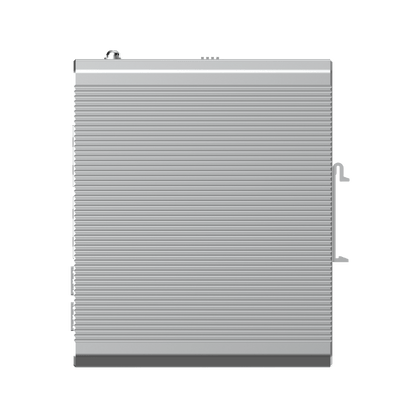

RG-NIS2100-8GT2SFP-HP 10-Port Cloud Managed Industrial Switch – 1 PoE++ Port, 7 PoE+ Ports, 2 SFP Uplinks, 90W PoE Output, Industrial-Grade

RG-NIS2100-8GT2SFP-HP 10-Port Cloud Managed Industrial Switch – 1 PoE++ Port, 7 PoE+ Ports, 2 SFP Uplinks, 90W PoE Output, Industrial-Grade

$676.88 AUD
$1,485.12 AUD $676.88 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The RG-NIS2100-8GT2SFP-HP is a 10-port industrial cloud-managed Layer 2 switch engineered for challenging environments such as CCTV networks, factories, coastal areas, and dusty industrial sites. Featuring 1 PoE++ port, 7 PoE+ ports, and 2 SFP uplink ports, this switch provides both power and data to high-performance devices including IP cameras, Wi-Fi access points, and IoT sensors via a single Ethernet cable.

Built for industrial-grade reliability, it operates across a wide temperature range of -40°C to +75°C and features IP40 protection against solid particles. With 6 kV surge protection and instant ERPS configuration, it ensures network stability and rapid failover in critical applications. Ruijie Cloud management allows for easy remote configuration and monitoring from anywhere.

What’s Included

  • RG-NIS2100-8GT2SFP-HP 10-Port Cloud Managed Industrial Switch

  • Power Adapter / Mounting Hardware

  • User Manual / Quick Start Guide

Key Features

  • Industrial-Grade Reliability: Operates from -40°C to +75°C; IP40 protection against solid particles.

  • PoE Output: 1 × PoE++ port and 7 × PoE+ ports, delivering 90W total for high-power devices.

  • SFP Uplinks: 2 × 1 Gbps SFP ports for high-speed uplink connectivity.

  • Cloud Management: Full remote configuration and monitoring via Ruijie Cloud.

  • Rapid Failover: ERPS instant configuration ensures continuous network service.

  • High Network Performance: Switching capacity of 20 Gbps and forwarding rate of 14.8 Mpps.

  • MAC Address Table: 8000 entries for efficient traffic handling.

  • VLAN Support: Up to 16 VLANs for segmentation.

  • Port Surge Protection: 6 kV common-mode protection to safeguard connected devices.

  • Compact Industrial Design: Rugged casing ideal for factories and harsh outdoor environments.

  • Warranty: 5-Year manufacturer-backed coverage.

Technical Specifications

Specification Details
10/100/1000BASE-T Ports 8
1 Gbps SFP Uplink Ports 2
PoE Ports 1 × PoE++, 7 × PoE+ (90W total)
Layer Type Layer 2
Switching Capacity 20 Gbps
Forwarding Rate 14.8 Mpps
MAC Address Table Size 8000 entries
Max VLANs 16
Dimensions (W×D×H) 50 × 155 × 130 mm (1.97 × 6.10 × 5.12 in.)
Net Weight 0.79 kg (1.74 lbs)
MTBF > 200,000 hours
Port Surge Protection 6 kV (common mode)
Operating Temperature -40°C to +75°C
Certifications CE
Warranty 5 Years

Practical Applications

  • CCTV Networks: Deploy high-power cameras with PoE++ and PoE+ support.

  • Factories & Industrial Sites: Reliable operation in harsh and dusty environments.

  • Office & Hospitality: Support access points, VoIP phones, and IoT devices efficiently.

  • Remote Cloud Management: Monitor and manage networks via Ruijie Cloud from any location.

Datasheet

A full technical datasheet for the RG-NIS2100-8GT2SFP-HP is available for download:
RG-NIS2100-8GT2SFP-HP Datasheet

SKU / Product Info

  • Model: RG-NIS2100-8GT2SFP-HP

  • Series: 10-Port Cloud Managed Industrial Switch

  • Brand: Ruijie

  • Warranty: 5 Years
