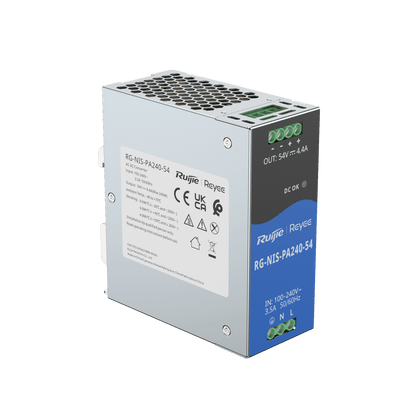

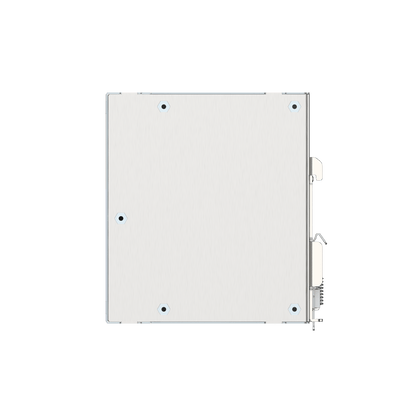

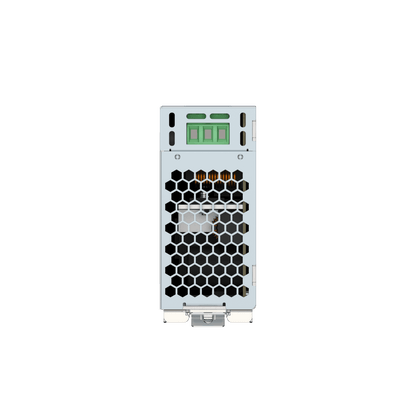

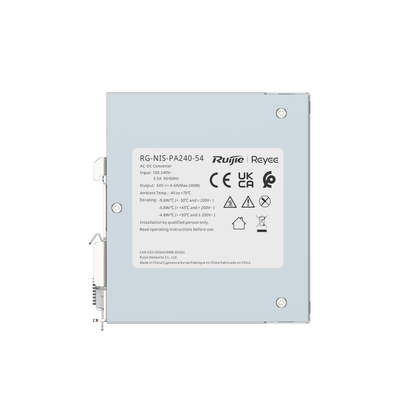

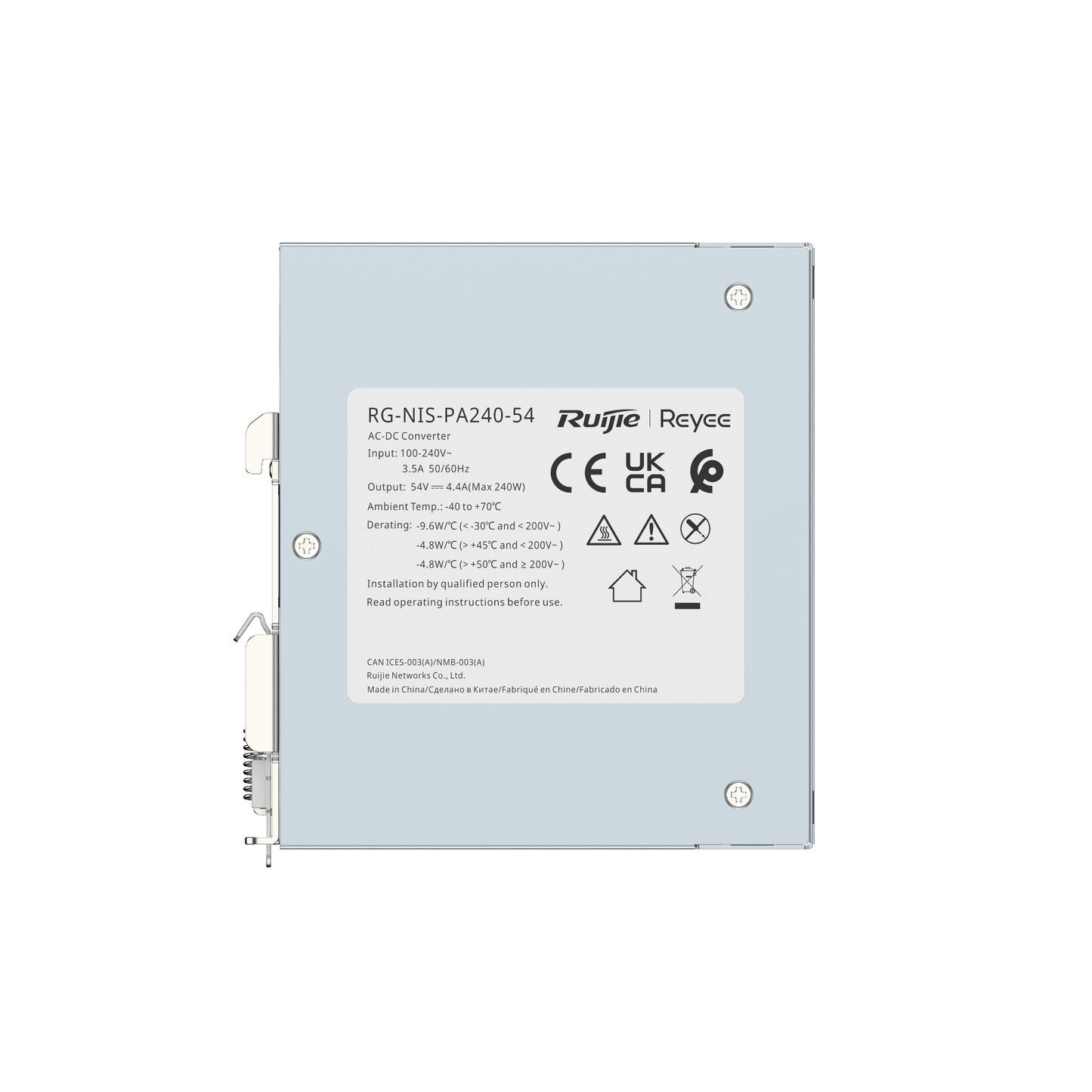

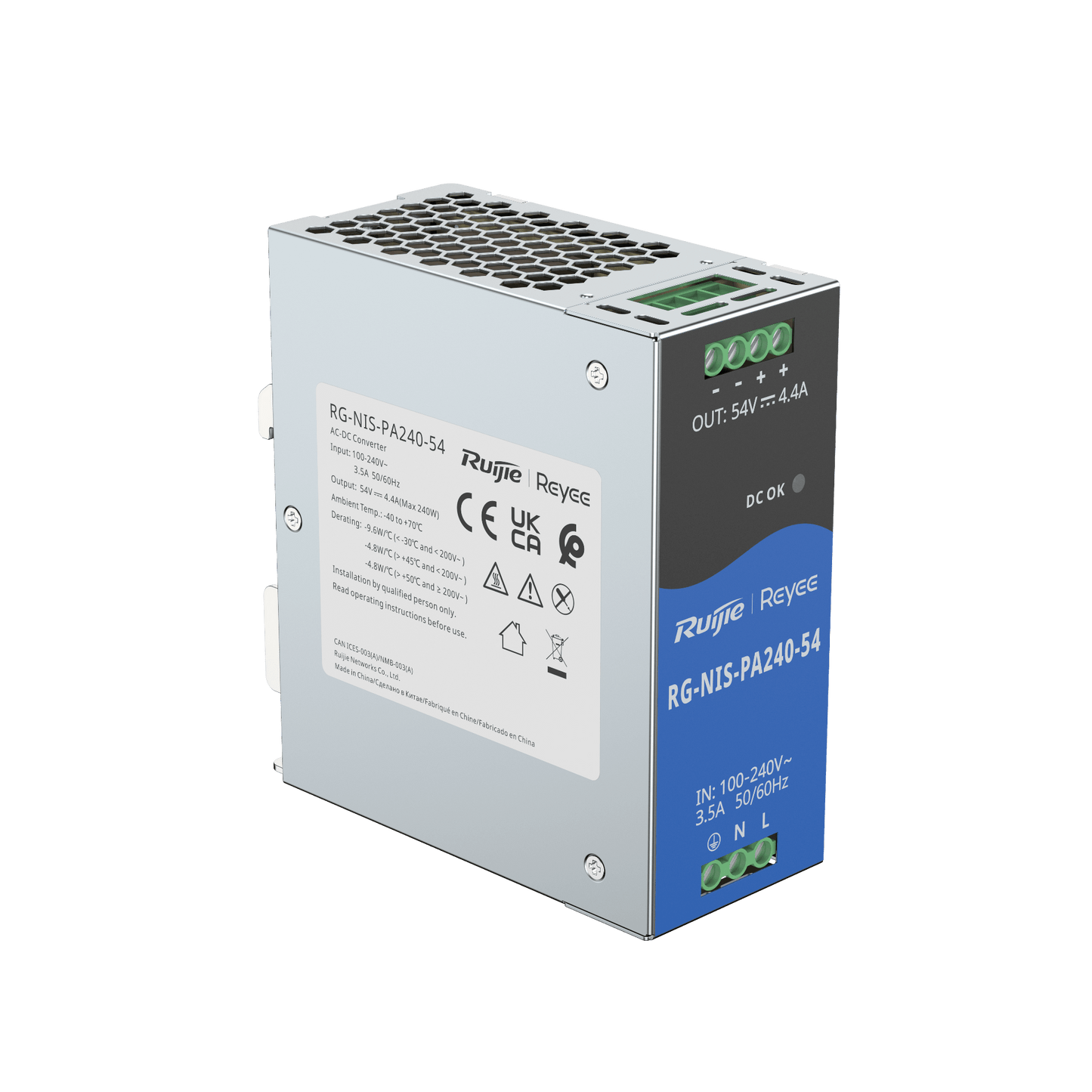

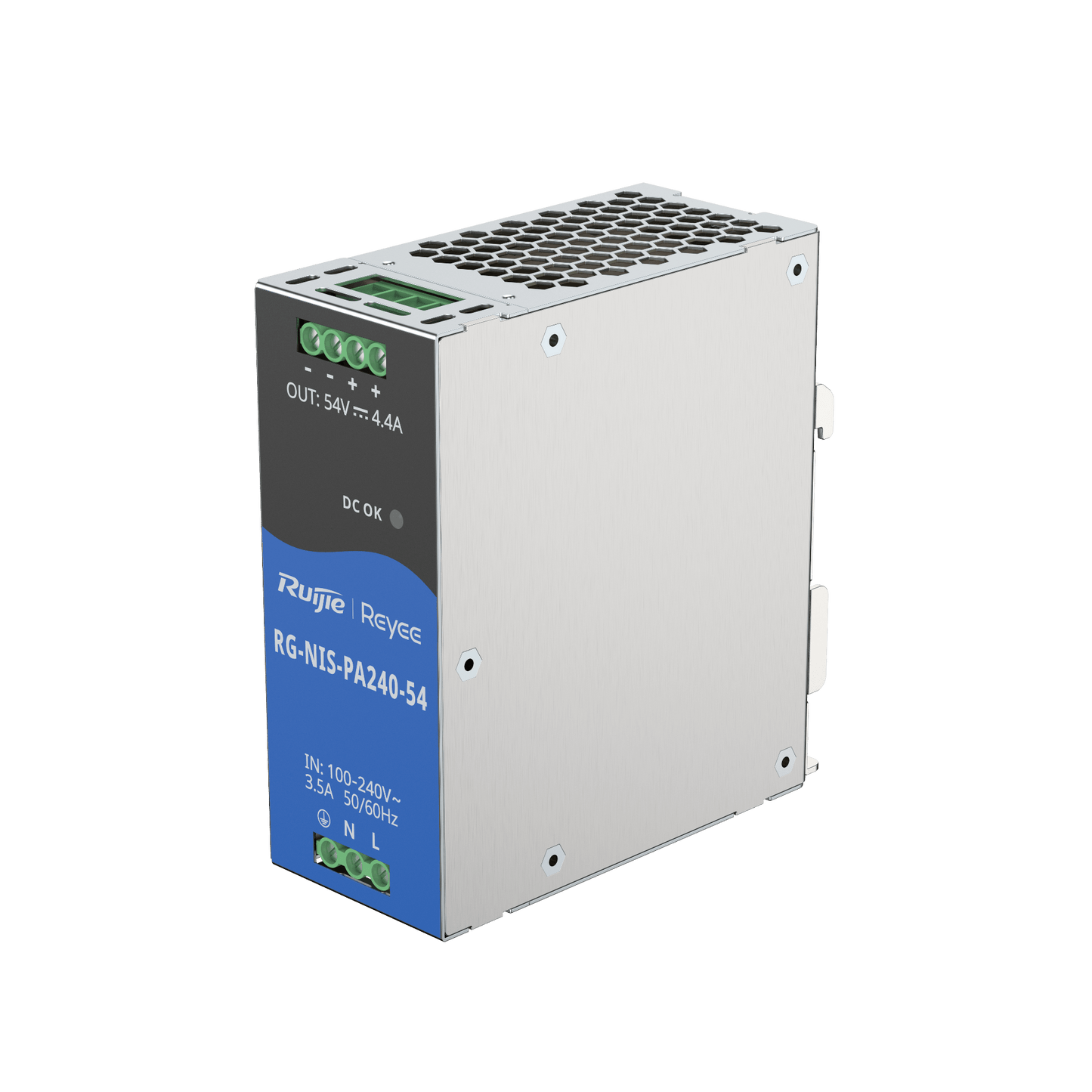

RG-NIS-PA Industrial Power Supply – RG-NIS-PA120-54 & RG-NIS-PA240-54, Fanless, 52V DC Output, Industrial-Grade Reliability

RG-NIS-PA Industrial Power Supply – RG-NIS-PA120-54 & RG-NIS-PA240-54, Fanless, 52V DC Output, Industrial-Grade Reliability

$175.98 AUD
$331.50 AUD $175.98 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The RG-NIS-PA Series includes the RG-NIS-PA120-54 and RG-NIS-PA240-54, industrial-grade DC power supplies engineered for reliable operation in challenging environments. Designed for industrial switches, CCTV systems, and other high-demand network devices, these fanless power supplies provide stable 52V DC output while operating silently.

With a wide operating temperature range of –40°C to +70°C and DIN-rail mounting support, these power supplies ensure robust performance in factories, coastal regions, and dusty industrial sites. Comprehensive surge and ESD protection, along with full compliance to EN 62638-1 and EMC standards, ensures equipment safety and uninterrupted operation.

What’s Included

  • RG-NIS-PA120-54 or RG-NIS-PA240-54 Power Supply

  • DIN-Rail Mounting Accessories

  • User Manual / Quick Start Guide

Key Features

  • Industrial-Grade Reliability: Operates from –40°C to +70°C with derating in extreme conditions.

  • Fanless & Silent: No moving parts for noiseless and maintenance-free operation.

  • PoE Power Supply: Provides stable DC voltage for industrial switches and network devices.

  • Comprehensive Protection: Short circuit, over-current, over-voltage, over-temperature, 6 kV surge, and 8 kV ESD protection.

  • DIN-Rail Mounting: Easy installation in industrial cabinets or racks.

  • Wide Input Range: 90–264V AC, 50/60Hz for global compatibility.

  • EMC & Safety Compliance: EN 62638-1, EN 55032, IEC 61000-4 series standards.

  • Compact & Lightweight: RG-NIS-PA120-54: 0.48 kg; RG-NIS-PA240-54: 0.75 kg.

  • Warranty: 3-Year manufacturer-backed coverage.

Technical Specifications

Specification RG-NIS-PA120-54 RG-NIS-PA240-54
Dimensions (W×D×H) 35 × 100 × 125 mm 52 × 110 × 125 mm
Net Weight 0.48 kg 0.75 kg
Gross Weight (Packaged) 0.57 kg 0.87 kg
MTBF >150,000 hours >150,000 hours
Input Voltage Range 90–264 V AC 90–264 V AC
Input Frequency 50/60 Hz 50/60 Hz
Input Current 4 A 3.5 A
Output Voltage 52.38–55.62 V DC 52.38–55.62 V DC
Output Current 2.2 A 4.4 A
Power Consumption ≤120 W ≤240 W
Surge Protection Common mode: 4 kV; Differential mode: 2 kV Common mode: 4 kV; Differential mode: 2 kV
Fans Fanless Fanless
Acoustic Noise Level Noiseless Noiseless
Max Heat Dissipation 410.4 BTU/hr (220V/50Hz) 820.8 BTU/hr (220V/50Hz)
Operating Temperature –40°C to +70°C –40°C to +70°C
Storage Temperature –40°C to +85°C –40°C to +85°C
Operating Humidity 5–95% RH (non-condensing) 5–95% RH (non-condensing)
Storage Humidity 5–95% RH (non-condensing) 5–95% RH (non-condensing)
ESD Protection Air: 8 kV; Contact: 6 kV Air: 8 kV; Contact: 6 kV
Casing Metal Metal
Mounting DIN-Rail DIN-Rail
LED Indicators System: DC OK (Green) System: DC OK (Green)
Operating Altitude –500 to 5000 m –500 to 5000 m
Certification CE CE
Warranty 3 Years 3 Years

Practical Applications

  • Industrial Switch Power Supply: Stable 52V DC for industrial networking devices.

  • CCTV & Surveillance: High-reliability power for IP cameras in harsh environments.

  • Factories & Coastal Areas: Reliable operation in high temperatures, dust, or corrosive conditions.

  • DIN-Rail Integration: Easy installation in industrial cabinets or network racks.

Datasheet

A full technical datasheet for the RG-NIS-PA Series (RG-NIS-PA120-54 & RG-NIS-PA240-54) is available at:
RG-NIS-PA Series Datasheet – Ruijie

SKU / Product Info

  • Models: RG-NIS-PA120-54, RG-NIS-PA240-54

  • Brand: Ruijie

  • Warranty: 3 Years
