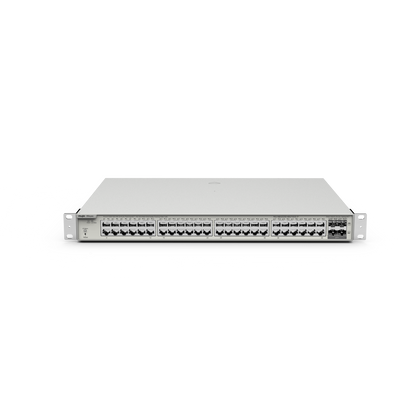

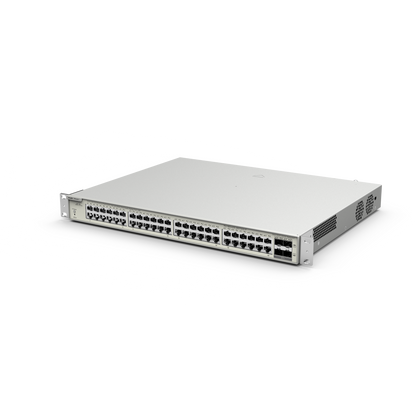

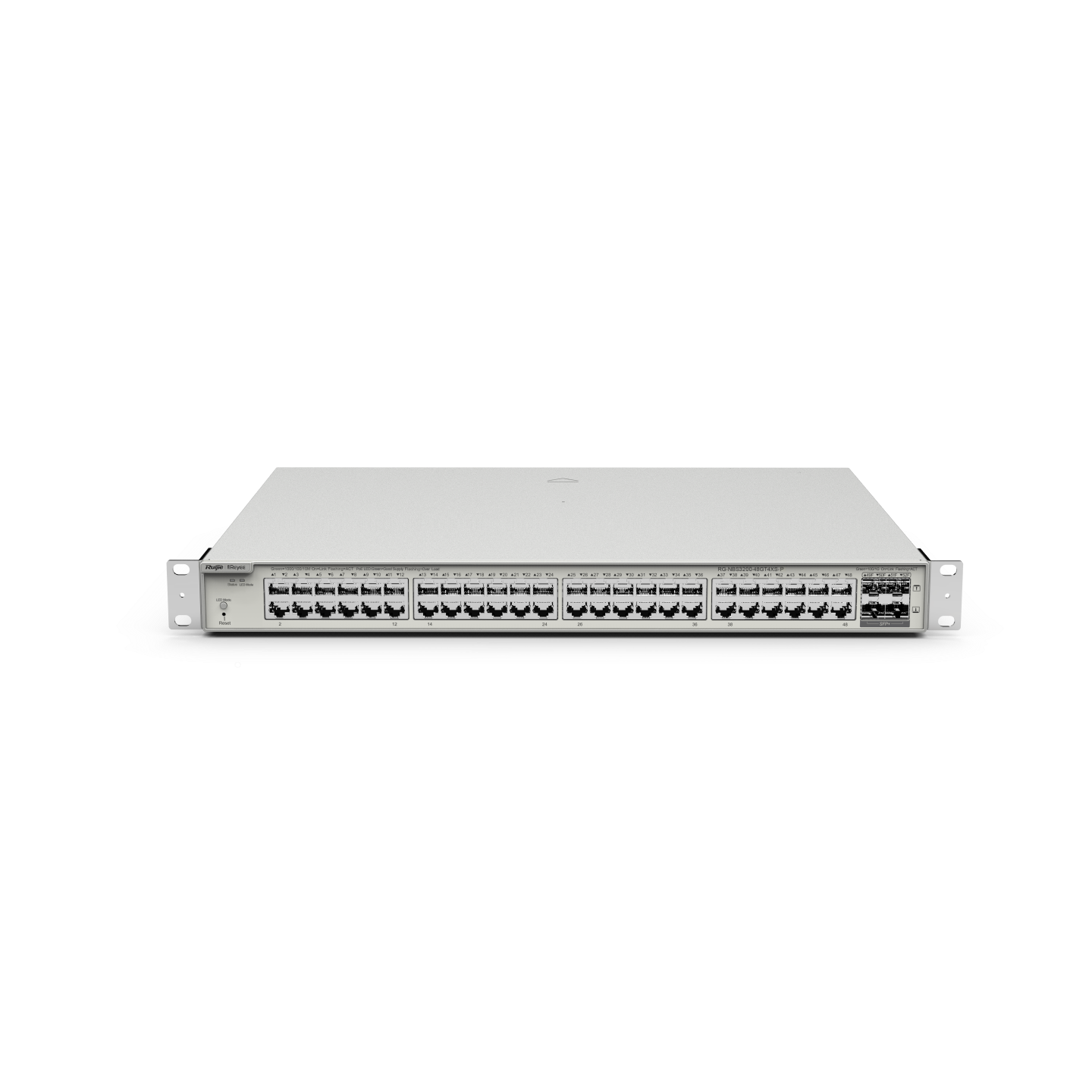

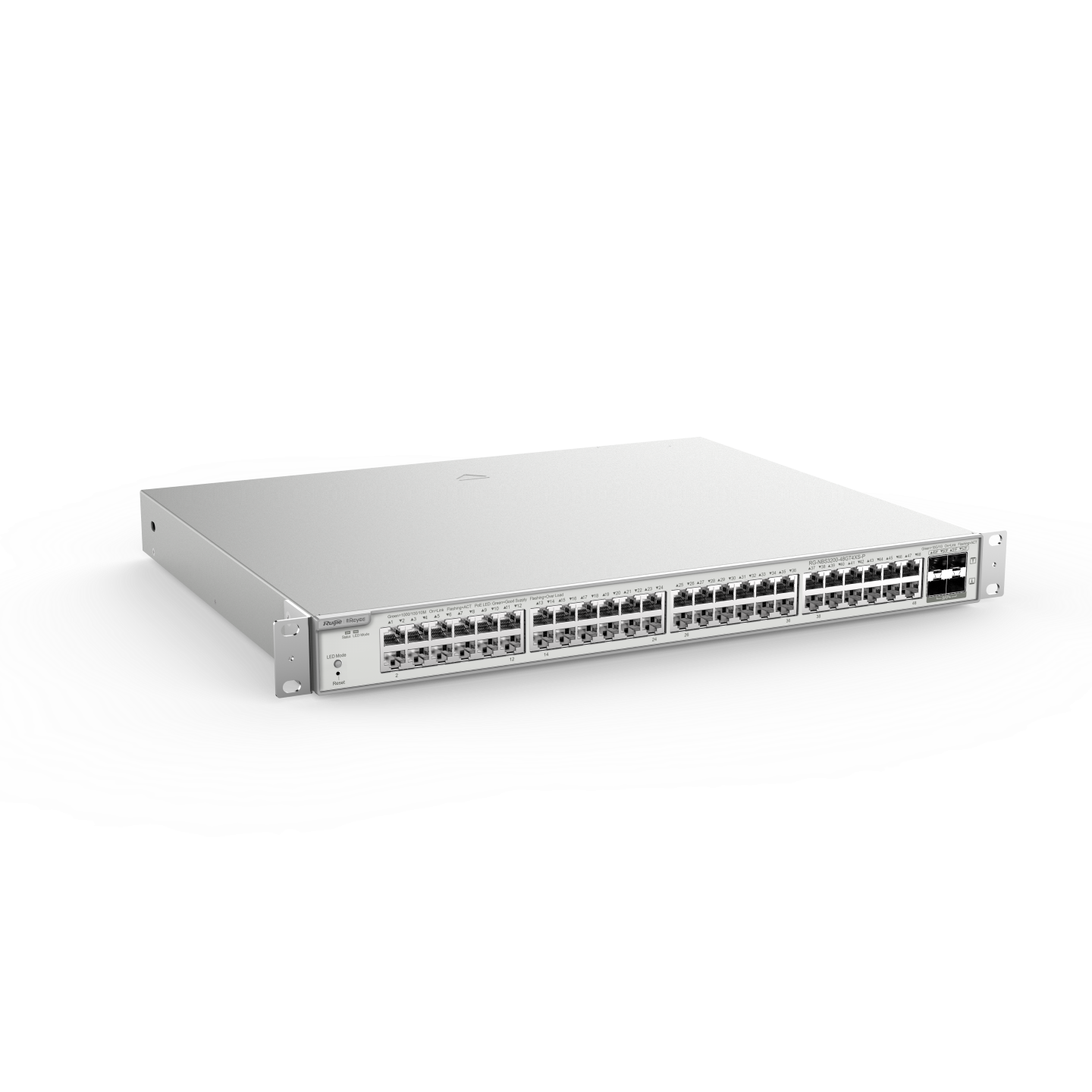

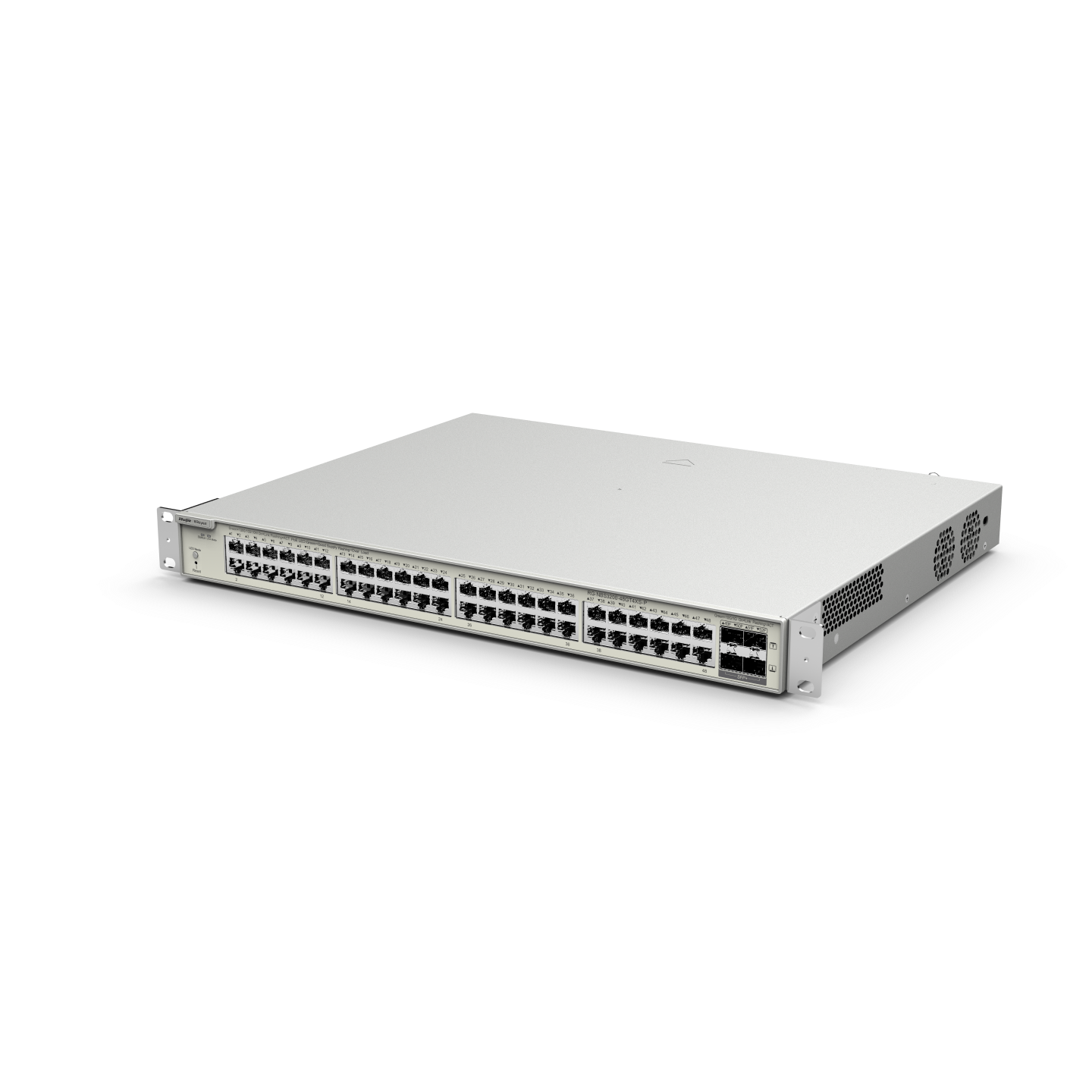

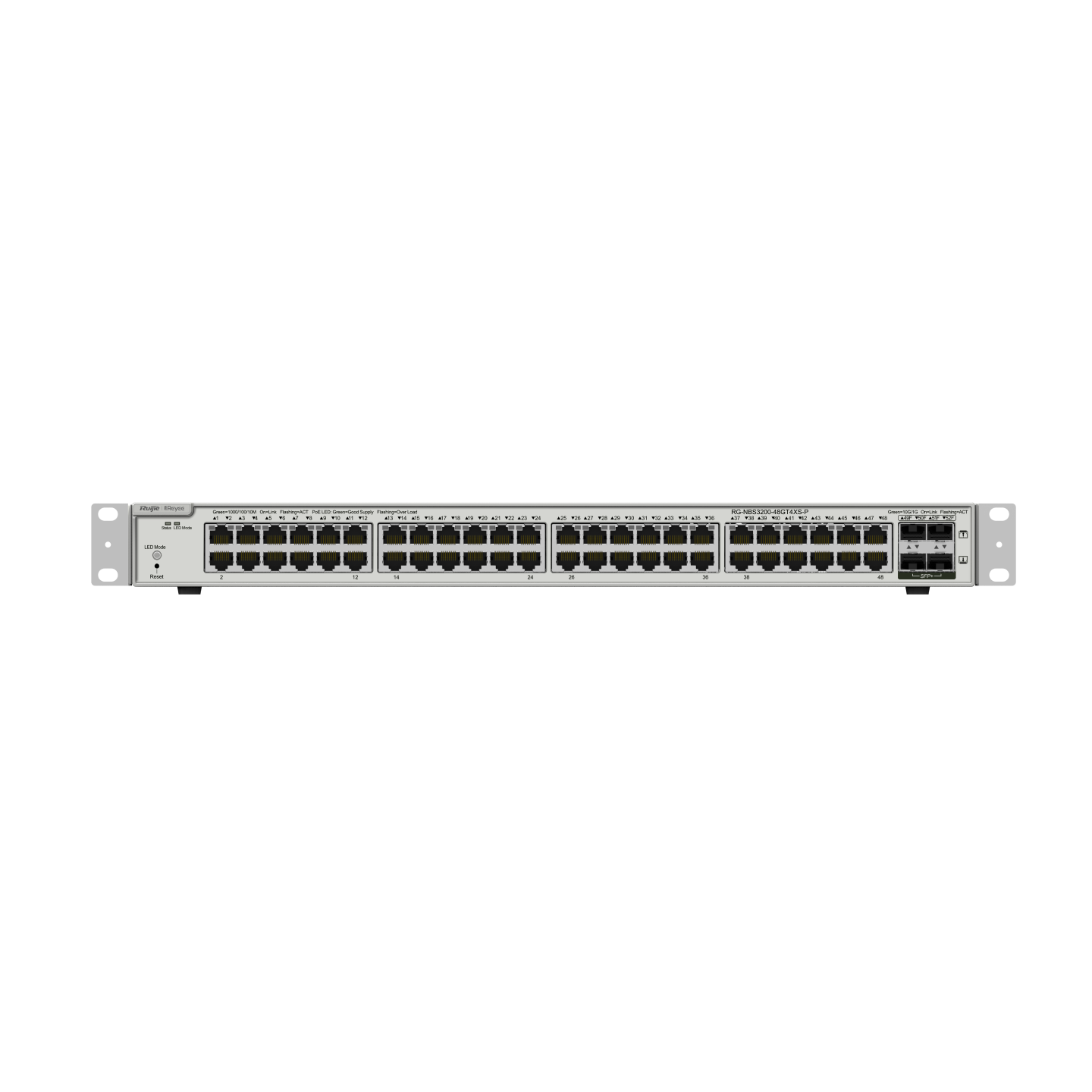

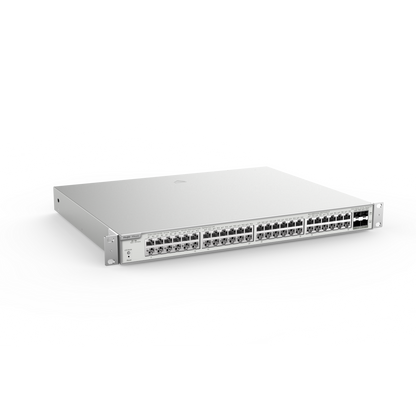

RG-NBS3200-48GT4XS-P 48-Port Gigabit Layer 2+ Cloud Managed PoE Switch – 48 PoE+ Ports, 4 × 10G SFP+ Uplinks, 370W, Enterprise-Class

RG-NBS3200-48GT4XS-P 48-Port Gigabit Layer 2+ Cloud Managed PoE Switch – 48 PoE+ Ports, 4 × 10G SFP+ Uplinks, 370W, Enterprise-Class

$2,017.36 AUD
$2,954.94 AUD $2,017.36 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The RG-NBS3200-48GT4XS-P is a 48-port Gigabit Layer 2+ cloud-managed PoE switch designed for enterprise, hospitality, factory, education, retail, and surveillance networks. Featuring 48 PoE+ ports and 4 × 10G SFP+ uplink ports, this switch delivers power and data to devices such as IP cameras, access points, and VoIP phones over a single Ethernet cable, reducing installation complexity.

Engineered for enterprise-class performance, it offers IP camera recognition, multiple security policies, and lifetime remote management via Ruijie Cloud, enabling network visibility and control from anywhere. The switch features dual fixed fans with side-to-rear airflow, high surge protection, and robust construction for continuous, high-speed network performance.

What’s Included

  • RG-NBS3200-48GT4XS-P 48-Port Layer 2+ PoE+ Switch

  • Power Adapter / Cable

  • User Manual / Quick Start Guide

Key Features

  • 48 Gigabit PoE+ Ports: Power IP cameras, APs, and VoIP devices directly via Ethernet.

  • 4 × 10G SFP+ Uplinks: High-speed uplinks for backbone connectivity or aggregation.

  • PoE Budget: 370W, compliant with IEEE 802.3af / 802.3at standards.

  • Layer 2+ Managed: Supports advanced networking and CCTV integration features.

  • IP Camera Recognition: Optimized for surveillance deployments for automatic detection.

  • Multiple Security Policies: Protects the network from unauthorized access and threats.

  • High Network Performance: Switching capacity of 216 Gbps and forwarding rate of 132 Mpps.

  • MAC Address Table: 16,000 entries for efficient traffic handling.

  • VLAN Support: Up to 4094 VLANs for segmentation.

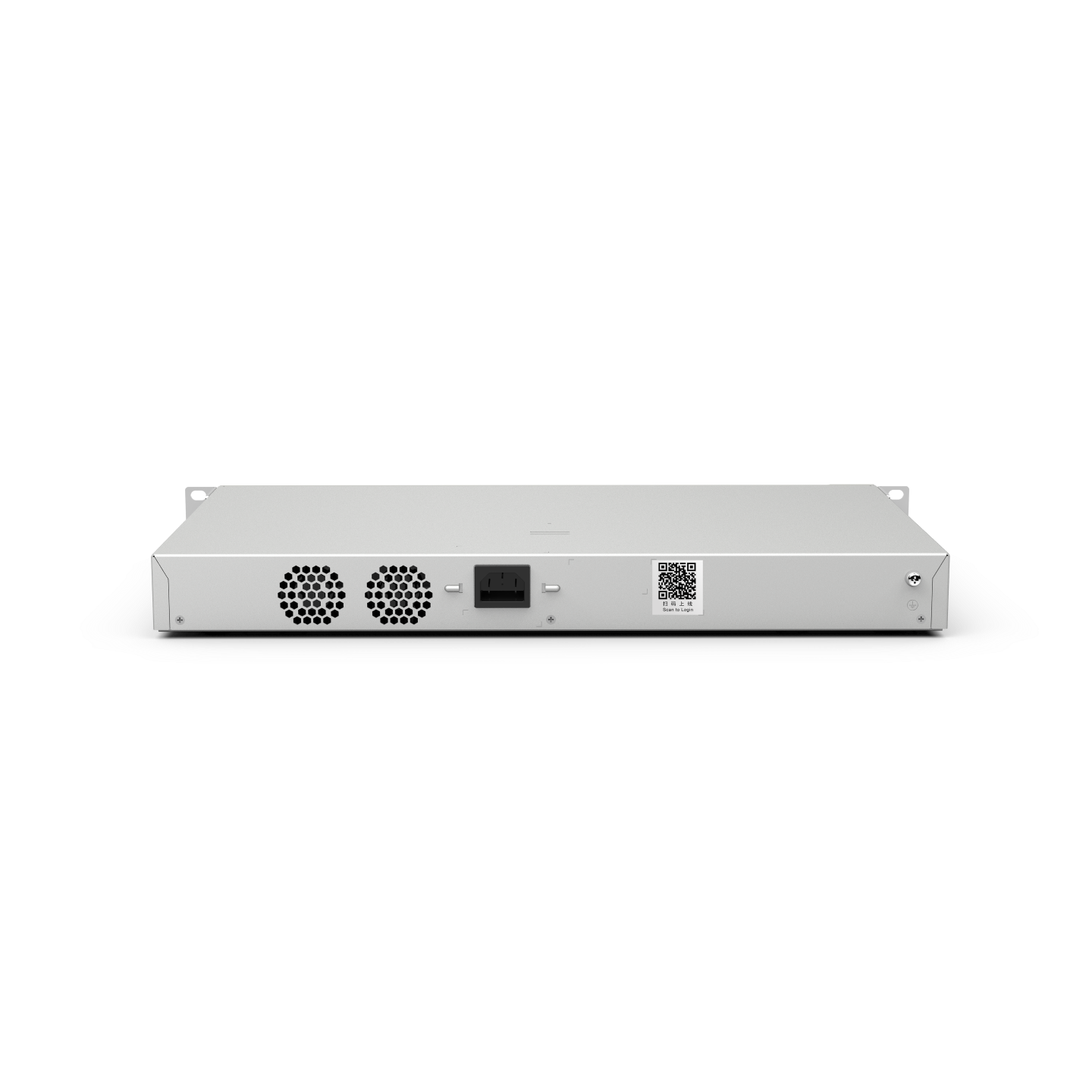

  • Dual Fixed Fans: Side-to-rear airflow ensures efficient cooling and reliable operation.

  • Port Surge Protection: ±6 kV for service ports and power connector.

  • Warranty: 5-Year manufacturer-backed coverage.

Technical Specifications

Specification Details
10/100/1000BASE-T Ports 48 PoE+ ports
10GE SFP+ Uplink Ports 4
PoE Standard IEEE 802.3af / 802.3at, 370W total
Switch Type Layer 2+ Cloud Managed
Switching Capacity 216 Gbps
Forwarding Rate 132 Mpps
MAC Address Table Size 16,000 entries
Max VLANs 4094
Fan 2 × fixed fans, side-to-rear airflow
Port Surge Protection ±6 kV service ports, ±6 kV power connector
Dimensions (W×D×H) 440 × 357.6 × 43.6 mm (17.32 × 14.08 × 1.72 in.)
Weight (Without Packaging) 5.4 kg (11.9 lbs)
MTBF 400,000 hours
Certifications CE, FCC
Warranty 5 Years

Practical Applications

  • Enterprise Networks: High-capacity PoE+ and Gigabit connectivity for IP phones, access points, and cameras.

  • Surveillance Systems: Deploy large-scale IP camera networks with PoE+ and automated recognition.

  • Hospitality & Retail: Stable network for Wi-Fi, POS systems, and monitoring cameras.

  • Factories & Educational Campuses: High-performance Layer 2+ networking with centralized cloud management.

Datasheet

A full technical datasheet for the RG-NBS3200-48GT4XS-P is available for download:
RG-NBS3200-48GT4XS-P Datasheet

SKU / Product Info

  • Model: RG-NBS3200-48GT4XS-P

  • Series: 48-Port Layer 2+ Cloud Managed PoE+ Switch

  • Brand: Ruijie

  • Warranty: 5 Years
